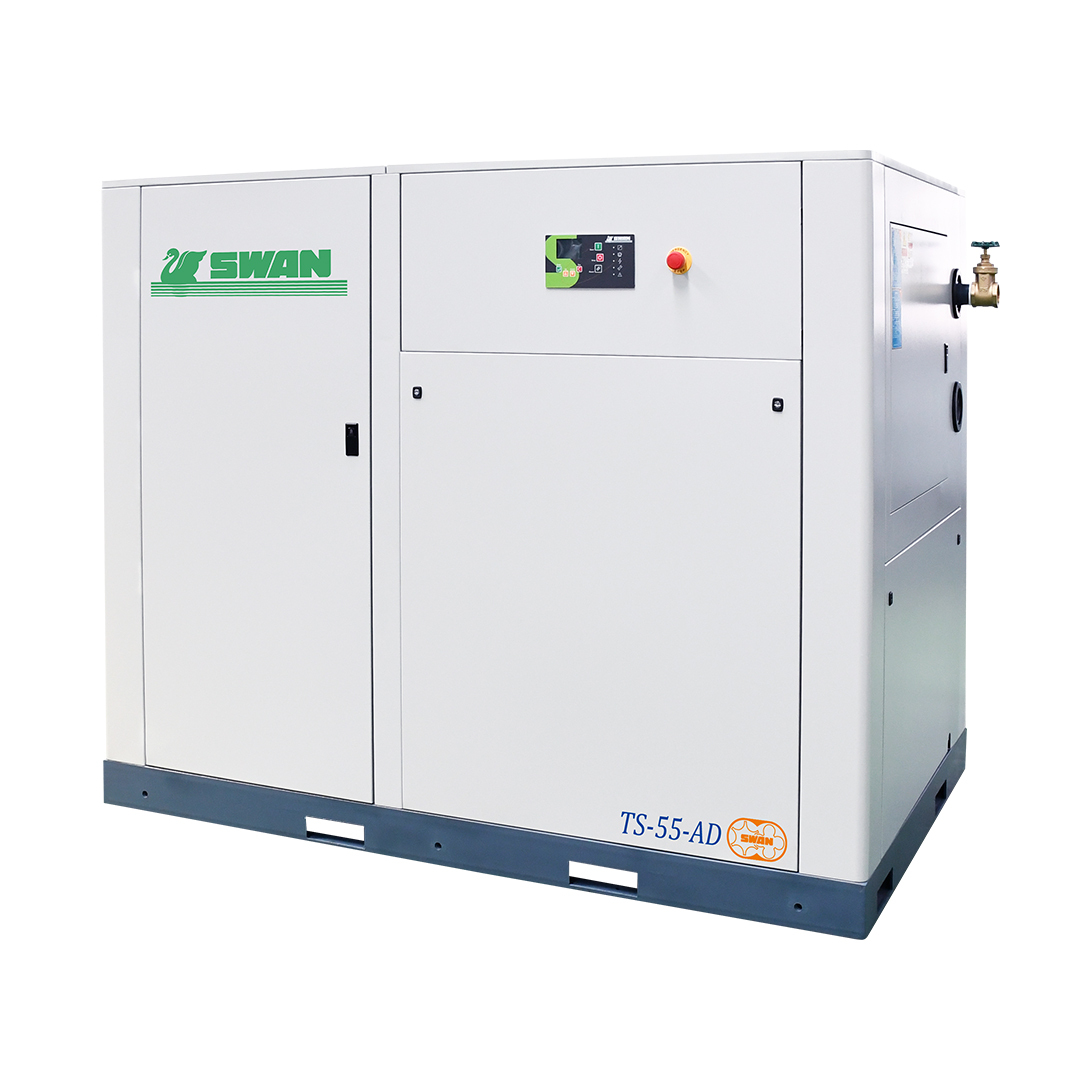

TS-AD Series

Direct Driven Design ‧With flexible coupling and 1:1 direct-drive design, the efficiency of transmission can reach up to 100%, lowering the noise level and vibration, and, thereby, eliminating transmission shocks.

Specifications

  • Horse power (HP) 30~100
  • Working pressure (kg/cm²) 8
  • Capacity (m³/min) 3.5~12.6

DIRECT-DRIVE SCREW COMPRESSOR SERIES

Best choice for stable, reliable, super powerful & low noise

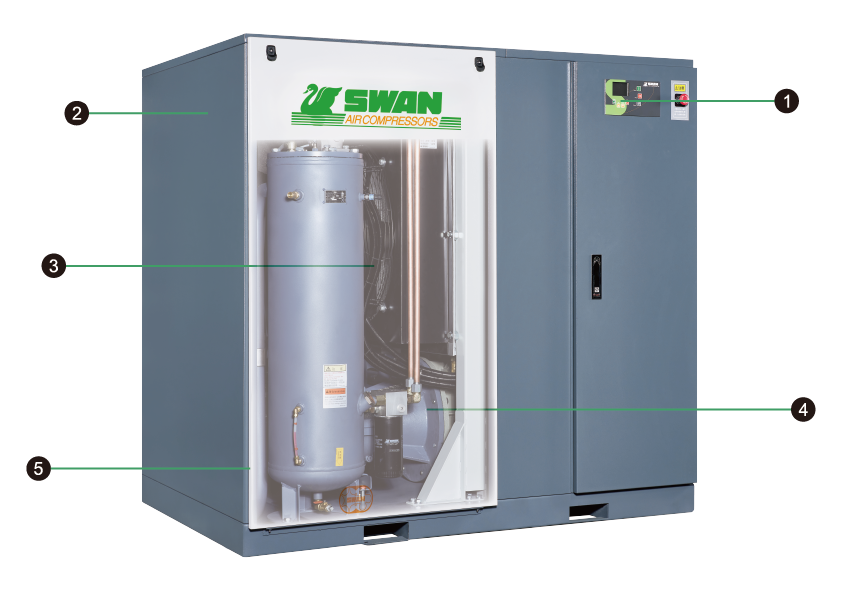

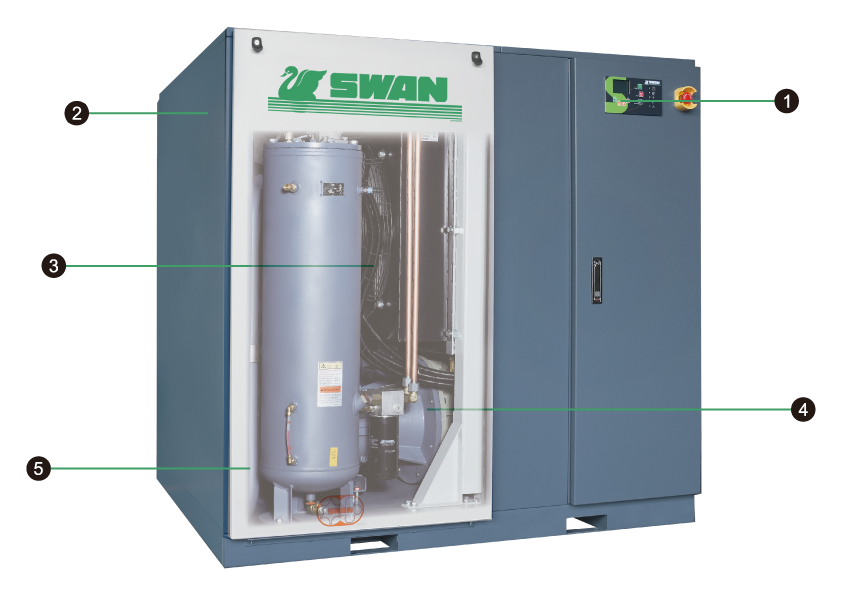

  1. Smart Control Panel
  2. Air Filter Assembly
  3. High Efficient Built-in Cooler
  4. Screw Direct Driven Air End
  5. Silence Cabinet Structure

INTRODUCTION OF ACCESSORIES

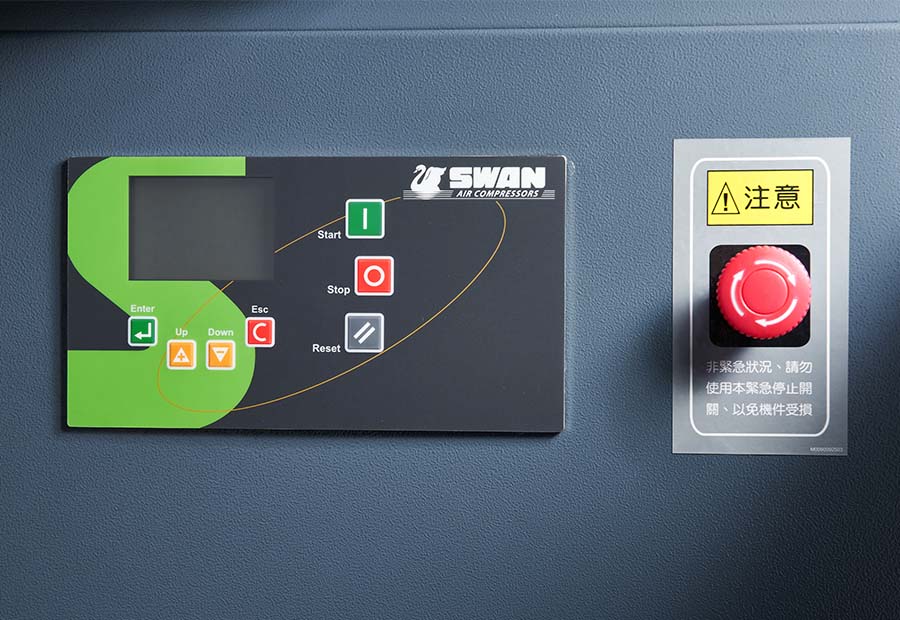

Smart Control Panel

The digital control panel can control versatile situation with clear display, which makes the air compressor easy to control and easy to maintain; when air compressor shuts off automatically, the control panel shows the exception message and break down history to make the maintenance more easy and efficient. The module of the smart control panel is optimized, assembled the overload protection, and also supports multi-units remote control.

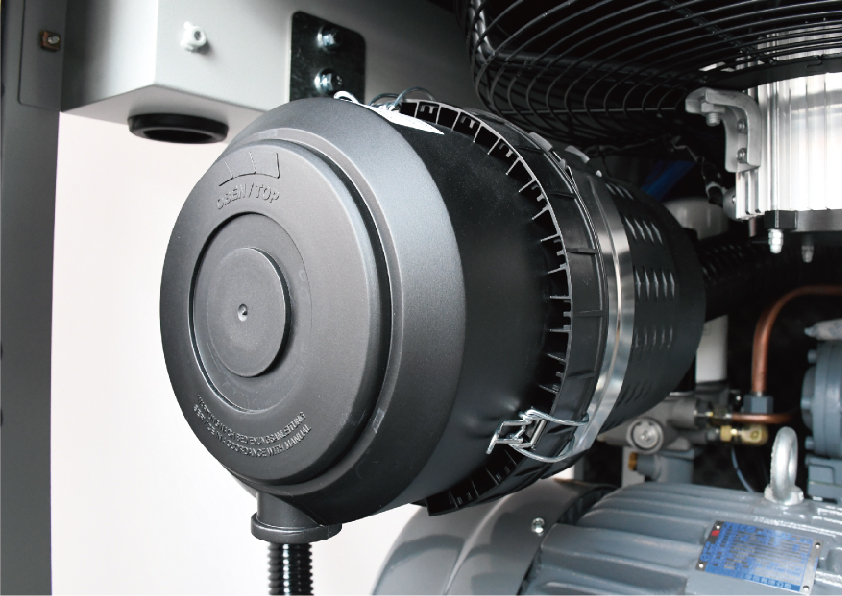

Air Filter Assembly

With the two-layer filter design, it can reduce the consumption of air compressor and also the noise of running.

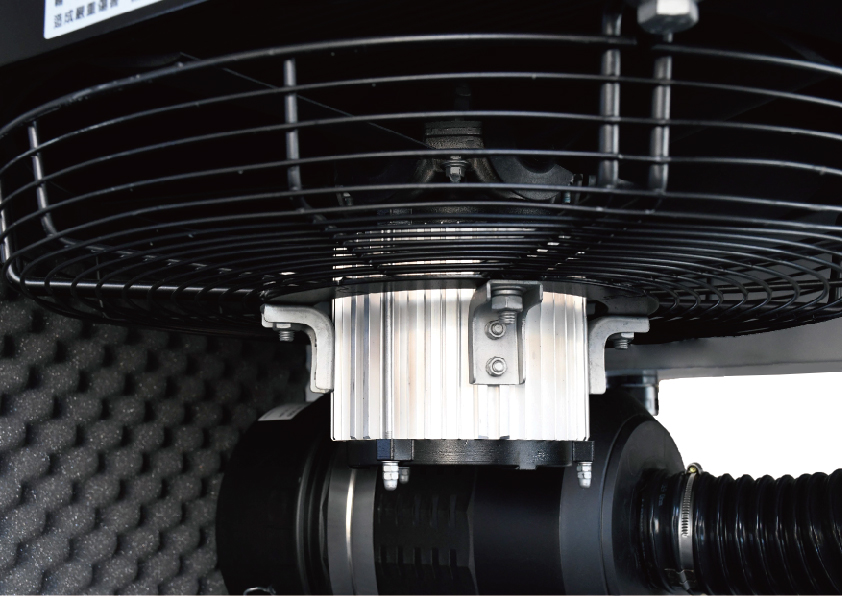

High Efficient Built-in Cooler

The cooler is designed for high temperature environment, it helps to keep air compressor running in an appropriate temperature.

With its high efficient cooling function, the output temperature is 10 lower than the environment temperature; the cleaning orifice on the fan deflector is convenient for removing dirt from the cooler surface and is saving time and labor.

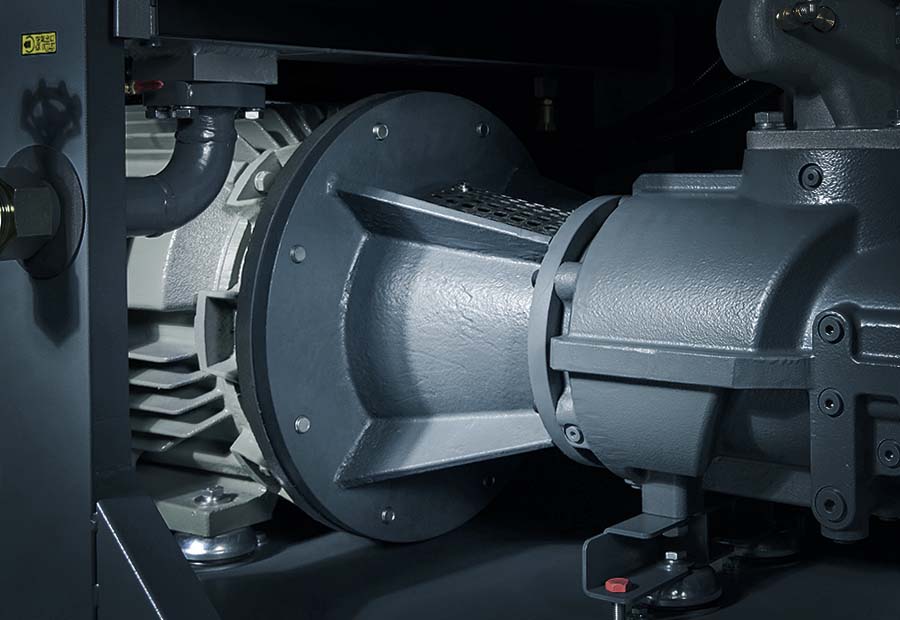

Screw Direct Drive Air End

Using the flexible coupling and with the 1:1 direct drive design, the transmission efficiency reaches almost 100%; the air end, which material is imported from Europe brand, and designed with the latest oversized tooth type, is high efficiency and low rotating speed. Low rotation speed ensures the high transmission efficiency, running with silence; the precise air end is abrasive machining of the surface; it is energy saving, keeping in good efficiency when long time running.


Silence Cabinet Structure

High rigid structure, sound-absorbing cotton and high anti-noise design to ensure silent running and low vibration.

PRODUCT FEATURES

Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Dimension (mm) (L*W*H) Weight (kg)

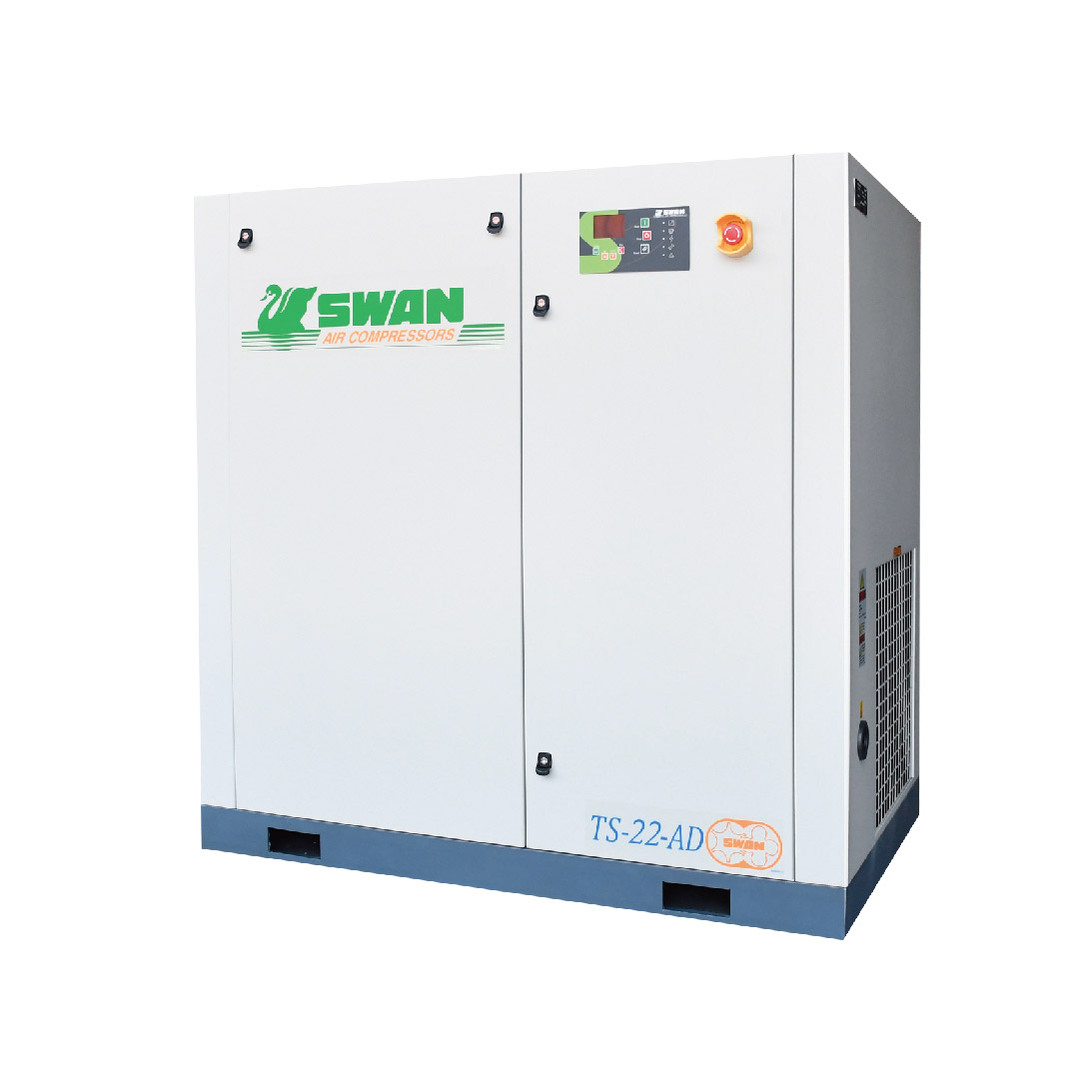

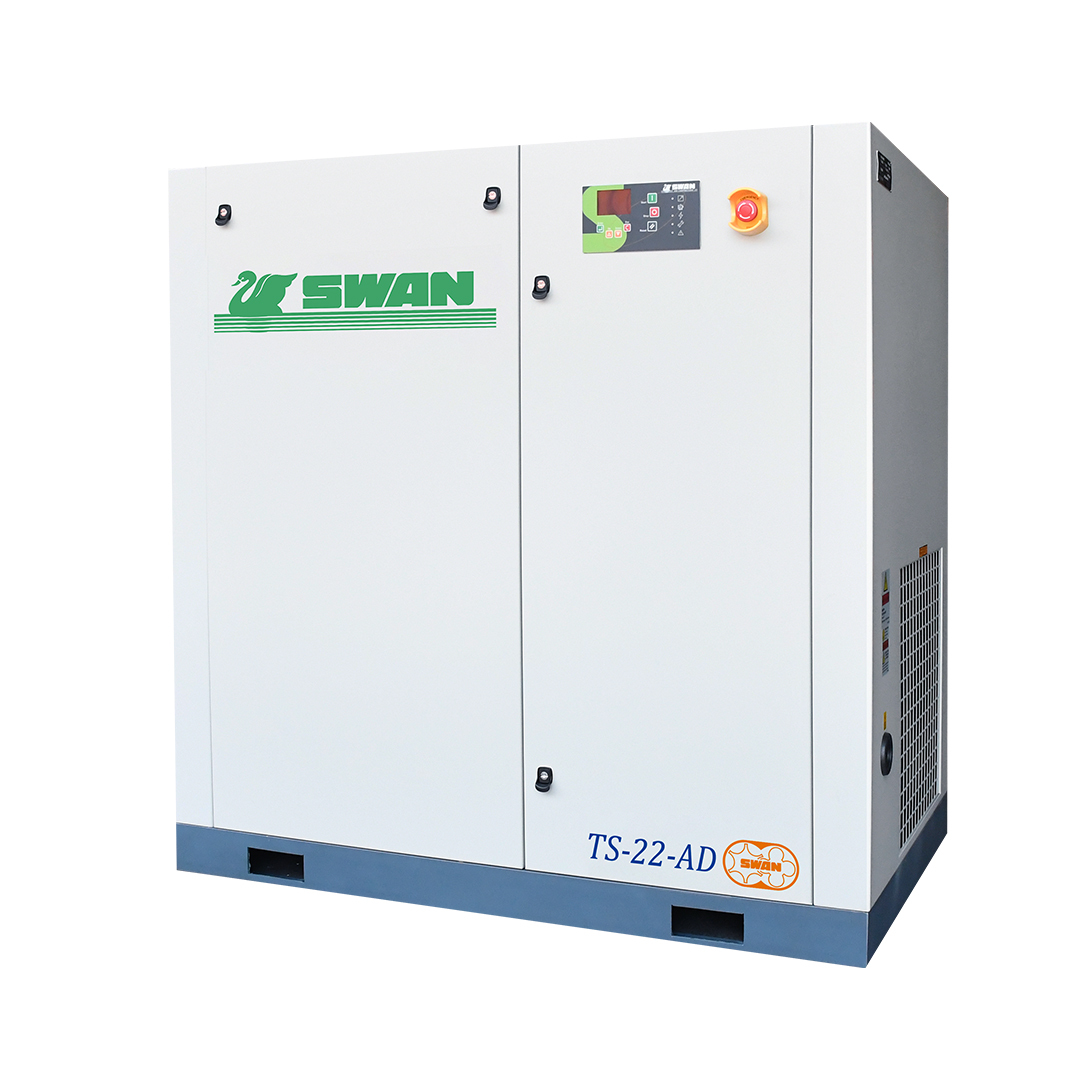

TS-22-AD 30 22 8 3.50 1460x900x1450 665

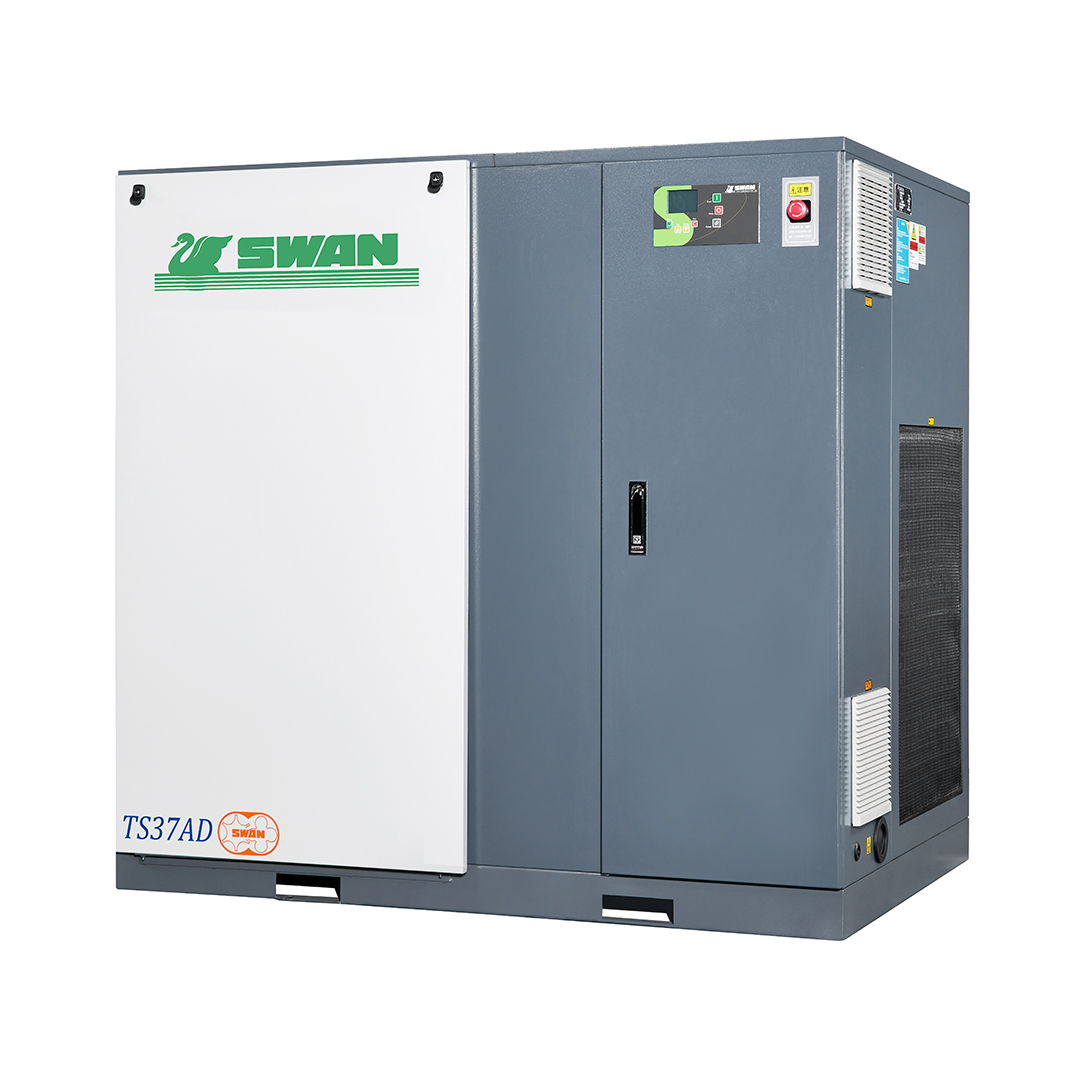

TS-37-AD 50 37 8 6.19 1650x1174x1580 1060
TS-55-AD 75 55 8 9.30 2100x1350x1675 1620

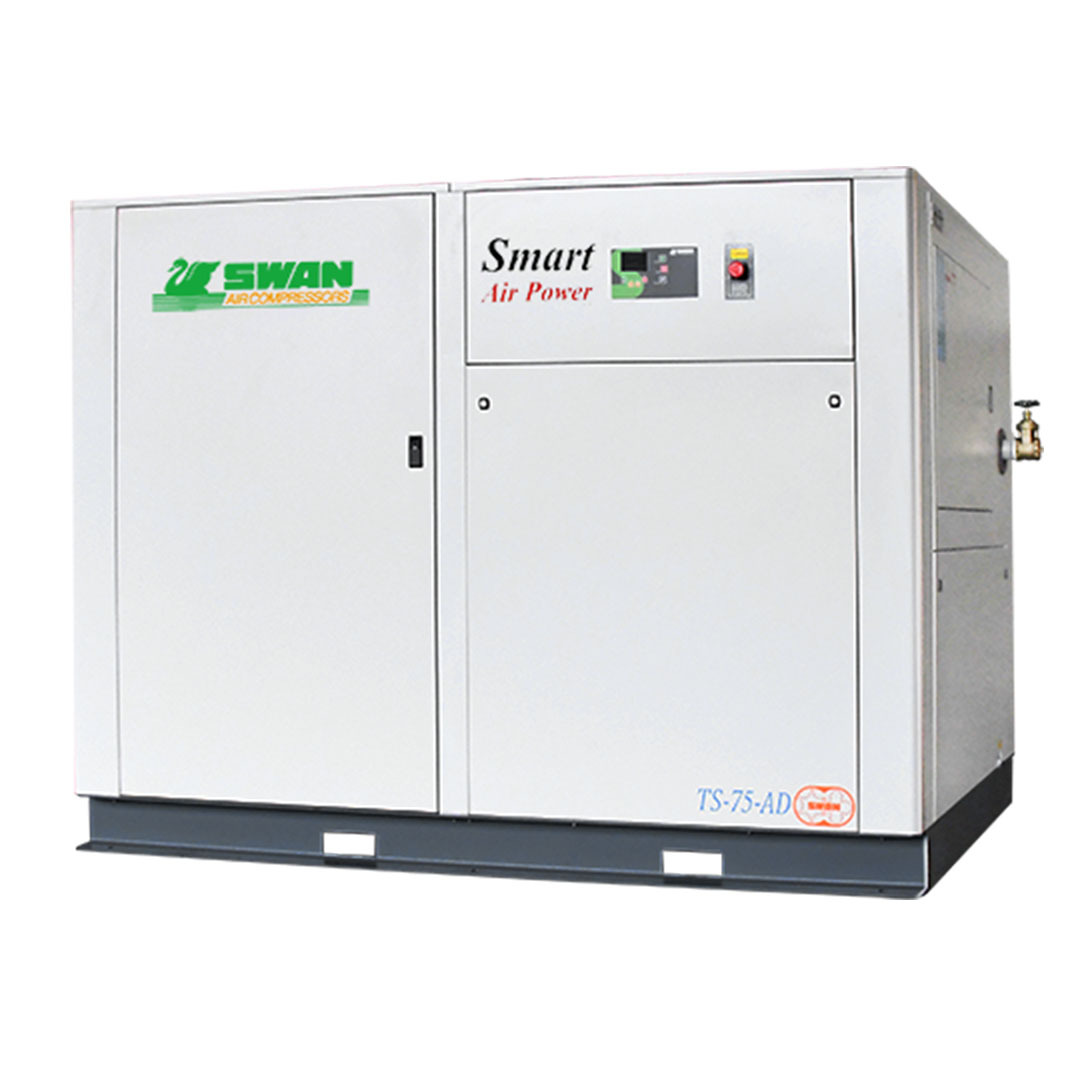

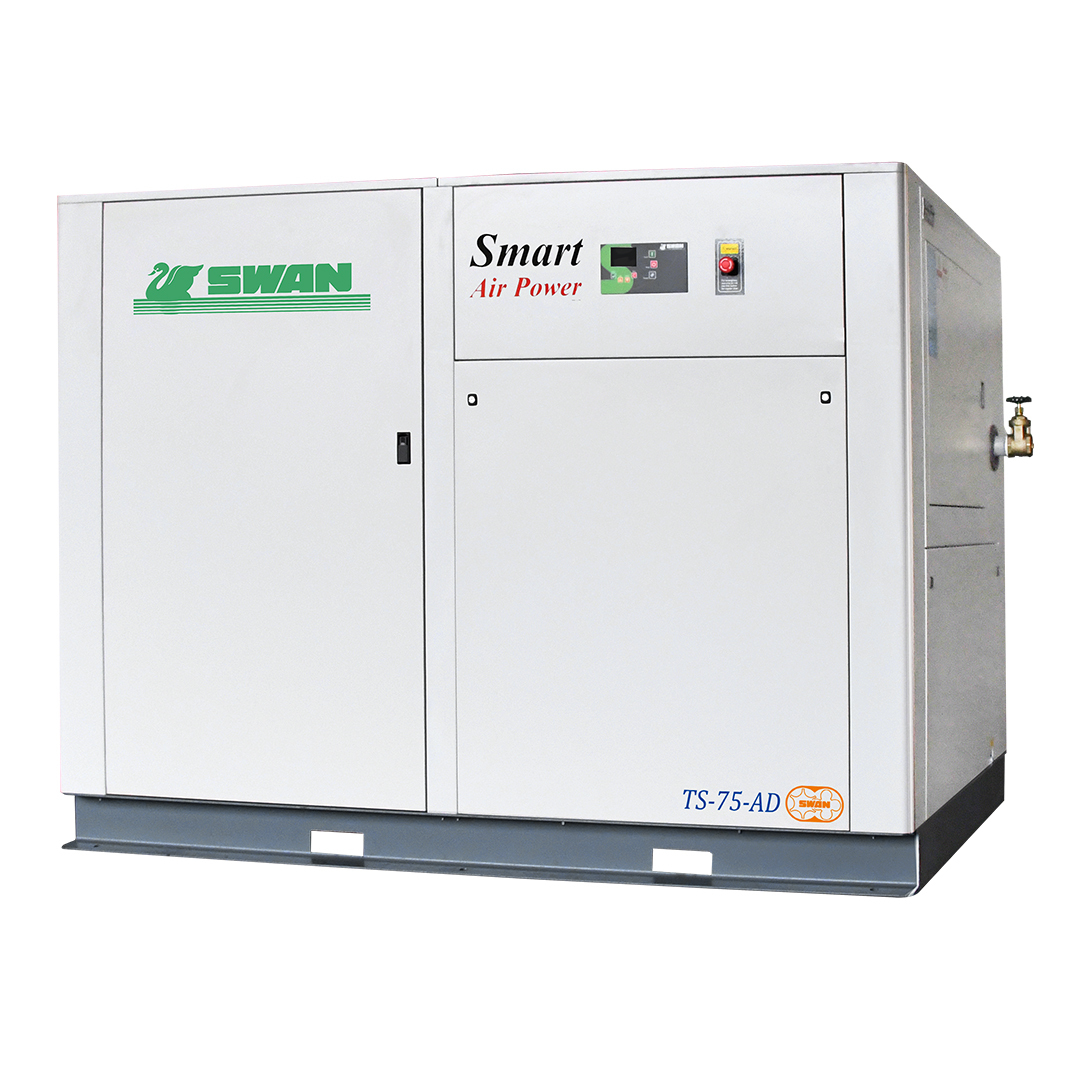

TS-75-AD 100 75 8 12.6 2480x1435x2000 2220
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
