PV Series

PV-202 Lower Horse Power High Pressure Air Compressor.


  • Horse power (HP) 2
  • Working pressure (kg/cm²) 10
  • Capacity (m³/min) 0.10~0.12

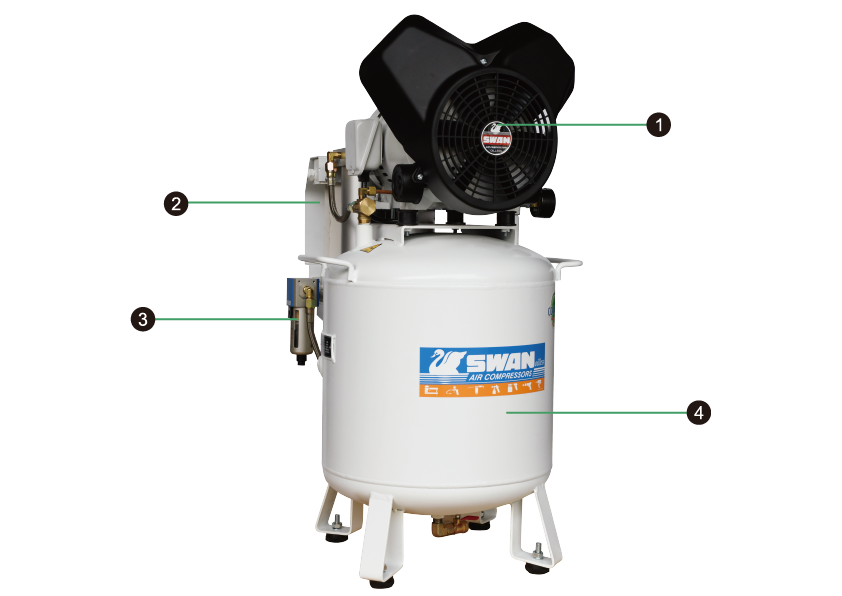

  1. Swan oil-less compressed air
  2. Air dryer (Optional)
  3. Filter (Optional)
  4. Powder coating air tank

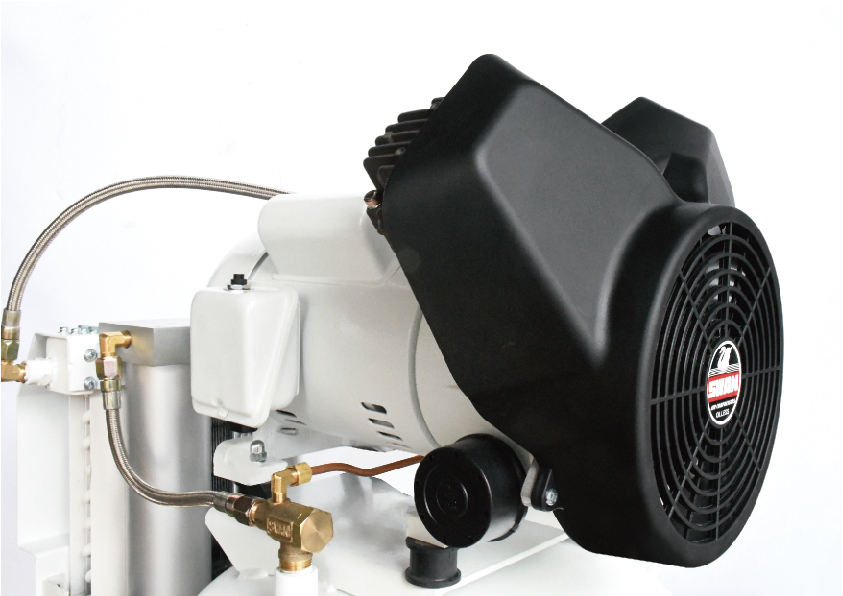

Swan oil-less compressed air

This series is the oil-less compressor which no need of lubricant, no oil pollution, and environmental protection friendly. PV is low power-consuming, fully automatic control, and equipped motor overload protection. It can operation in a good , stable condition with minimal maintenance.

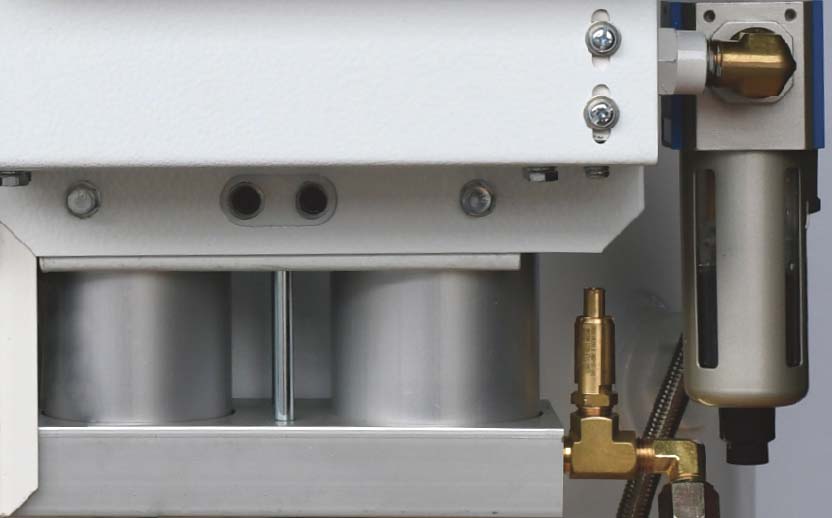

Dryer System (Optional)

With highly efficient after-cooler, auto-drain device, and adsorptive air dryer to achieve dry, clean, oil-less air.

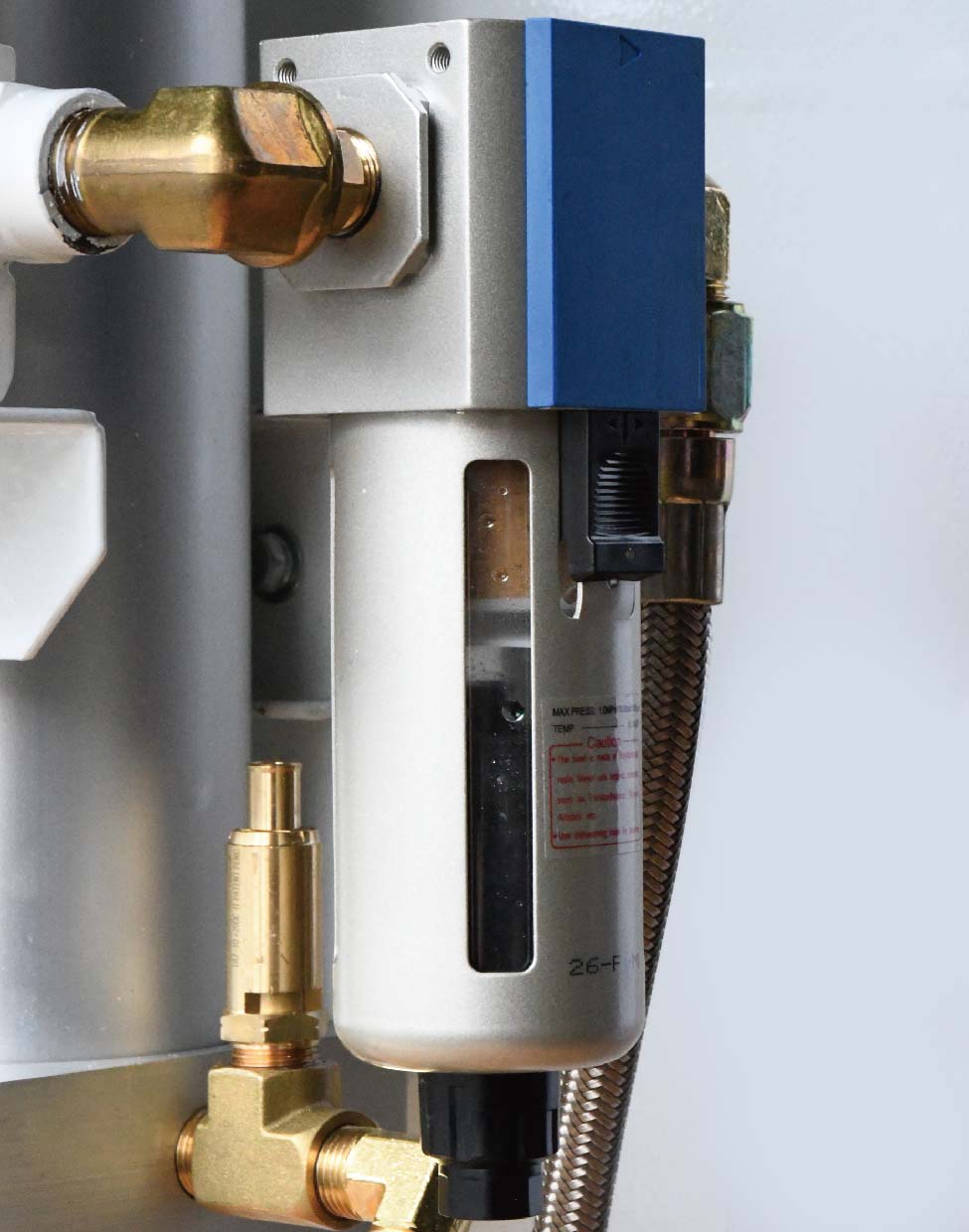

Filter (Optional)

The unique diversion structure makes the flowing gas rotate appropriately, thereby more effectively separating the liquid and solid particles in the gas, and making the air discharged by the air compressor purer.

一張含有 室內 的圖片

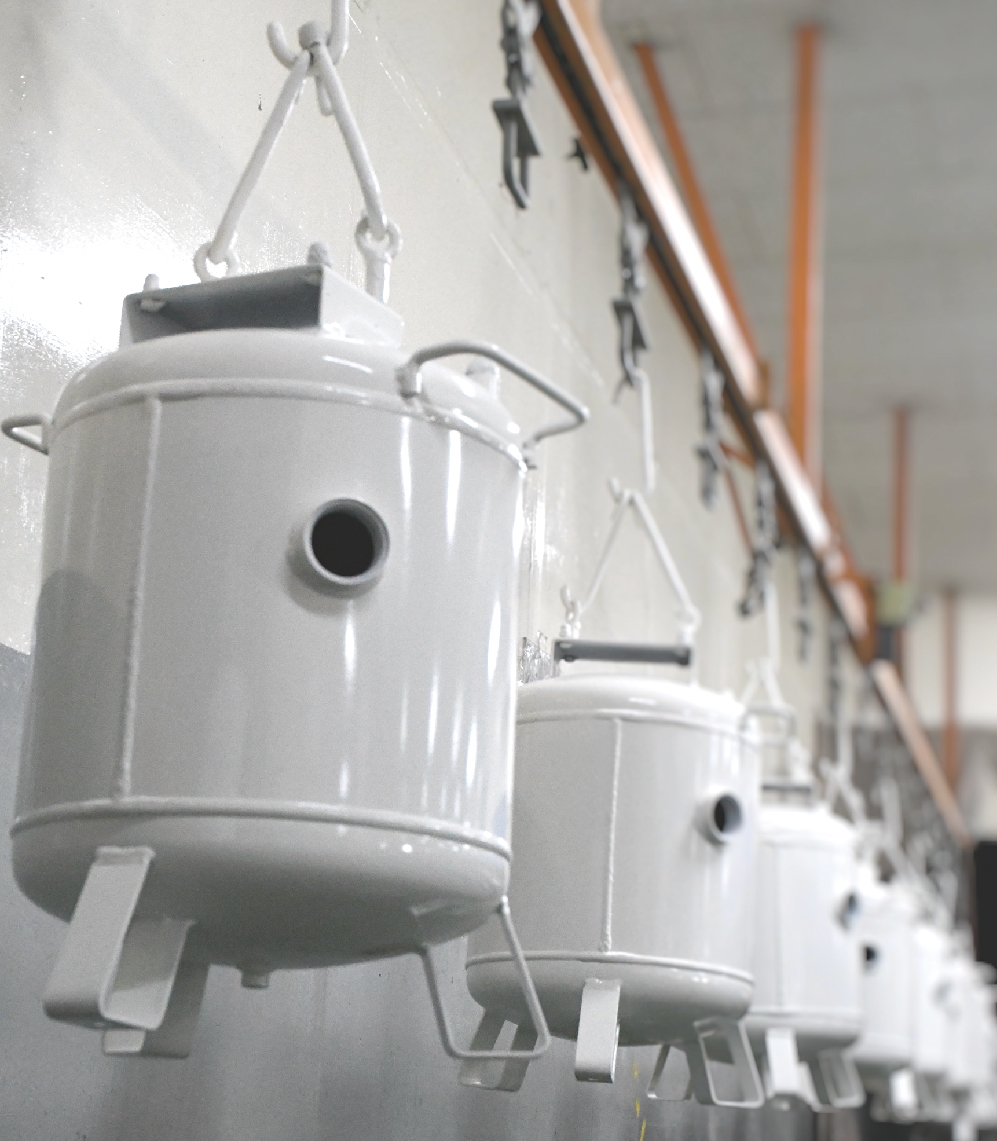

Powder coating air tank

The air tank is made of high-strength steel, and the outer surface is coated with powder painting to create exquisite appearance and hard finish for long lasting. The inner surface is coated with epoxy to avoid rusting(optional).


Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Tank Capacity (liter) Dimension (mm) (L*W*H) Weight (kg)

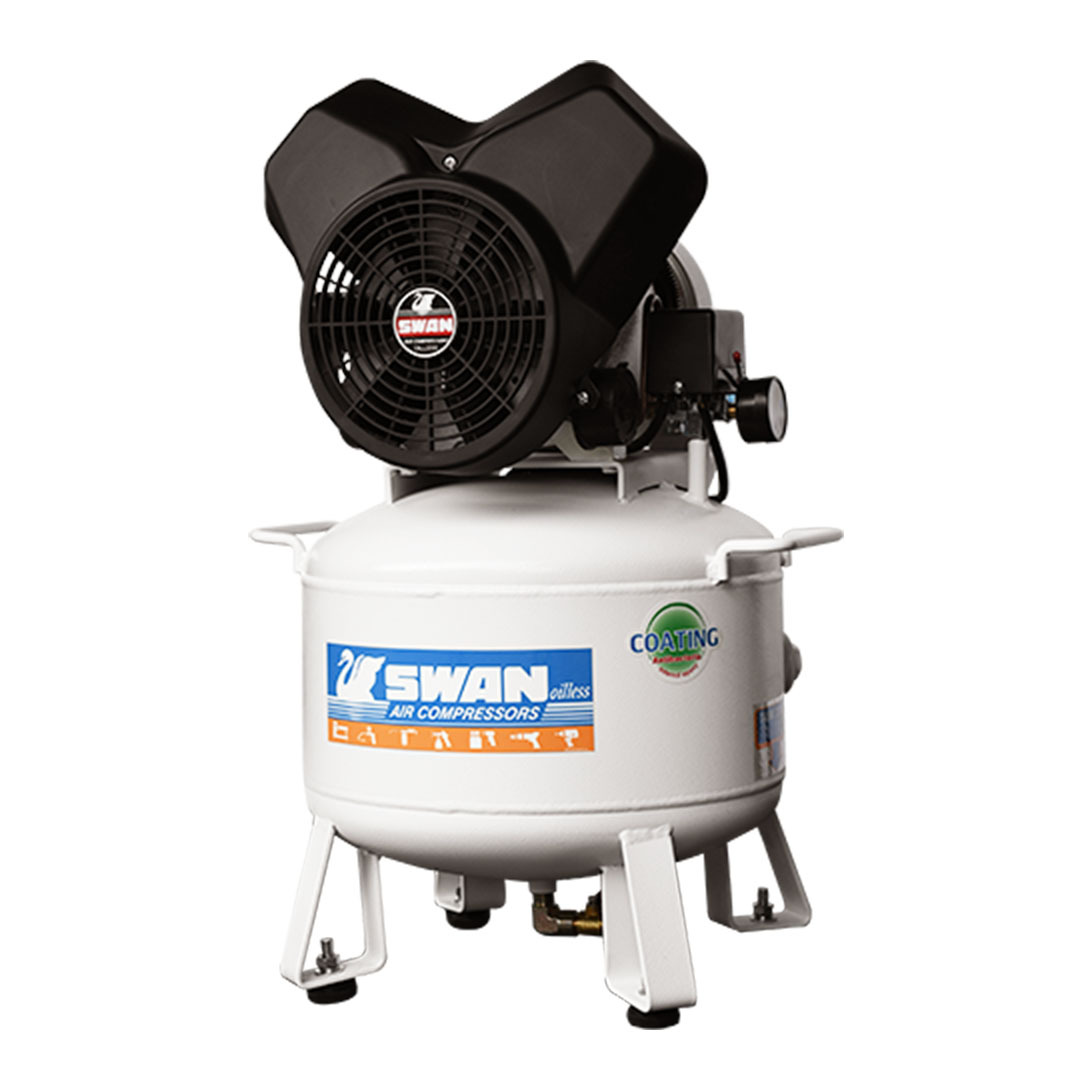

PV-202-30L 2 1.5 10 0.126 30 452X424X730 49

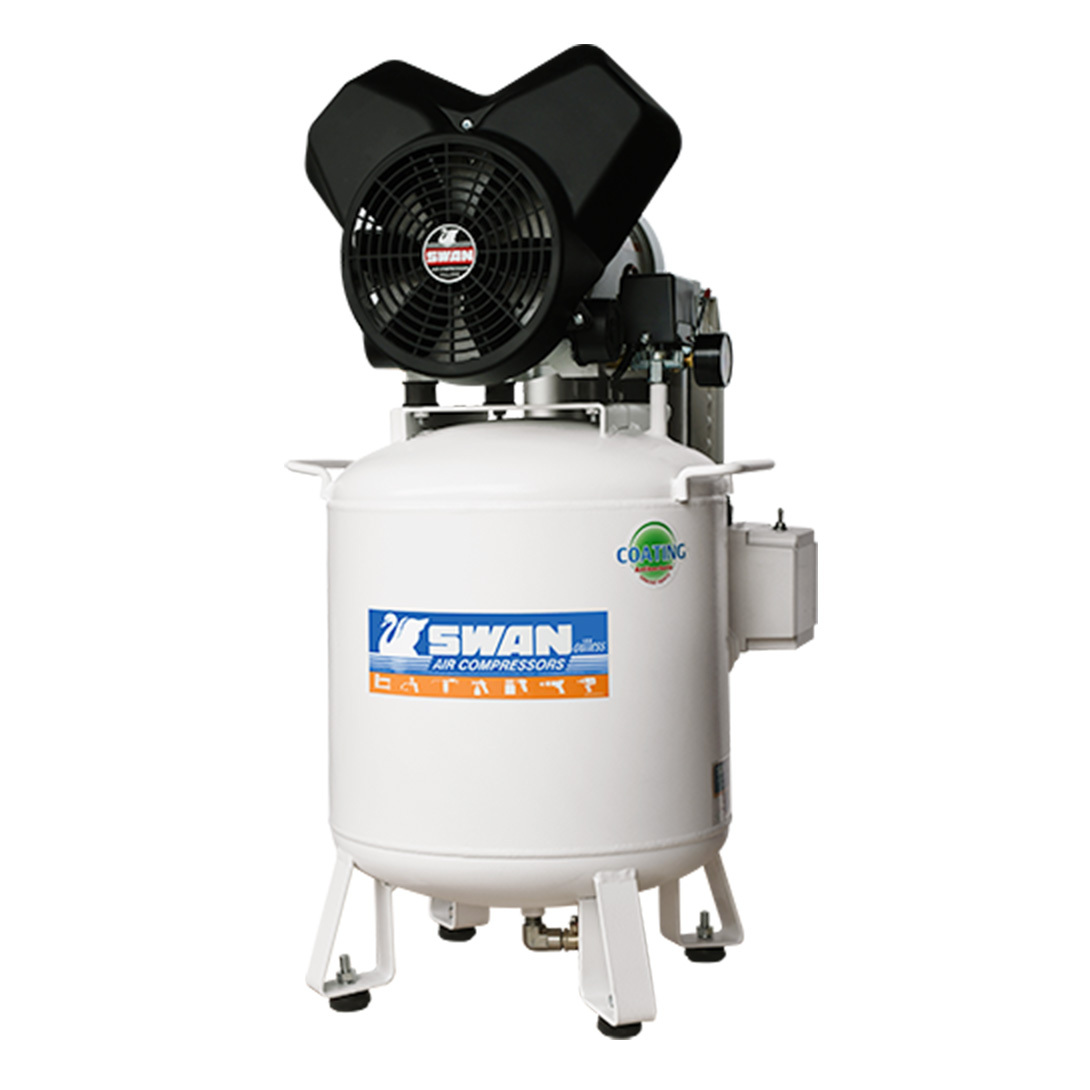

PV-202-50D 2 1.5 10 0.10 50 626X452X905 70
PV-202-50DH 2 1.5 10 0.10 50 850X475X690 66
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
