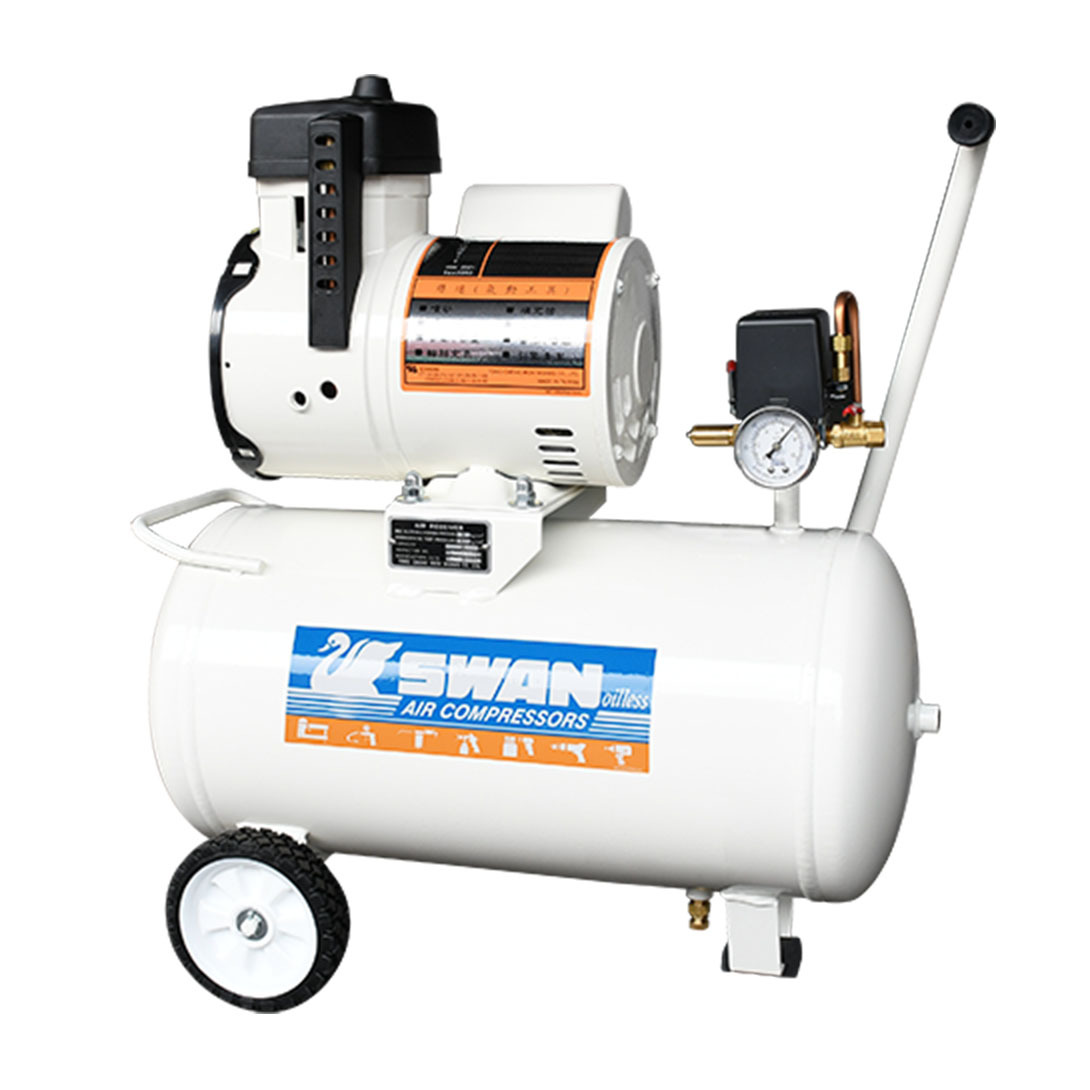

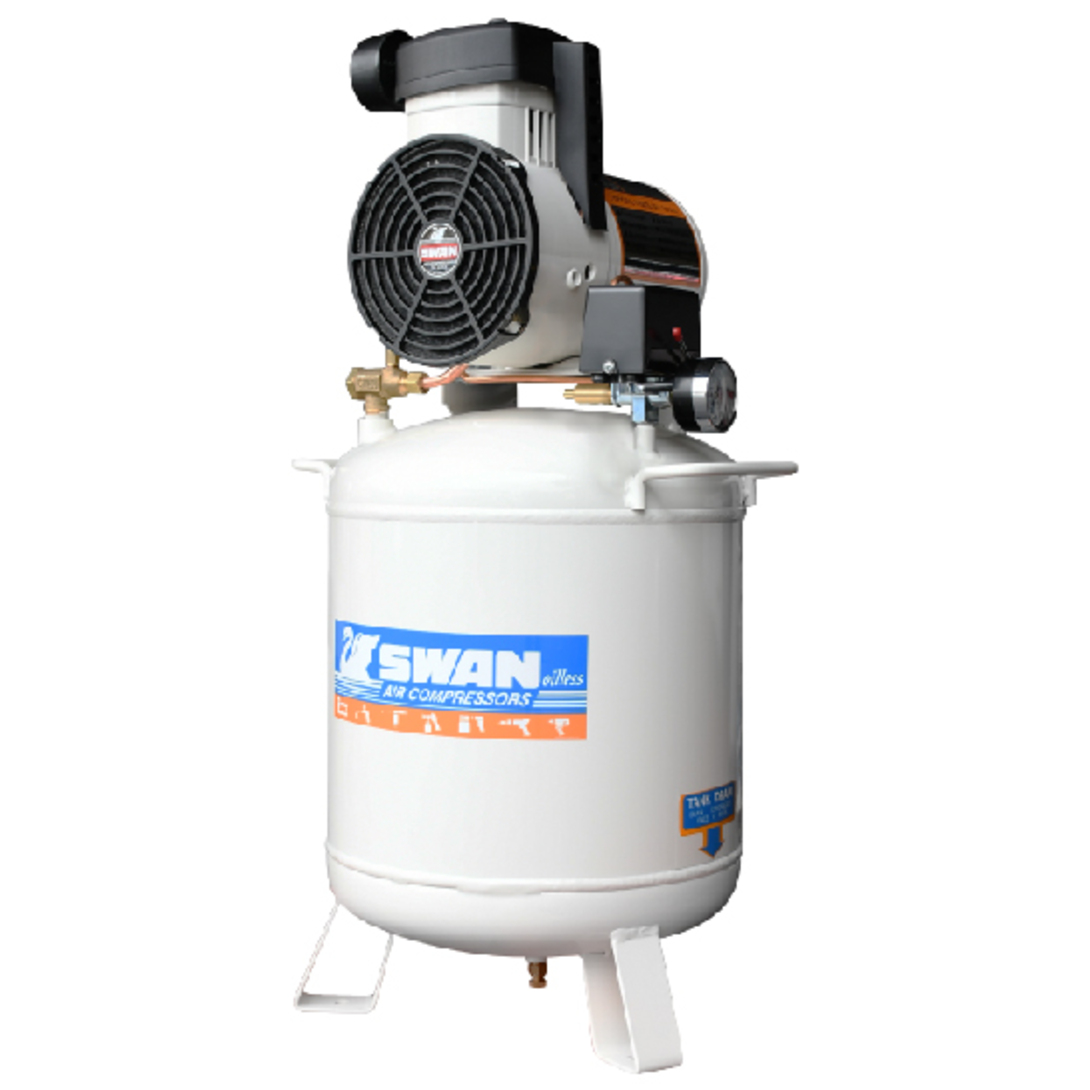

DR Series

The light and dedicated DR series air compressors are free from lubricating oil; hand-carriable, and easy to be transported. Equipped with precise parts and high quality of air tank, DR series are proved to be very robust and durable.

Specifications

  • Horse power (HP) 1~3
  • Working pressure (kg/cm²) 7
  • Capacity (m³/min) 0.12~0.24


DR SERIES


Lightweight and exquisite, Provide clean oil-less air

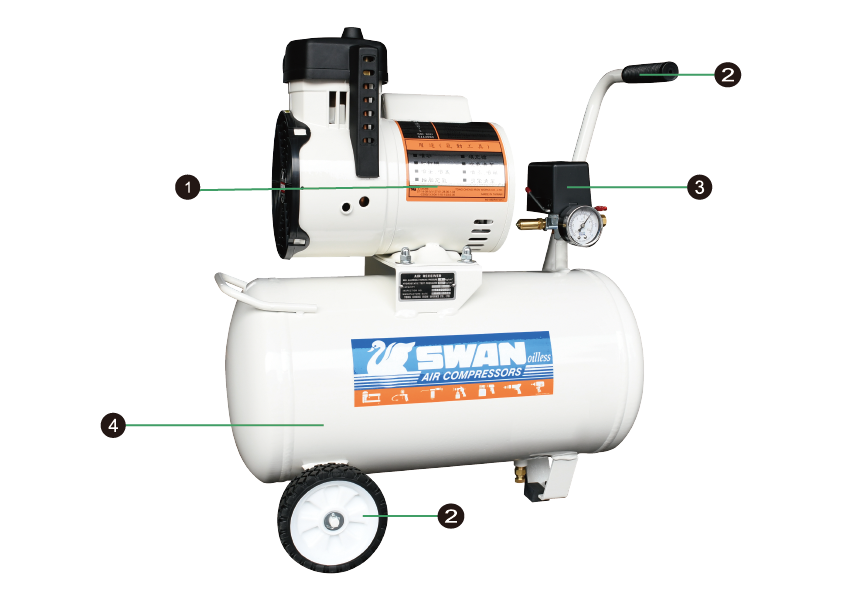

  1. DR Series Air Compressor Pump
  2. Portable design
  3. High-reliability components
  4. Powder coating air tank


INTRODUCTION OF ACCESSORIES

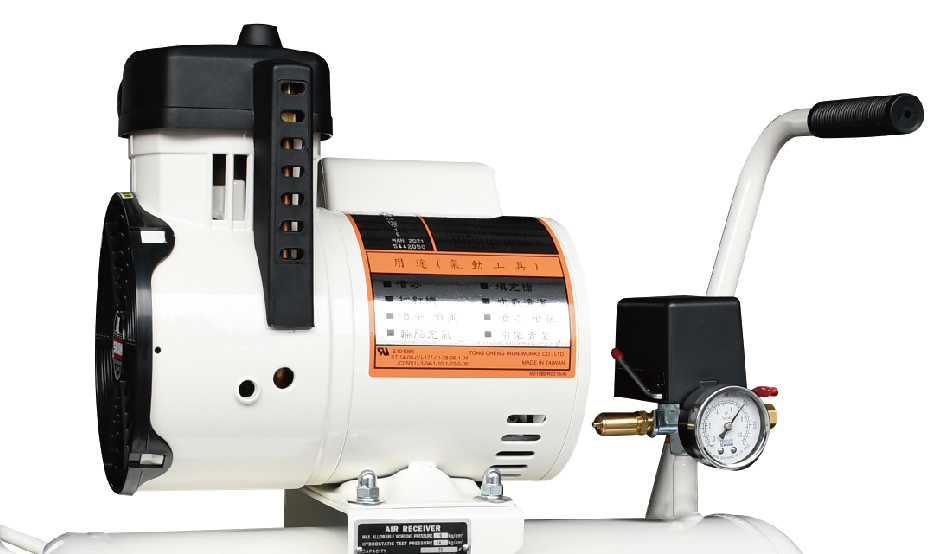

DR Series Air Compressor Pump

This series air compressor is not only made of high-quality parts bring about high-efficiency, and easy maintenance but also use high efficient motor with over-current protection device; heat protection on cylinder head is safe for operation.

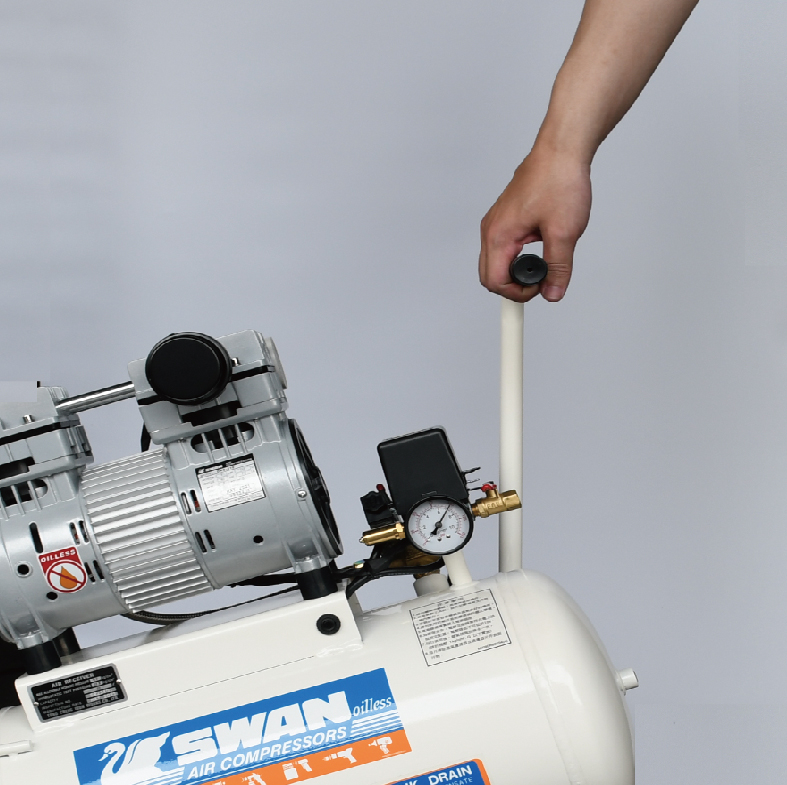

Portable design

The portable model is much flexible, easy to carry on, and portable anytime anywhere. It has a mobile handle and rubber wheels, which are light and easy to move. Moreover, it can stabilize the air compressor by preventing slippage.



一張含有 牆, 室內, 裝置, 量表 的圖片

自動產生的描述

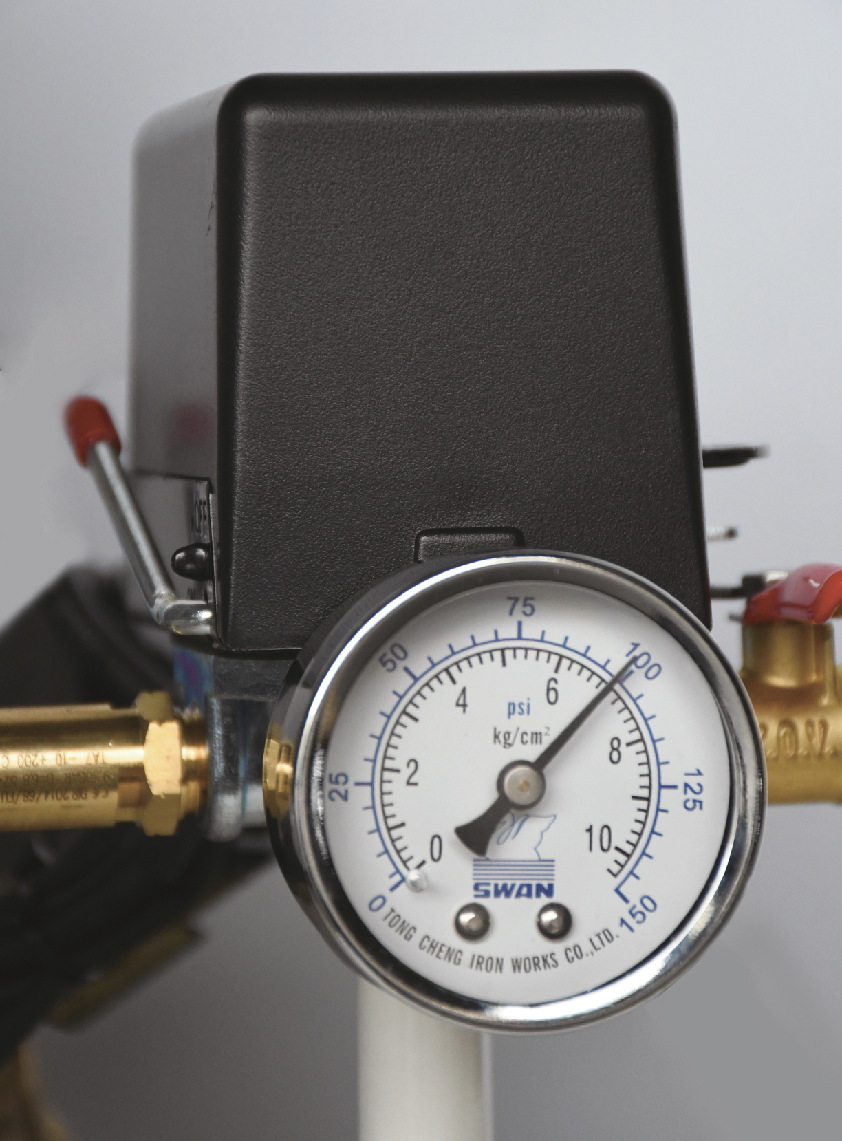

High-reliability components

We use high-quality components such as a pressure switch, check valve, pressure gauge, and safety valve to keep the compressor running in high efficiency and safe condition.


一張含有 室內 的圖片

自動產生的描述

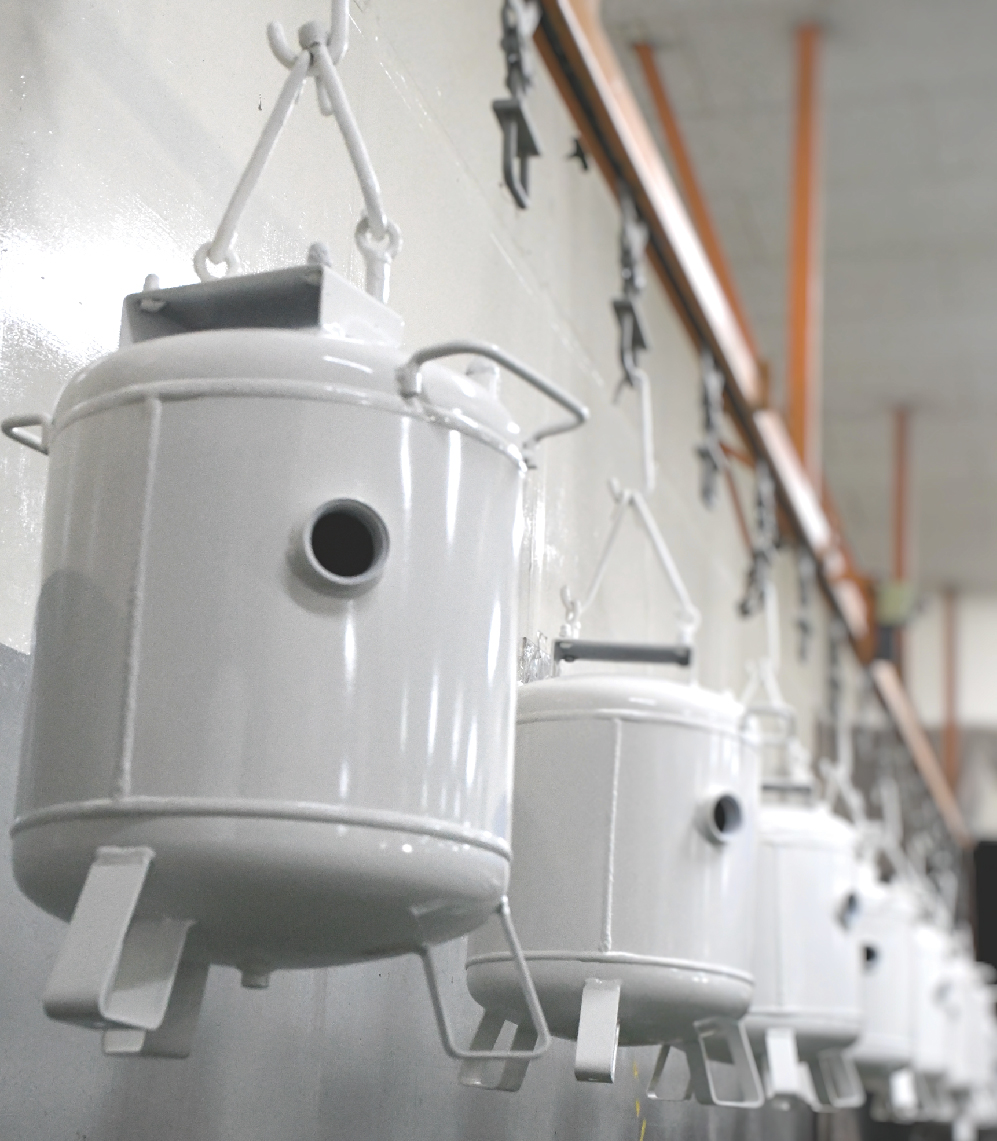

Powder coating air tank

The air tank is made of high-strength steel, safe and reliable, and the outer surface is coated with powder painting to create exquisite appearance and hard finish for long lasting. The inner surface is coated with epoxy to avoid rusting(optional).


PRODUCT FEATURES

Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Tank Capacity (liter) Dimension (mm) (L*W*H) Weight (kg)
DR-115-22L 1.5 1.1 7 0.122 22 610x300x600 27
DR-115-30L 1.5 1.1 7 0.122 30 400x410x880 34

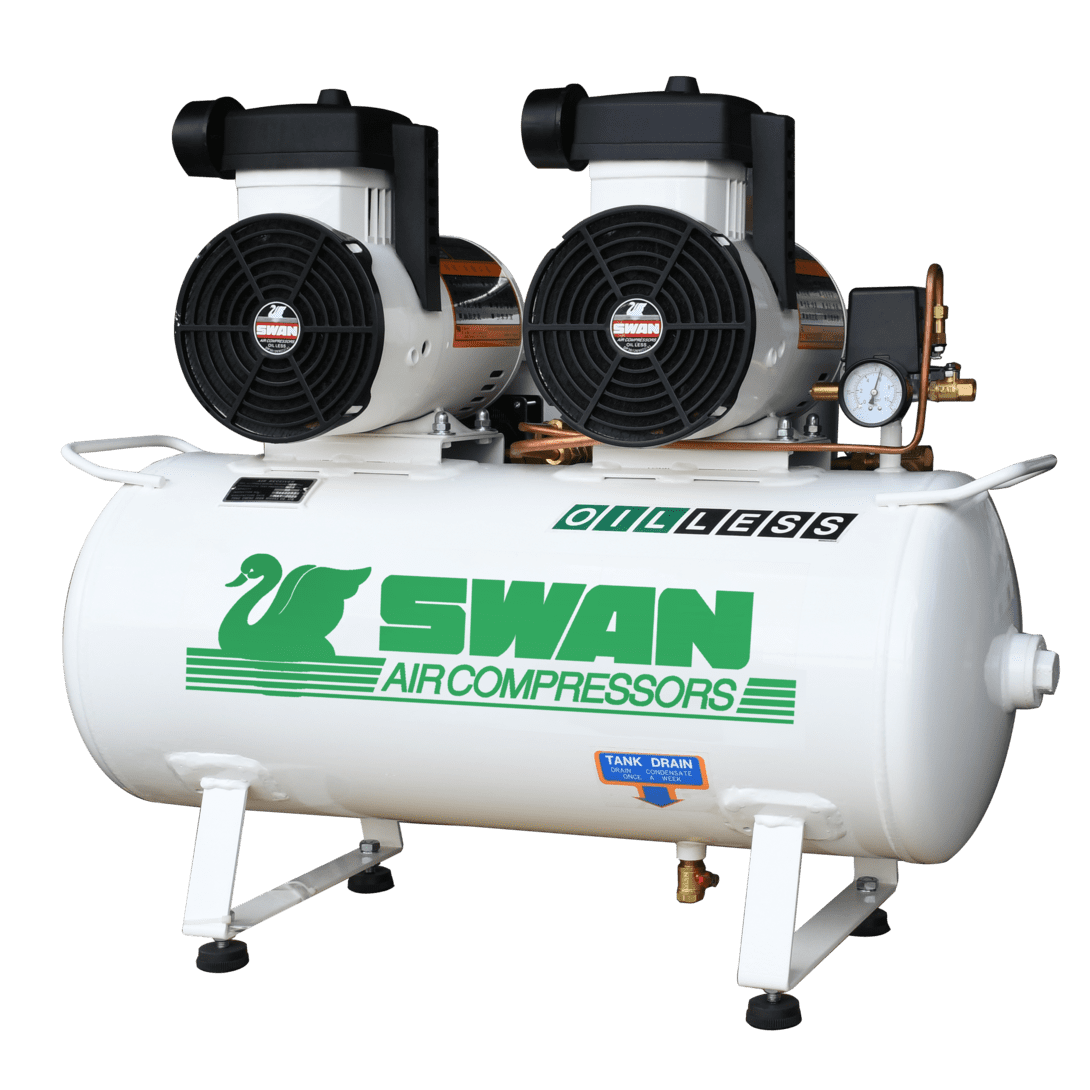

DR-115-TD 3 2.2 7 0.244 50 850x460x680 65
DR-175-30L 1 0.75 7 0.120 30 610x300x600 34
DRV-215 1.5 1.1 7 0.200 55 765x385x842 64
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
