DRS Series

‧ High quality components. Reliable and easy maintenance. ‧ Low noise, high efficiency filter to reduce noise. ‧ Equipped with anti-vibration pad to achieve low vibration. ‧ High efficient motor with built-in over-current protector and over-heat protection inside. ‧ Air discharge tube is made of stainless steel.

Specifications

  • Horse power (HP) 0.75~2
  • Working pressure (kg/cm²) 7~8
  • Capacity (m³/min) 0.106~0.247


 DRS SERIES

Oil-free, low pollution

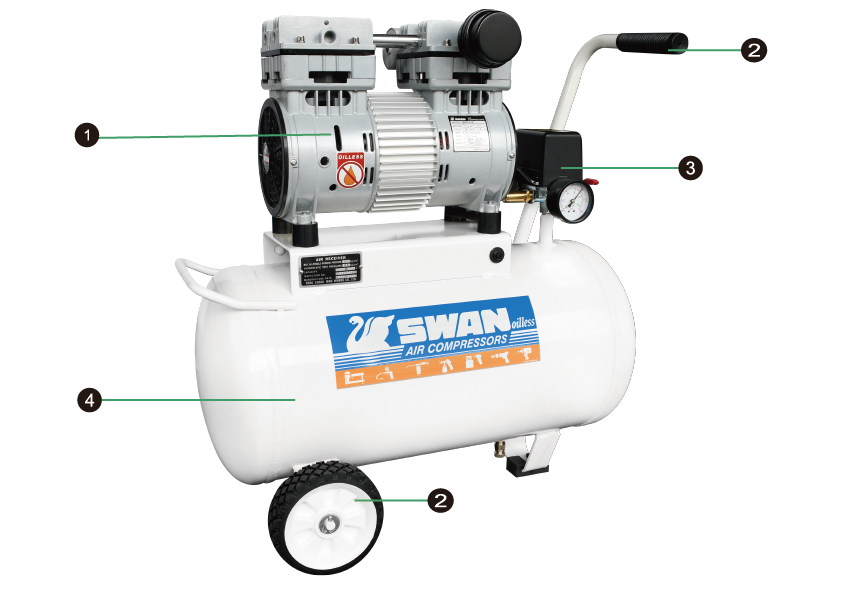

  1. DRS Series Bare Pump
  2. Portable Design
  3. High-reliability Components
  4. Powder coating air tank

INTRODUCTION OF ACCESSORIES

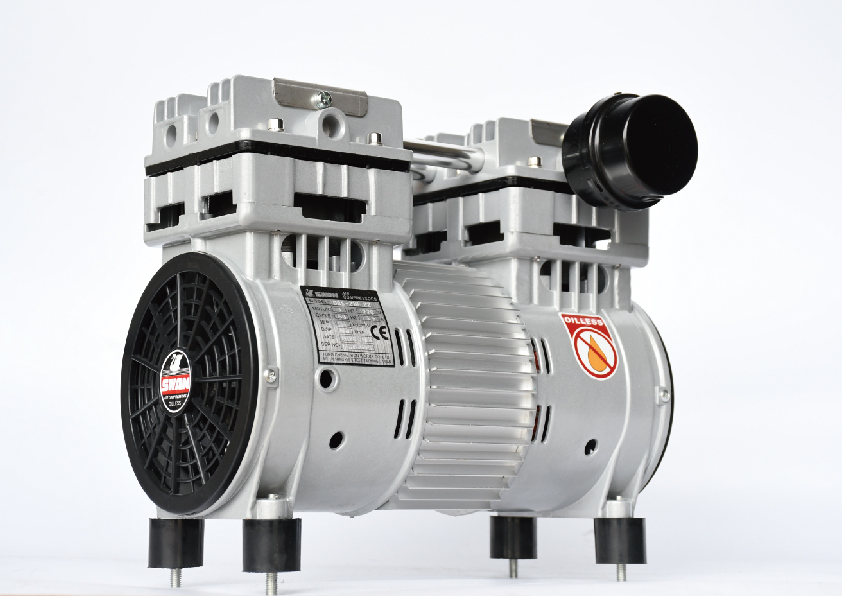

DRS Series Bare Pump

The components for DRS bare pump are high-quality, high reliability, and easy-to-maintain; the bare pump equipped with high-quality cushions to absorb vibration leads to low noise and low vibration.  The motor for the pump is with built-in over-current protector and over-heat protection inside; Air discharge tube is made of stainless steel to prevent the tube getting rusty; if there are rust in the discharge tube, the compressed air will be polluted by the rust.

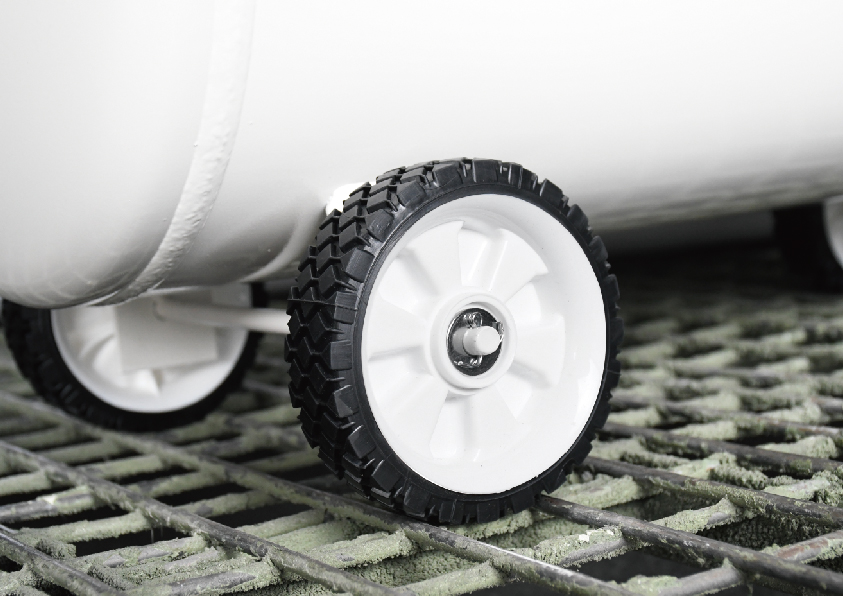

Portable design

The portable model is much flexible, easy to carry on, and portable anytime anywhere.  It has a mobile handle and rubber wheels, which are light and easy to move.  With the rubber wheel, it can stabilize the air compressor by preventing slippage.

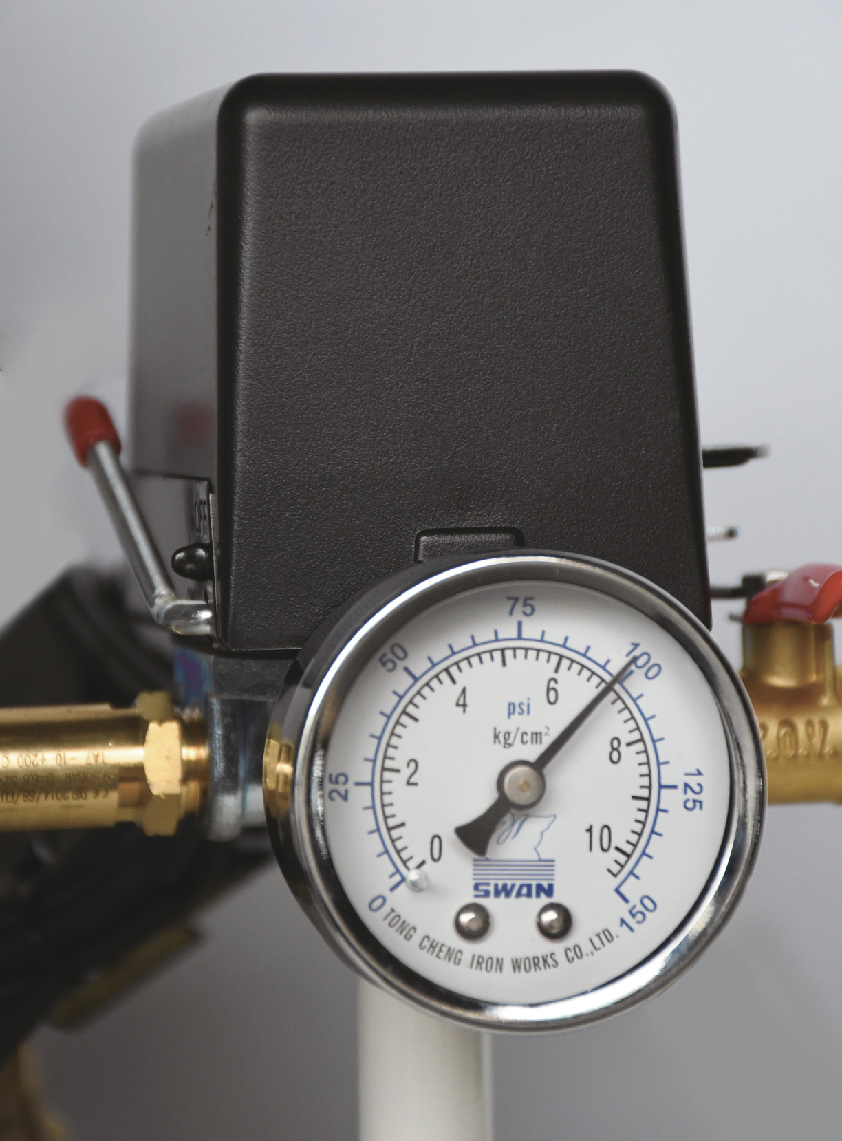

High-reliability components

We use high-quality components such as a pressure switch, check valve, pressure gauge, solenoid valve, safety valve, and also the unloading solenoid valve to re-start the pump smoothly if power is cut off during operation.

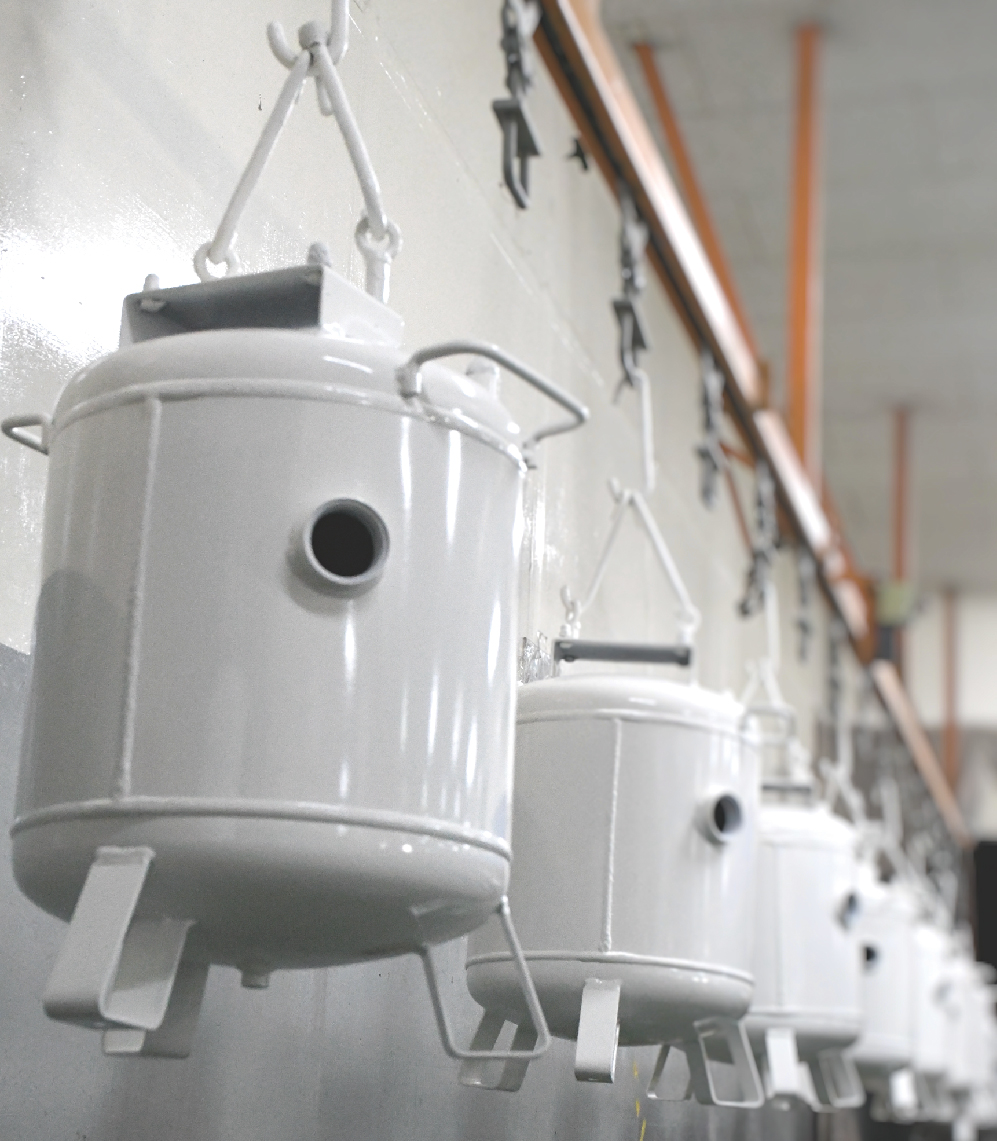

Powder coating air tank

The air tank is made of high-strength steel, and the outer surface is coated with powder painting to create exquisite appearance and hard finish for long lasting.  The inner surface is coated with epoxy to avoid rusting(optional).


PRODUCT FEATURES

Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Tank Capacity (liter) Dimension (mm) (L*W*H) Weight (kg)
DRS-207-22 0.75 0.55 7 0.106 22 635X294X585 26

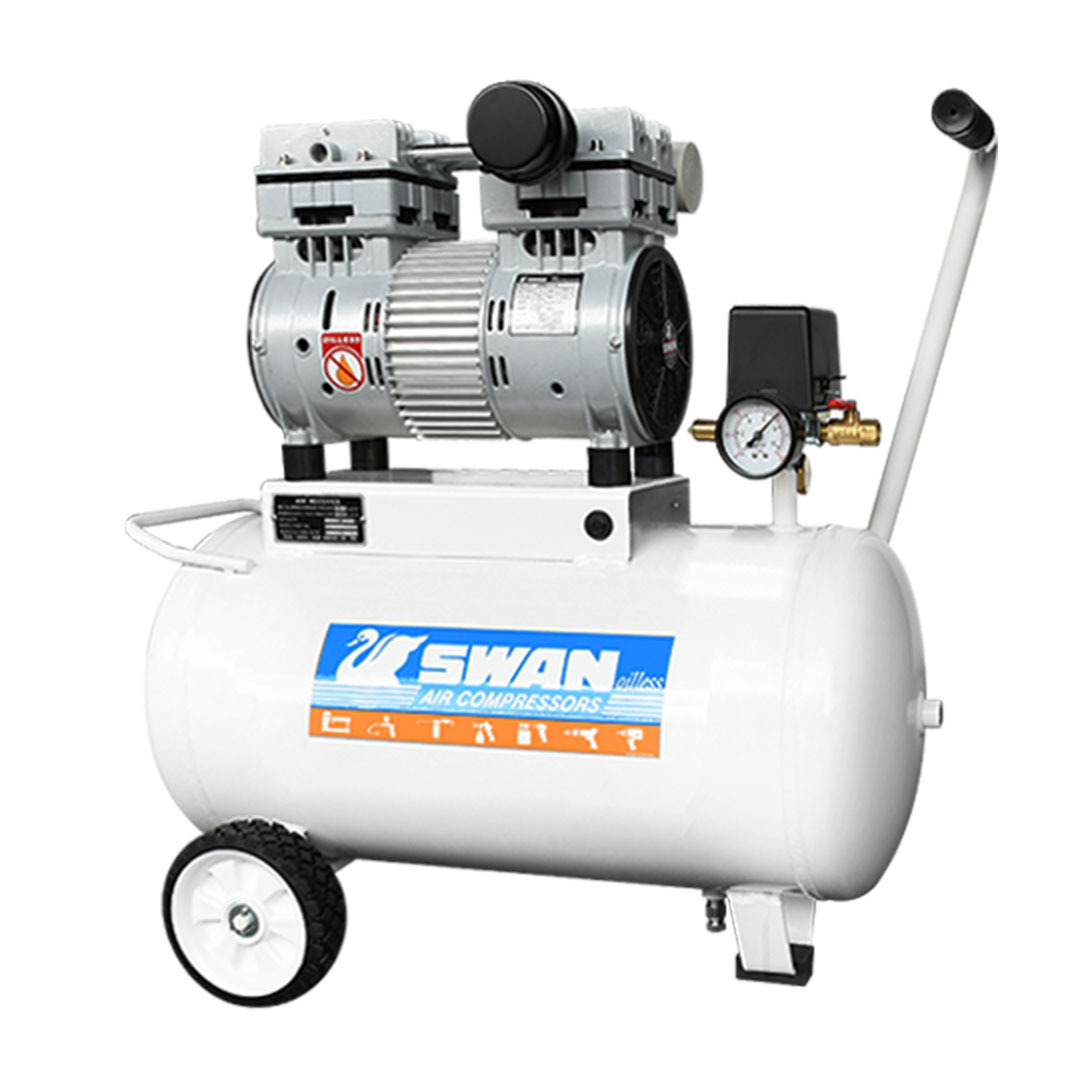

DRS-210-22 1 0.75 7 0.137 22 635X294X585 26
DRS-210-30 1 0.75 7 0.137 30 400X340X800 31
DRS-210-36 1 0.75 7 0.137 36 800X294X600 32

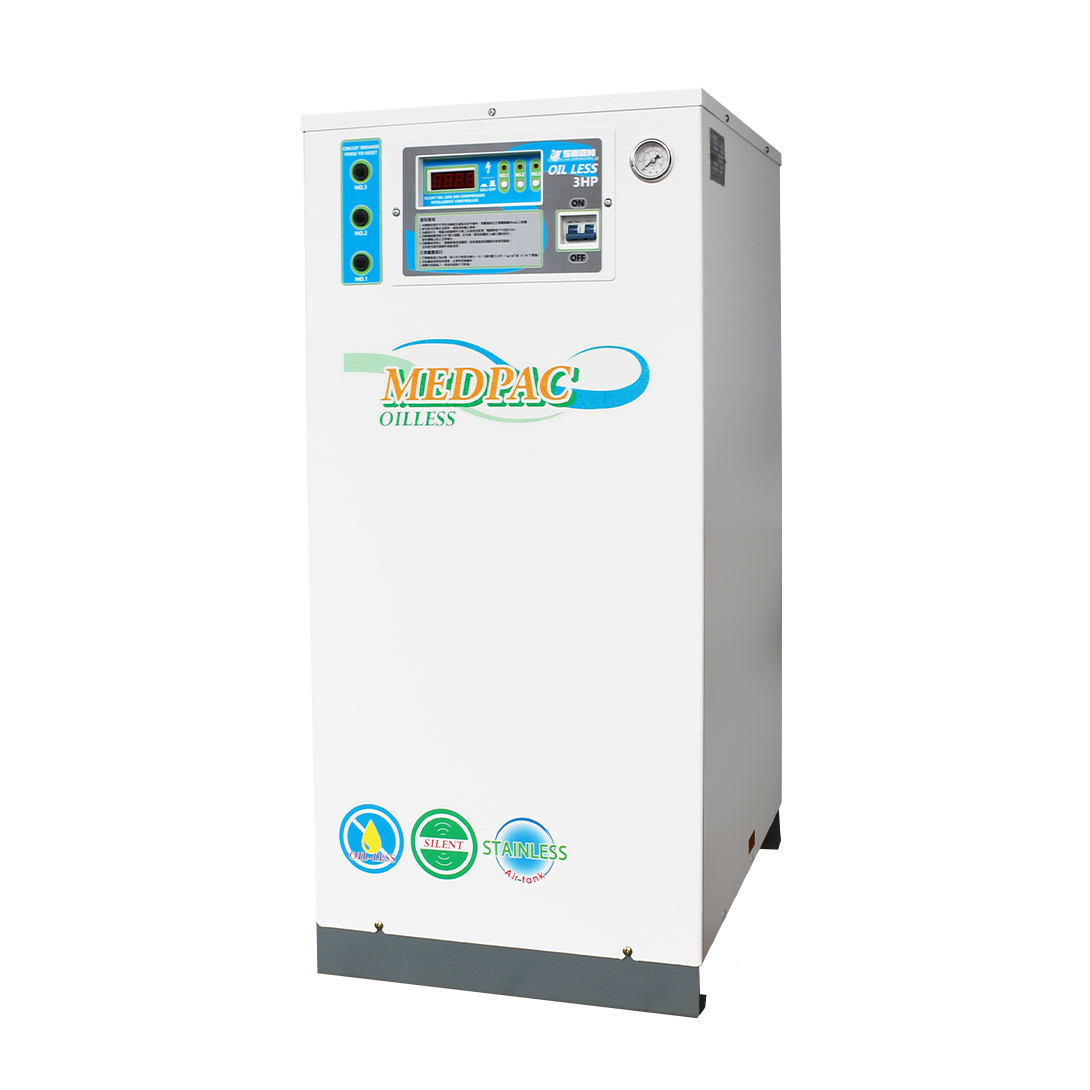

DRS-210-TC 1*3 0.75*3 7 0.137*3 39 500X630X975 108
DRS-215-50 1.5 1.1 8 0.200 50 660x560x840 48

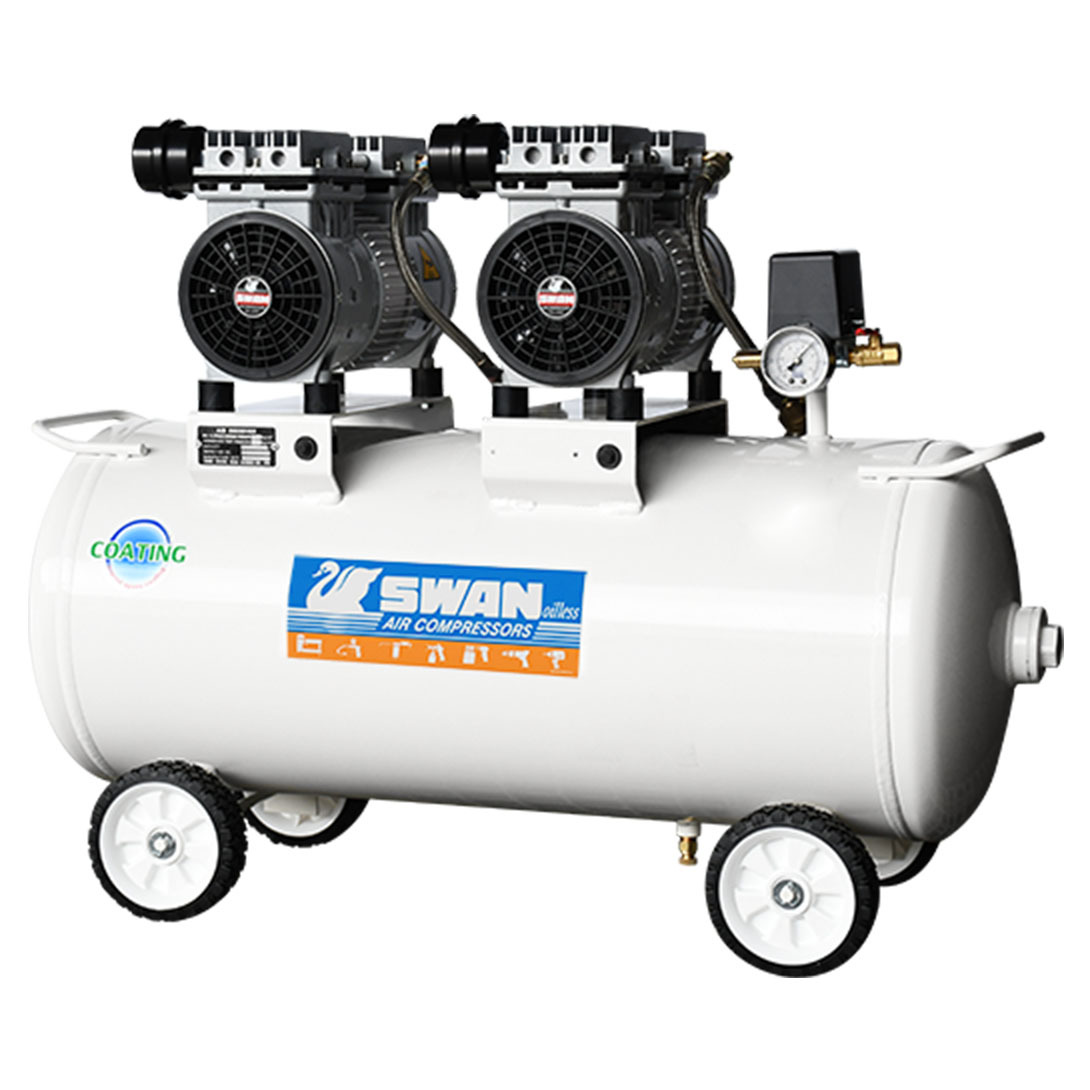

DRS-210-50T 2 1.5 7 0.274 50 660x560x840 47
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
