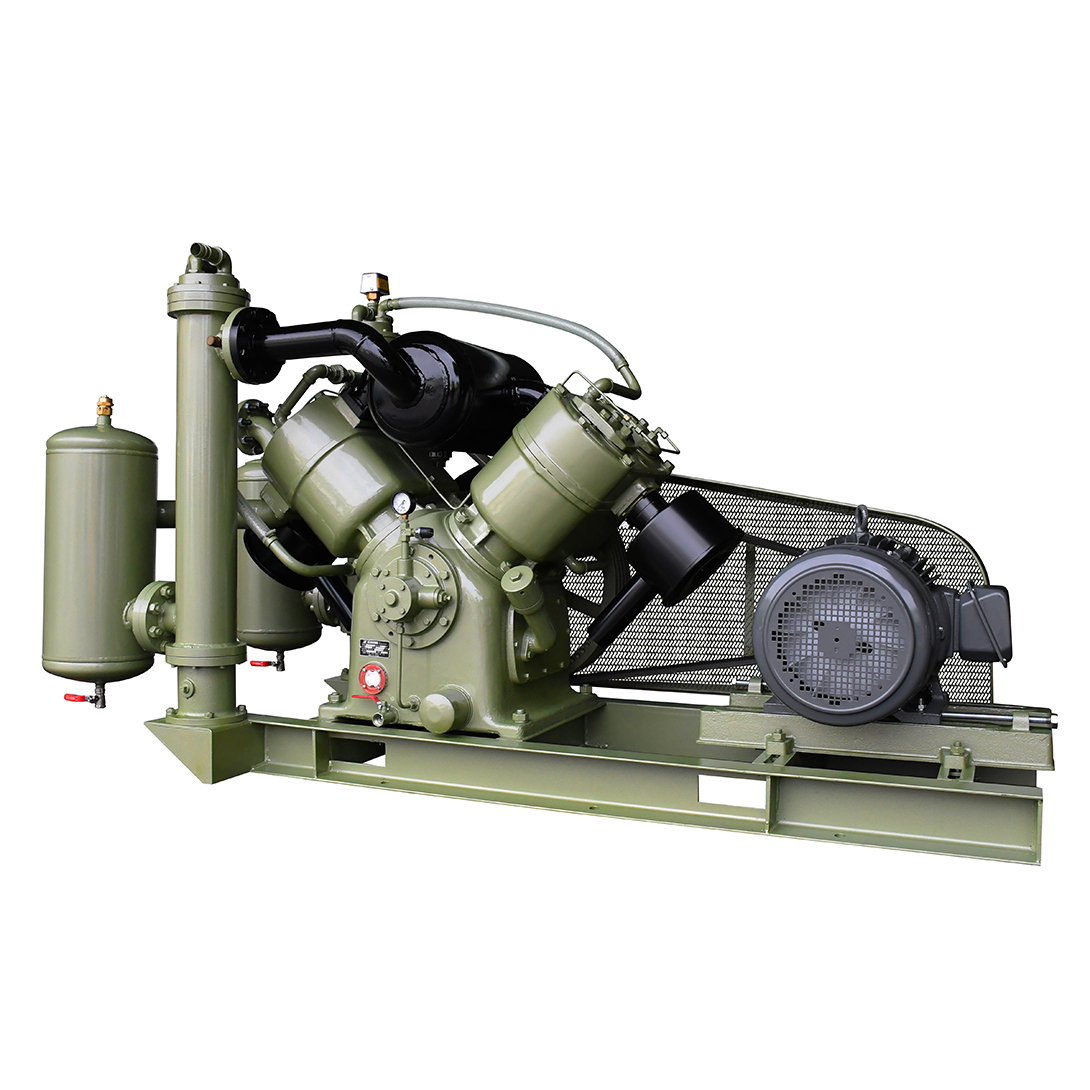

TW/HTW Series

Equipped with two cylinders and water cooling mechanism to improve the compression efficiency, strengthen the load-resistant capability, and make the units safer and more durable.⠀⠀Low oil pressure and low water flow switches are fitted for protection.


  • Horse power (HP) 30~50
  • Working pressure (kg/cm²) 7~12
  • Capacity (m³/min) 2.325~5.05


For high temperature environment, long service time

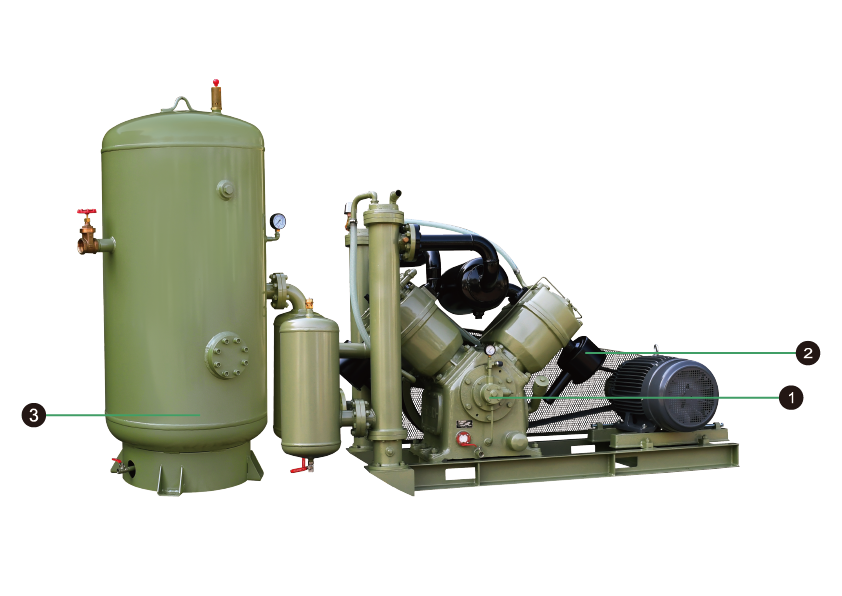

  1. SWAN superior air compressor pump
  2. Air intake filter
  3. Huge air tank


SWAN superior air compressor pump

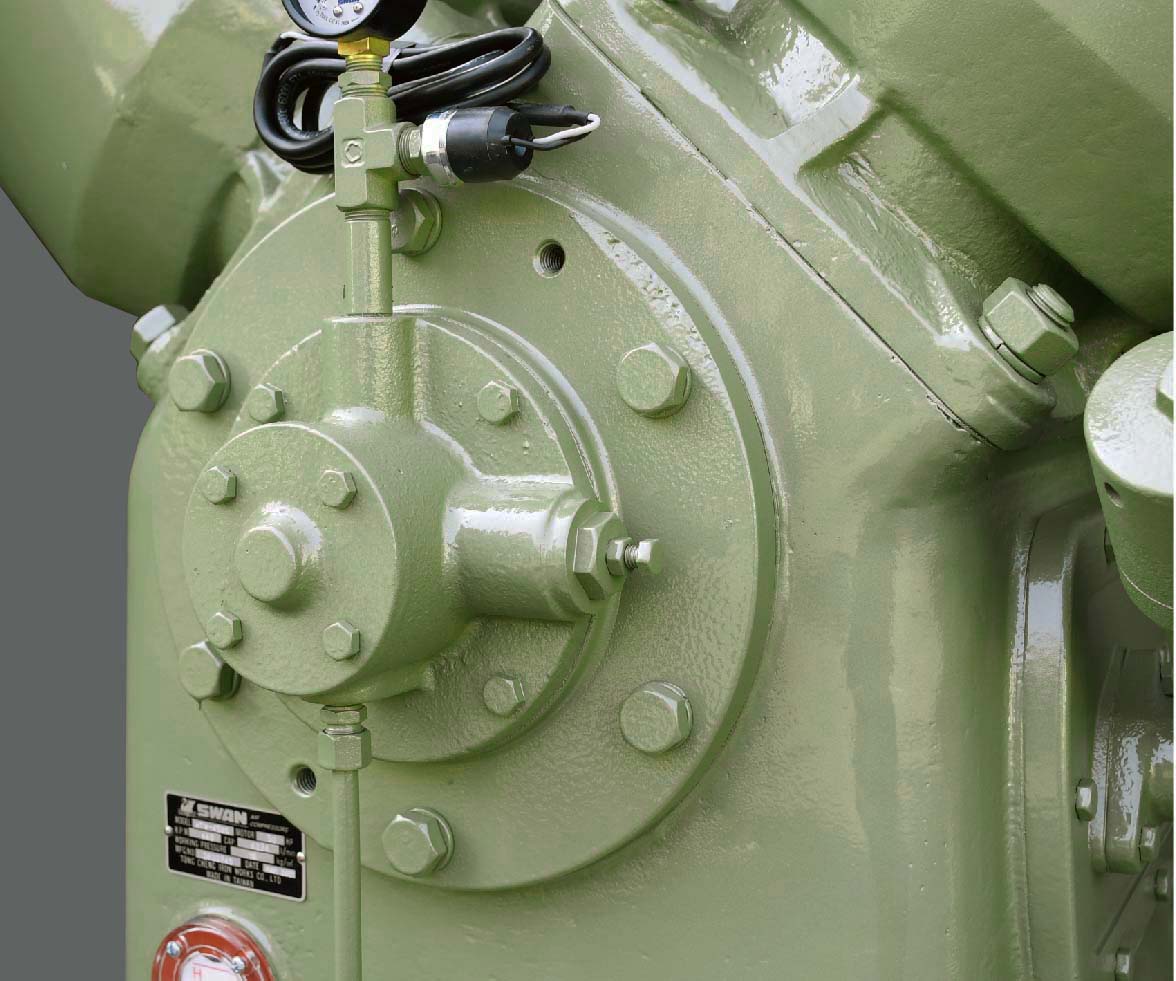

Reliable air compressor pump with accurate lubrication by oil pump. Reduce machine wear out.  Cylinder with electric plating treatment and super fine polishing.  PTFE special piston rings and guide rings fitted to ensure proper lubrication and less wear out.  Air compressor pump with design of oil alert, water flow switch and overload protection to ensure durability and safety.

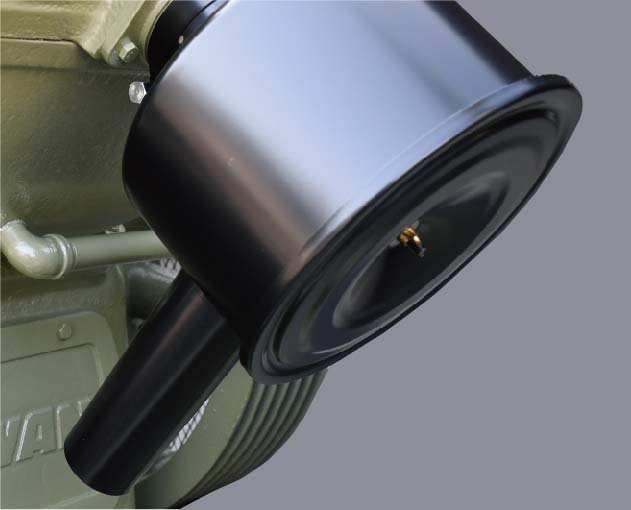

Air intake filter

Dry filter with strength of easy cleaning, small density of filter element, high performance.  Equipped with noise cancelling devise to reduce noise during compressor running.

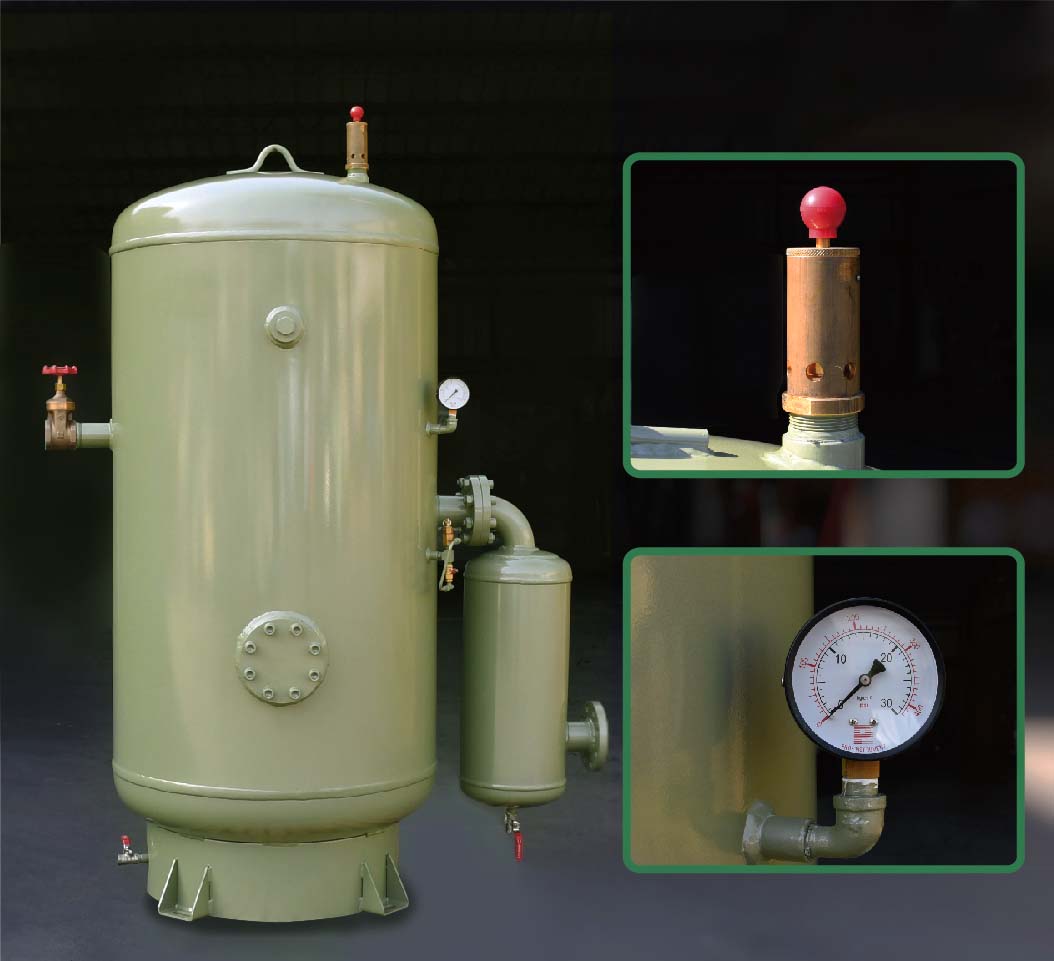

Huge air tank

Huge air tank with safety valve and pressure gauge to ensure tank pressure in safe range also easy to manage air capacity.


Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Dimension (mm) (L*W*H)
TW-430 30 22 7 3.08 3130x1020x1926
TW-450 50 37 7 5.05 3450x1300x1780
HTW-430 30 22 12 2.325 3335x1240x1780
HTW-450 40 30 12 3.05 3335x1240x1780
HTW-450 50 37 12 3.88 3335x1240x1780
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
