SKR-R Series

Energy and Costs Saving. Smart Controller. Low vibration and Silent running. Easy to adjust the Belts’ tension. Simple, Reliable, and Durable. Duplex or Multiple units combined with Optimized air discharge quantity control.

Specifications

  • Horse power (HP) 15~30
  • Working pressure (kg/cm²) 8~10
  • Capacity (m³/min) 0.94~2.4

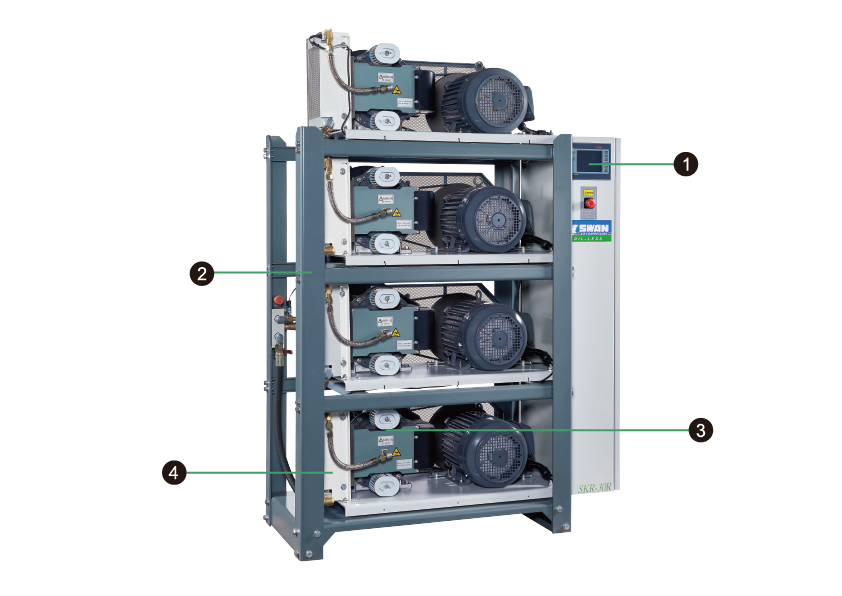

SCROLL MULTIPLE UNITS COMBINED SERIES

Intelligent control, meet demand with the most efficient operation

  1. Smart controller
  2. Multi-air ends sturdy structure
  3. SWAN scroll air end
  4. High efficient air cooler


INTRODUCTION OF ACCESSORIES

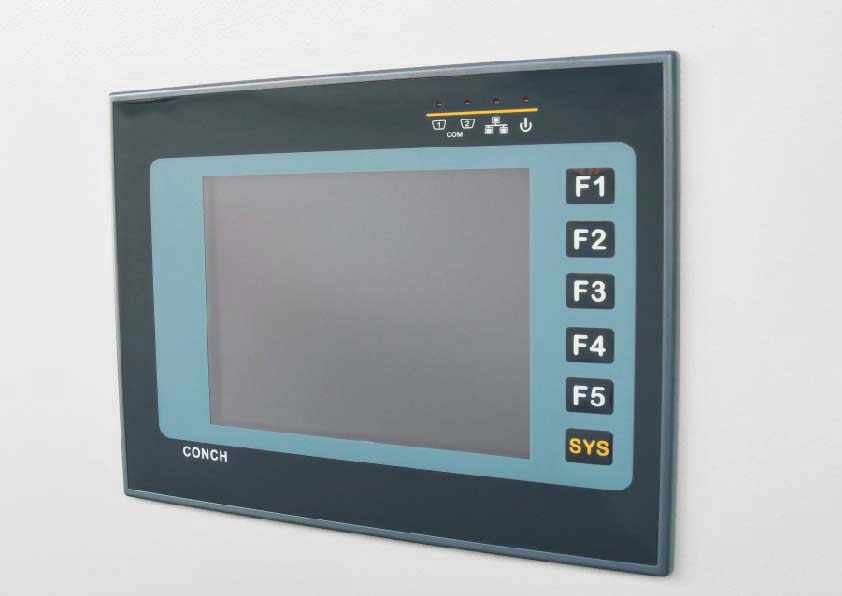

Smart controller

According to different air discharge quantity the Smart Controller adjust the running units to be simplex or multiple operation units; available for remote control, configure and optimize the operation performance, the Smart Controller automatically be adjusted to an automatic or semi-automatic operation mode.

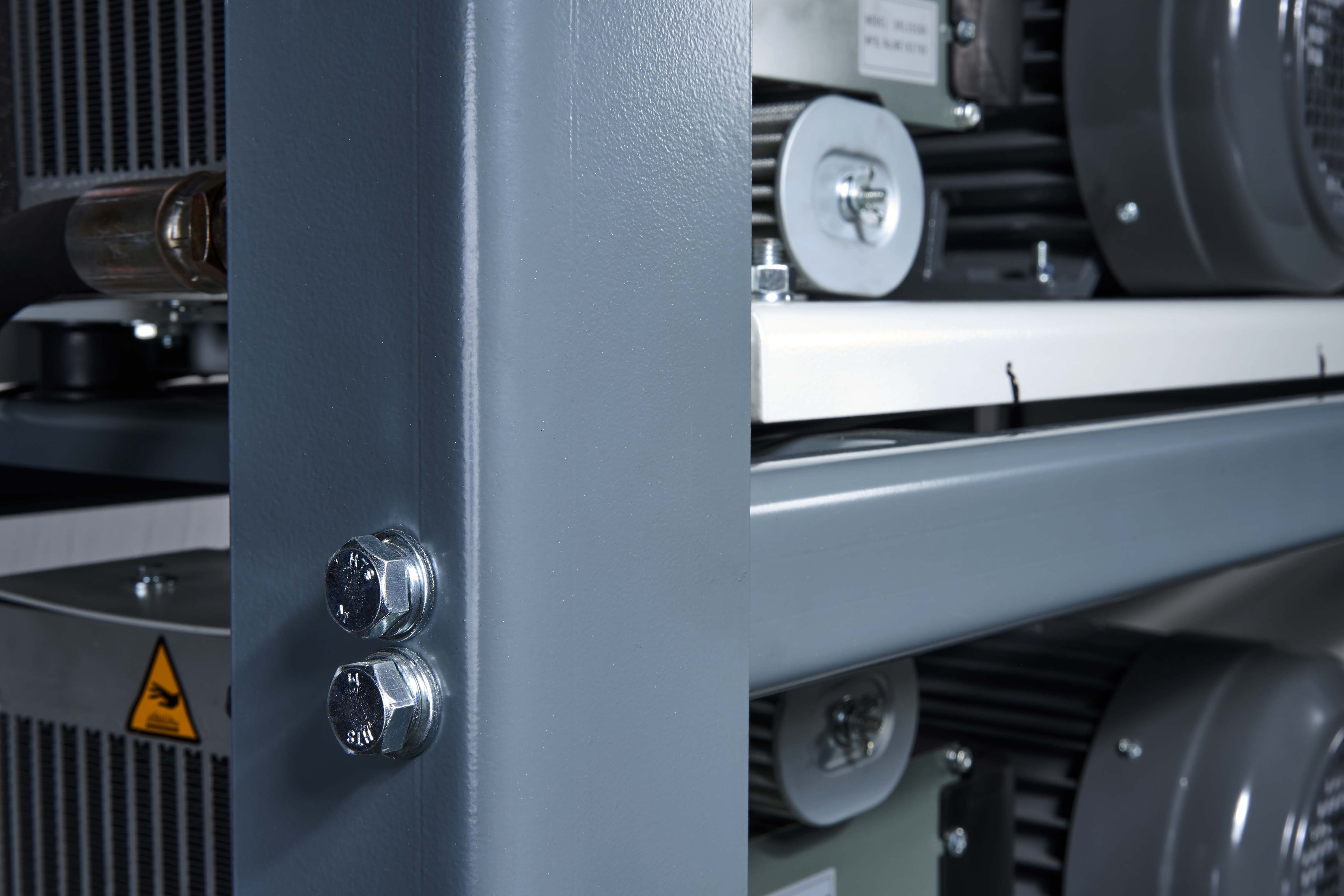

Multi-air ends sturdy structure

The strong sheet metal structure can steadily combine multiple air ends to save the space and improve work efficiency.

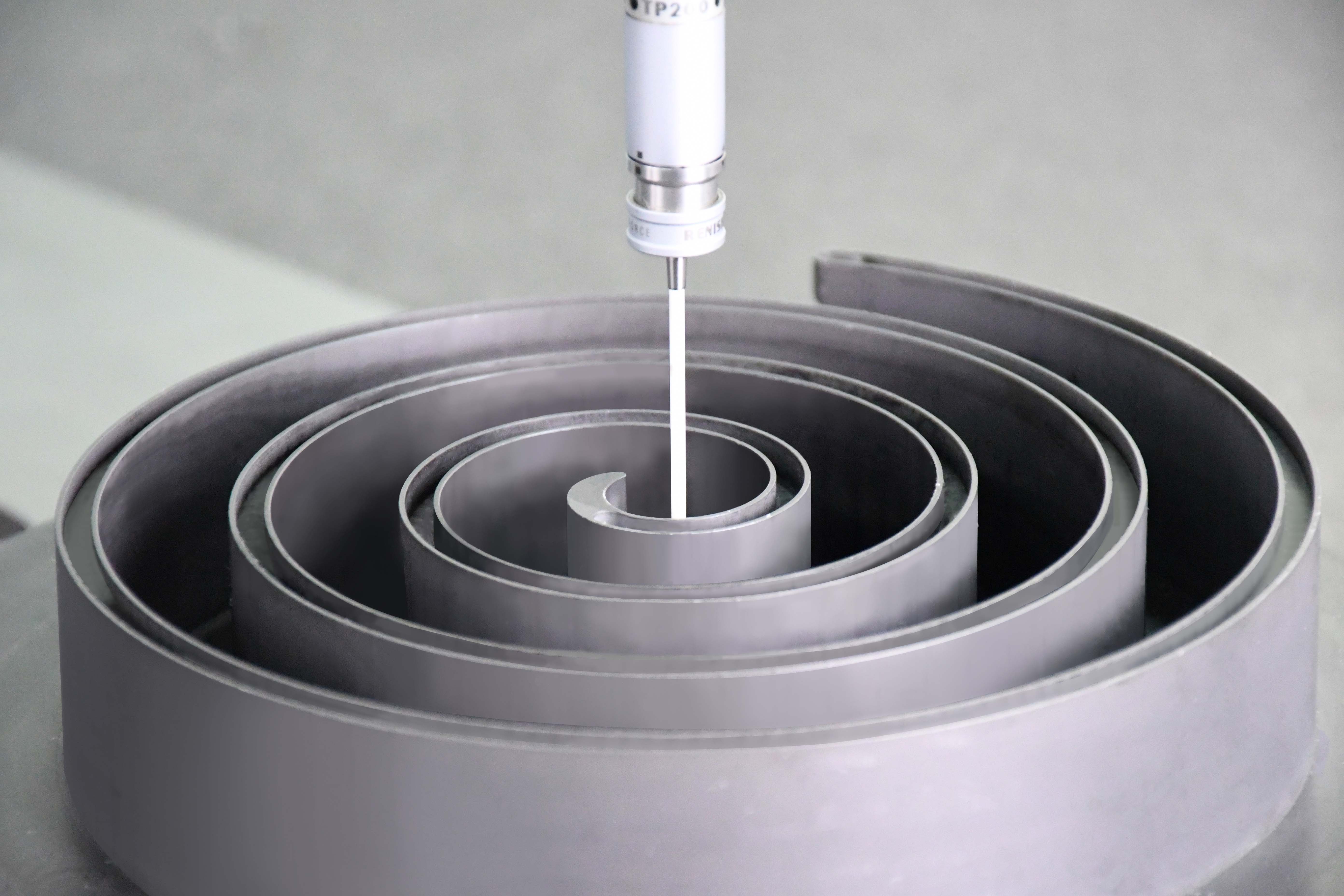

SWAN scroll air end

Low vibration, quietness, and low noise, with dual or multiple operation units to meet different displacement requirement to optimize the air compressor system.

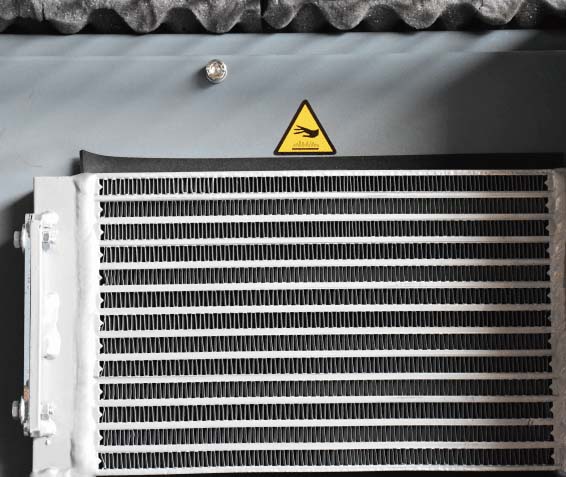

High efficiency air cooler

High efficiency aluminum fin cooler, the vane fan dissipate heat effectively, and greatly reduce the temperature in the cabinet, that benefits to the air compressor withstand constant running, more stable with longer service life.


PRODUCT FEATURES

Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Dimension (mm) (L*W*H)
SKR-10R 5x2 3.7x2 8 0.80 1434X600X1000

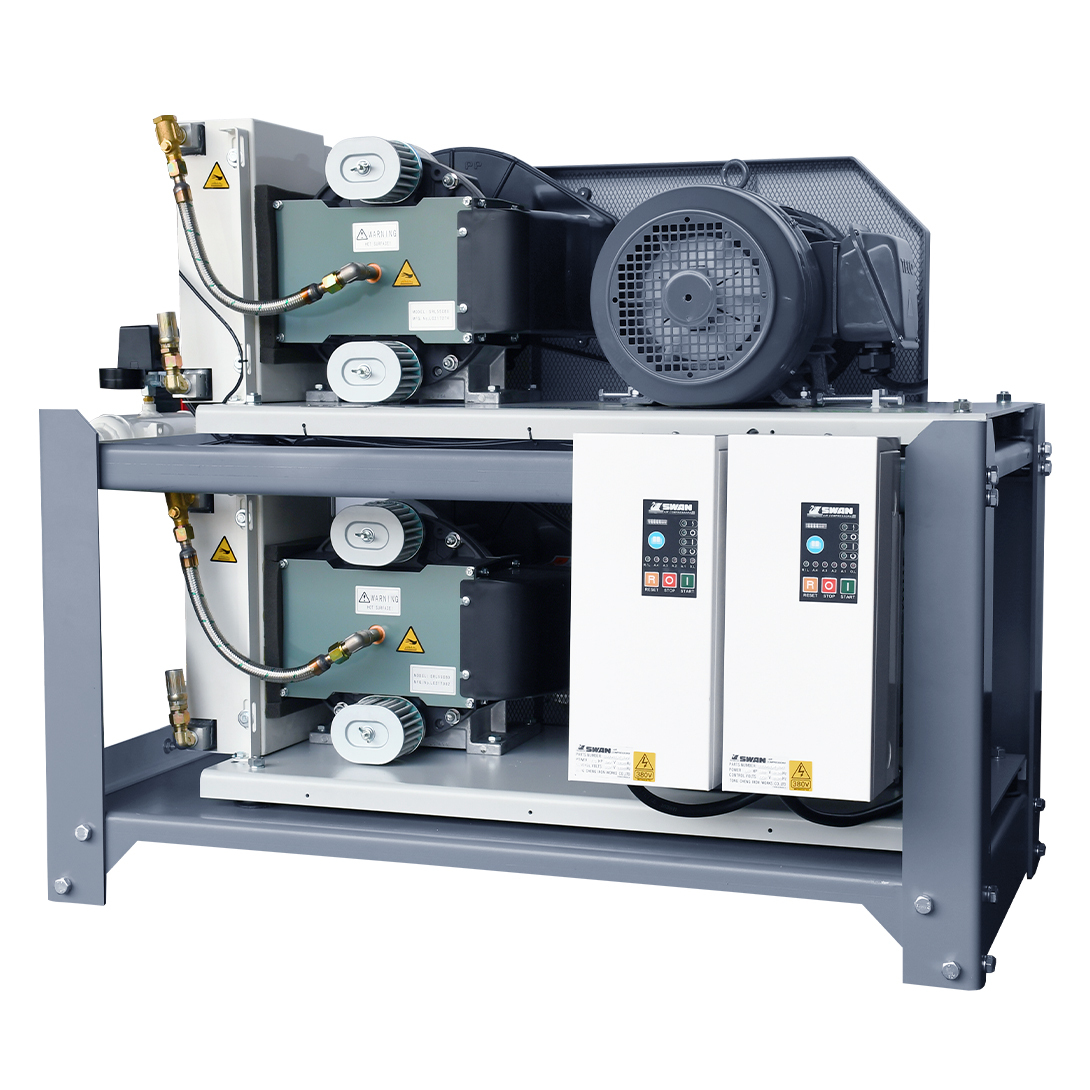

SKR-15R 5x3 3.7x3 8 1.20 1434X600X1469
SKR-15R 7.5x2 5.5x2 10 0.94 1434X600X1469
SKR-20R 5x4 3.7x4 8 1.60 1130X660X1990
SKR-23R 7.5x3 5.5x3 8 1.80 1130X660X1520
SKR-23R 7.5x3 5.5x3 10 1.41 1130X660X1520

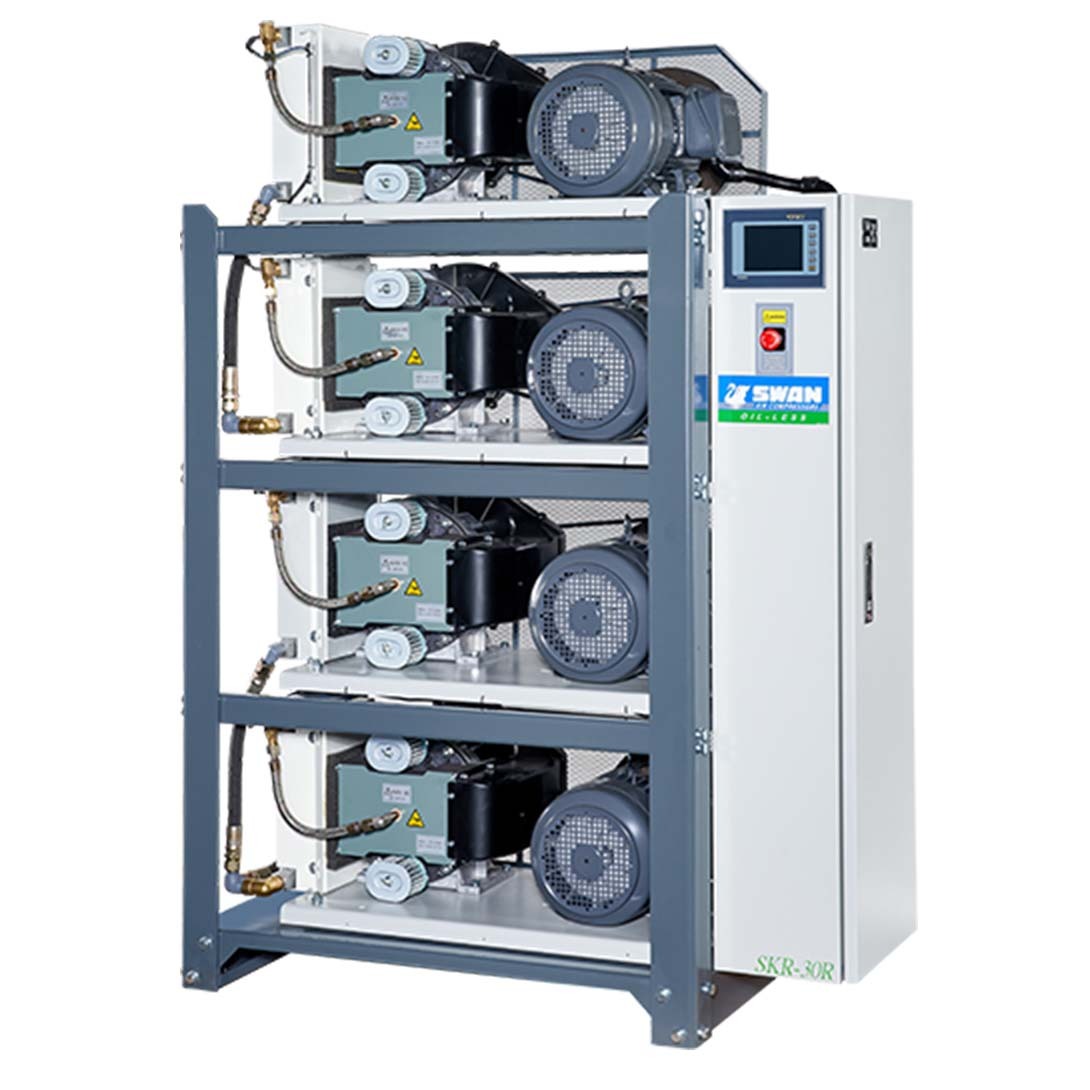

SKR-30R 7.5x4 5.5x4 8 2.40 1130X660X1990
SKR-30R 7.5x4 5.5x4 10 1.88 1130X660X1990
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
