SIMPLIFIED Series

Excellent model certified by Taiwan Excellence Award, no oil pollution, low energy consumption, high efficiency, small size.

Specifications

  • Horse power (HP) 2
  • Working pressure (kg/cm²) 7~10
  • Capacity (m³/min) 0.10~0.24

SIMPLIFIED SERIES

No oil pollution, low energy consumption, high efficiency.

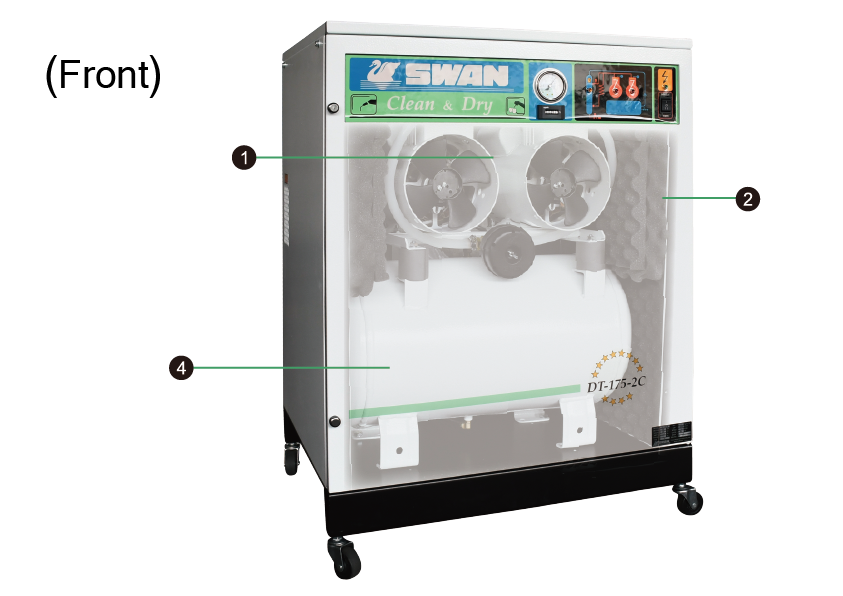

  1. Dual direct-driven oil-free bare pump
  2. Silent cabinet type structure

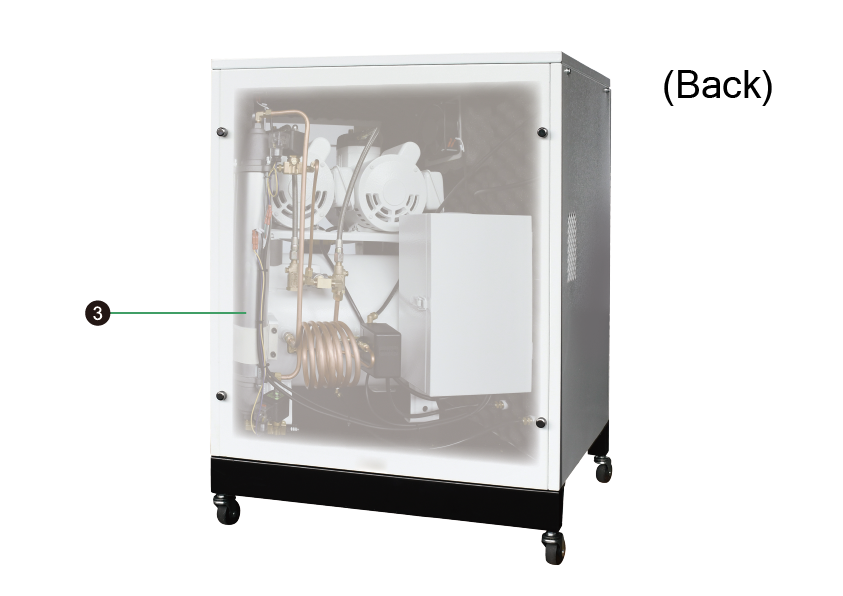

  3. Adsorption air dryer
  4. Stainless steel air tank


INTRODUCTION OF ACCESSORIES

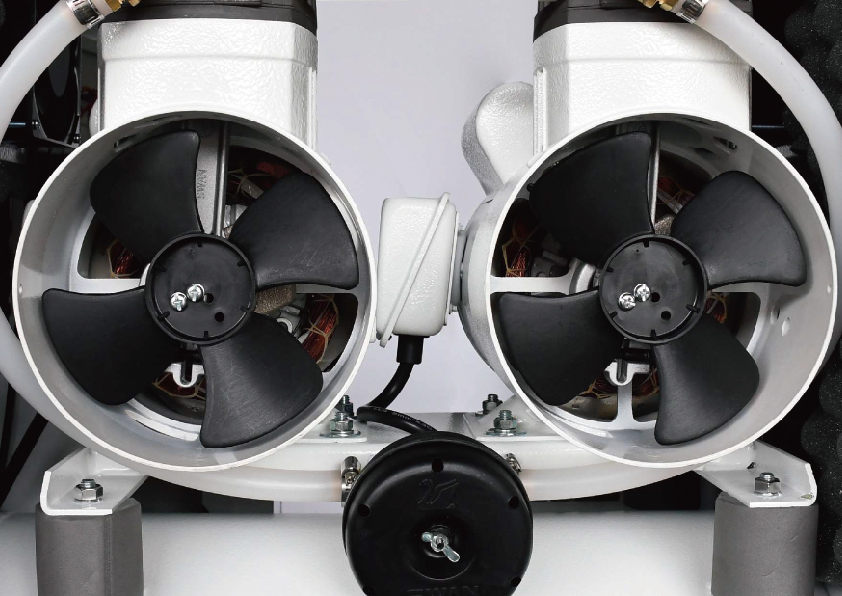

Dual direct-driven oil-free bare pump

Different from the traditional new design, it has no need to add lubricating oil.  The air compressor can be operated in a single machine, two machines, or in standby mode, which saves energy and also has high flexibility of use. The motor of the standby machine is equipped with a protector, which can withstand long-term operation.


Silent cabinet type structure

It adopts strong sheet metal, high-grade sound-absorbing and fireproof materials to block the operation noise; and also adopts shock-absorbing design to meet the requirements of low noise and low vibration during operation.

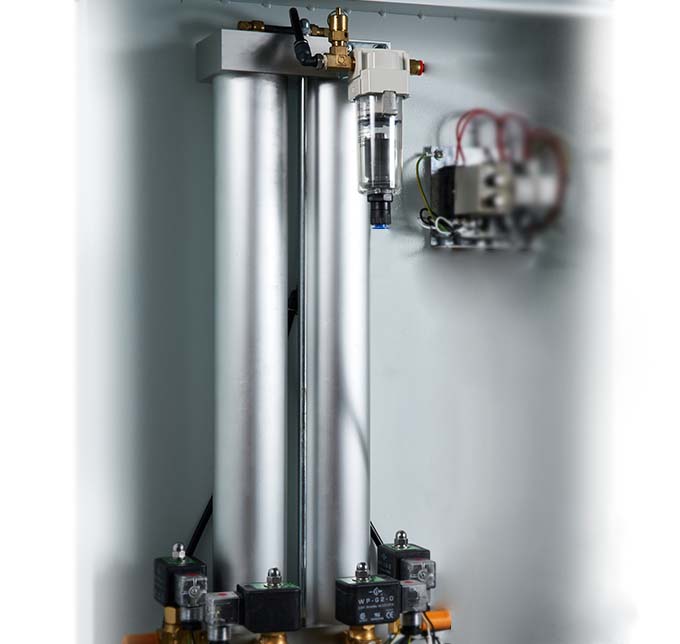

Adsorption air dryer(SA Series)
It adopts a high-efficient intercooler and an automatic water filter, combined with a double-tube adsorption regenerative air dryer to achieve clean air with almost no moisture.  The air dryer system does not use refrigerants, which is environmental friendly and pollution-free.

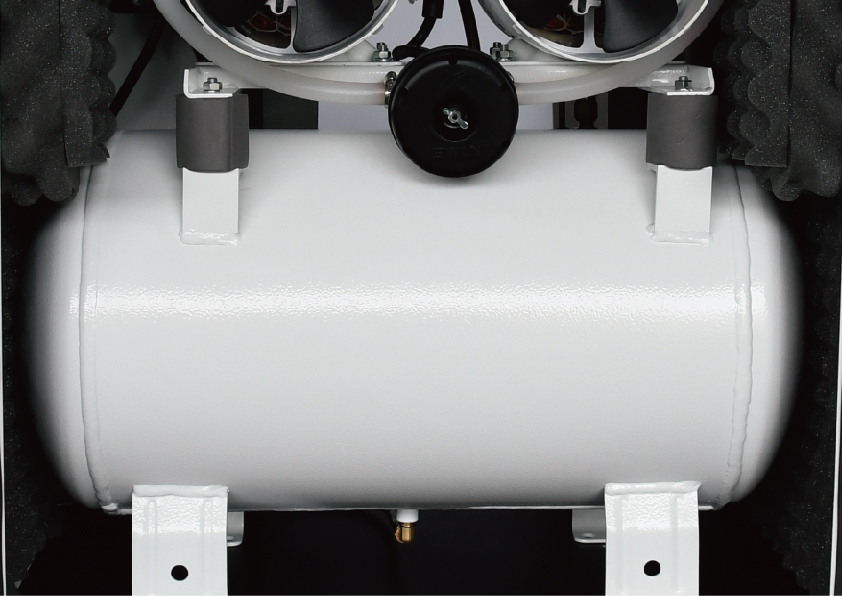

Stainless air tank

The whole air tank is made of high-strength steel plate, and the coating inside the air tank can choose to be painted with epoxy resin to eliminate the possibility of corrosion in the air tank. The appearance of the air tank is powder-coated, and the coating is exquisite and firmed, and it is not easy to fall off.

PRODUCT FEATURES


BARE PUMP ADVANTAGE


SIMPLIFIED series products are certified by the Taiwan Excellence Award.  SWAN has a team with technology capabilities and product development experience.  Following the trend of energy saving and environmental protection, our research and development strategy is based on oil-free, low energy consumption and high efficiency.  With the diversified strategy, we hope swan air compressors can be more easily introduced to various industries.

Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Tank Capacity (liter) Dimension (mm) (L*W*H) Weight (kg)

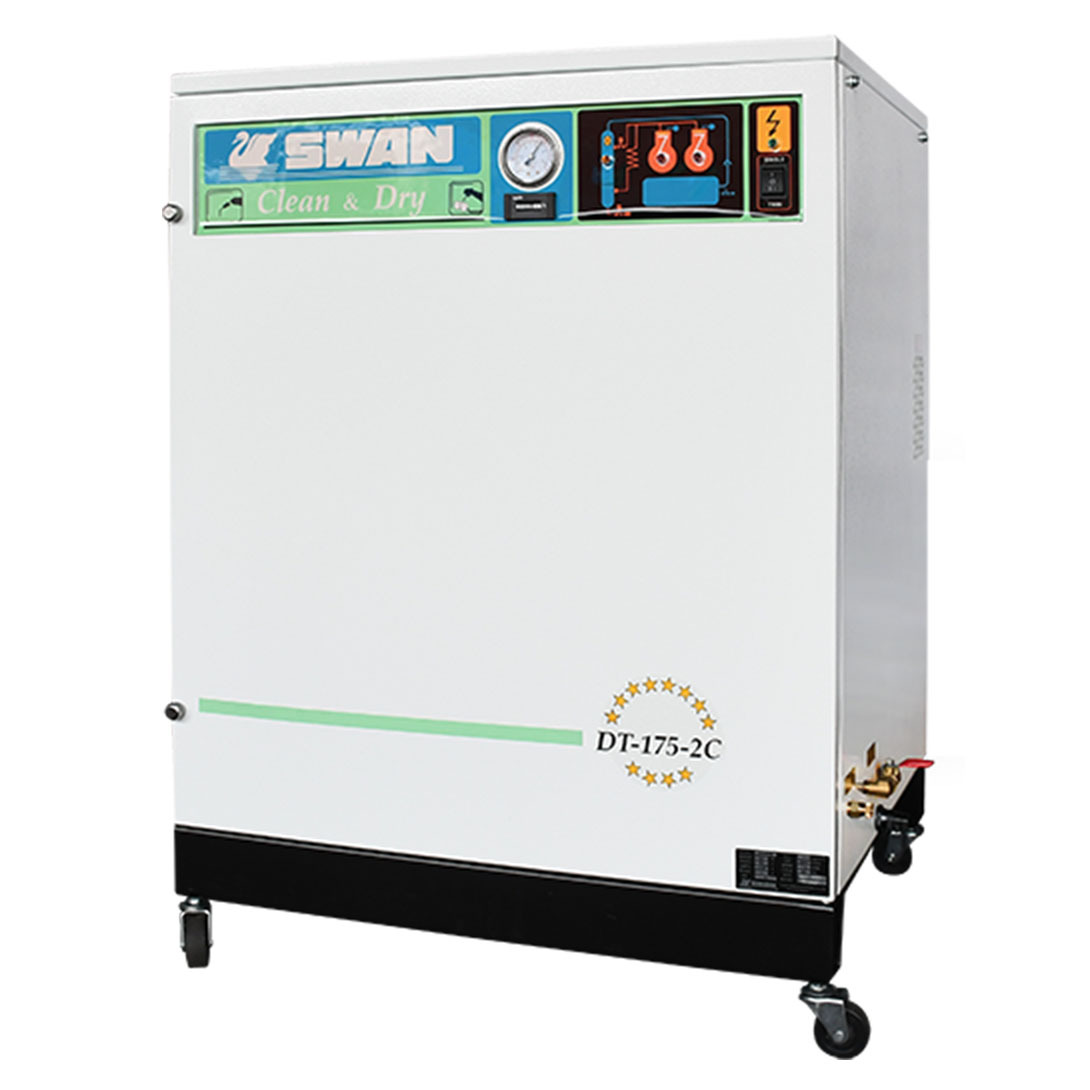

DT-175-2C 2 1.5 7 0.24 39 580x660x840 112

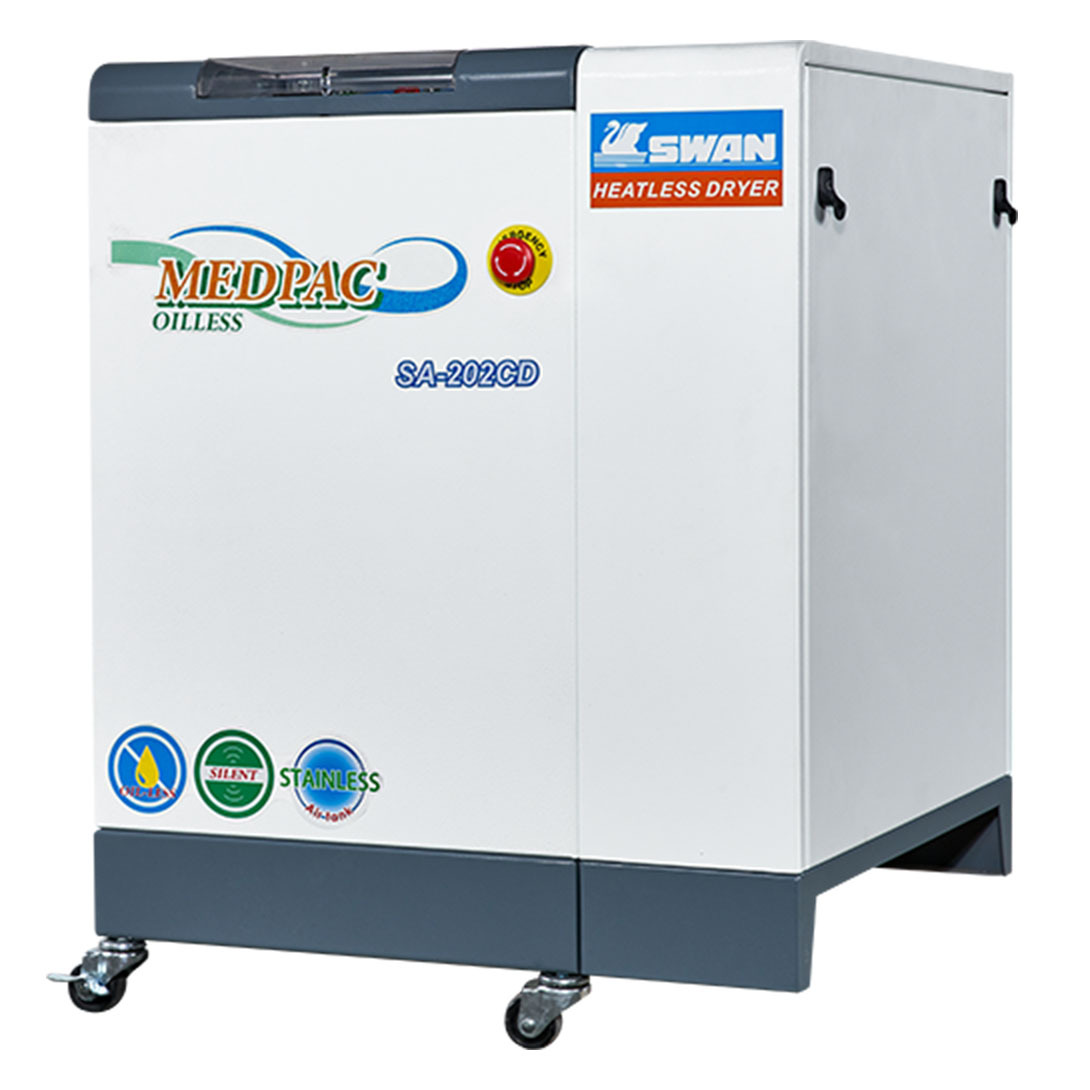

SA-202CD 2 1.5 10 0.10 21 750x700x870 131
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
