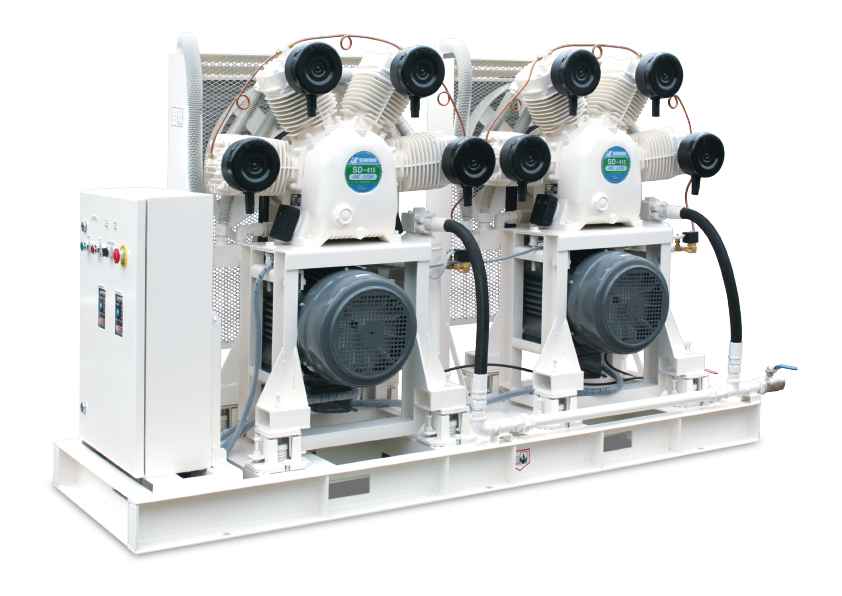

SDS/SDT Series

Oil-less two in one compressors. This series equipped dual control PLC can offer single or dual compressors' operation. You can base on different compressed air demand to choose the operation mode. It can satisfied your need and also energy saving.


  • Horse power (HP) 5~30
  • Working pressure (kg/cm²) 8
  • Capacity (m³/min) 0.48~2.45


Single or Double air compressors running alternatively for flexible usage

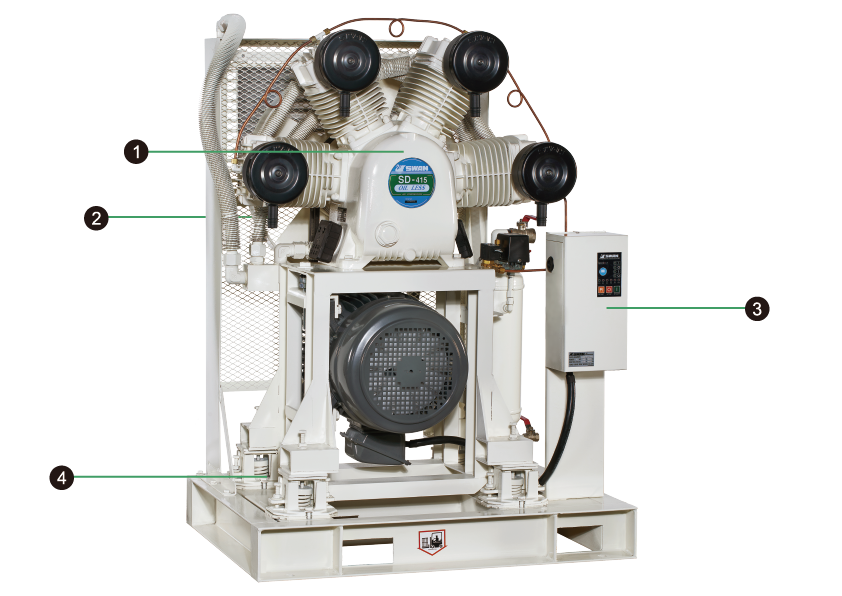

  1. SWAN oil-less quality bare pump
  2. High efficient air cooler
  3. Smart control panel
  4. Vibration proof platform structure

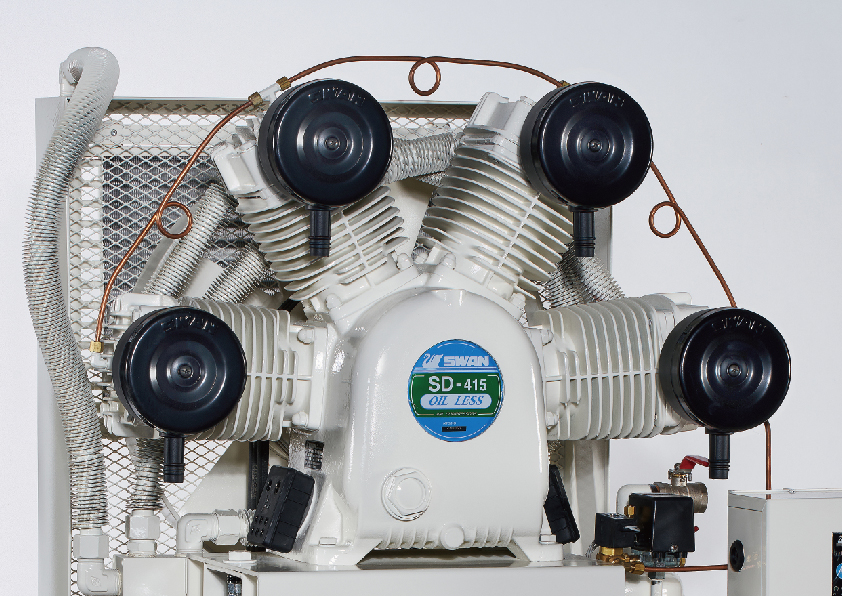

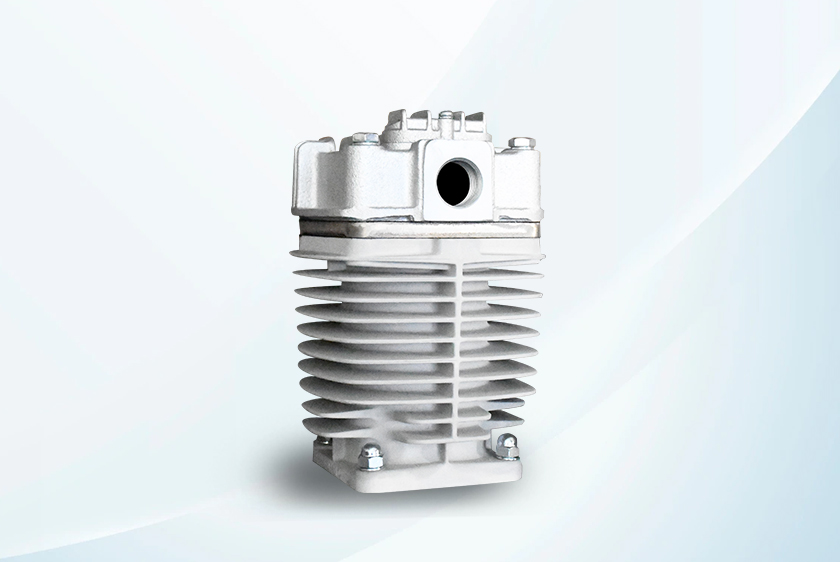

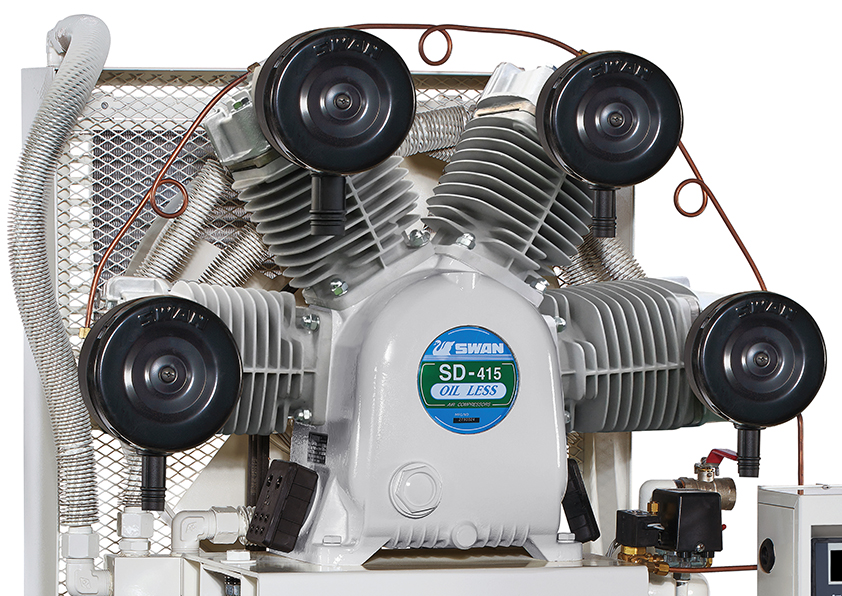

SWAN oil-less quality bare pump

SWAN's exclusive patented body, completely oil-free structure design, greatly reduces the cost of the air purification system, and provides better air quality.

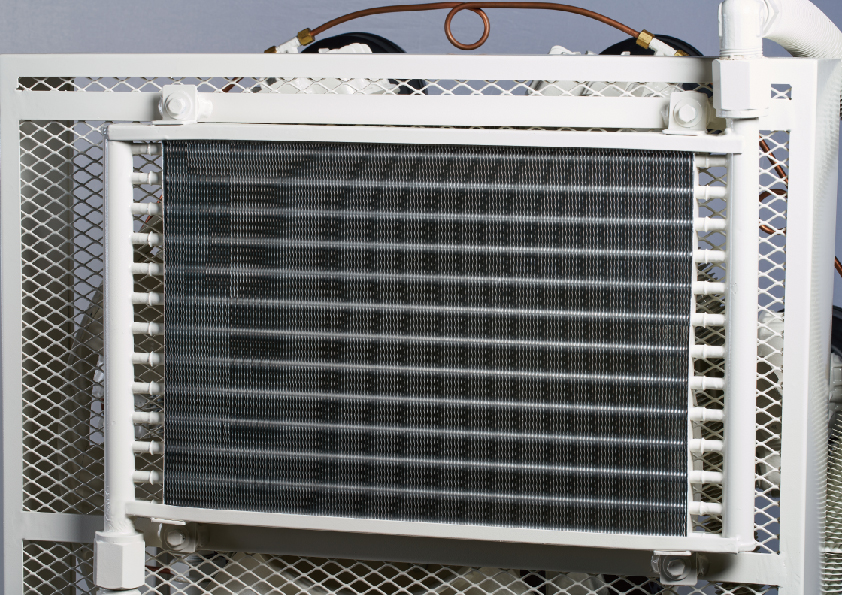

High efficient air cooler

Using high-efficiency aluminum fin cooler and its own vane fan to dissipate heat, greatly reduce the temperature in the cabinet, so that the air compressor can run for a long time, more stable, and has a longer service life.

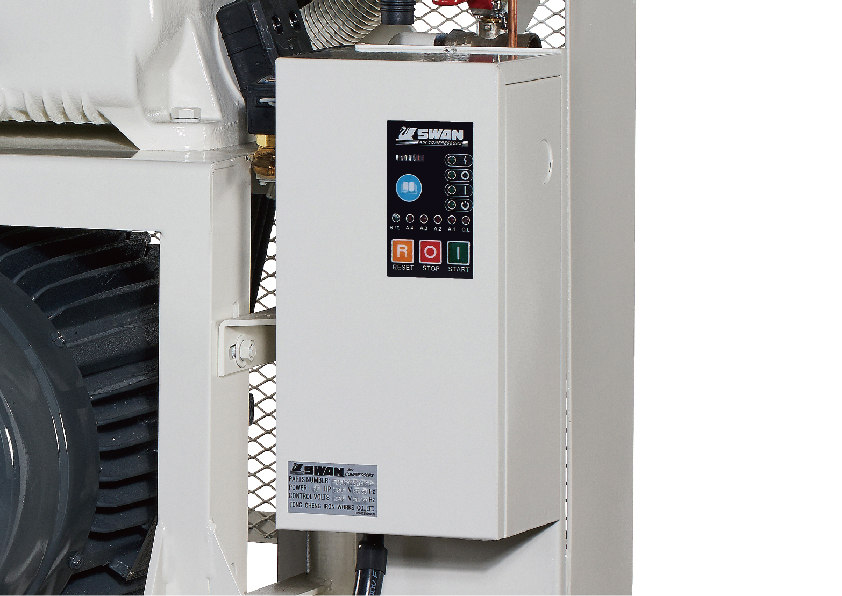

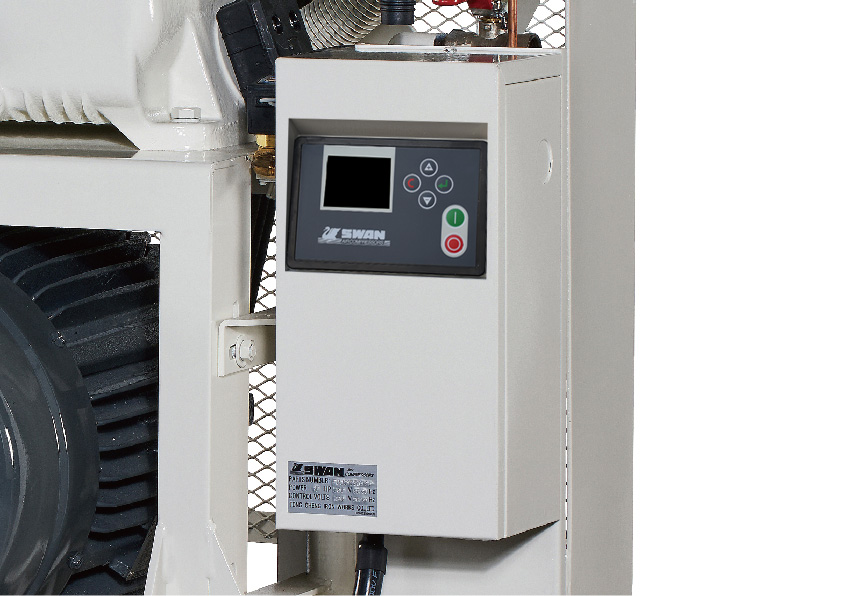

Smart control panel

Air compressor can be remotely flexibly controlled, it’s designed more humanely; the smart automatic control will automatically adjust according to the usage. The control system has multiple protection functions; the control panel indicator will display the operation situation and the fault detection display can allow you to take protective actions in timely.

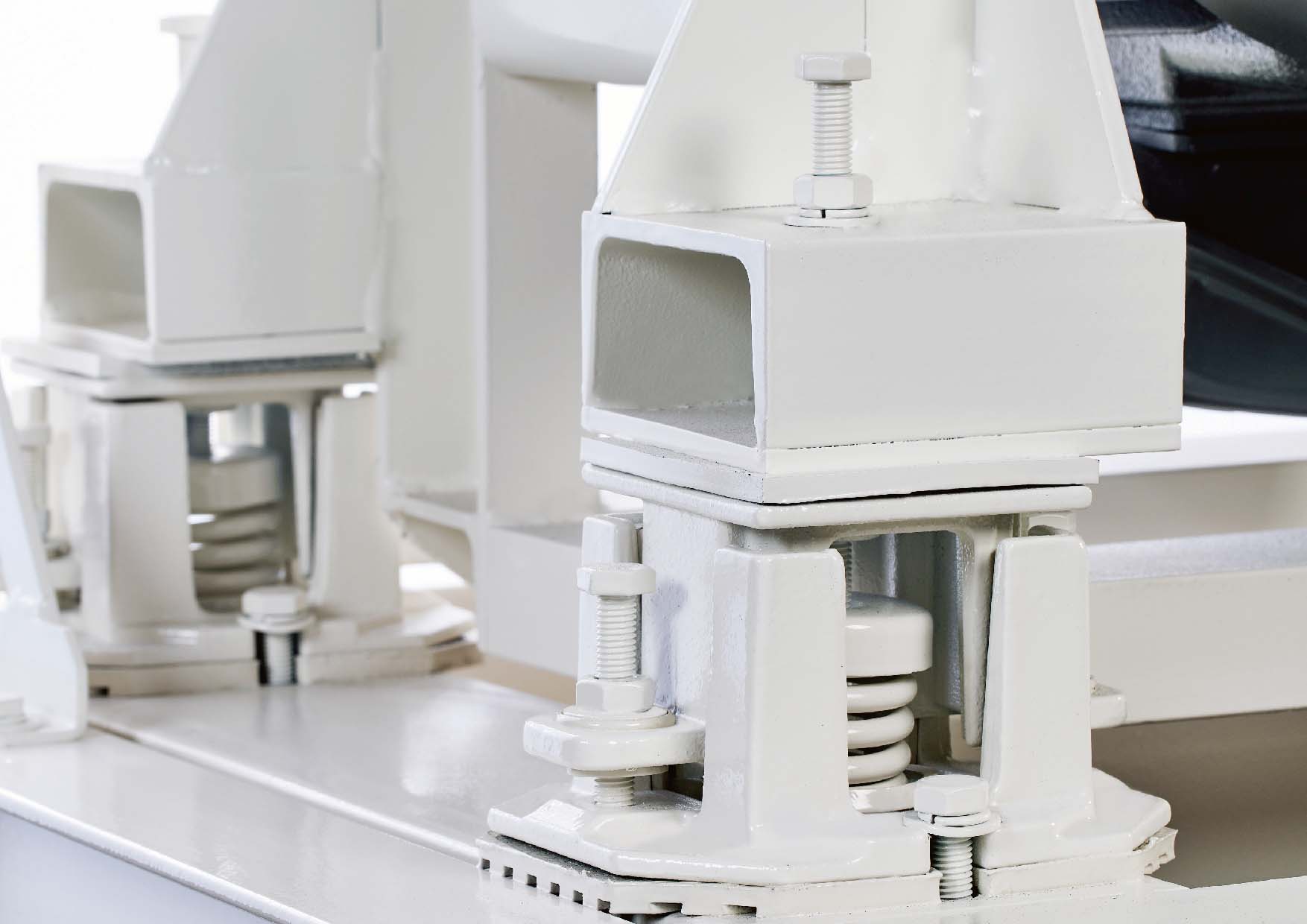

Strong bare pump structure

It can be single or dual air ends combination according to the air demand. Sturdy body structure and shock absorber configuration reduce vibration and noise during operation.

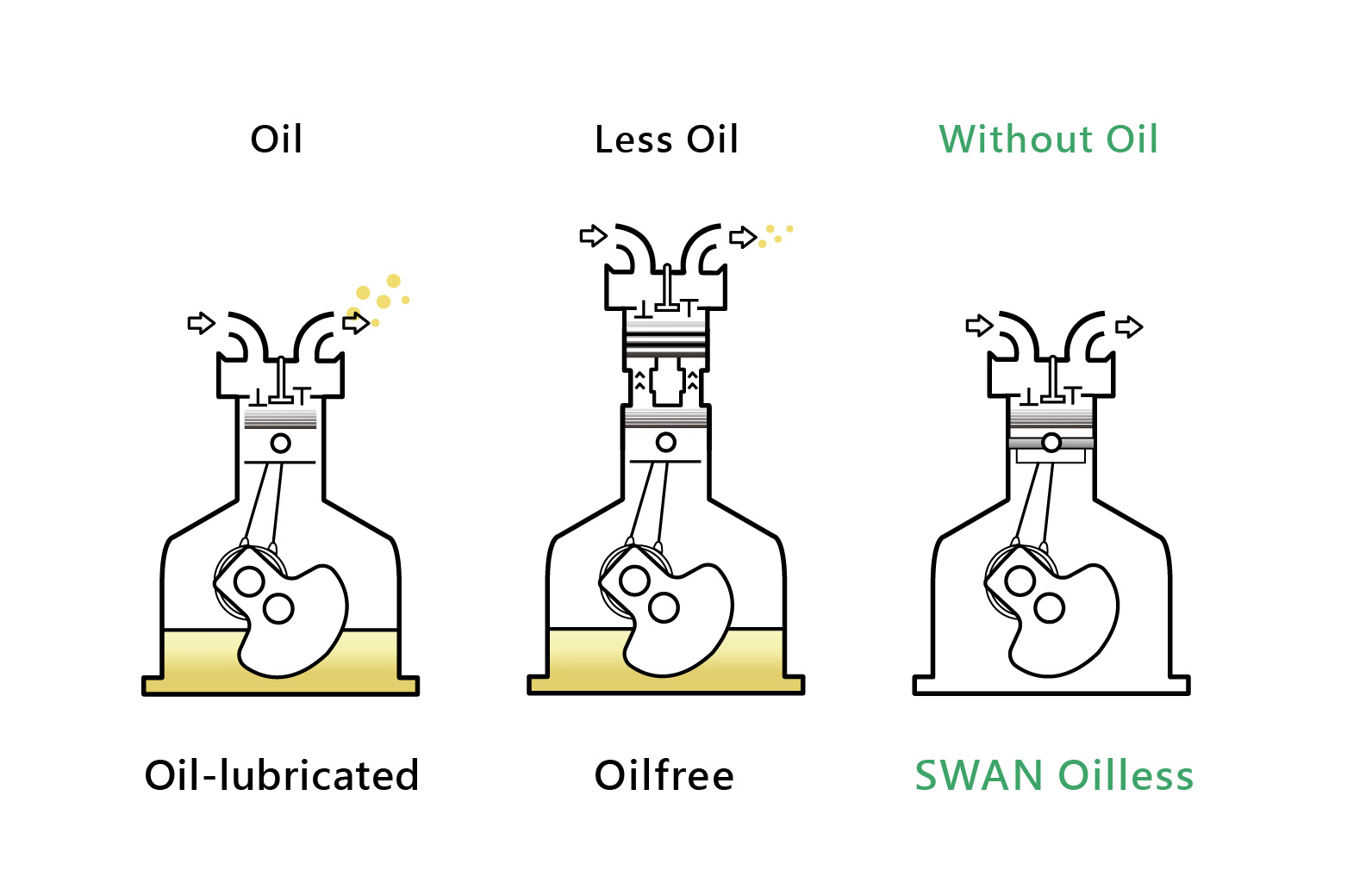

SWAN patented oil-free structure

Generally, oil-free air compressors are with Oil-free structure, which still contains oil during operation, and it only has no oil in the compressed air; but the patented bare pump of SWAN oil-free air compressors is with Oil-less structure, which not only has no oil in the compressed air, but also has no need to add lubricating oil during operation, which can provide you with cleaner and oil-free compressed air.


一張含有 白色, 相機 的圖片

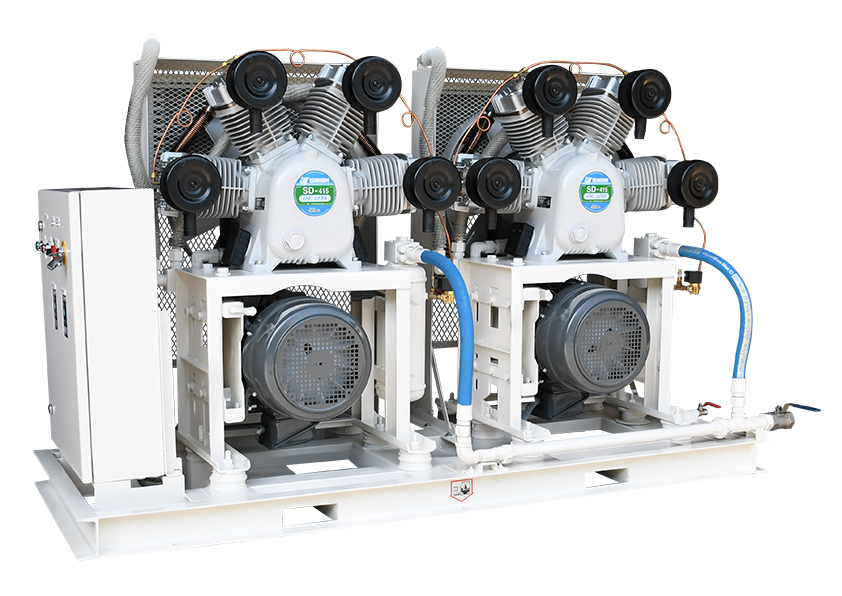

Single/dual pumps combination, intelligently adjusted according to air consumption

The two machines can be operated alternately to avoid centralized operation of one single machine; thereby, increase the service life of the air compressor. It will also automatically adjust the number of running machines according to the actual air consumption, which not only ensures the machine to maintain the highest performance and efficiency at any time, but also makes the pumps run in a durable, safe and energy-saving condition.

Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Dimension (mm) (L*W*H)

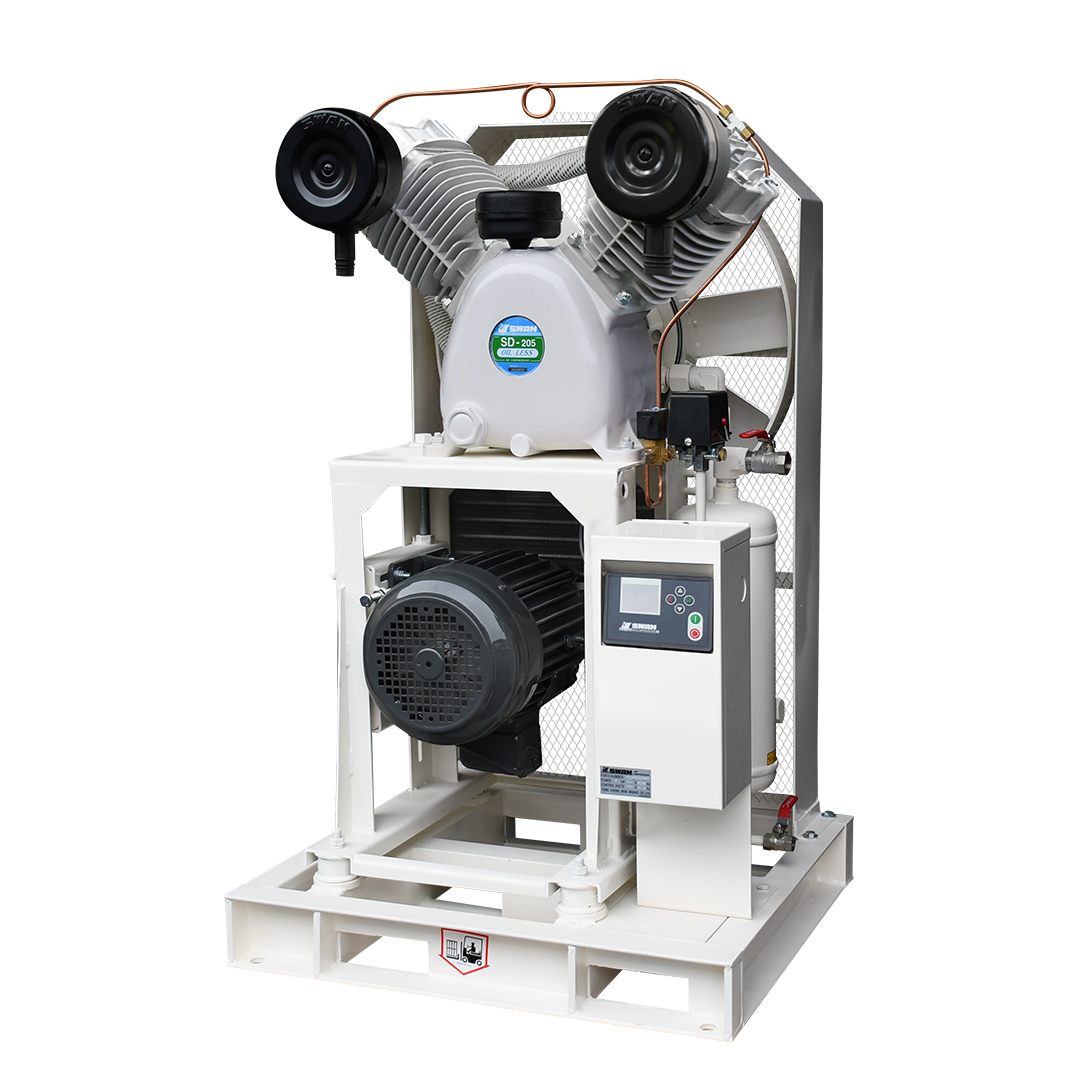

SDS-205 5 3.7 8 0.485 700x620x1120

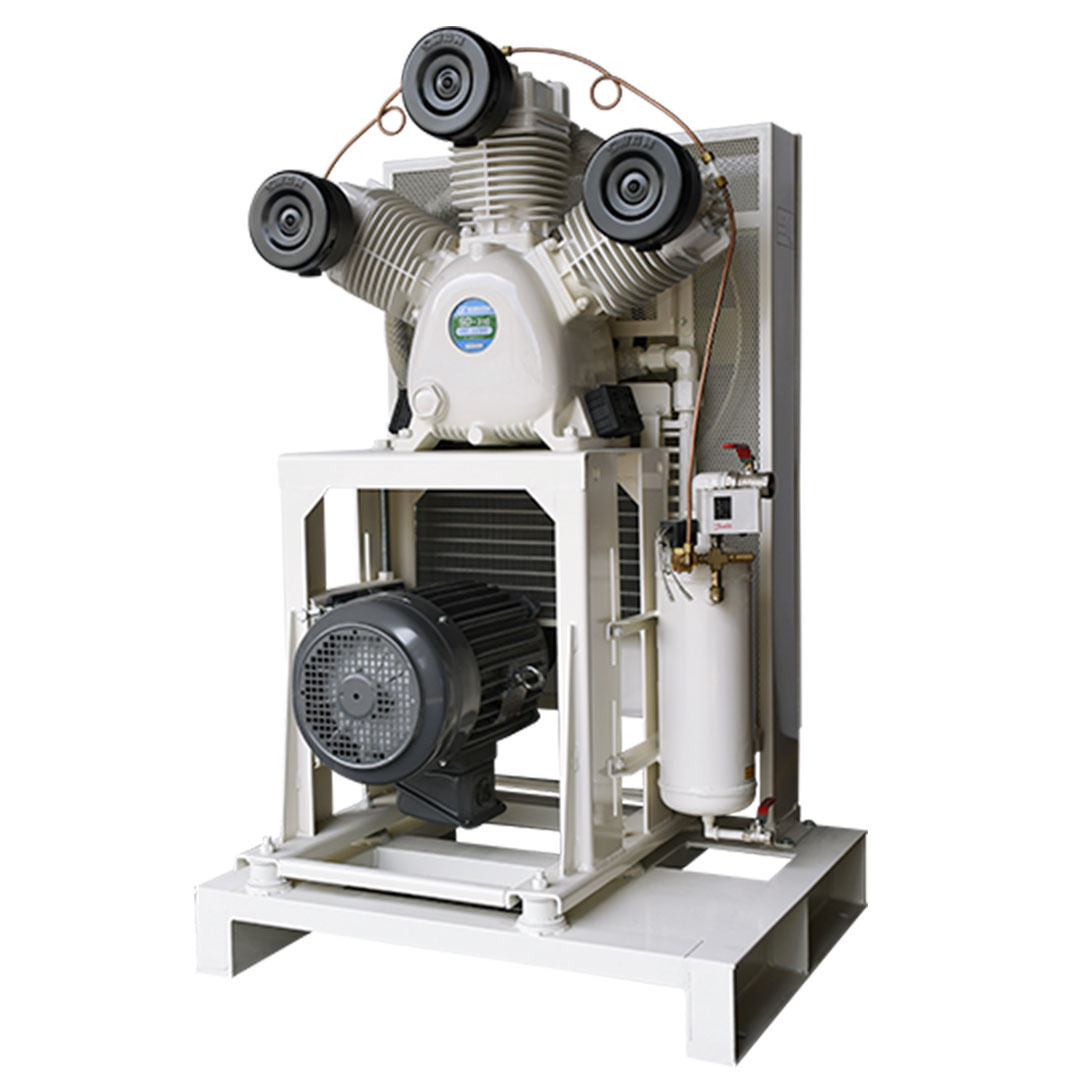

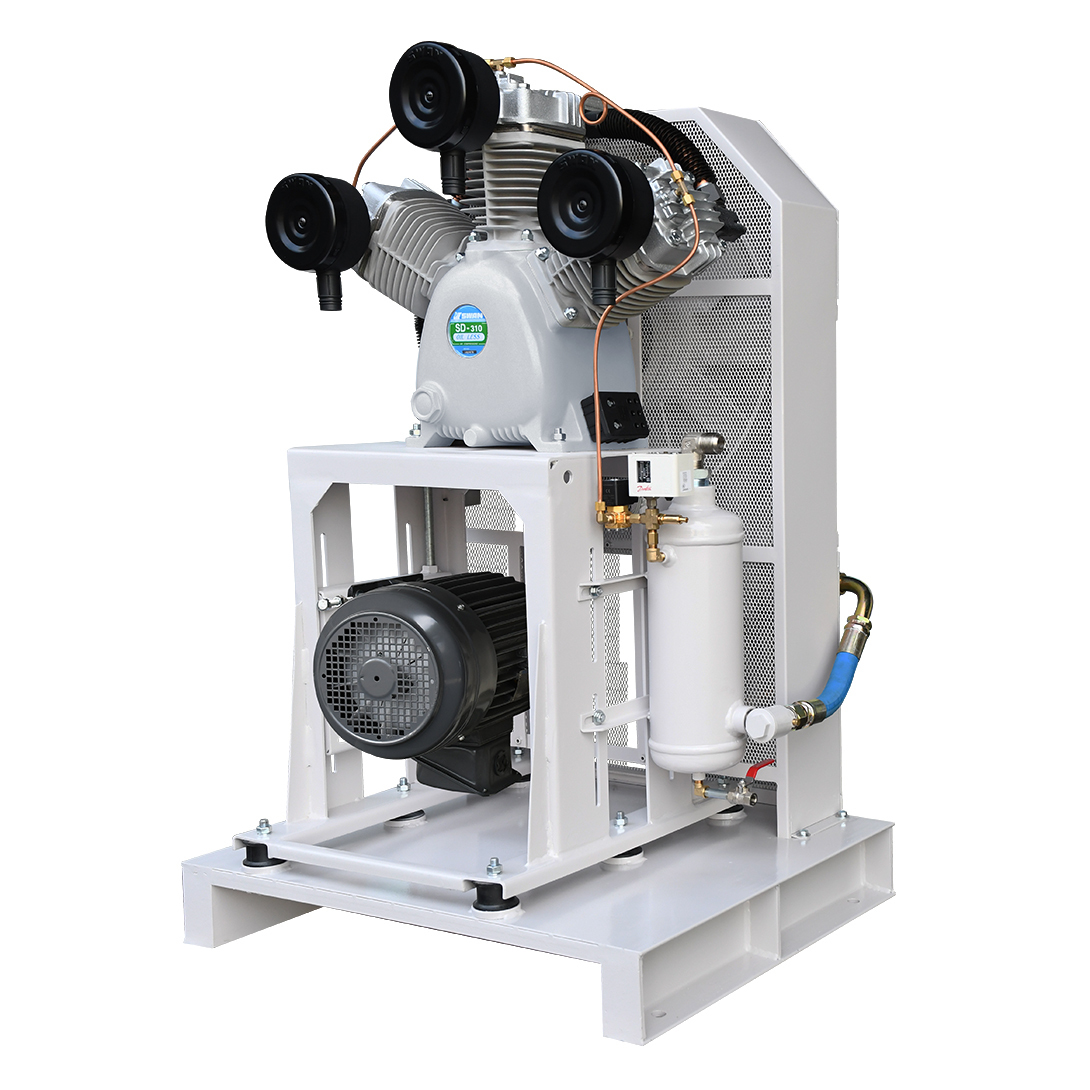

SDS-310 10 7.5 8 0.730 880x710x1305

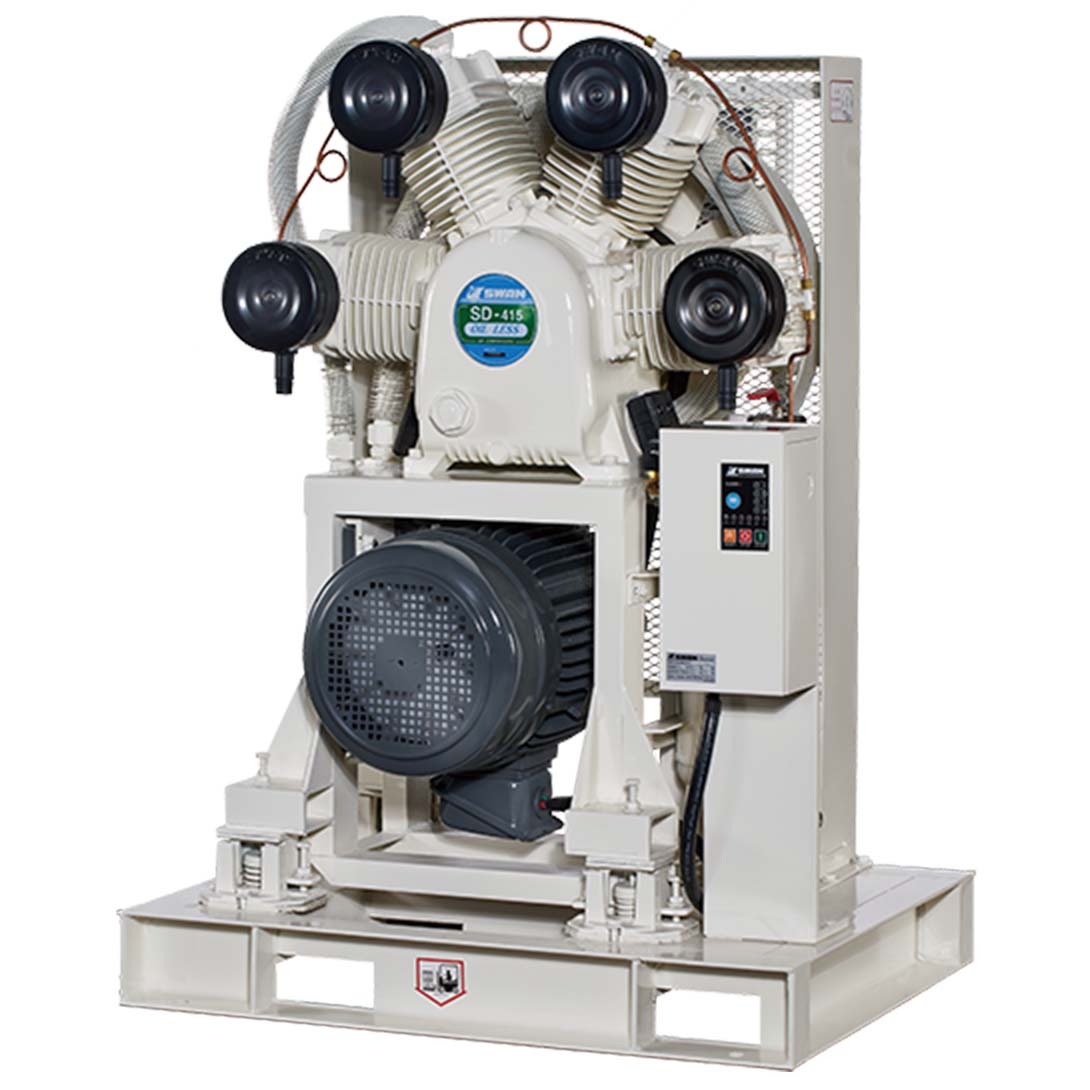

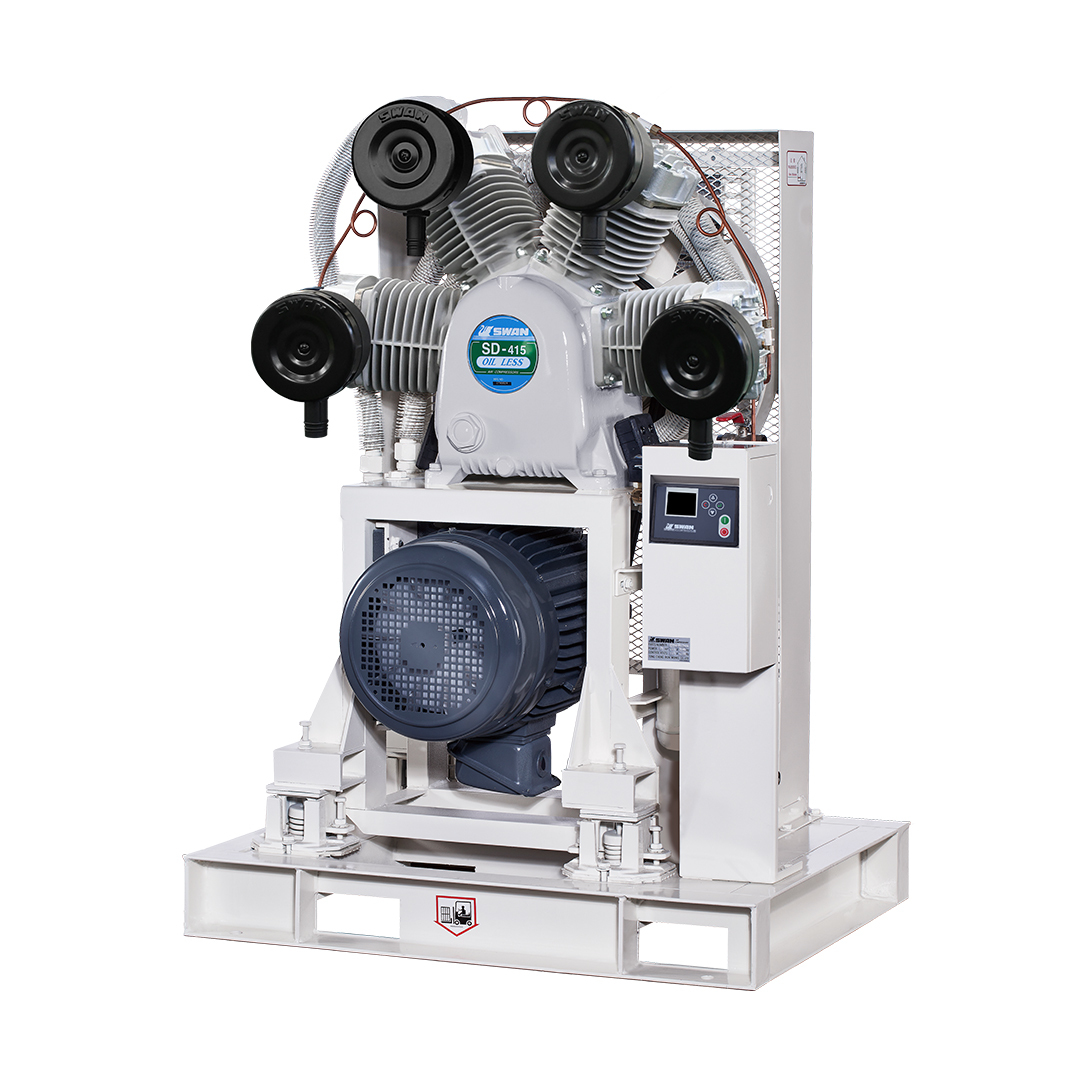

SDS-415 15 11 8 1.225 935x730x1330
SDT-205 5x2 3.7x2 8 0.970 1780x620x1150

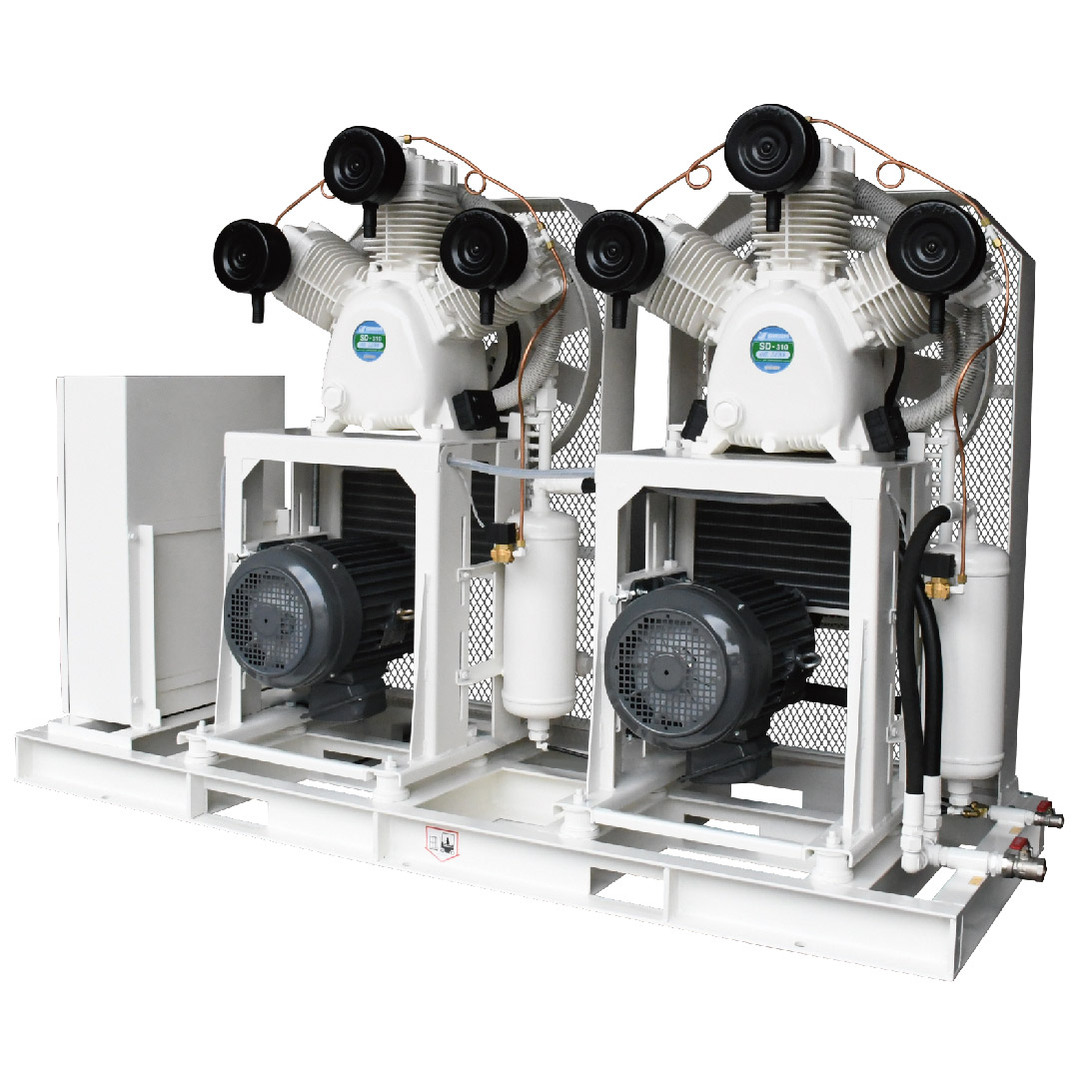

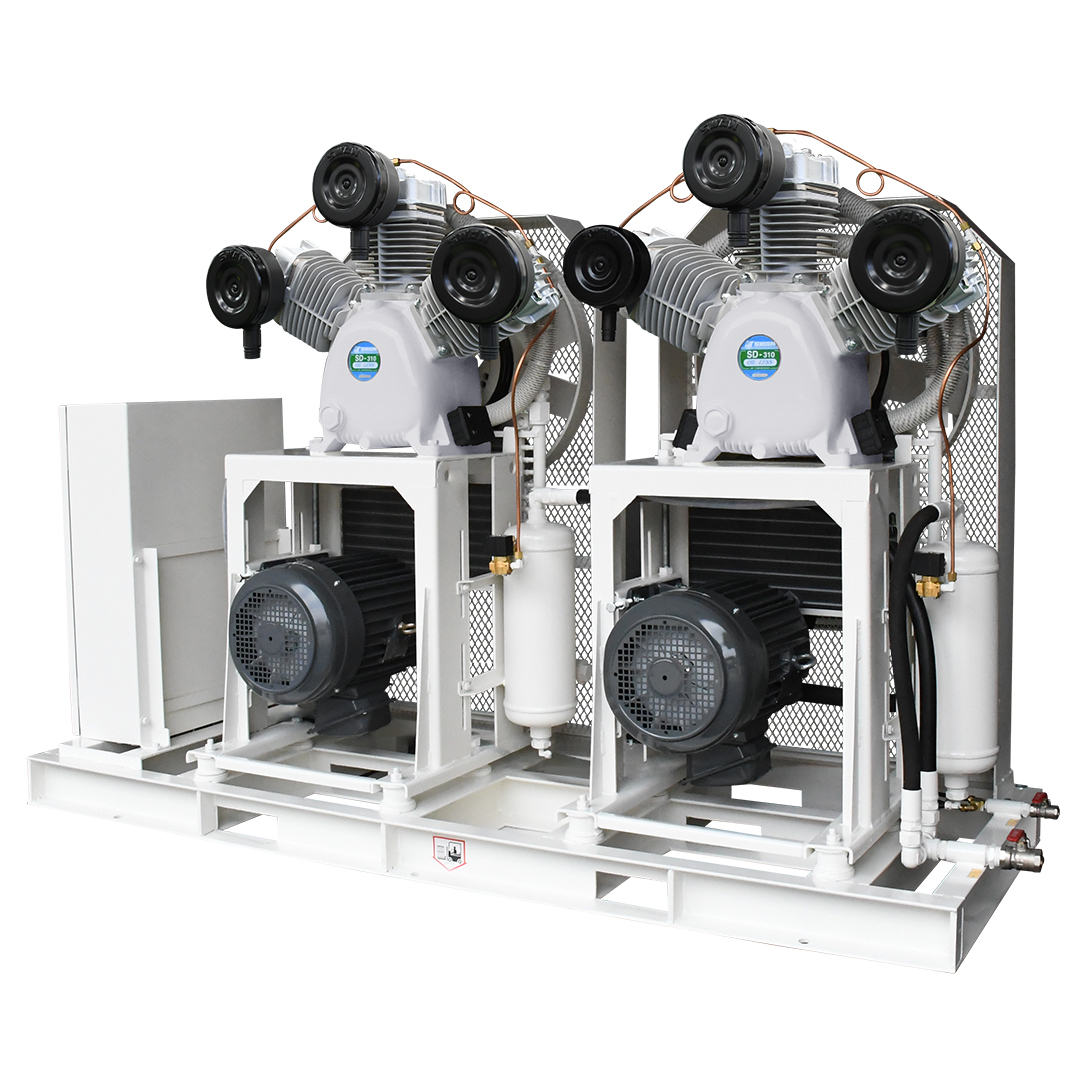

SDT-310 10x2 7.5x2 8 1.460 1910x710x1330

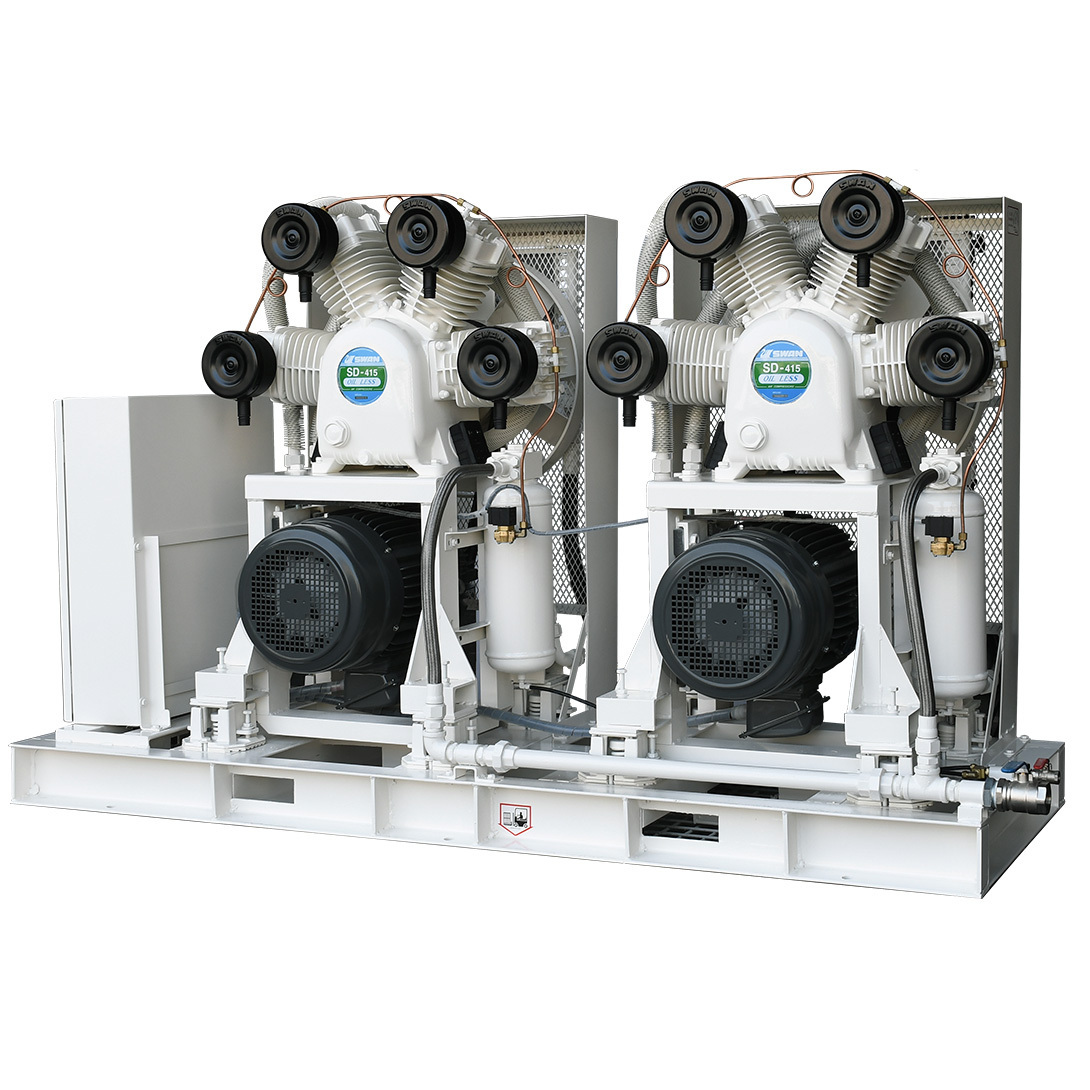

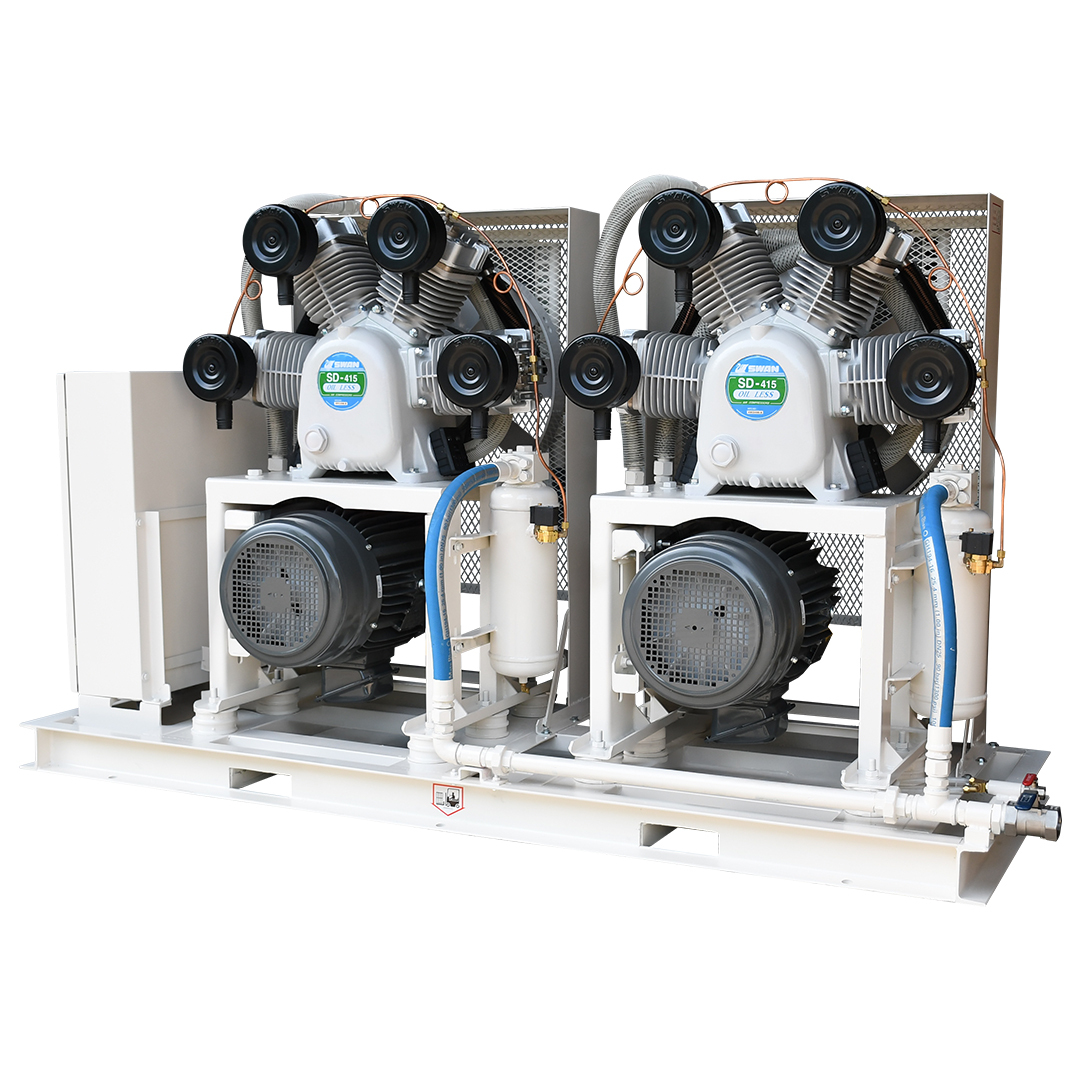

SDT-415 15x2 11x2 8 2.450 2050x800x1300
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
