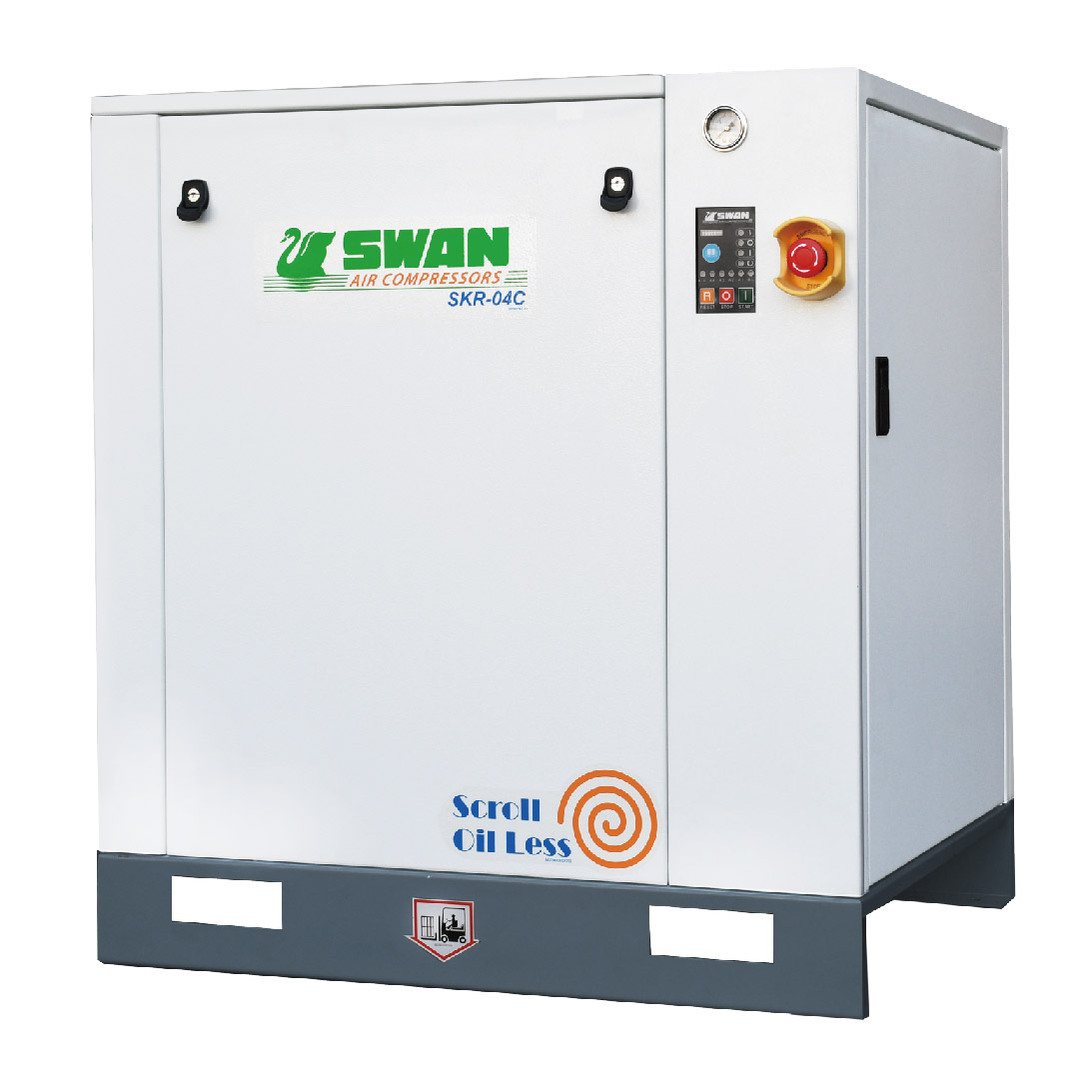

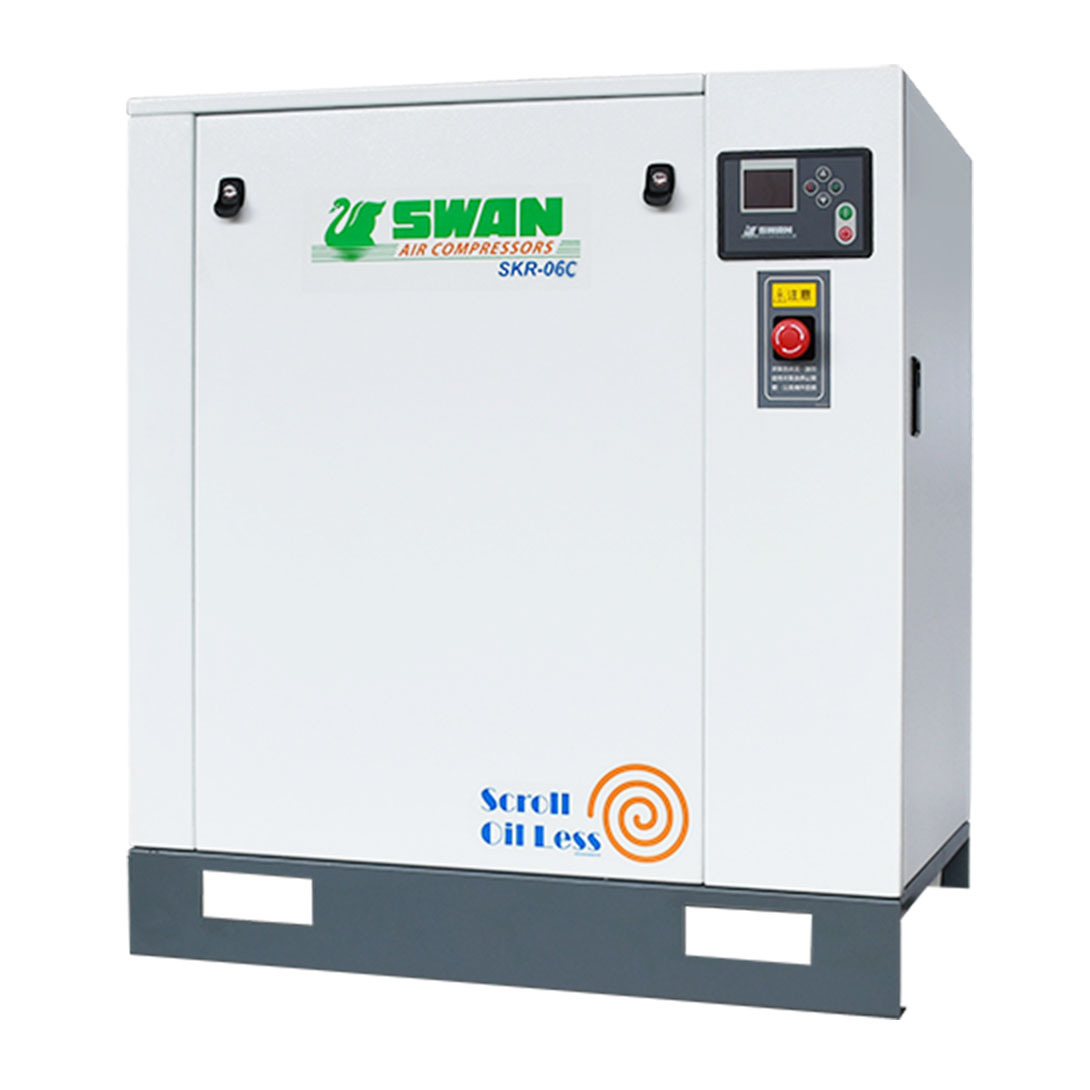

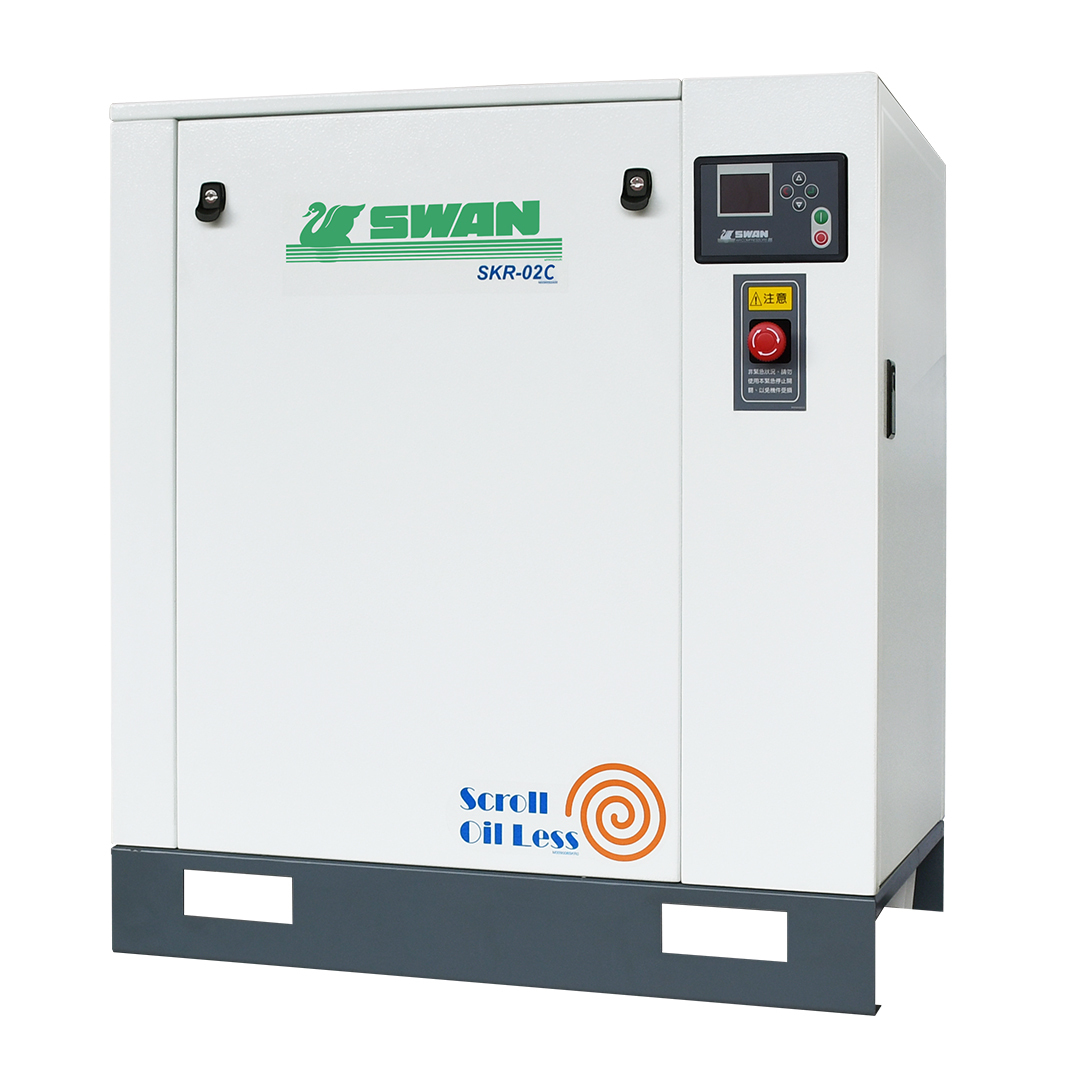

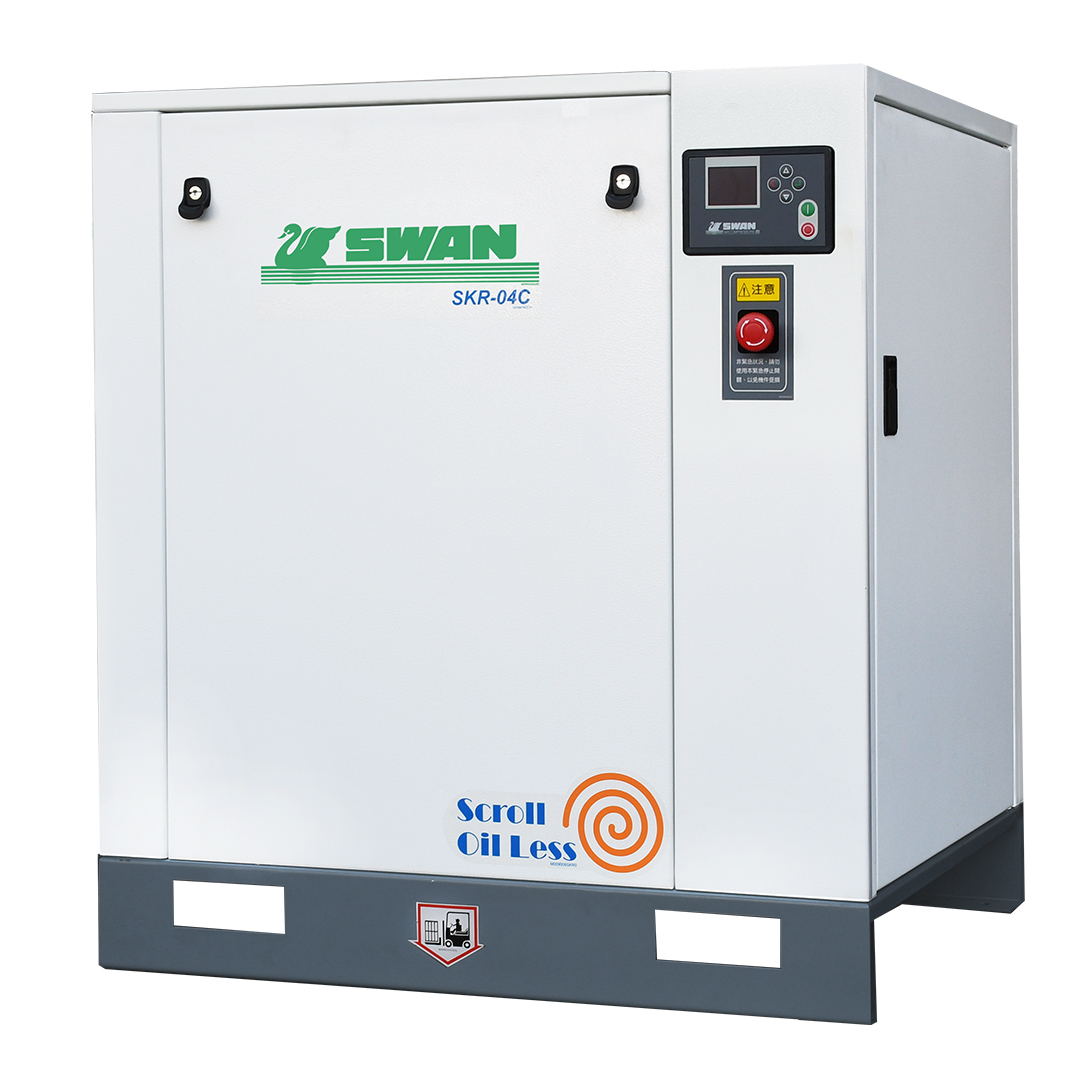

SKR-C Series

Scroll Oil-Less Air compressors (cabinet type) Auto On-Off/Air cooling/Belt Drive

Specifications

  • Horse power (HP) 3~7.5
  • Working pressure (kg/cm²) 8~10
  • Capacity (m³/min) 0.21~0.6

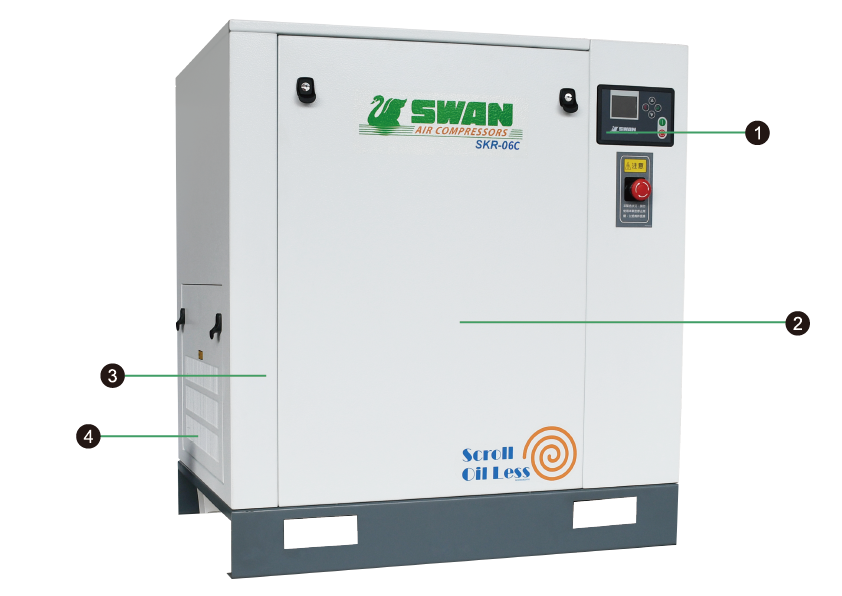

SCROLL CABINET SERIES

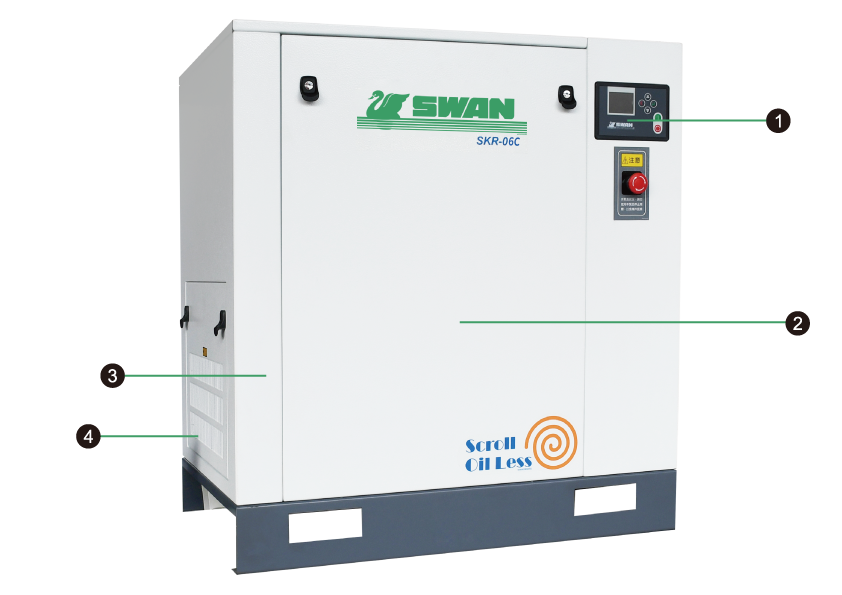

Intelligent control, meet demand with the most efficient operation

  1. Smart controller
  2. Oil-less air ends
  3. Silent cabinet type design
  4. High efficiency air cooler

INTRODUCTION OF ACCESSORIES

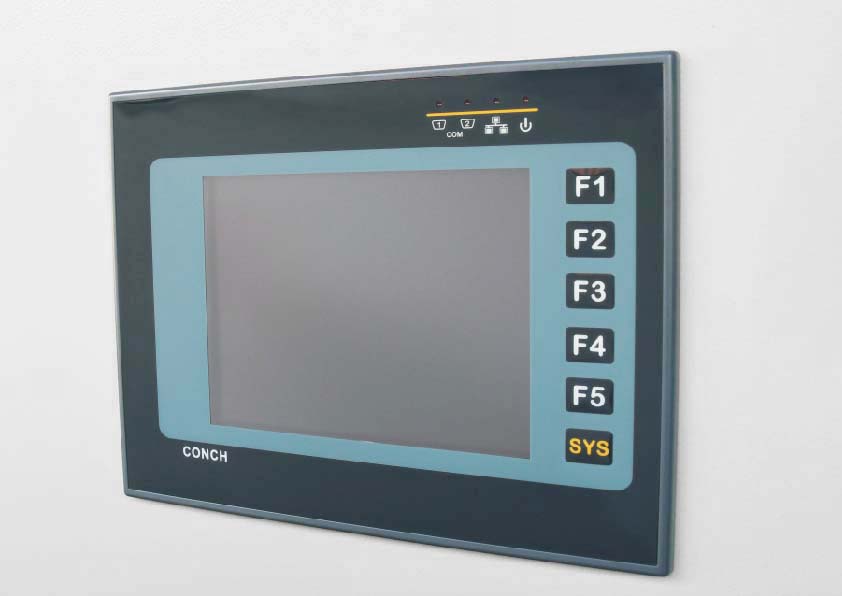

Smart controller

According to different air discharge quantity the Smart Controller available for remote control, configure and optimize the operation performance, the Smart Controller automatically be adjusted to an automatic or semi-automatic operation mode.

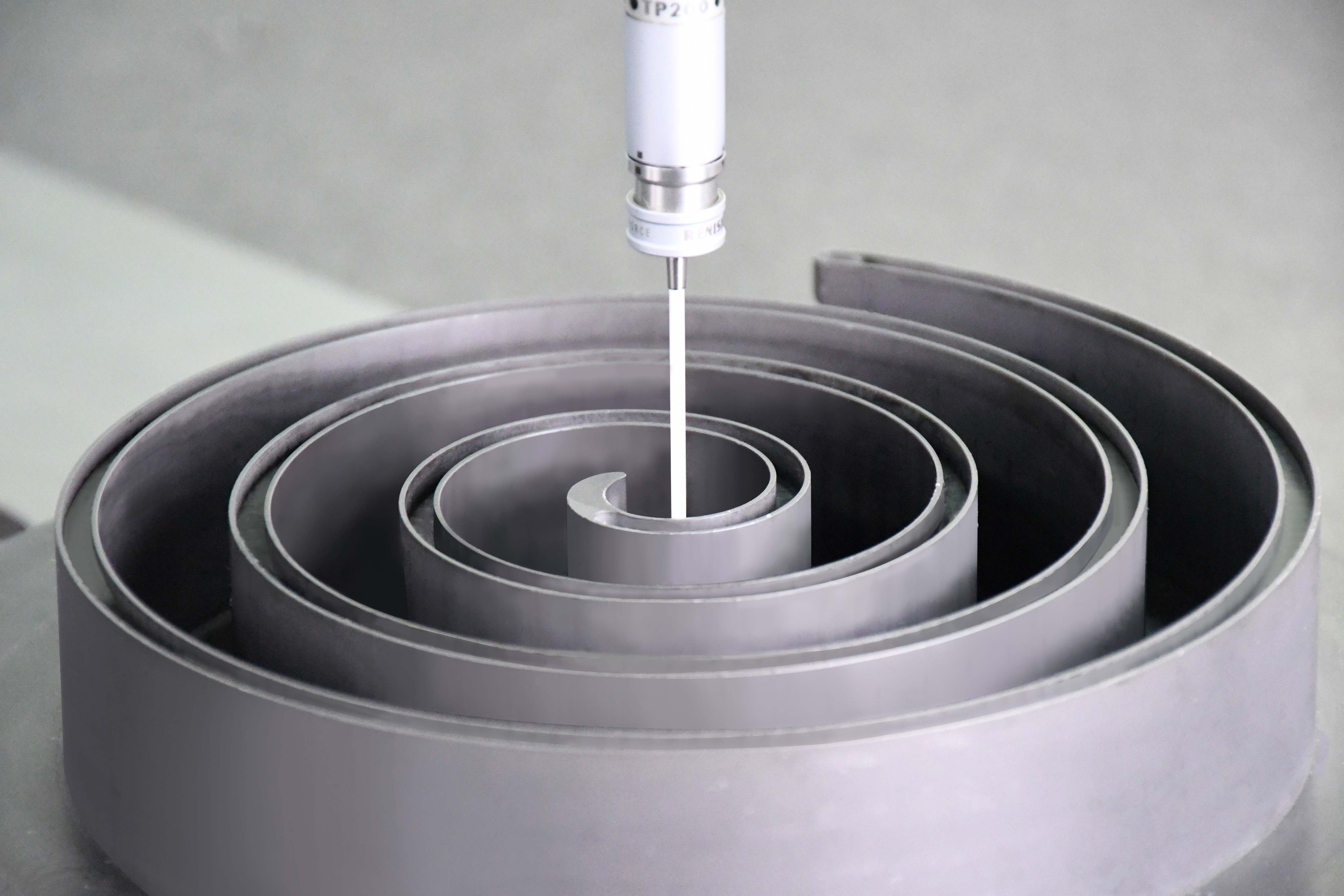

SWAN scroll air ends

Low vibration, quietness, and low noise, with dual or multiple operation units to meet different displacement requirement to optimize the air compressor system.


Silent cabinet type design

Adopt strong sheet metal structure, sound-absorbing material, and high efficiency soundproof design to effectively reduce running noise and vibration.

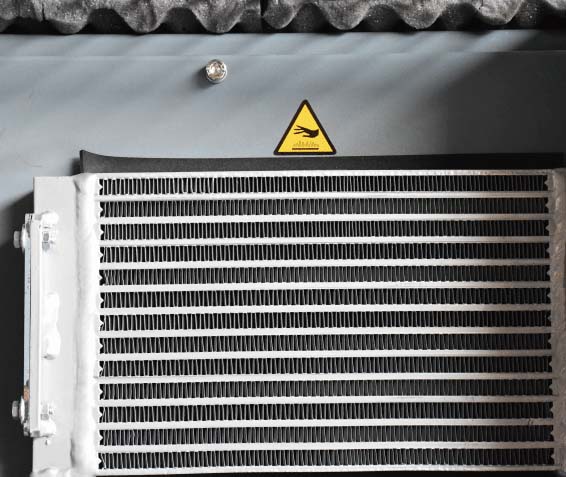

High efficiency air cooler

High efficiency aluminum fin cooler, the vane fan dissipate heat effectively, and greatly reduce the temperature in the cabinet, that benefits to the air compressor withstand constant running, more stable with longer service life.


PRODUCT FEATURES

Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Dimension (mm) (L*W*H) Weight (kg)
SKR-02C 3 2.2 8 0.24 850X600X930 175
SKR-02C 3 2.2 10 0.21 850X600X930 175
SKR-04C 5 3.7 8 0.4 850X600X930 192
SKR-04C 5 3.7 10 0.34 850X600X930 192
SKR-06C 7.5 5.5 8 0.6 850X600X930 220
SKR-06C 7.5 5.5 10 0.47 850X600X930 220
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
