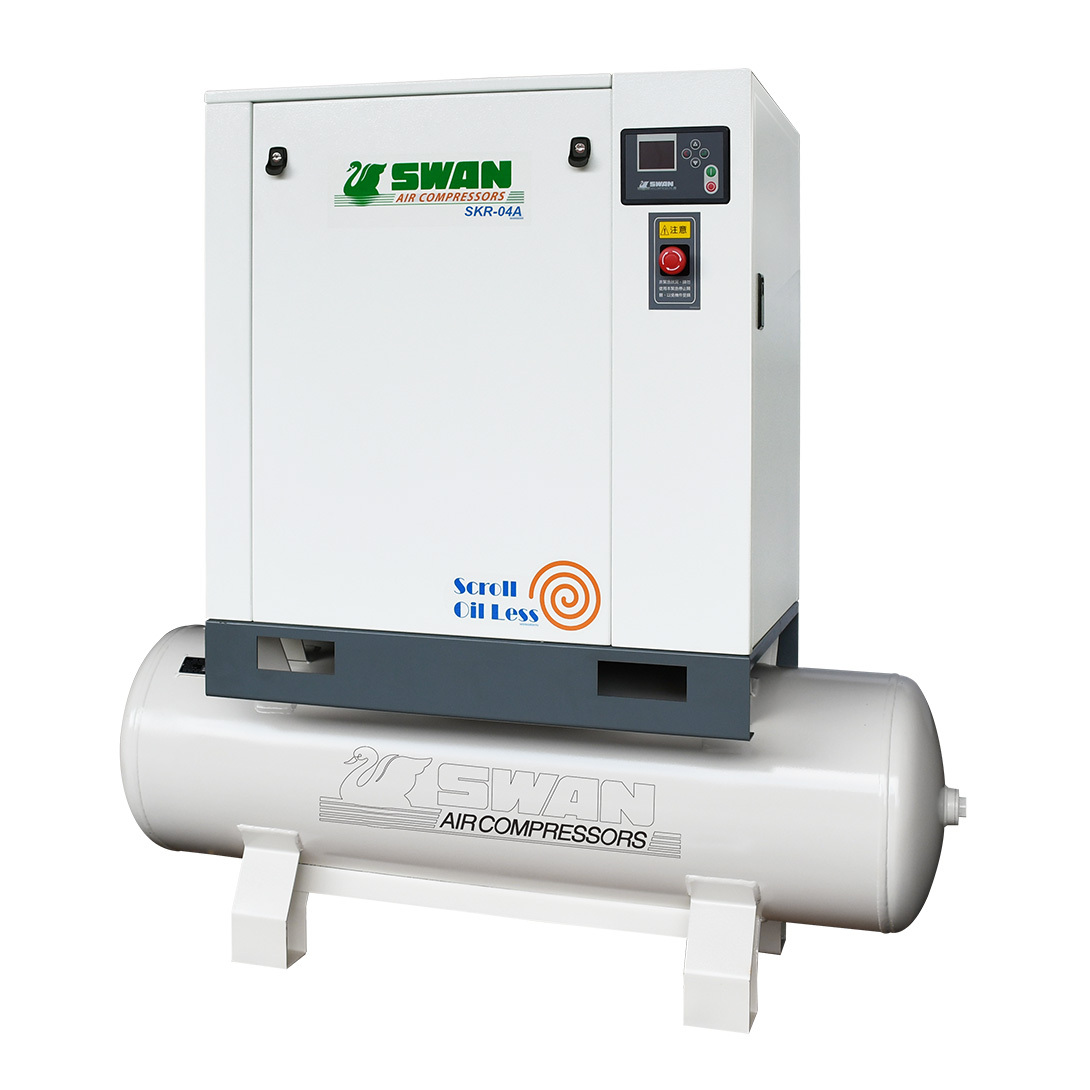

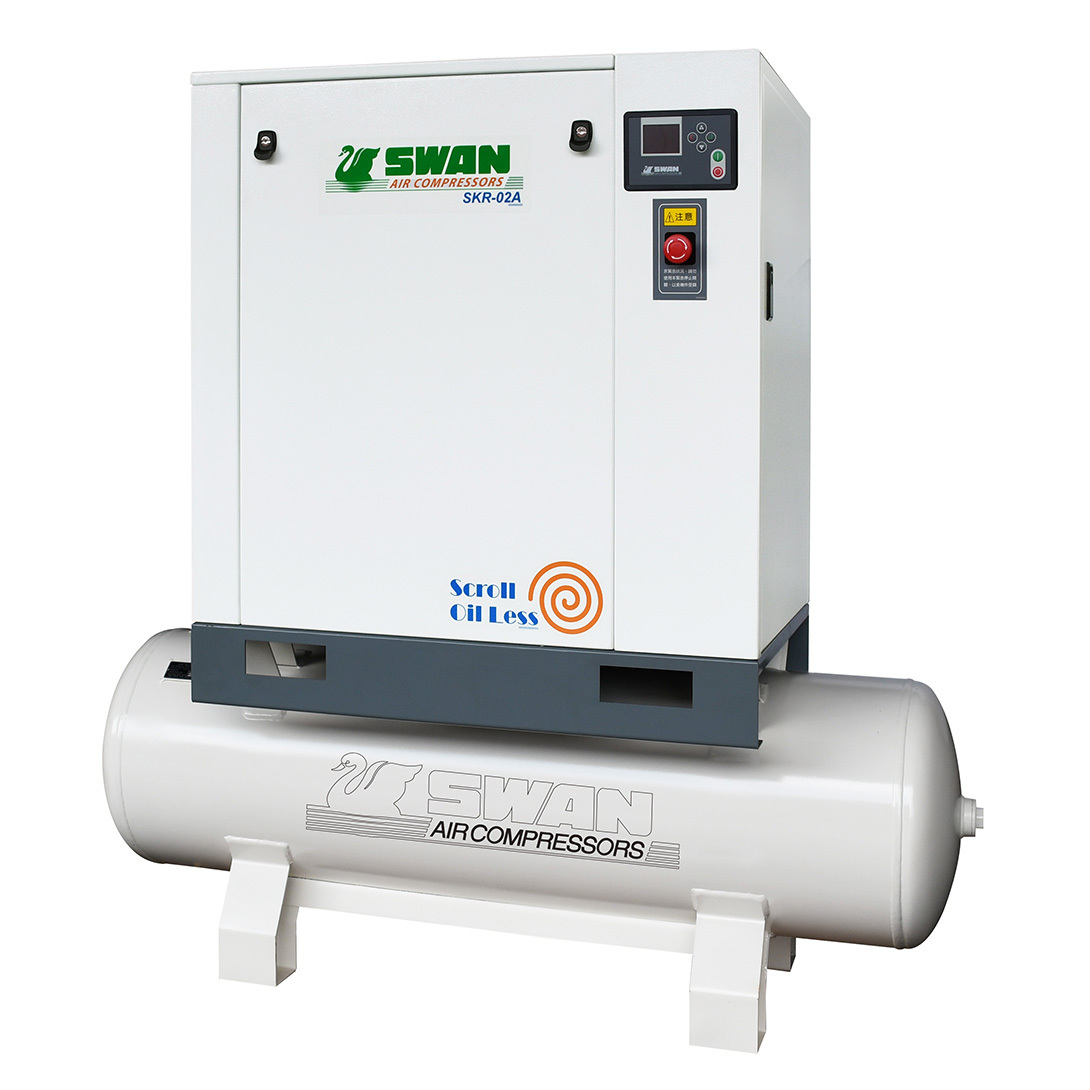

SKR-A Series

Scroll oil-less air compressors (cabinet type mounted on the air receiver). Auto on-off/air cooling/belt drive, air dryer is optional.

Specifications

  • Horse power (HP) 3~7.5
  • Working pressure (kg/cm²) 8~10
  • Capacity (m³/min) 0.21~0.60

SCROLL CABINET  SERIES

Intelligent control, meet demand with the most efficient operation

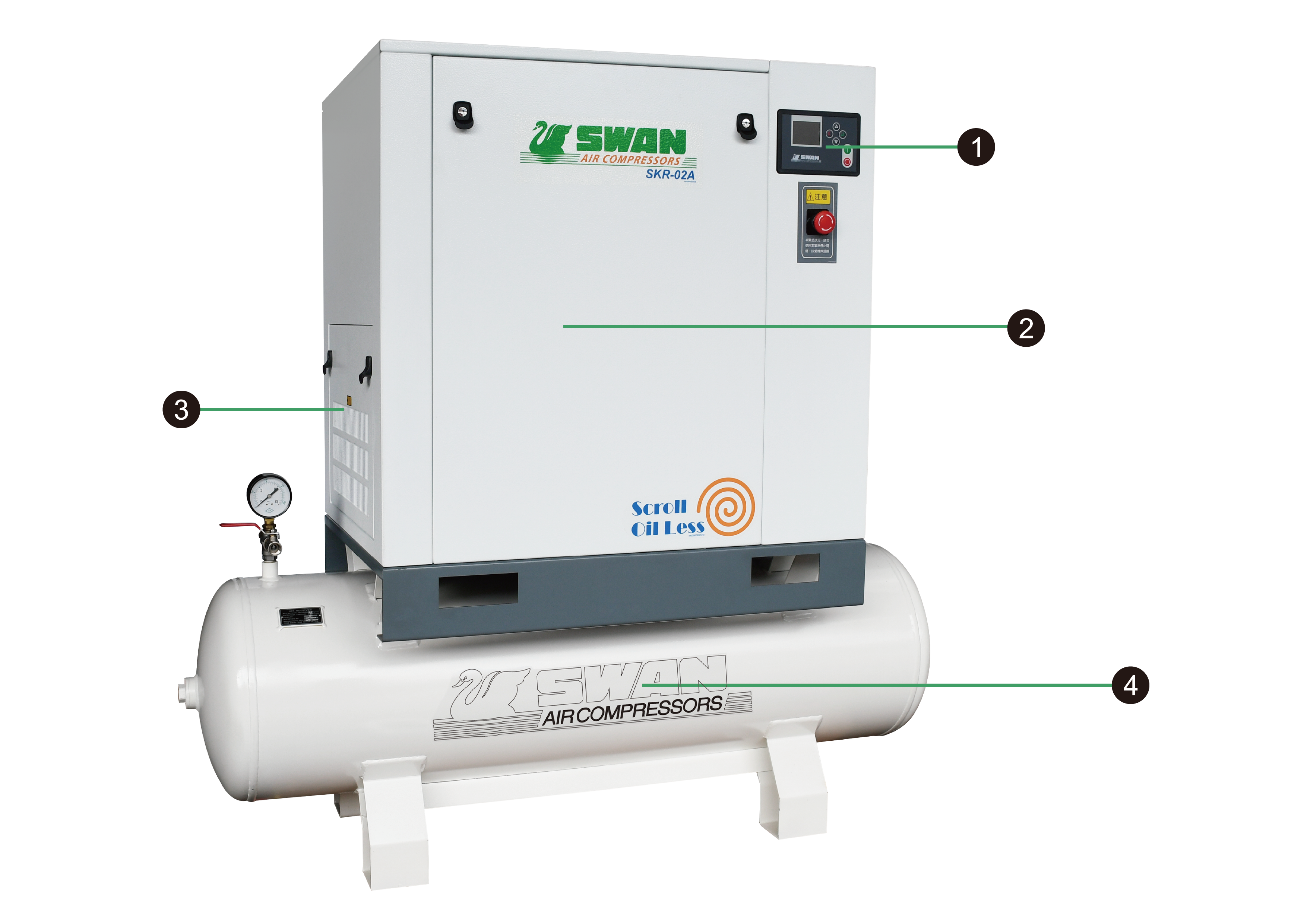

  1. Smart controller
  2. SWAN scroll air end
  3. Aluminum fin cooler
  4. Cabinet type mounted on the air receiver


INTRODUCTION OF ACCESSORIES

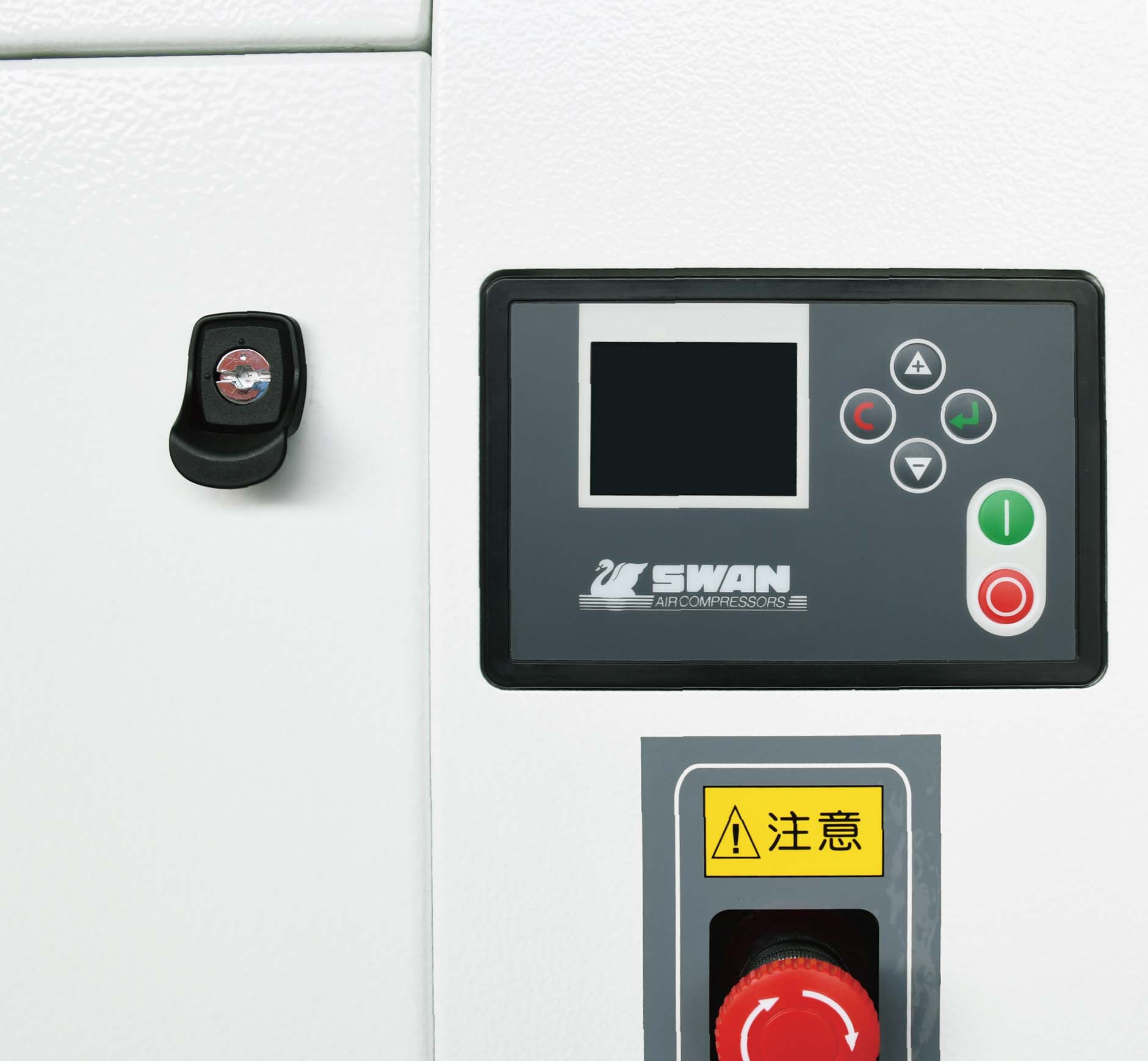

Smart controller

According to different air discharge quantity the Smart Controller available for remote control, configure and optimize the operation performance, the Smart Controller automatically be adjusted to an automatic or semi-automatic operation mode.

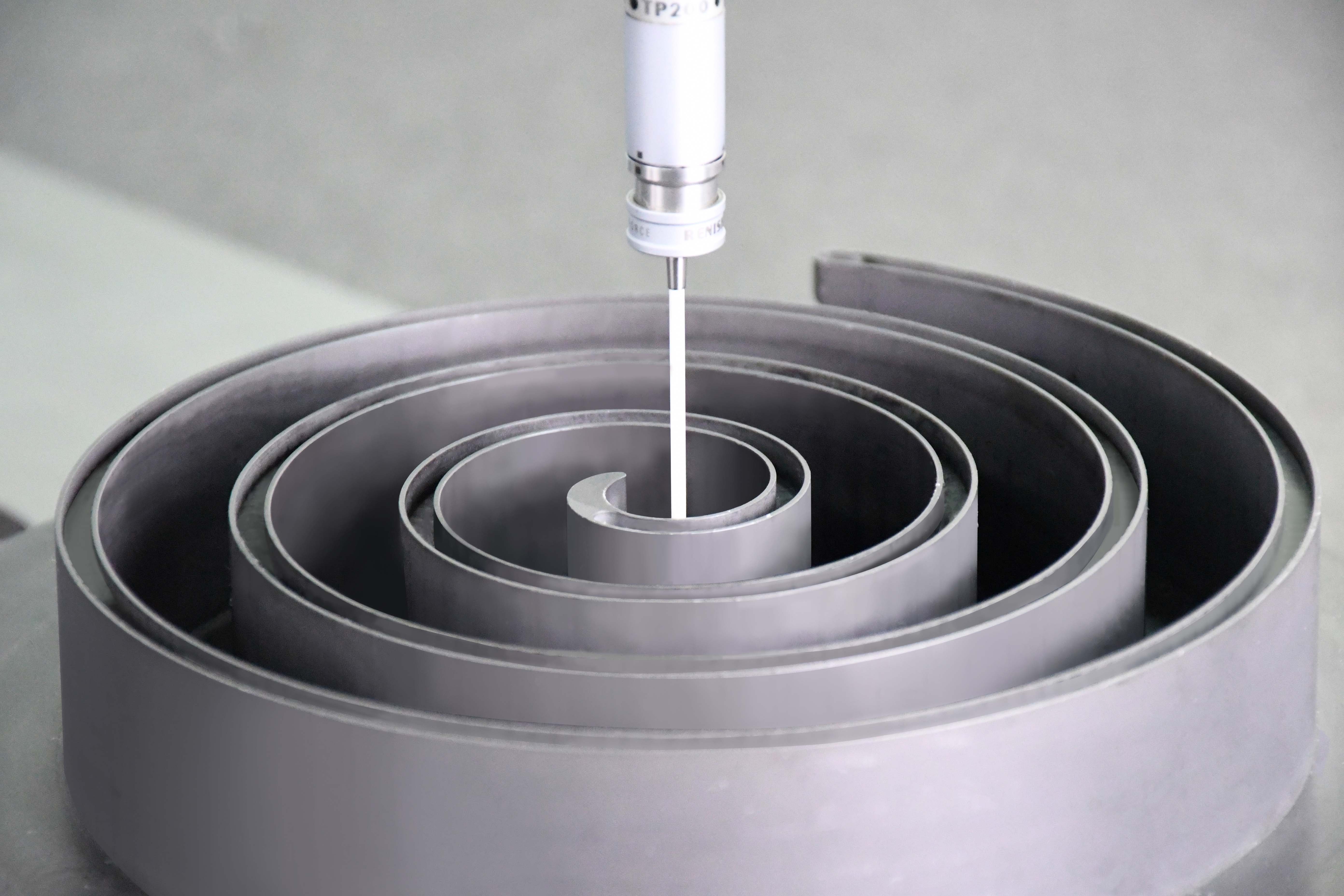

SWAN scroll air end

Low vibration, quietness, and low noise, with dual or multiple operation units to meet different displacement requirement to optimize the air compressor system.

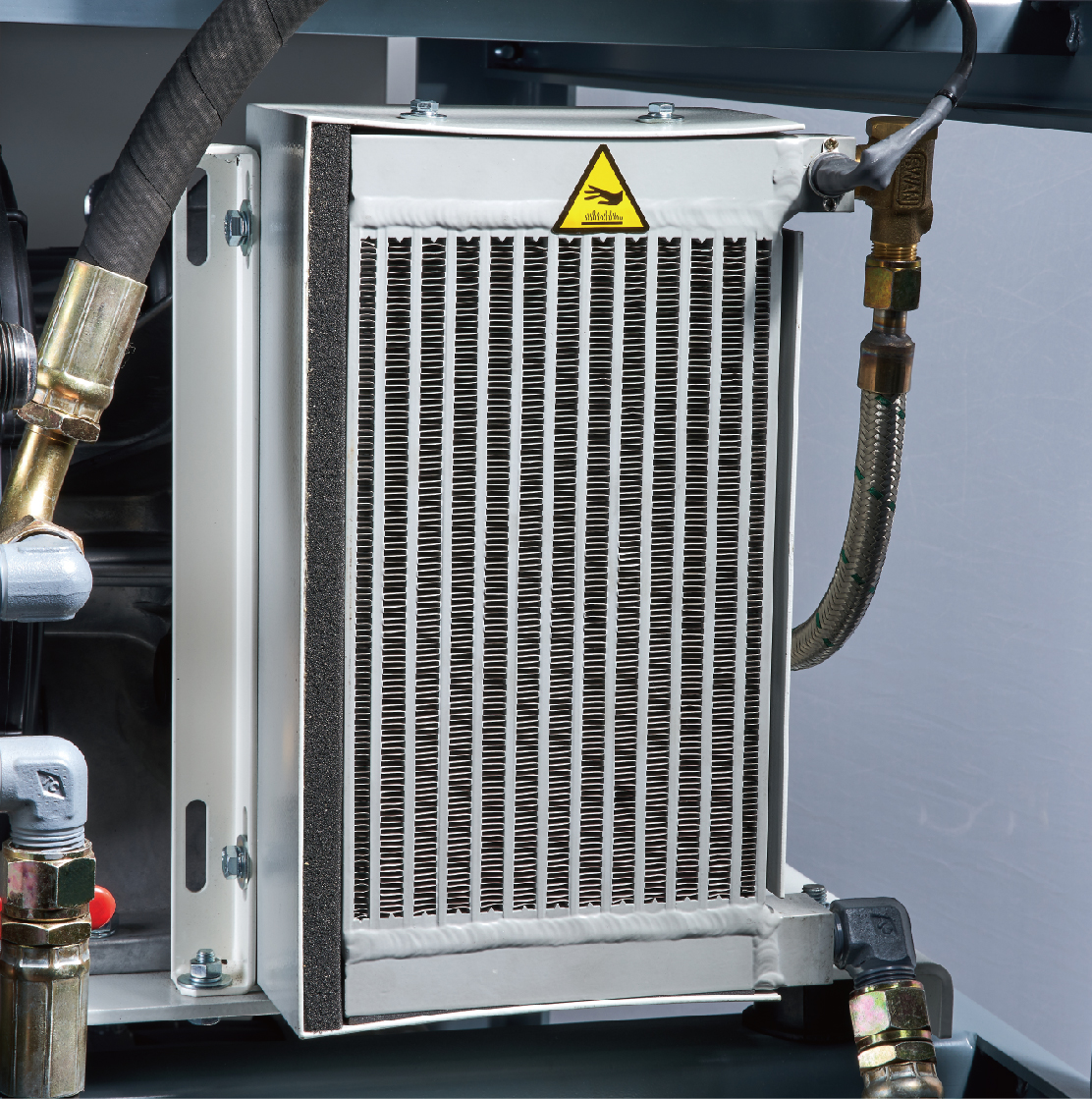

Aluminum Fin cooler

High efficiency aluminum fin cooler, the vane fan dissipate heat effectively, and greatly reduce the temperature in the cabinet, that benefits to the air compressor withstand constant running, more stable with longer service life.

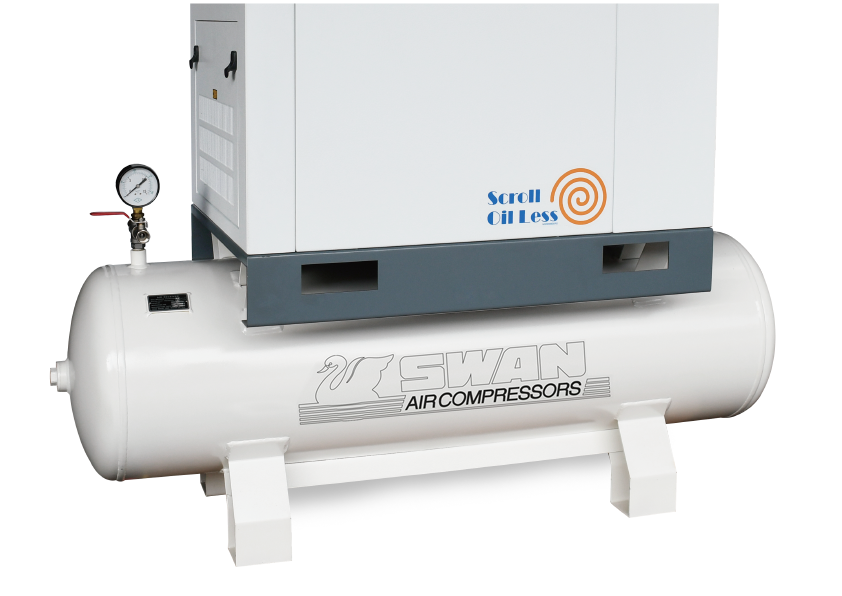

Cabinet type mounted on the air receiver

The integrated design that saves installation space and minimizes the noise during operation of the cabinet type.

PRODUCT FEATURES

Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Tank Capacity (liter) Dimension (mm) (L*W*H) Weight (kg)

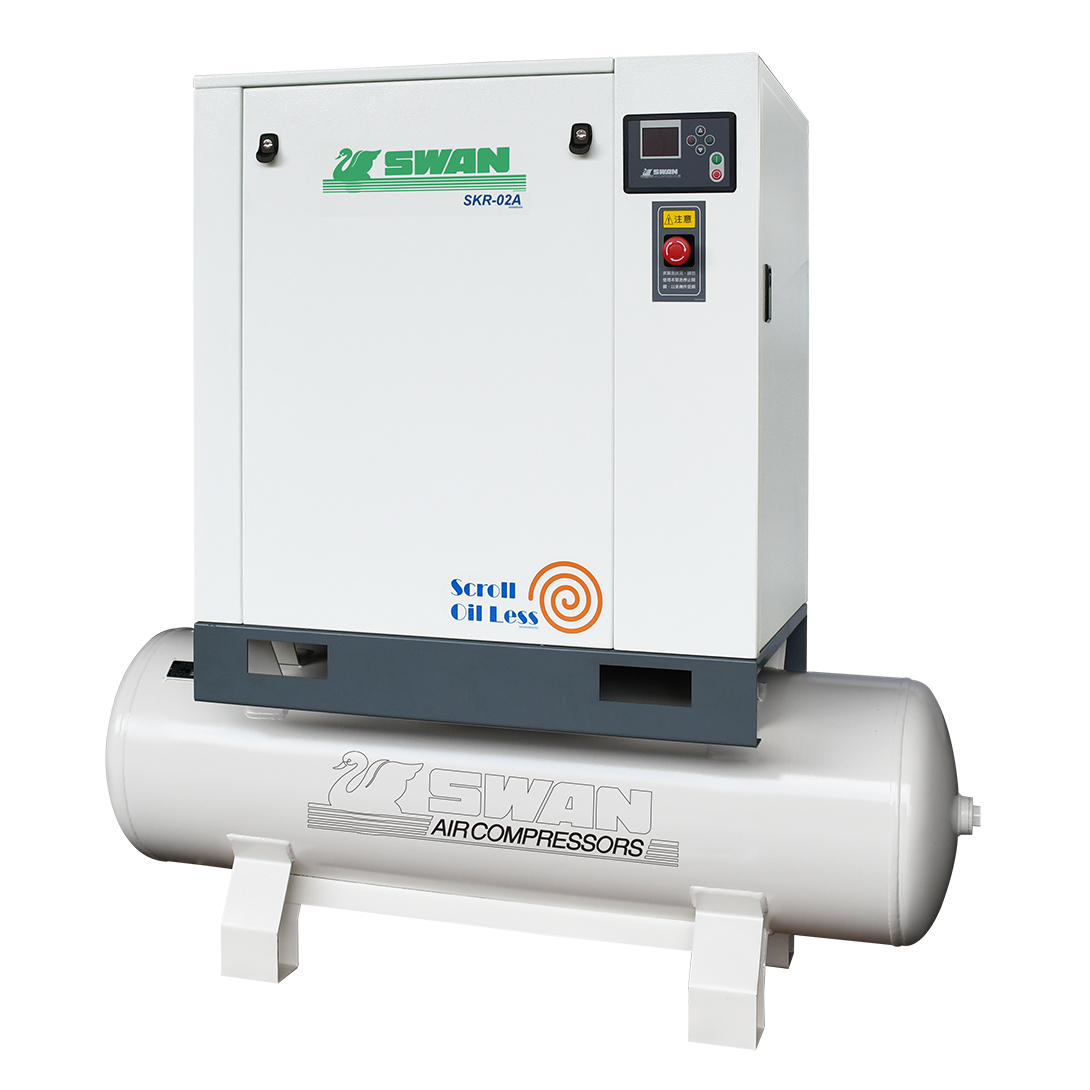

SKR-02A-155 3 2.2 8 0.24 155 1477X600X1385 285
SKR-02A-237 3 2.2 10 0.21 237 1515X600X1455 285

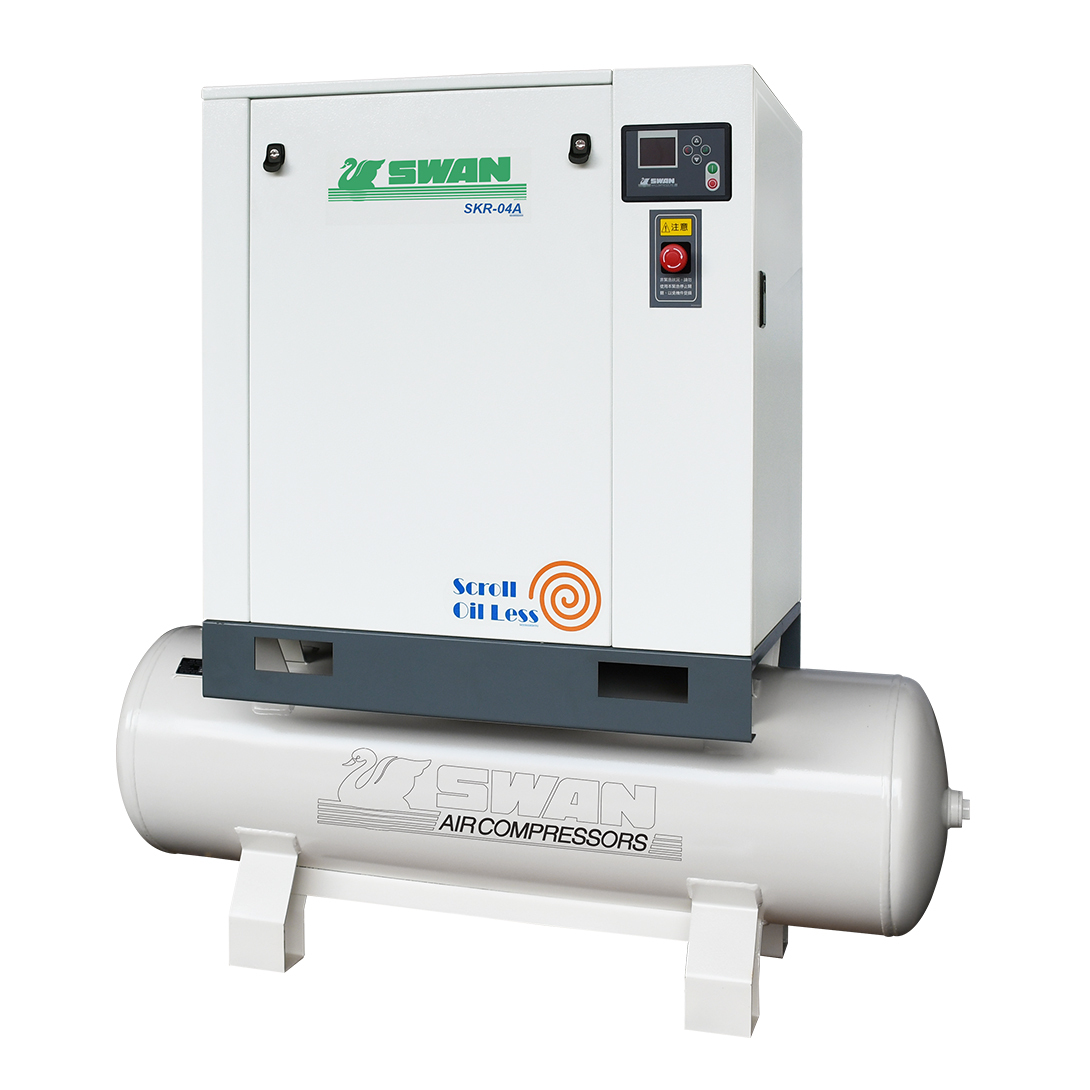

SKR-04A-240 5 3.7 8 0.40 240 1525X600X1530 236
SKR-04A-240 5 3.7 10 0.34 240 1525X600X1530 236

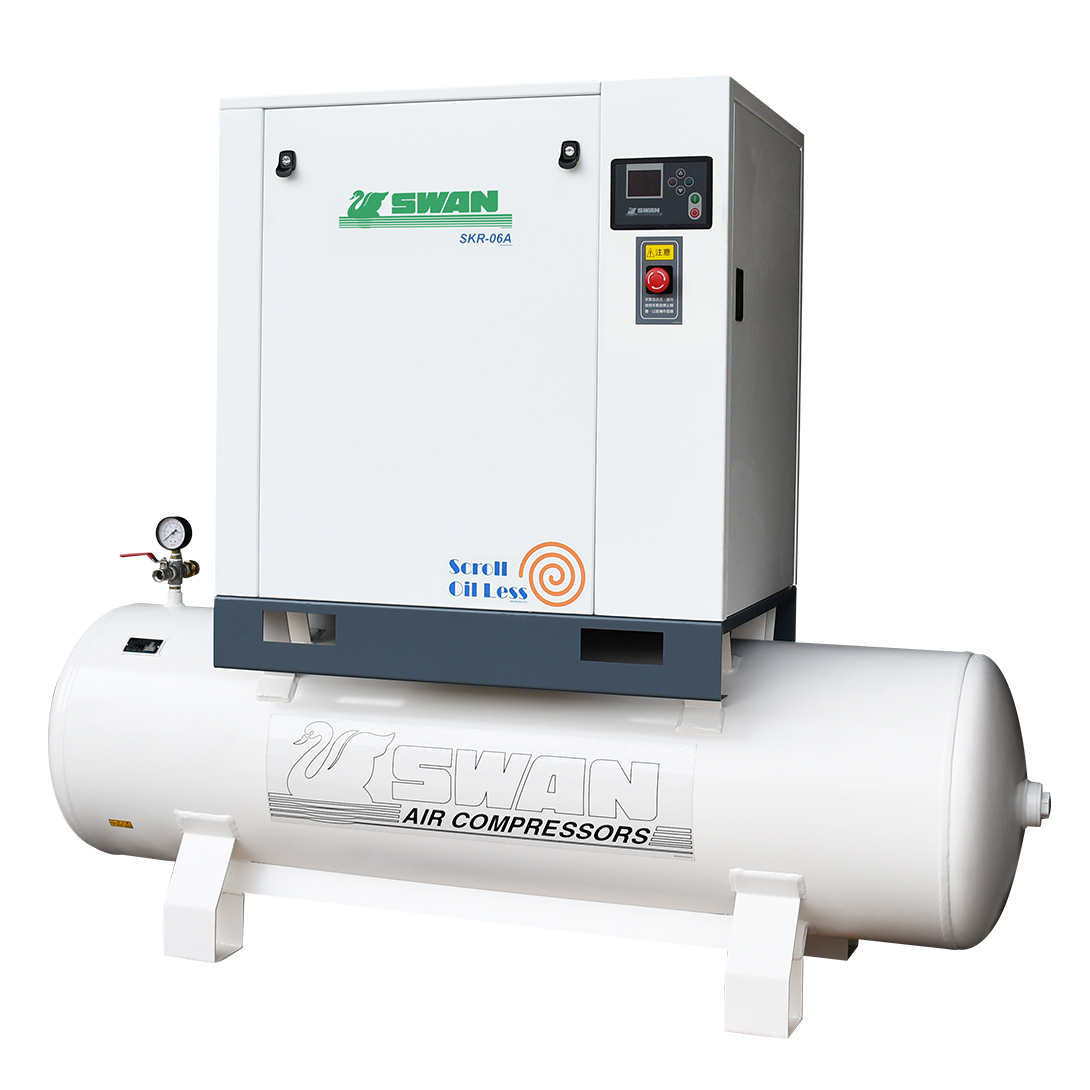

SKR-06A-237 7.5 5.5 8 0.60 300 1515X600X1455 376
SKR-06A-237 7.5 5.5 10 0.47 237 1515X600X1455 376
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
