TMV Series

TMV Series are equipped with highly efficient air-end. The newest design includes Two -Motors, Two-Stages, Direct-Drive compression, variable frequency and without gears, etc. Reach to the best performance.

Specifications

  • Horse power (HP) 15~215
  • Working pressure (kg/cm²) 8
  • Capacity (m³/min) 1.75~31.8

PERMANENT MAGNETIC, VARIABLE FREQUENCY SCREW COMPRESSORS SERIES

Perfect craftmanship with high efficiency, easy operation & easy maintenance

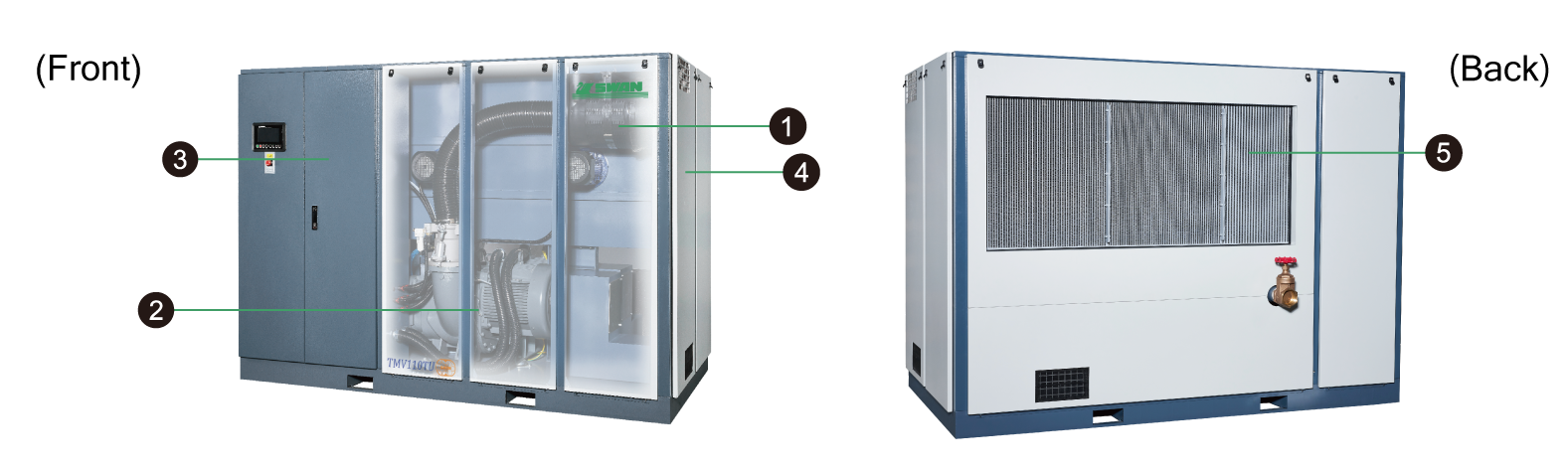

  1. Air Filter Assembly
  2. Permanent Magnetic, Two-stages, high Efficiency Air End
  3. Variable Frequency Controller
  4. Centrifugal Fan
  5. Oil/Air Cooler

INTRODUCTION OF ACCESSORIES

Air Filter Assembly

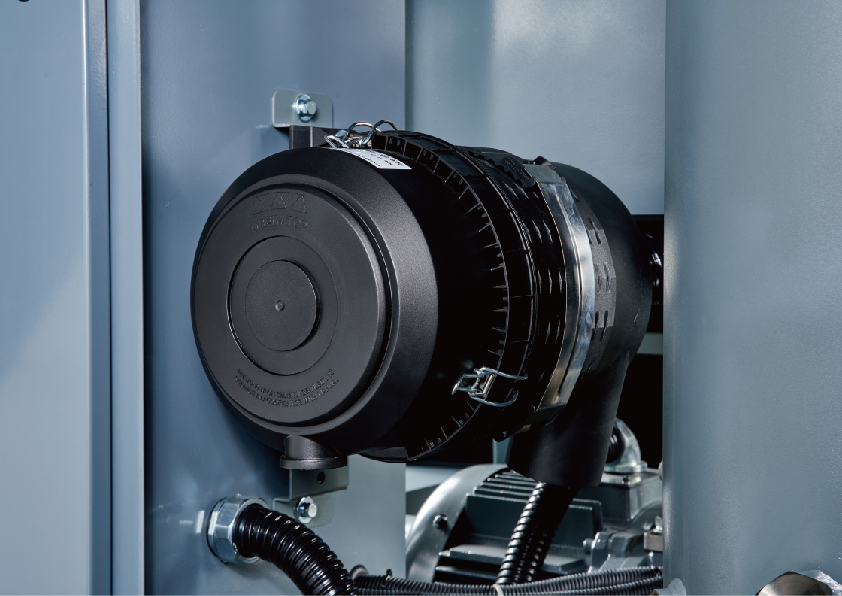

Two-layer filter design provides high frequency air, and prevents from the suction of the dirt and impurities; not only can reduce the consumption of the air compressor, but also can reduce the noise of running.


Permanent Magnetic, Two-stages, High Efficiency Air End

With the permanent magnetic, two-stages motor and the direct drive coaxial design, the air end not only is space-saving, but also runs with at the lowest energy consumption. No matter in the need of variable air volume or pressure change, the air end can always run in the best condition, which improves the work efficiency.


Variable Frequency Controller

Variable frequency controller heavy duty type can work in higher loading, stabilize pressure according to the inquiry with no speed, and also can adjust parameter to change working pressure with a quick and easy way.


Centrifugal Cooling Fan

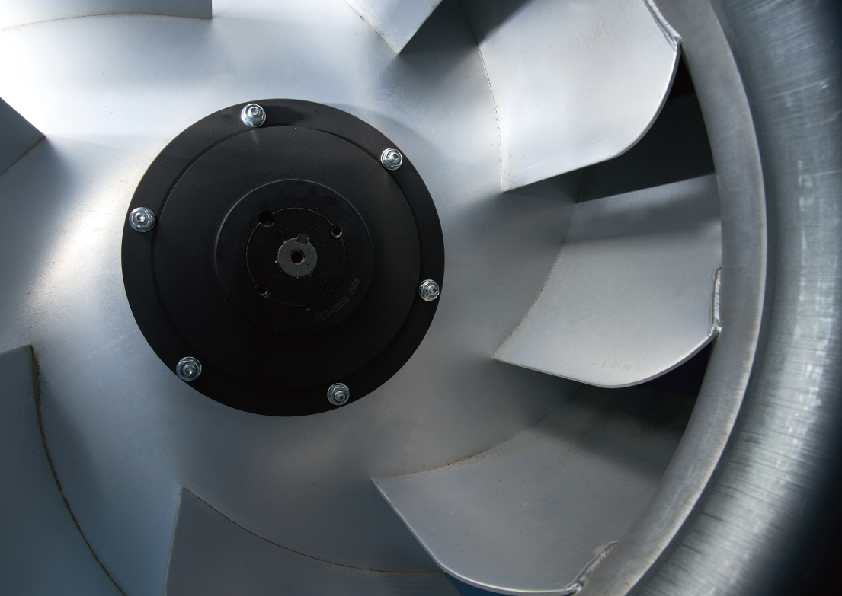

High air volume certainly air cooled, low noise, 3dB lower than axial fan. Inner rotor fan, motor taking the hot air, no risk of high temperature damage and high durability, enable the air end to operate in the most efficient temperature.


Oil/Air Cooler

With the vertical design, it facilitates the clearance of air end, maintenance of air compressor, and the oil drain, and also economize the cost on equipment maintenance.


PRODUCT FEATURES

ADVANTAGES OF AIR END

Permanent magnetic motor has higher efficiency than IE4 motor

Size Reduction

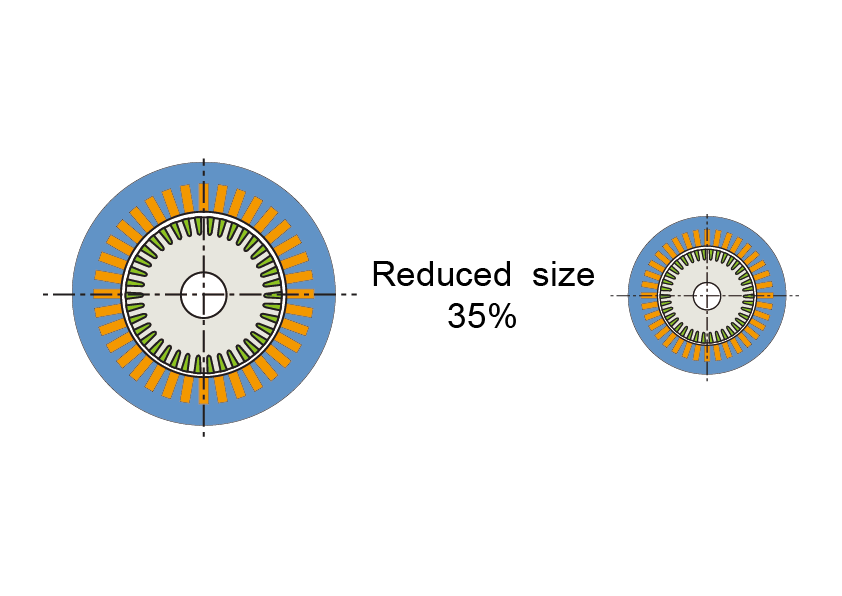

Wider variable frequency range: 30%~100%, which ensures better energy-saving performance at lower running speed; the permanent magnetic motor is 35% smaller than ordinary motor, which is minimize space occupation.



With F class insulation, 65K low working temperature-rise,  to ensure the permanent magnetic motor in good performance, more reliable, durable and long service life.



Permanent magnetic, coaxial

The permanent magnetic coaxial design reduces the mechanism consumption of coupling and motor bearings, and also improves the compression efficiency; minimizes 20% the air compressor volume; can use space more effectively.



Permanent magnetic, coaxial, two-stages, two motors

Isobaric compression lowers down the compressing ratio, which increase the service life of seal gasket and raise it’s volumetric efficiency.

Injecting oil to cool down the compressed air between the first stage and the second stage, to reach to isothermal compression operation for energy-saving.

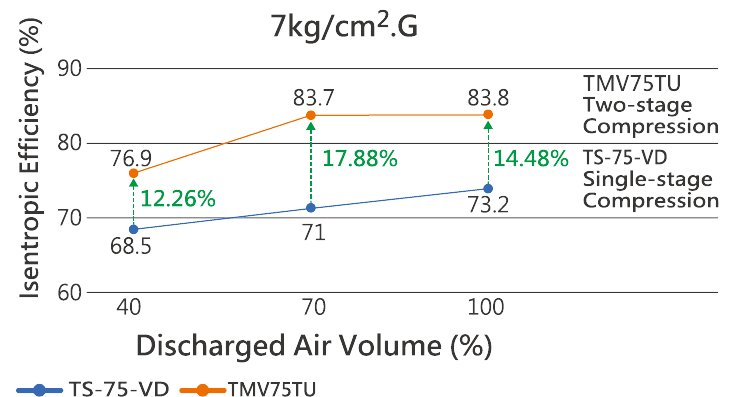

The traditional two-stage gear-shift design only has the best compression efficiency at its fixed setting-pressure. It’s difficult to maintain the best efficiency when the air consumption or pressure is change. TMV models overcome the general fixed gear-shift problem. It can automatically adjust the running speed of each motor while the discharged air pressure is changed and always keep the air end in optimal running efficiency.



Sound proof design

SWAN air compressor cabinet type use the high rigid structure sheet metal which is applied with sound-absorbing cotton and high anti-noise design to keep the compressor running in silence and low vibration.

Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Dimension (mm) (L*W*H)

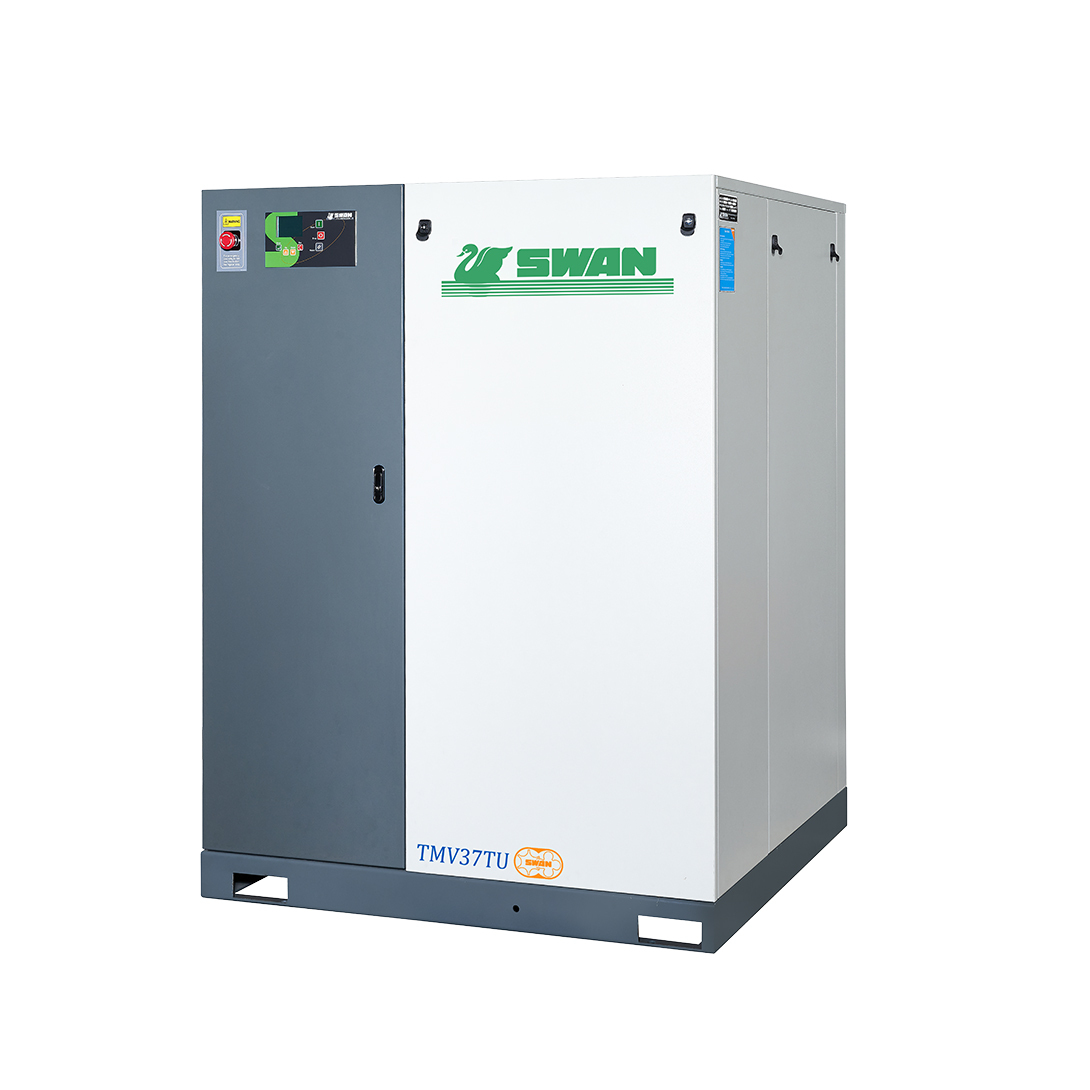

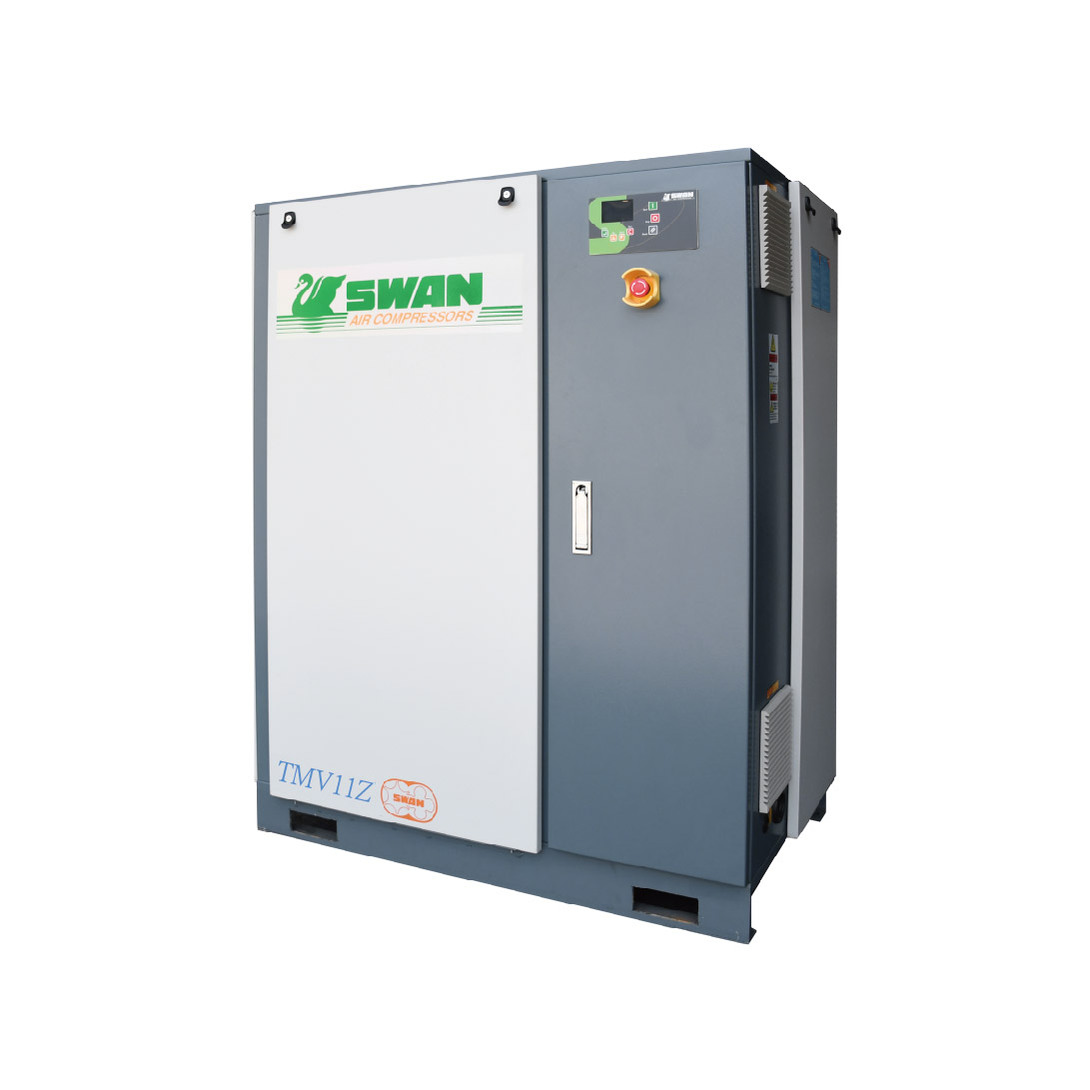

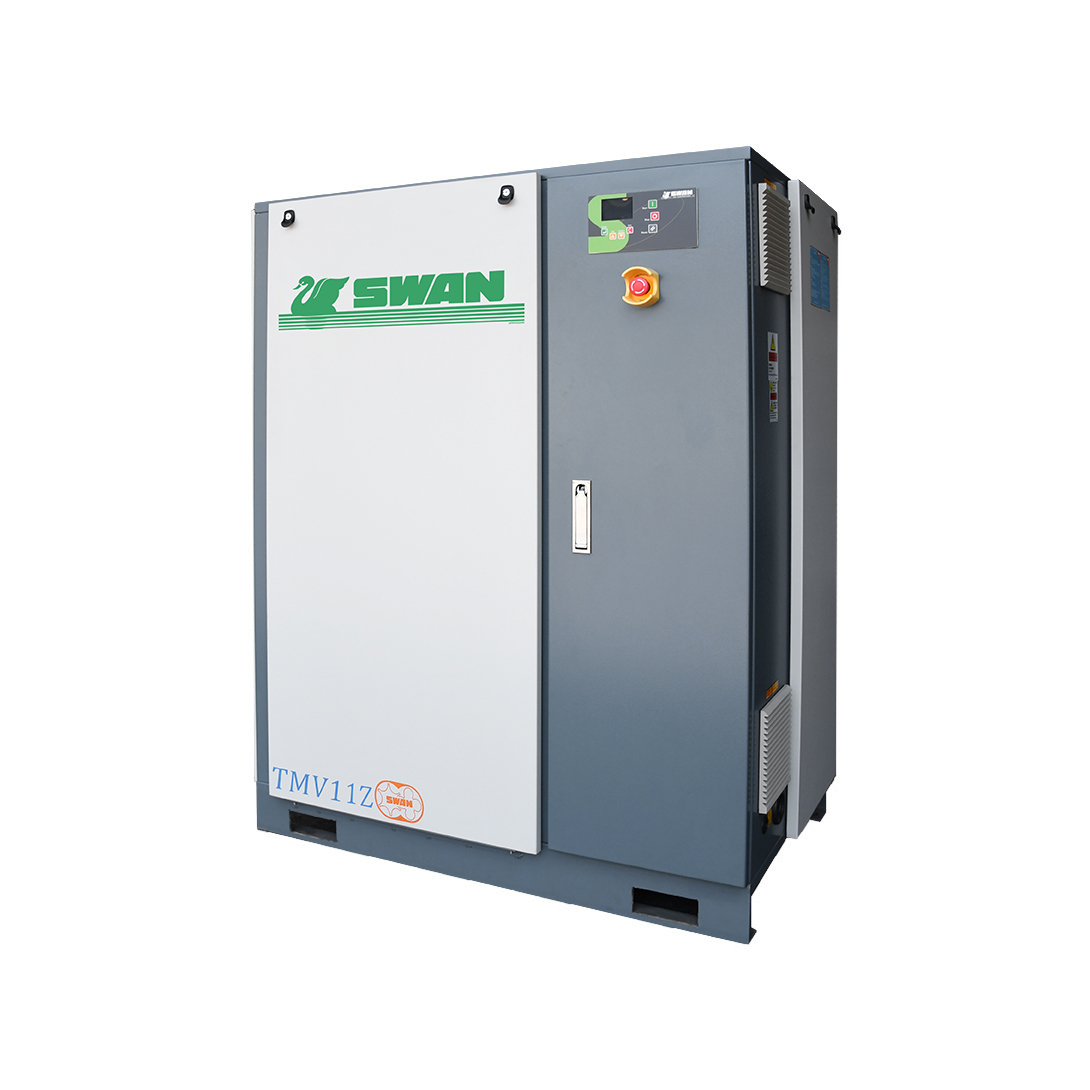

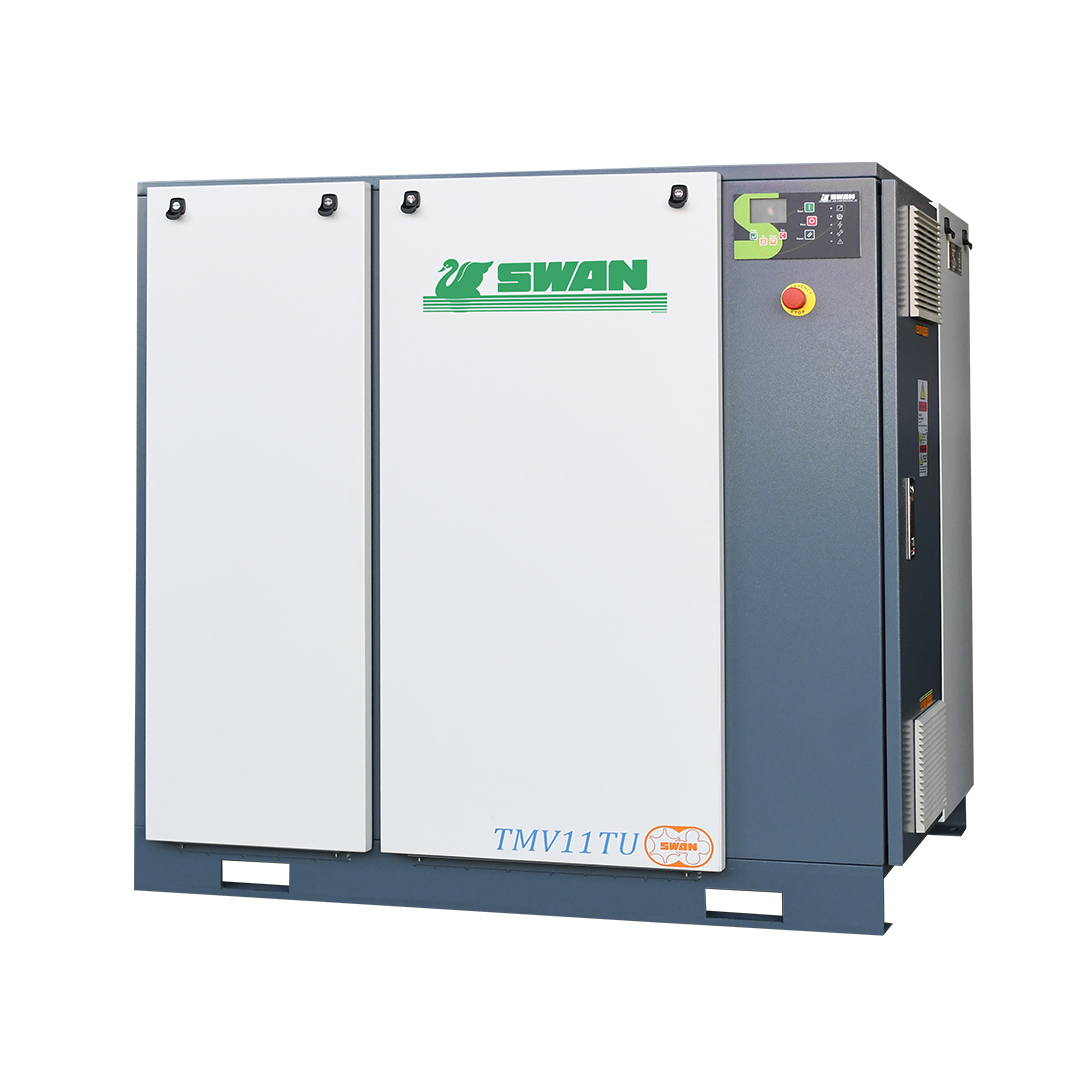

TMV11Z 15 11 8 1.75 1250X795X1585

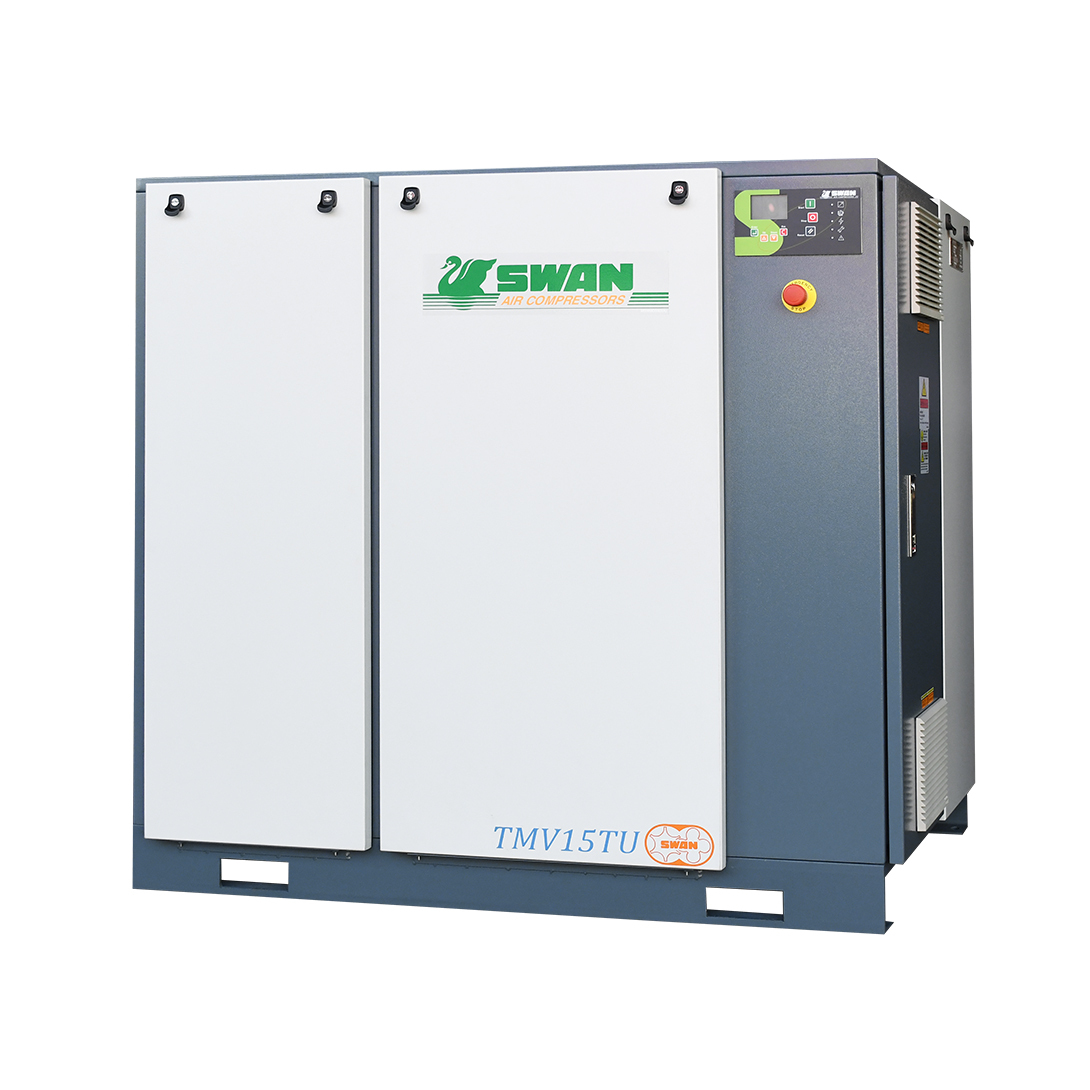

TMV15 20 15 8 2.40 1250X795X1585

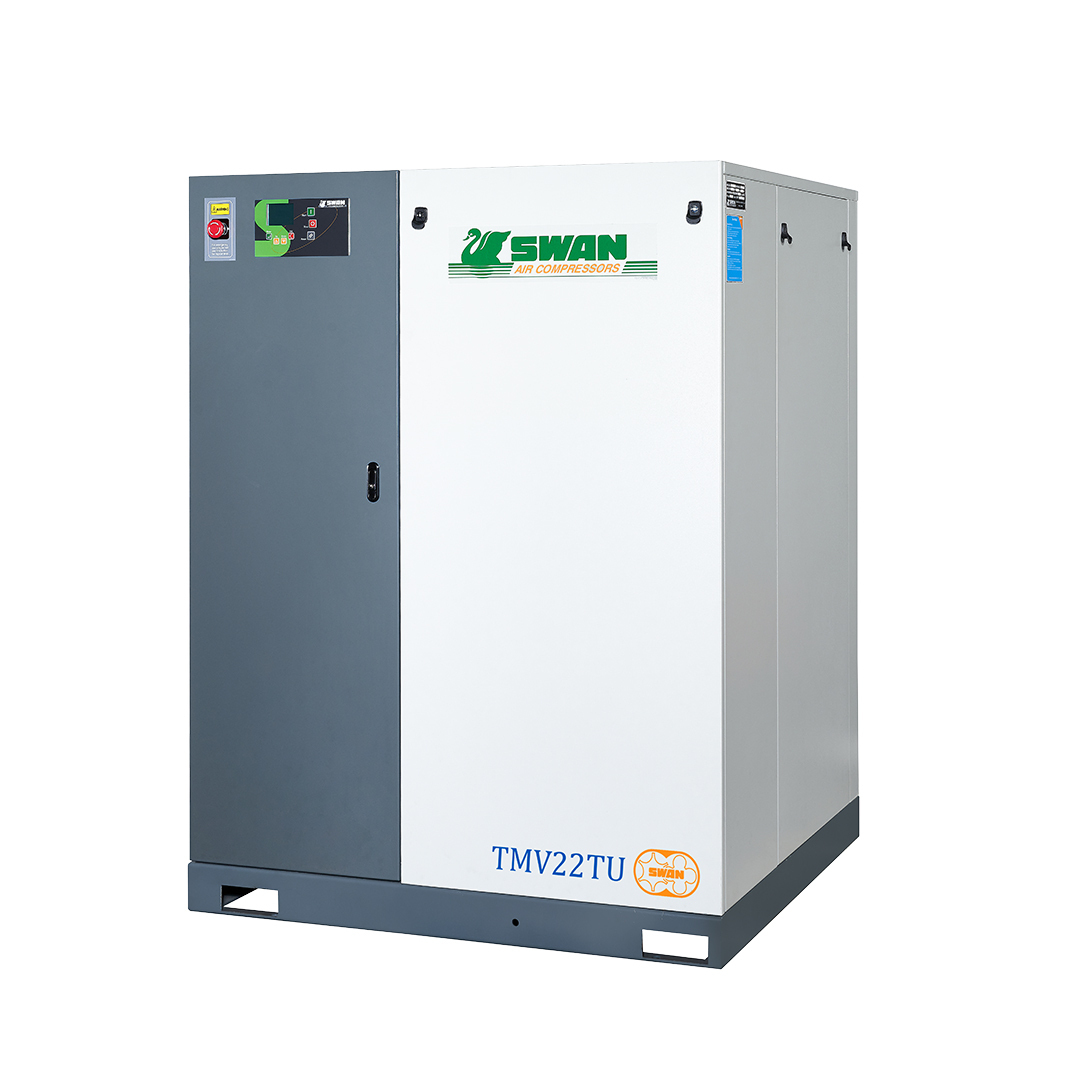

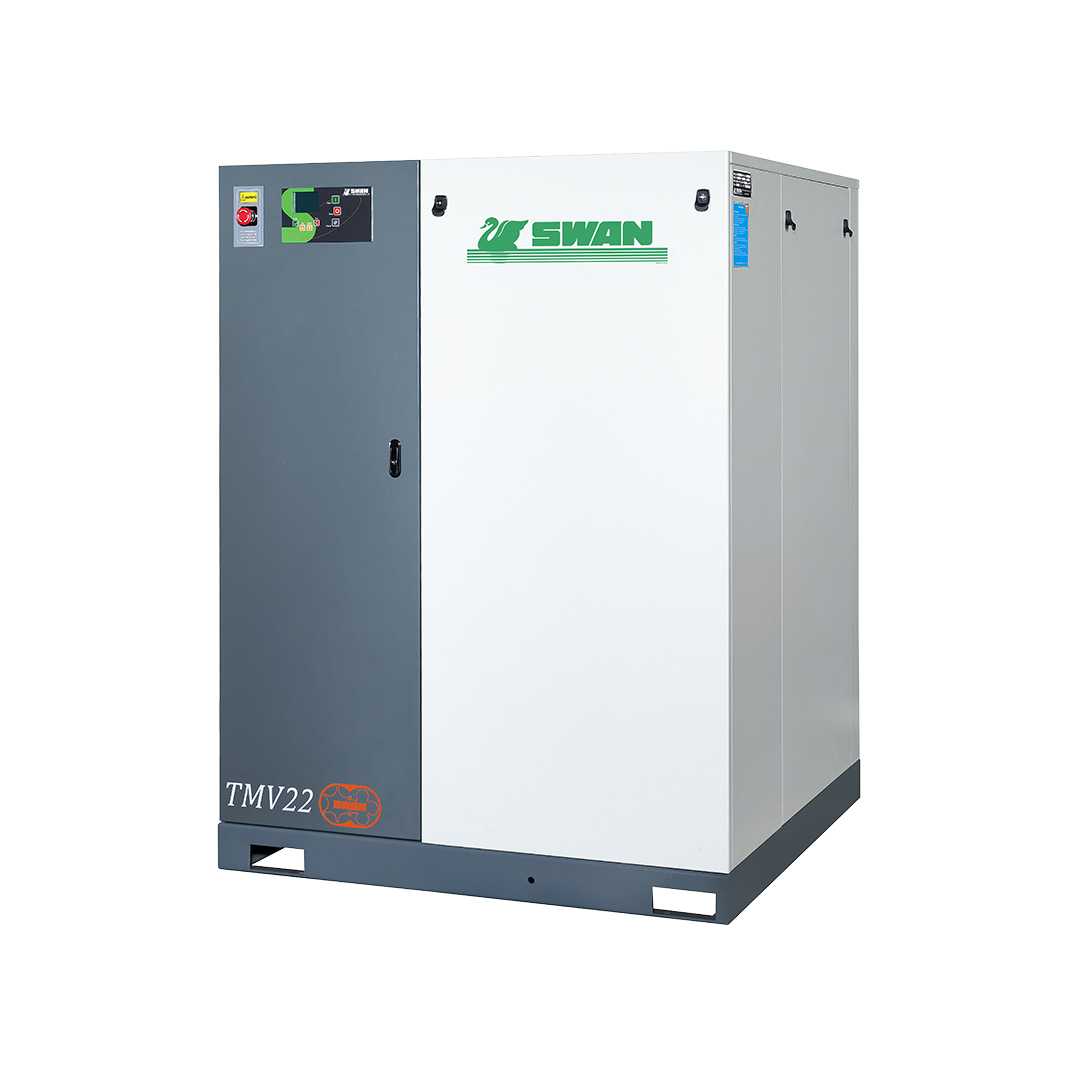

TMV22 30 22 8 3.80 1190X1145X1575

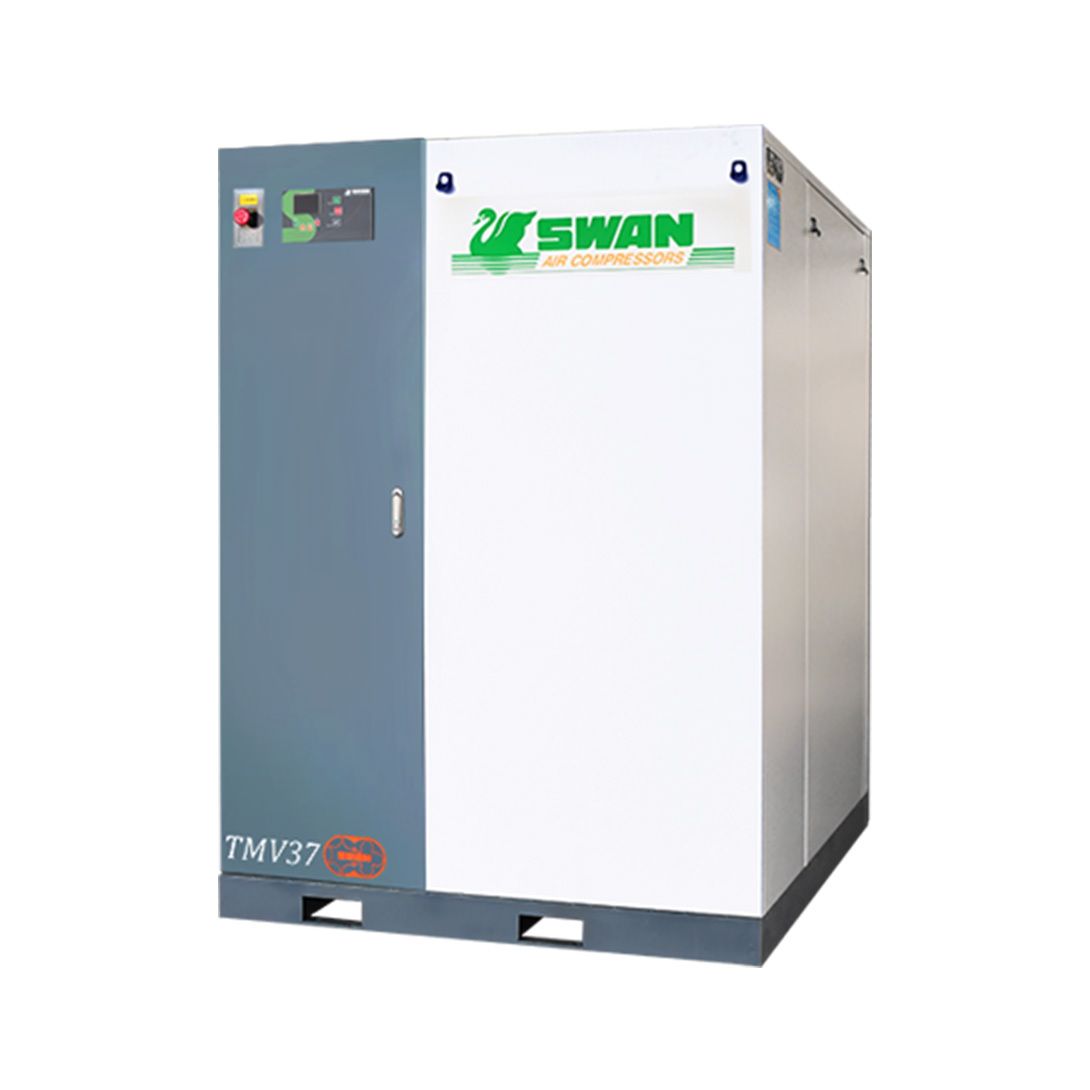

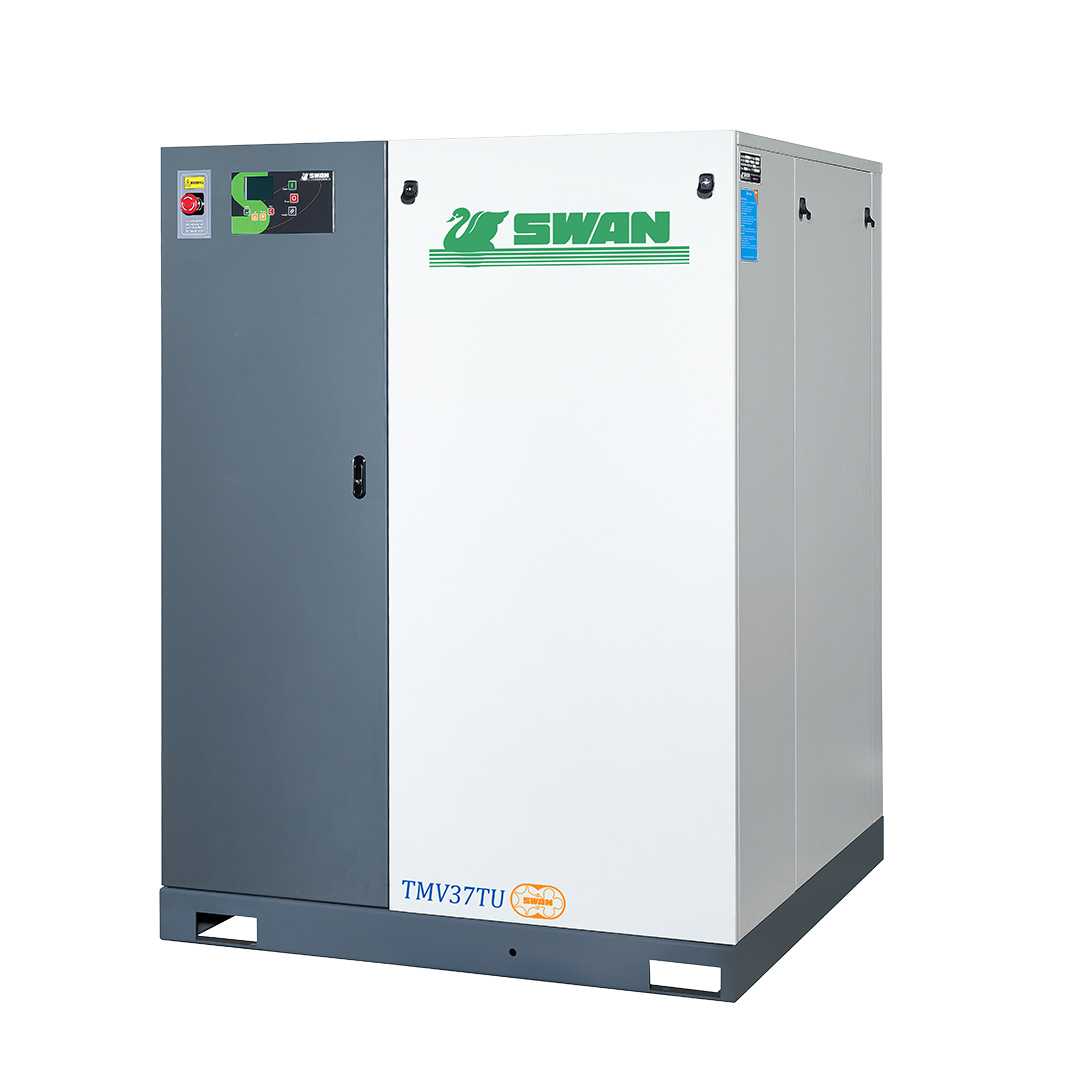

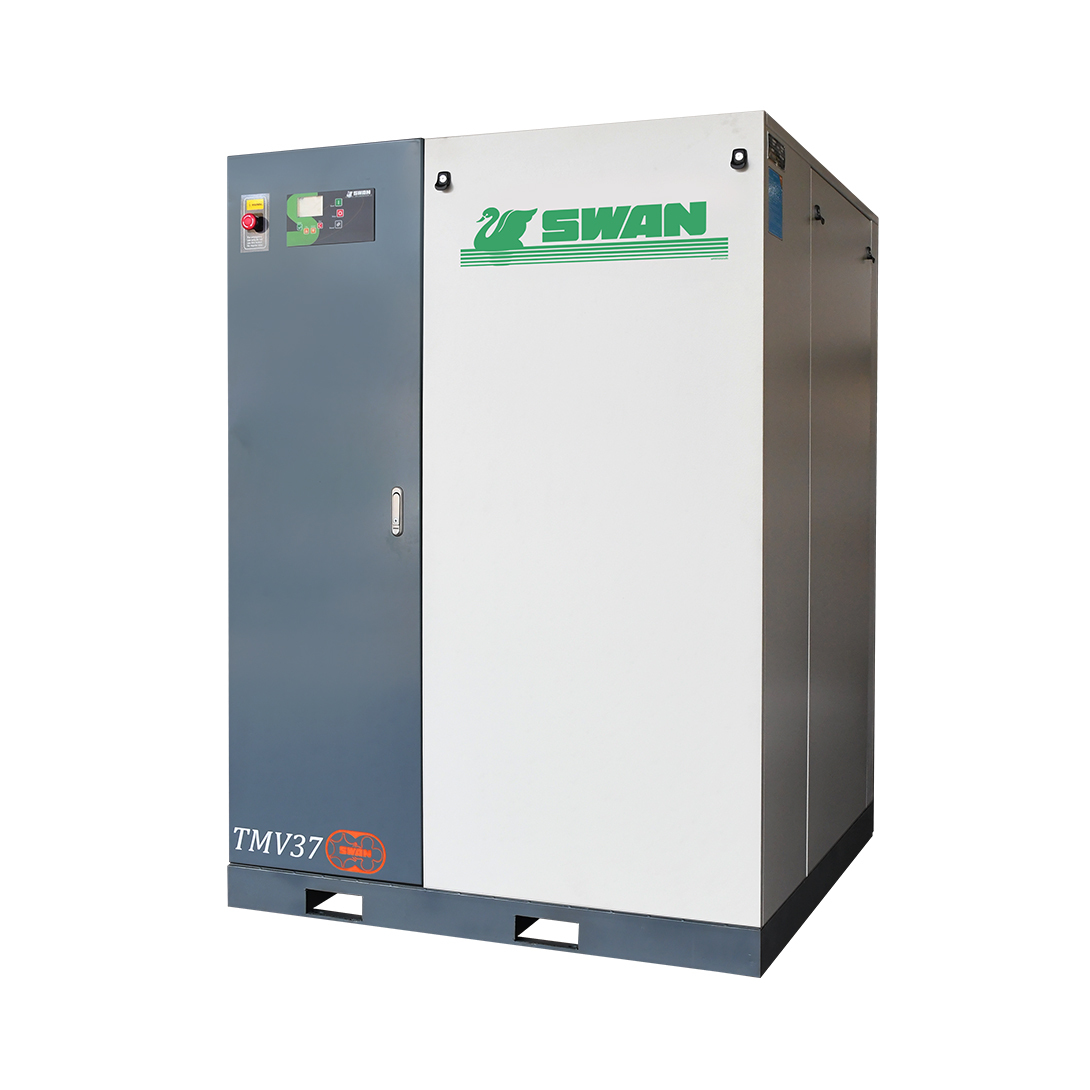

TMV37 50 37 8 6.37 1485X1145X1750
TMV37T 50 37 8 7.52 1780X1300X1680

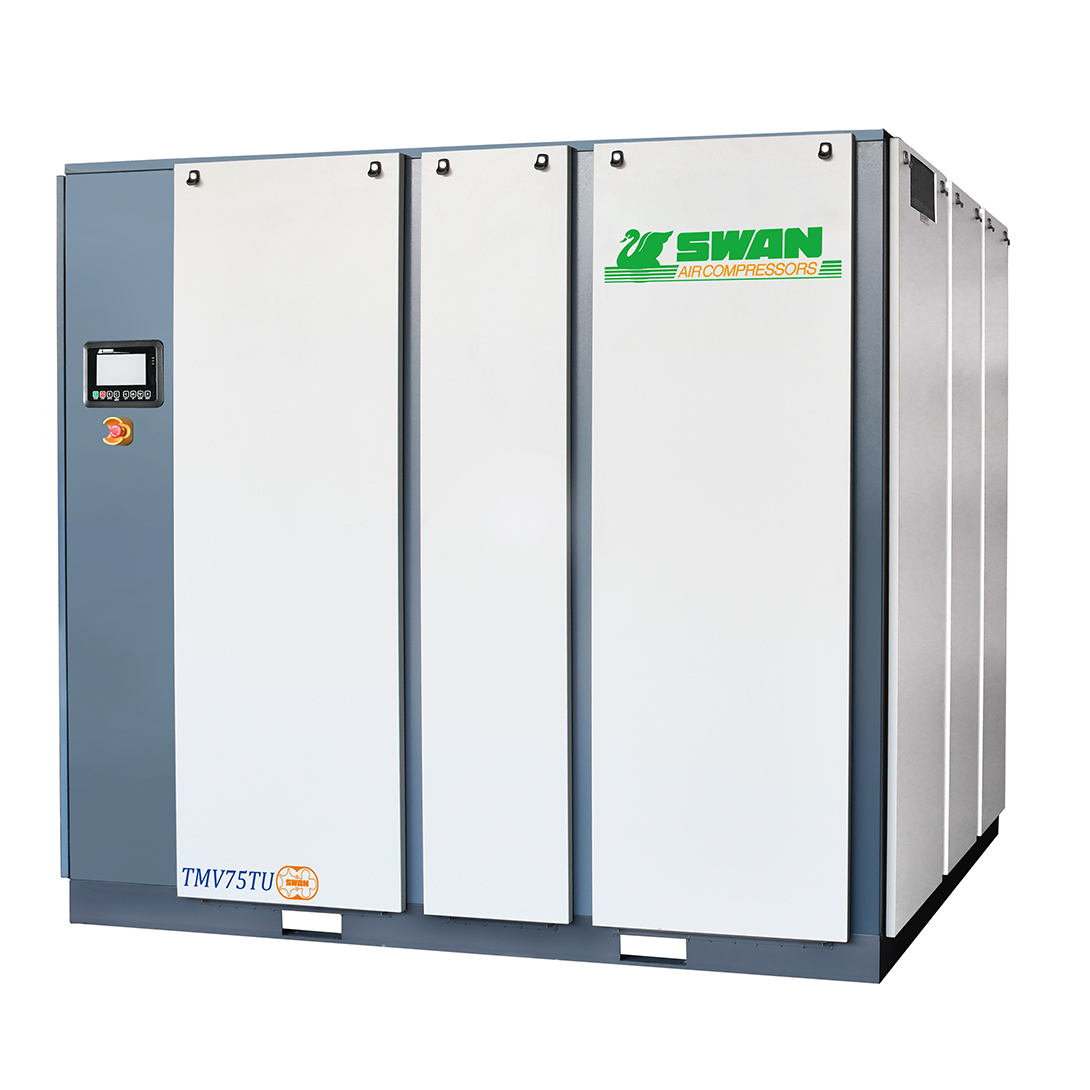

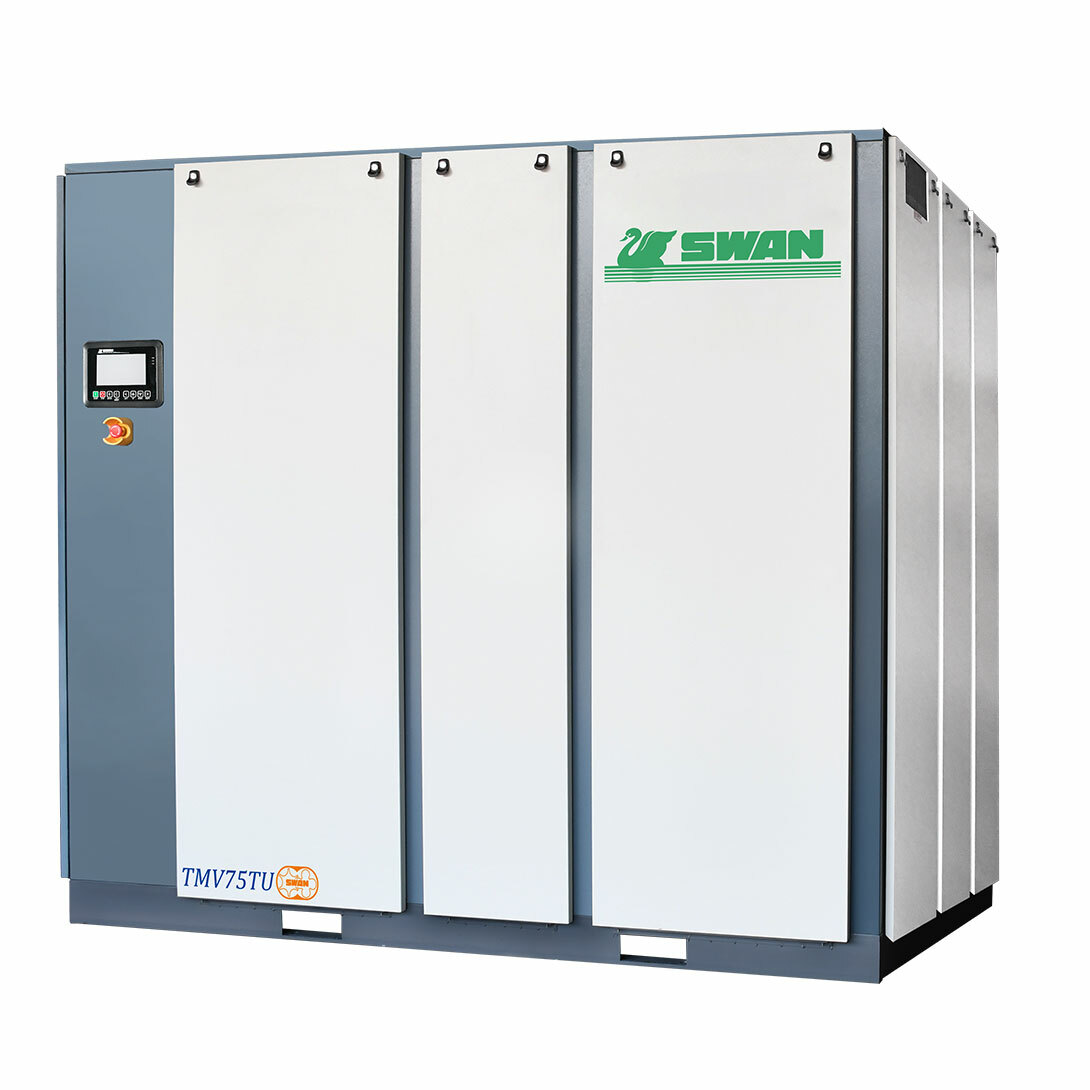

TMV75TZ 100 75 8 16.5 2335X1600X2140

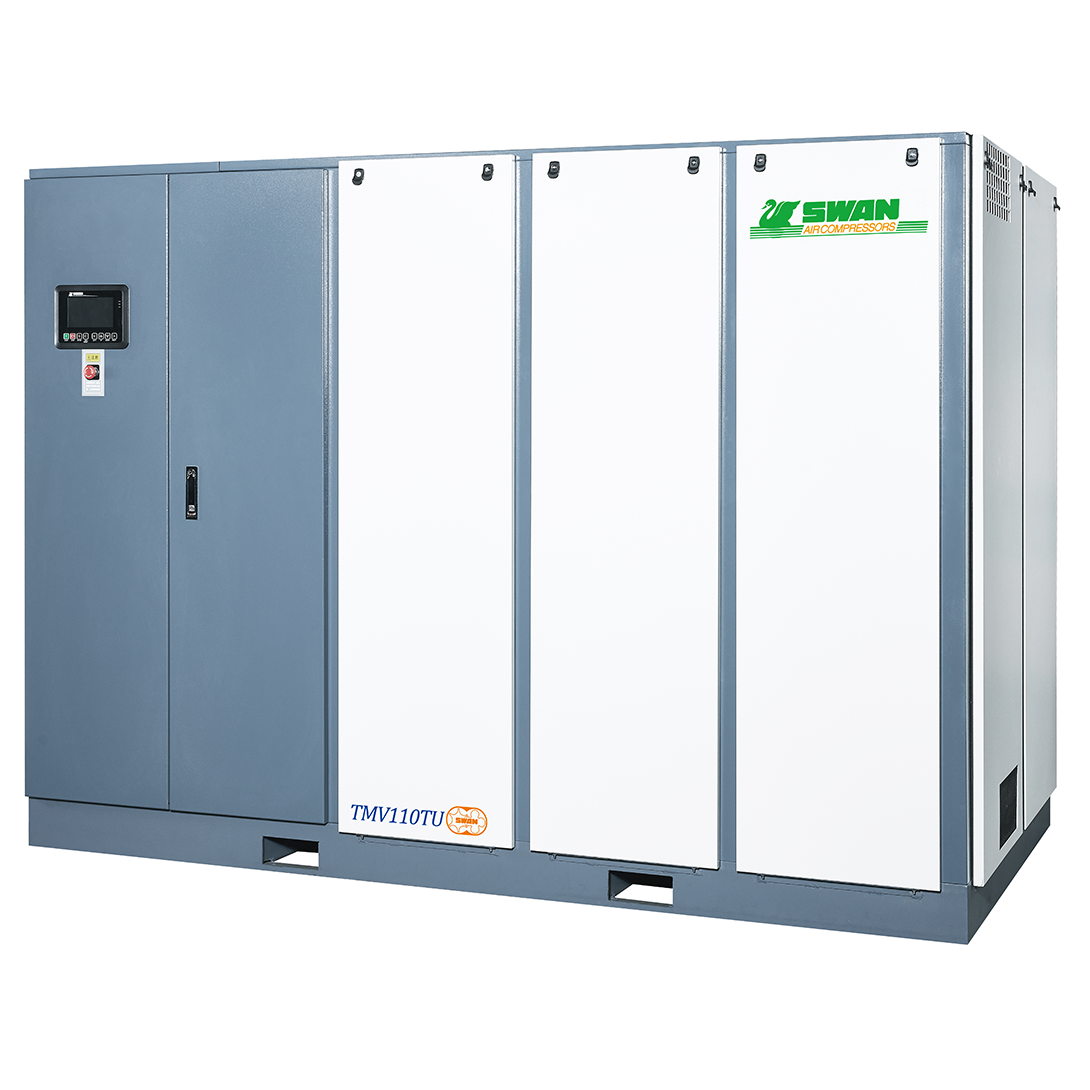

TMV110TZ 150 110 8 22.8 1485X2770X1990

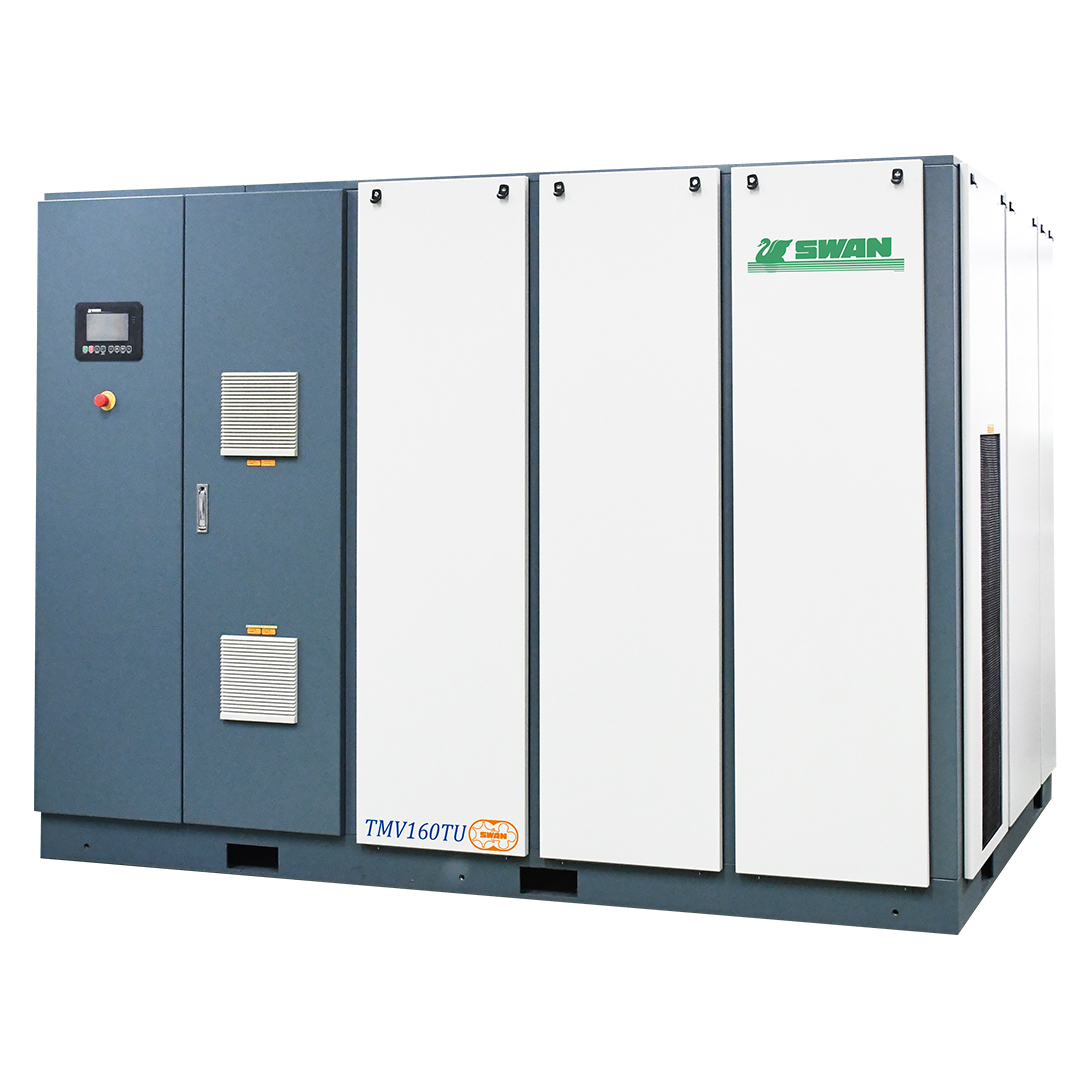

TMV160TZ 215 160 8 31.8 2950X1600X2300
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
