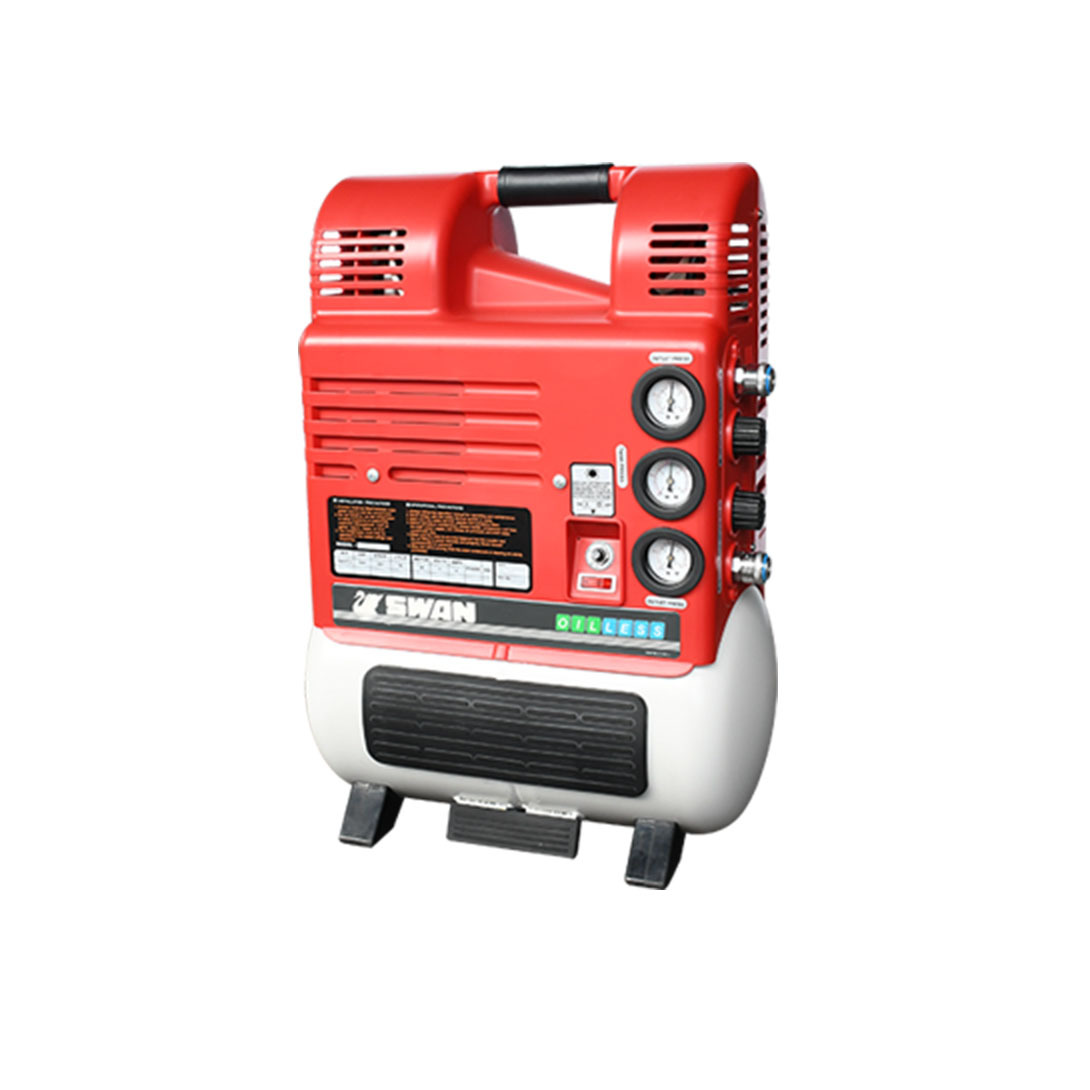

SK Series

“SWAN” SK series air compressor integrates the design ideas of esthetics & practicality. Equipped with stainless-steel air tank and higher working pressure air pump, to achieve low noise, low vibration in operating and easy to be carried.


  • Horse power (HP) 1
  • Working pressure (kg/cm²) 10
  • Capacity (m³/min) 0.143


Light, Silent, Clean, Small power, High working pressure Air Compressor

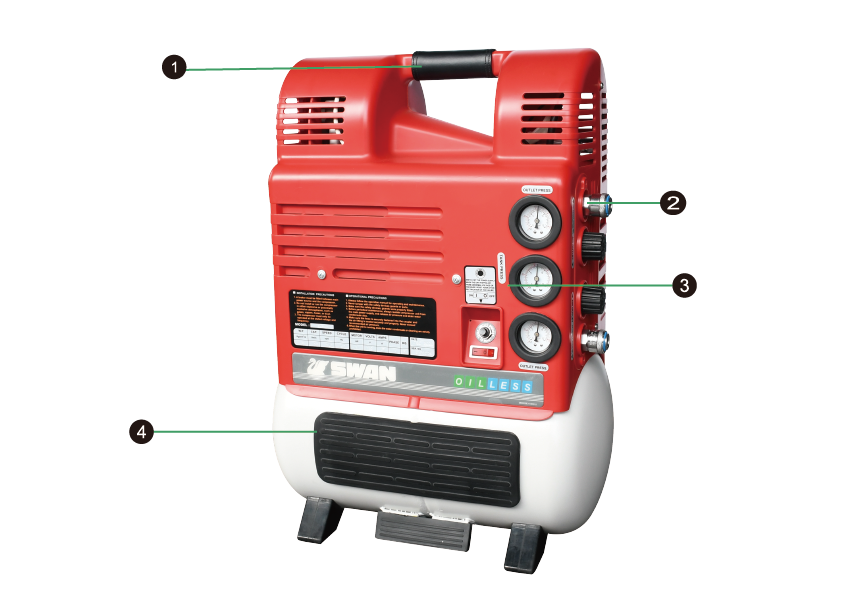

  1. Ergonomic handle design
  2. Air output with dual regulator valve devices
  3. Control system components
  4. Stainless air receiver

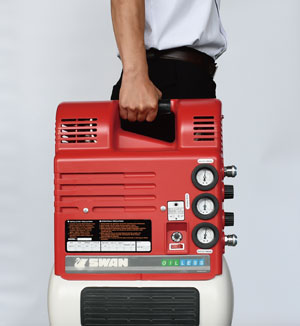

Ergonomic handle design

The handle is light, handy, and easy to hold. The bottom roller is also easy to drag and move.

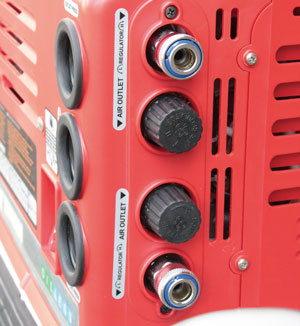

Air output with dual regulator valve devices

SK is equipped with the switch which is easy to use; the air output with dual regulator valve devices to preset different working pressure according to different applications, which extends the service life and improves the efficiency of the compressor; the highest working pressure can be 10kg/cm².

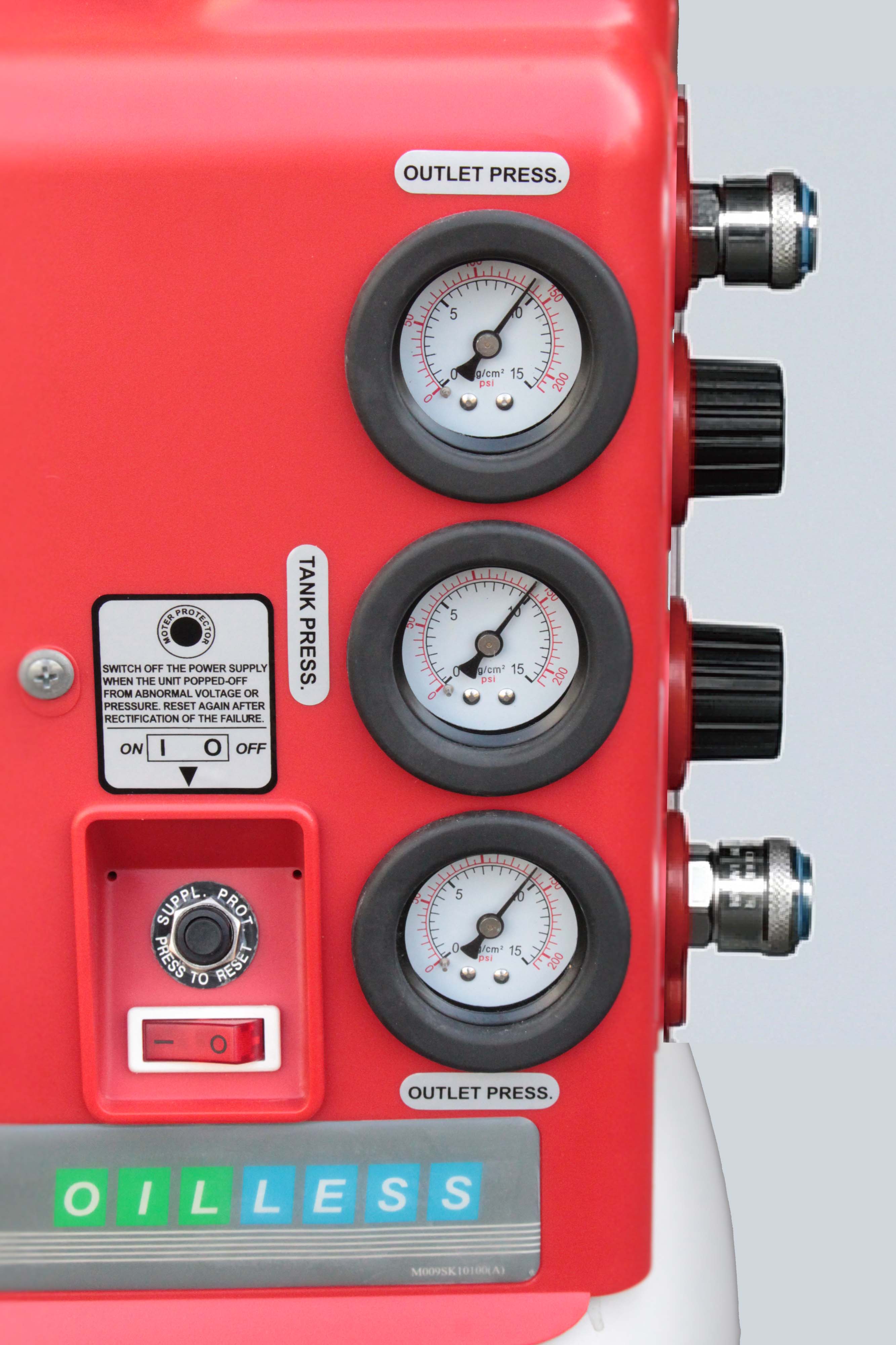

Control system components

We use reliability components such as pressure switch, check valve, pressure gauge, safety valve, and also the unloading solenoid valve to re-start the pump smoothly if power is cut off during operation; the motor for SK is equipped with over load protector and the over-current protector.

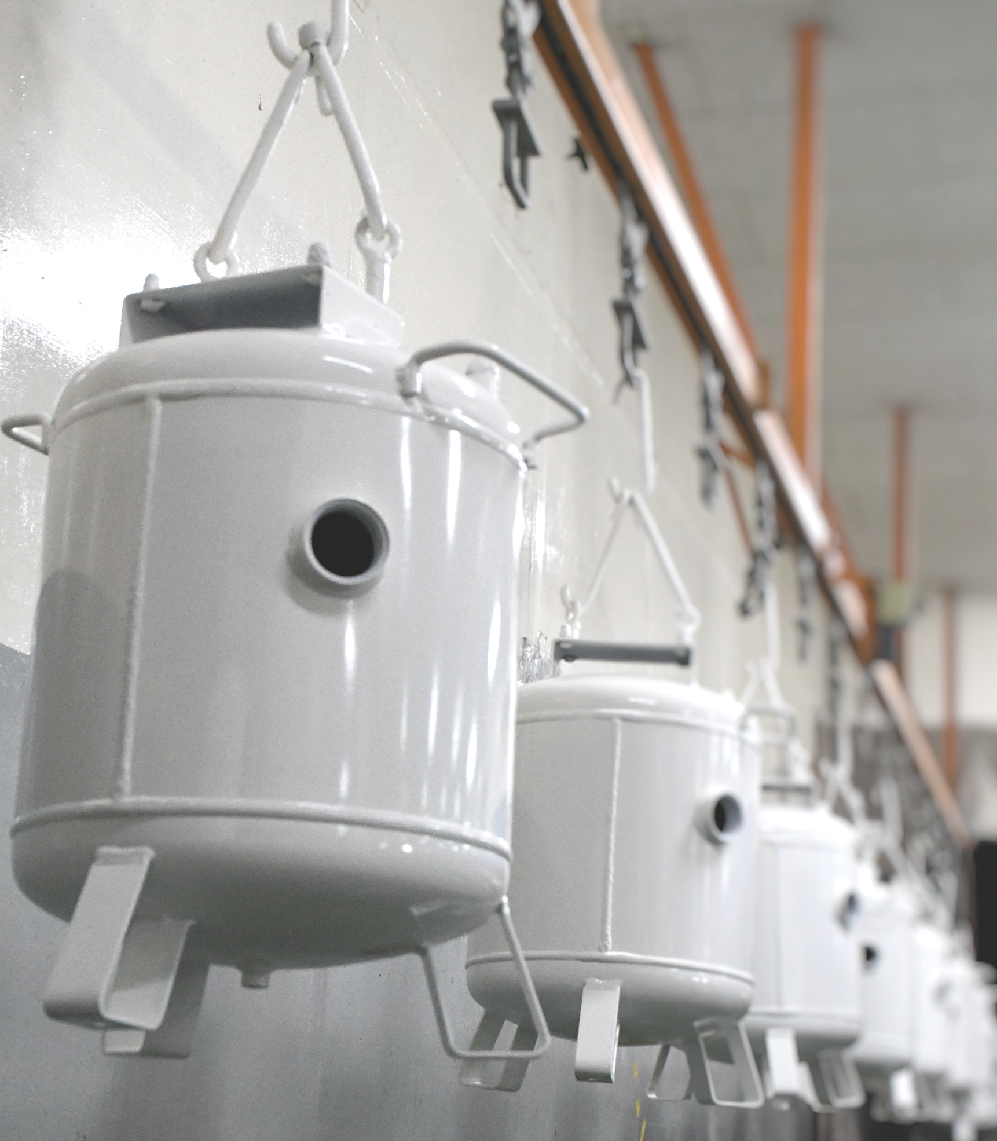

Stainless air receiver

The air tank is made of high-strength steel, and the outer surface is coated with powder painting to create exquisite appearance and hard finish for long lasting; is equipped with safety valve device to comply with safety regulations to ensure safety operation.


Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Tank Capacity (liter) Dimension (mm) (L*W*H) Weight (kg)
SK-101 1 0.75 10 0.143 16 420x290x580 27
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
