SE/HE Series

Specifications

  • Horse power (HP) 5.5~18
  • Working pressure (kg/cm²) 8~16
  • Capacity (m³/min) 0.14~1.15

ENGINE TYPE AIR COMPRESSOR SERIES

Free from limitation of power source, offer superb quality of compressed air anytime and anyplace

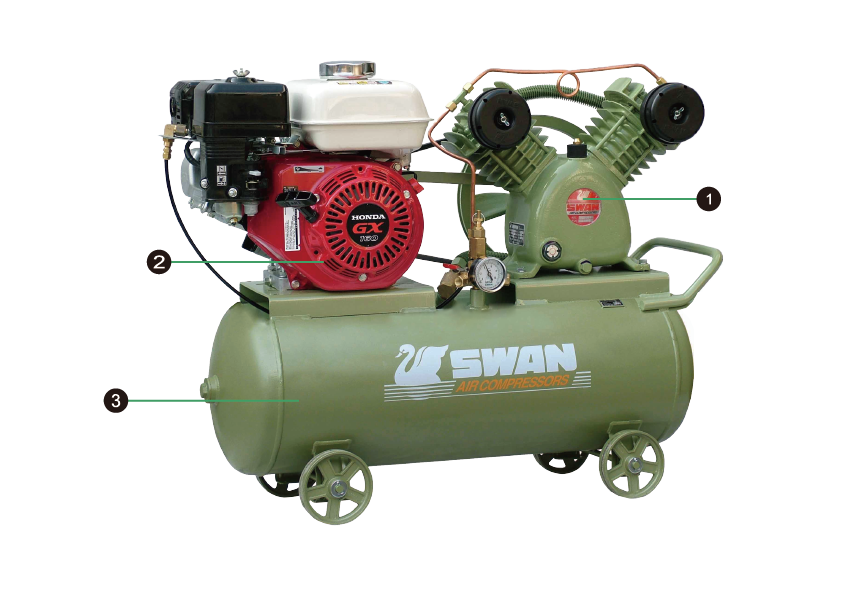

  1. SWAN high quality air compressor pump
  2. Engine driven
  3. Powder coated air tank

INTRODUCTION OF ACCESSORIES

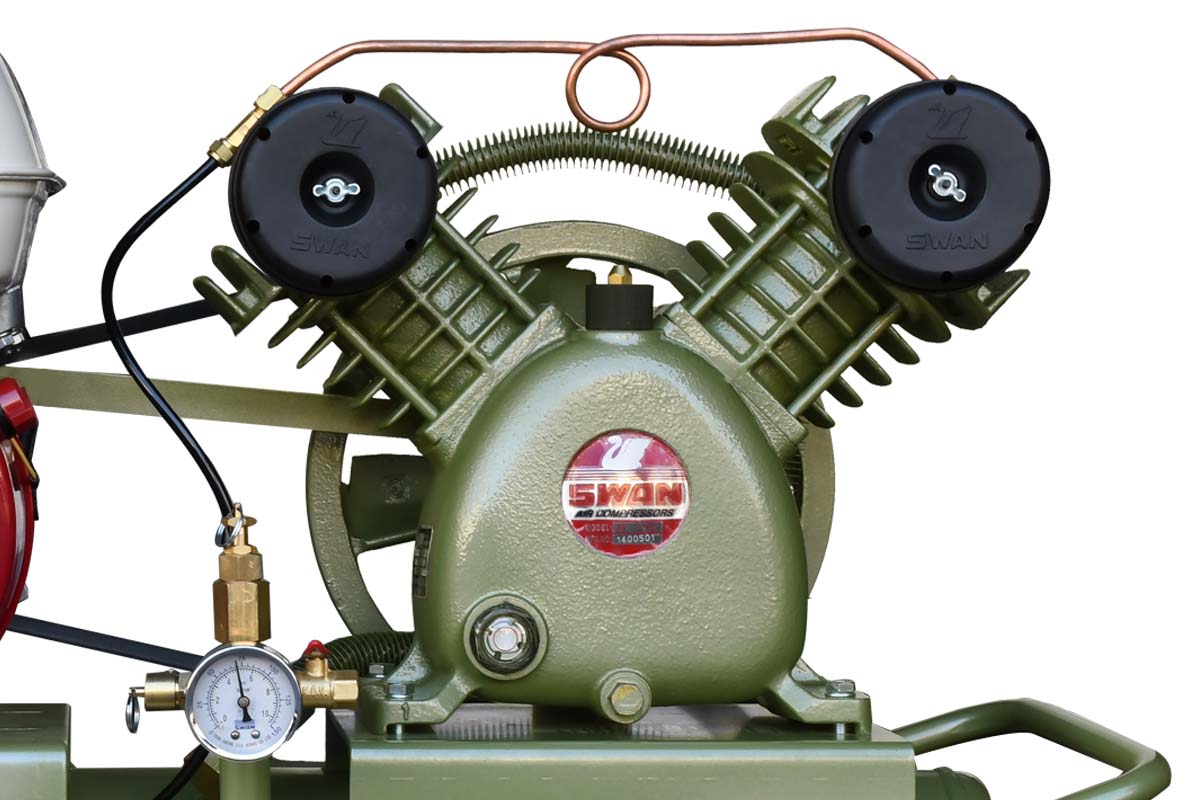

SWAN high quality air compressor pump

Having more than 65 years’ experiences in designing and manufacturing air compressors, SWAN reciprocating air compressor pumps feature high efficiency, sturdy structure, durability and reliability.  We apply high precision machine tools and advanced techniques for component manufacturing to ensure all products with top and steady quality.

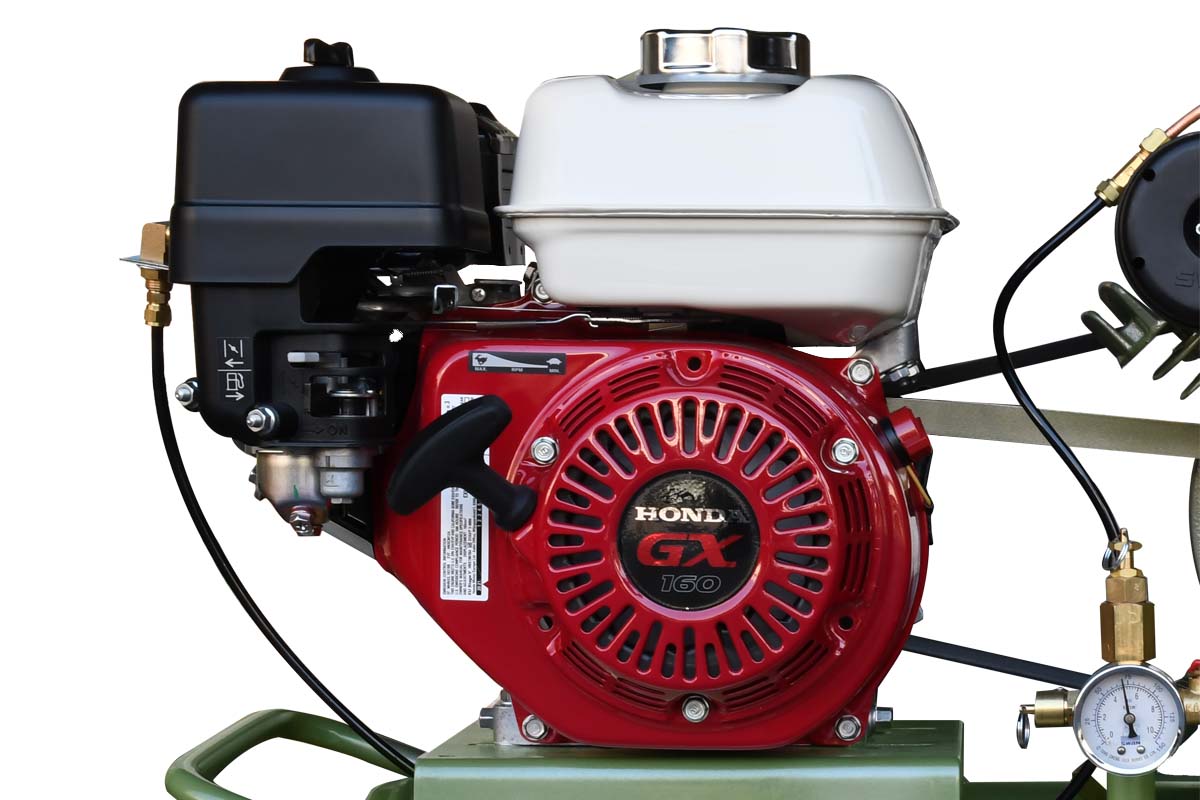

Engine driven

Driven by diesel power, free from limitation of power source, offer superb quality of compressed air anytime and anyplace. Able to process repairments anywhere.


PRODUCT FEATURES

Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Tank Capacity (liter) Dimension (mm) (L*W*H) Weight (kg)
SVU-201E(gas) 5.5 4.13 8 0.14 85 1100x440x780 58

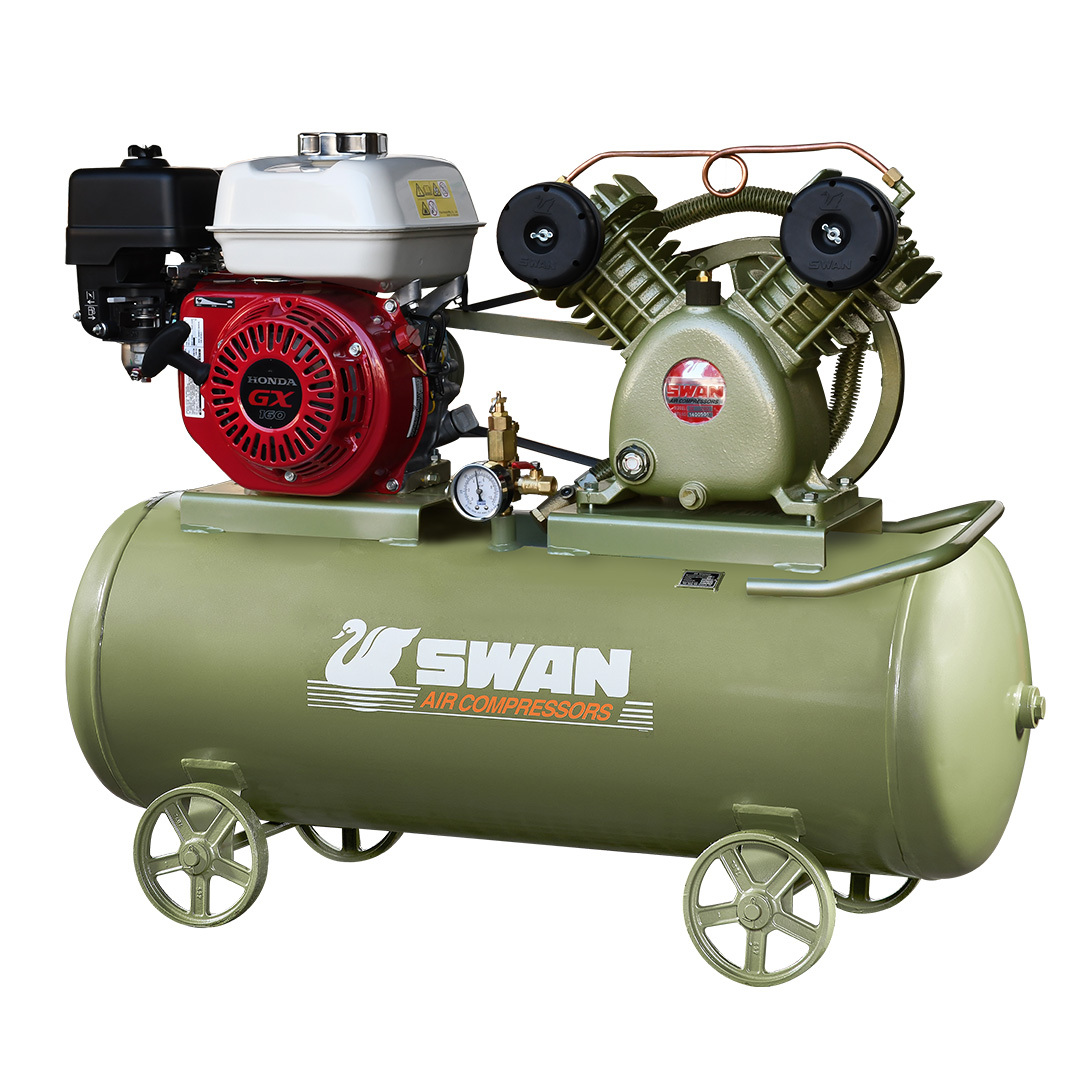

SVU-202E(gas) 5.5 4.13 8 0.225 85 1100x440x780 62
SVU-203E(gas) 6 4.5 8 0.355 240 1620x510x1165 190
SVU-203E(diesel) 6 4.5 8 0.355 240 1620x510x1165 190

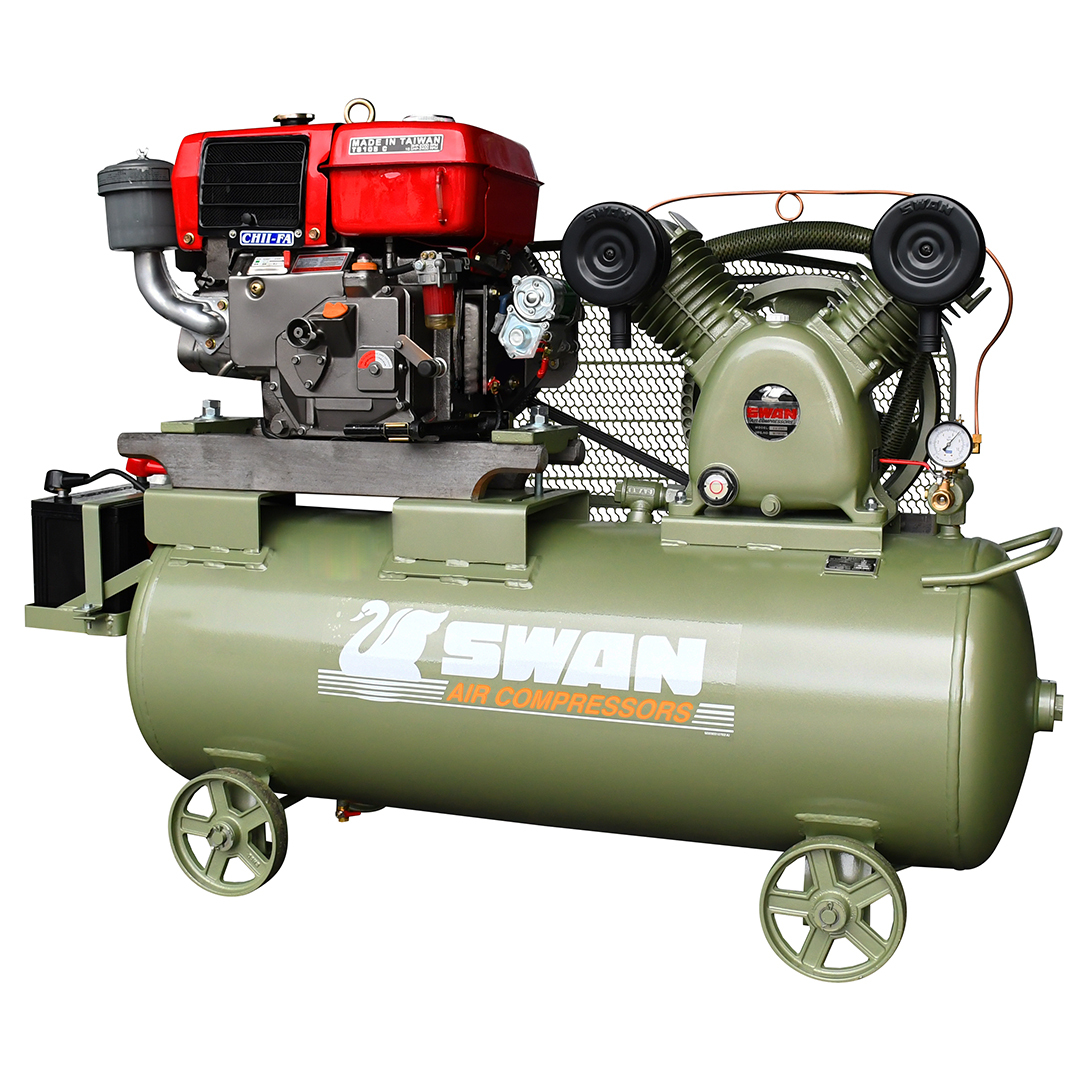

SVU-205E(gas) 8 6 8 0.545 240 1525x550x1170 220
SVU-205E(diesel) 10.5 7.88 8 0.545 240 1525x550x1200 230
SWU-307E(diesel) 13 9.75 8 0.872 300 1835X650X1200 300

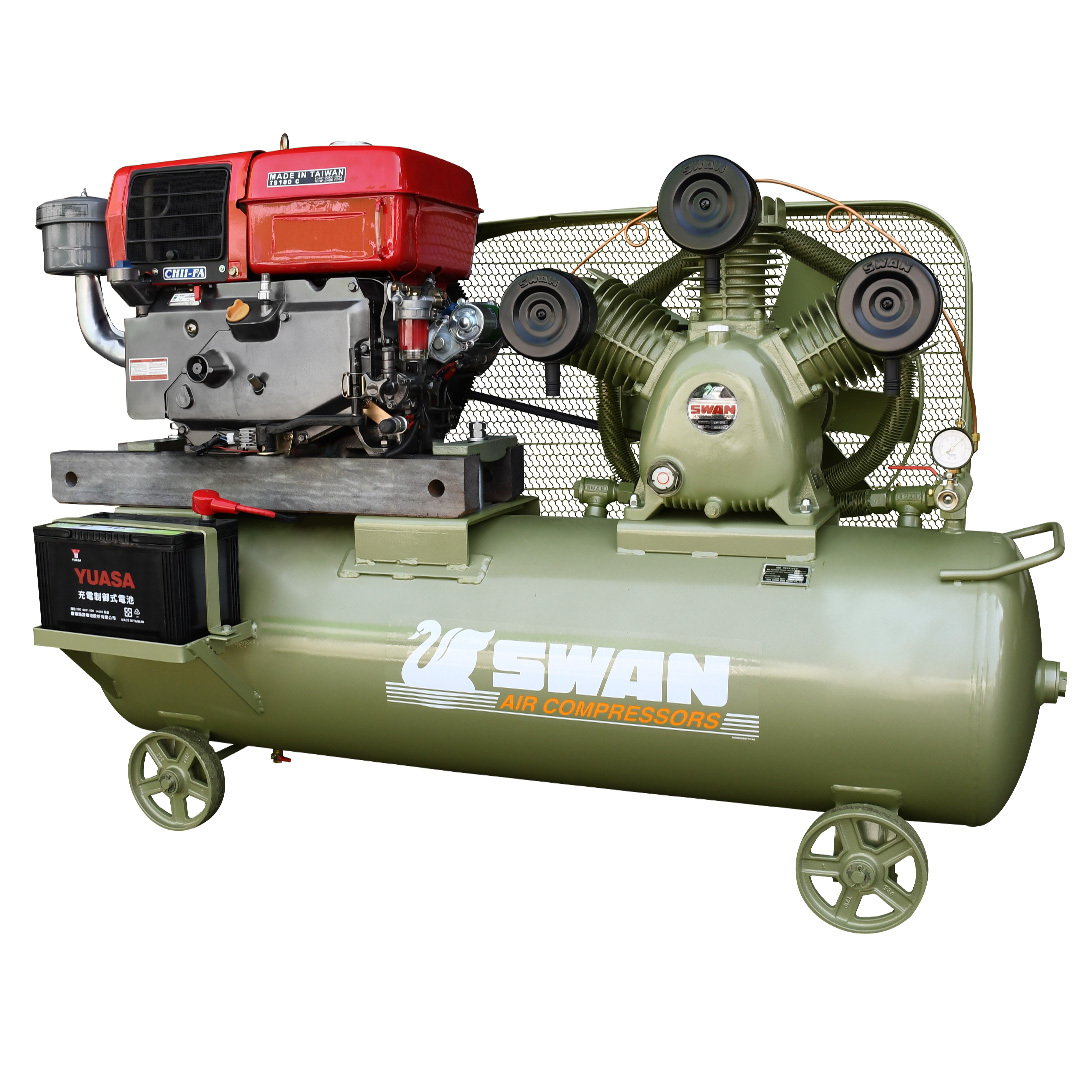

SWU-310E(diesel) 18 13.5 8 1.151 300 1835X650X1220 345
HVU-203E(gas) 5.5 4.13 16 0.270 237 1670x510x1165 240
HVU-203E(diesel) 6 4.5 16 0.270 237 1670x510x1165 240

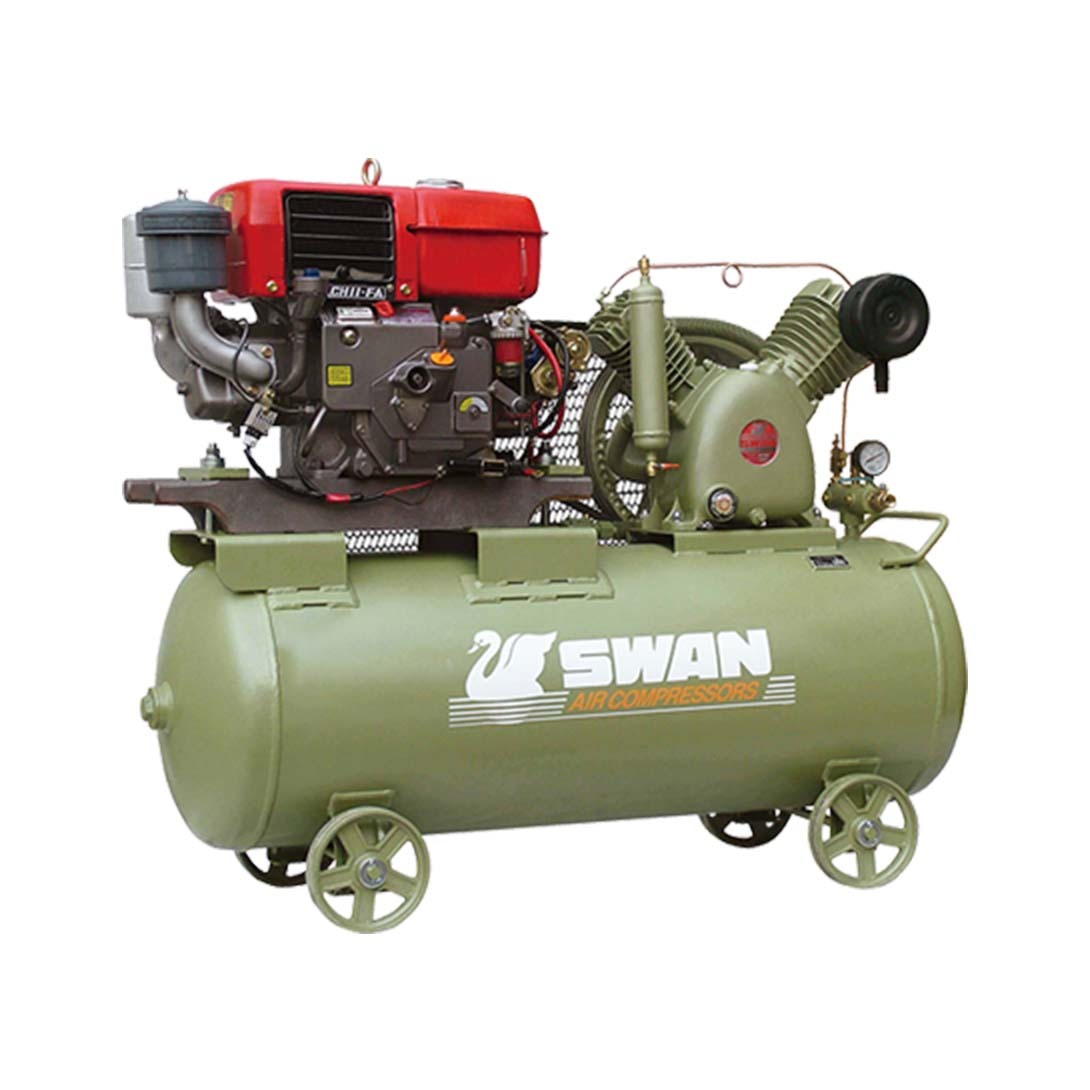

HVU-205E(gas) 8 6 16 0.406 237 1670x550x1210 270
HVU-205E(diesel) 10.5 7.88 16 0.406 237 1560x550x1250 275

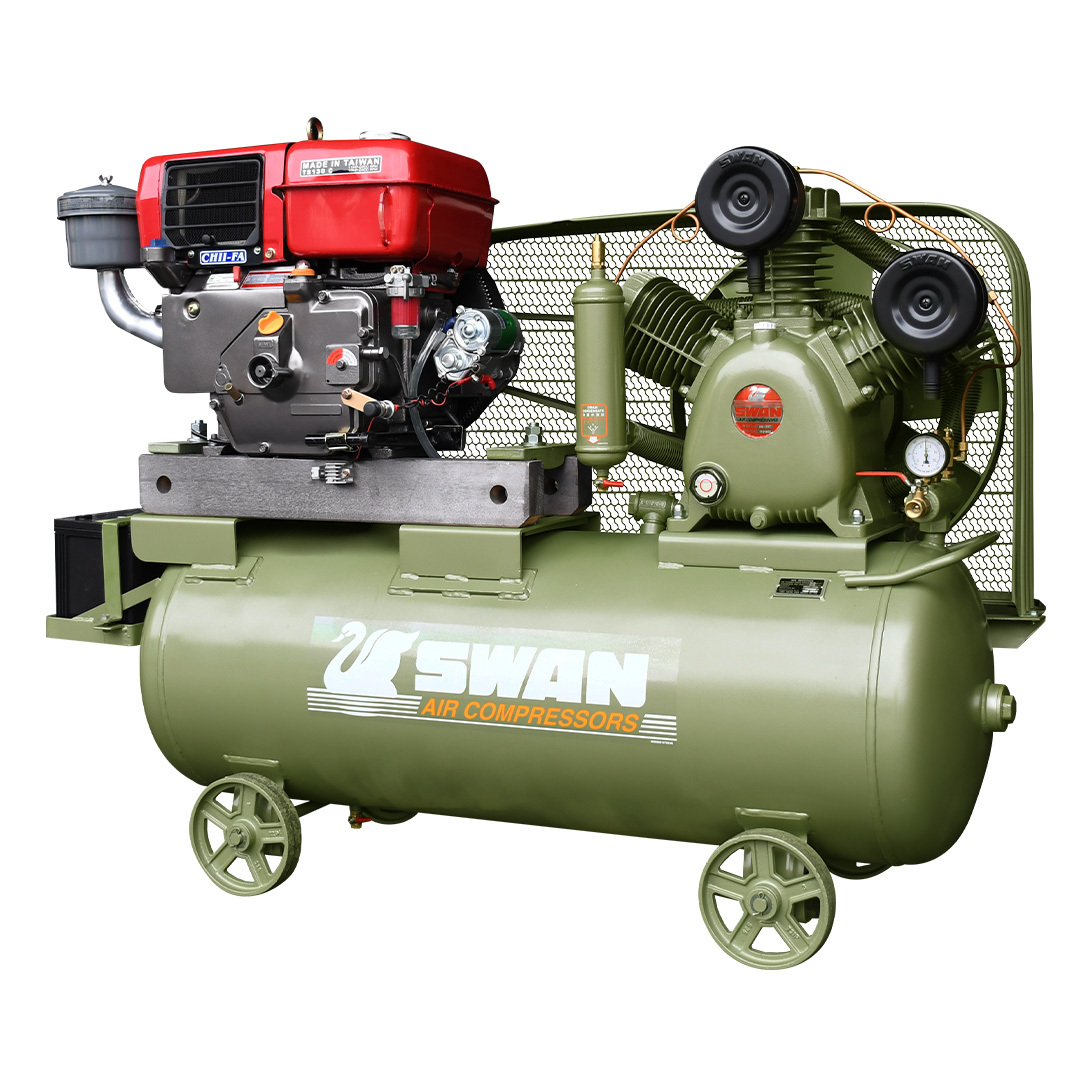

HWU-307E(diesel) 13 9.75 16 0.606 237 1630x640x1285 335

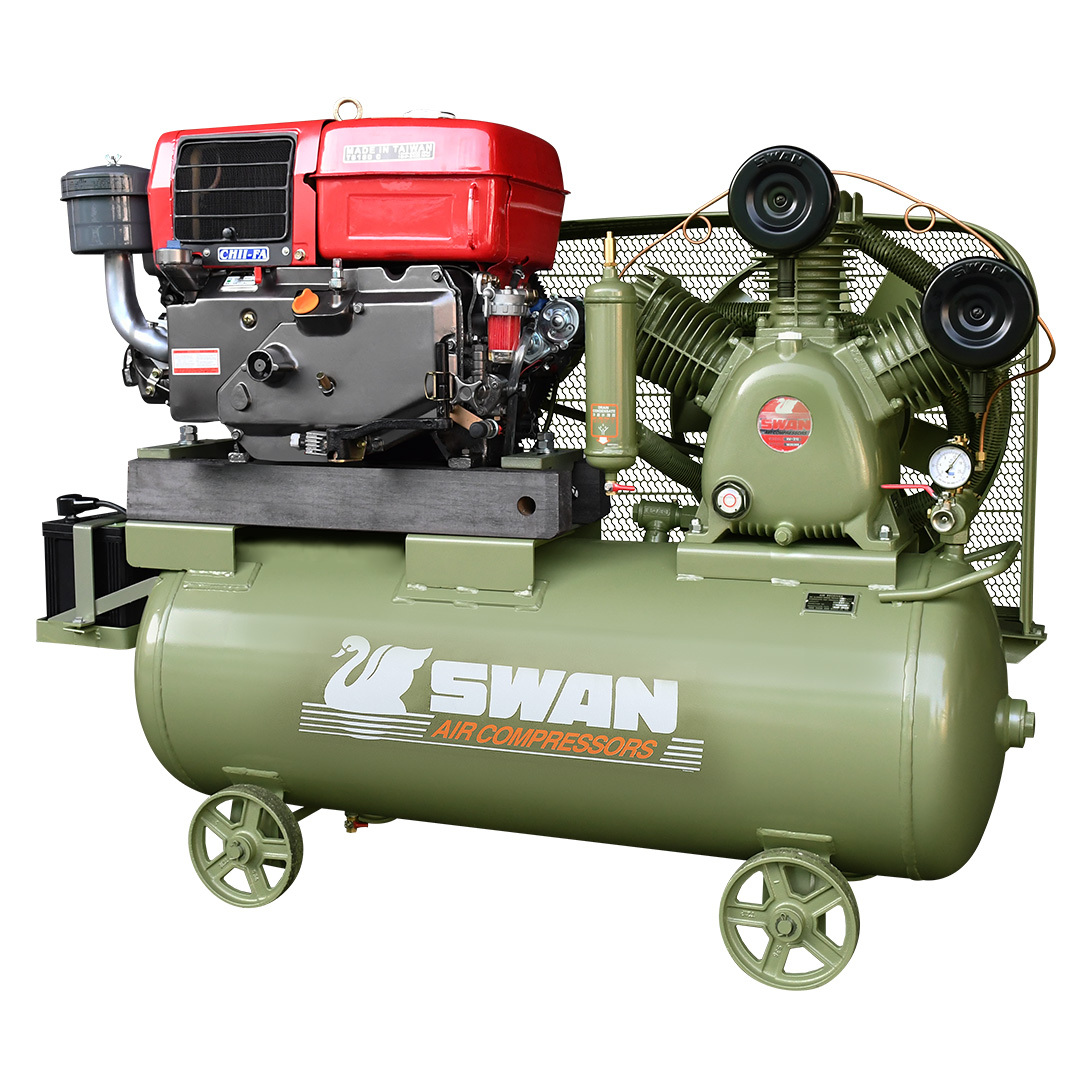

HWU-310E(diesel) 18 13.5 16 0.786 237 1630x640x1300 372
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
