H Series

SWAN air compressor H series are high efficient two stage compression, large displacements and smooth continuously operating. The strong heat dissipation design prolongs its service life and saves more cost.


  • Horse power (HP) 3~15
  • Working pressure (kg/cm²) 12~16
  • Capacity (m³/min) 0.225~0.929


Best quality with more than 60 years’ experience of air compressors

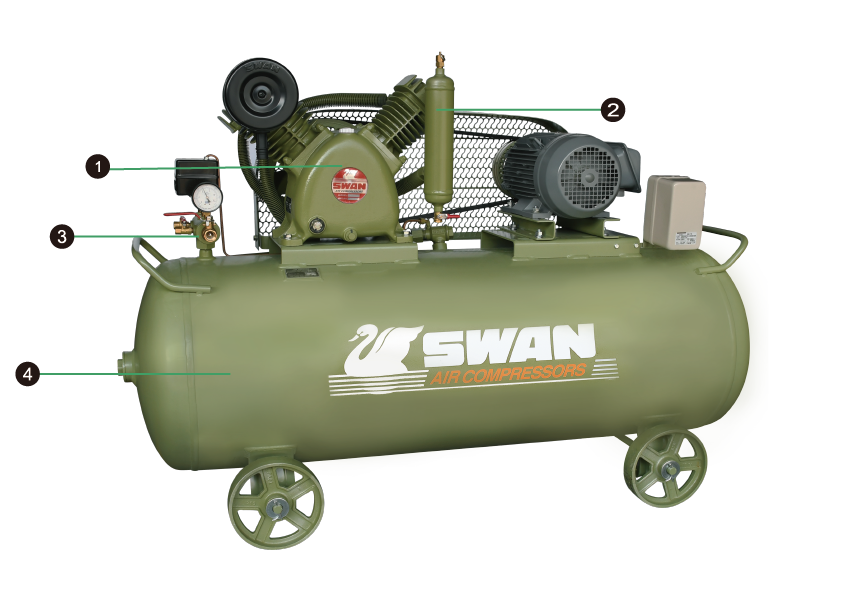

  1. High pressure compressor pump
  2. High pressure buffer tank
  3. Patented drain valve on top of air tank(Optional)
  4. Powder coated air tank

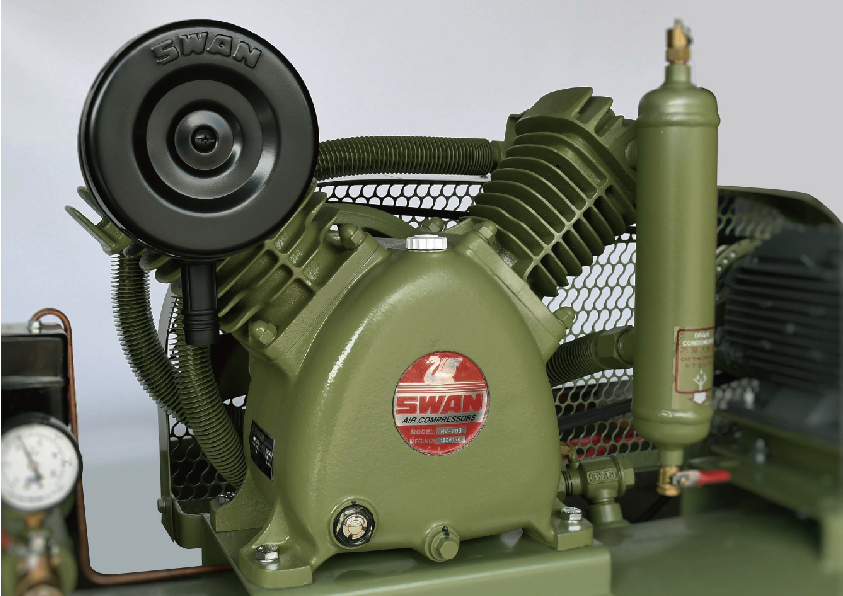

High pressure compressor pump

High efficiency 2 stage compress design with huge output and smooth operation.  Strong cooling fan, durable service.  Offer sufficient and steady compressed air.  Enlarged air tank to ensure continuous supply of compressed air.  A recommended economical and practical model.

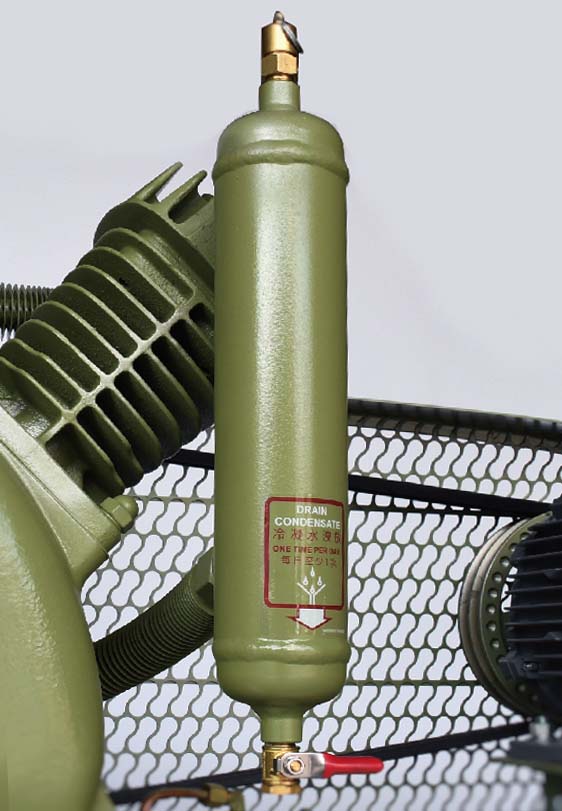

High pressure buffer tank

High efficiency 2 stage compress design able to offer powerful and steady compressed air output during operation.

Patented drain valve on top of air tank (Optional)

Exclusive patented water drain valve on top of the air tank, able to exhaust condensed water accumulated in air tank.  Further to reduce possibility of tank rust and extend durability.

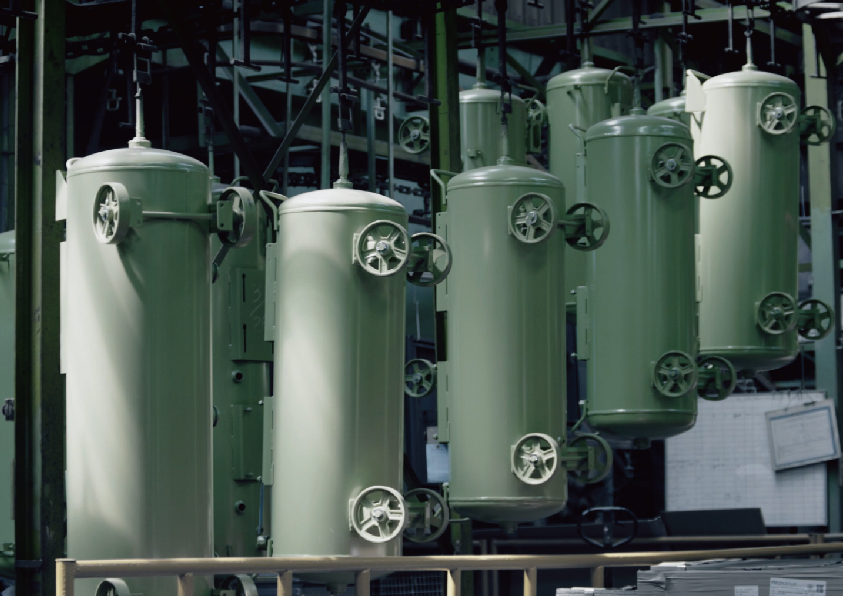

Powder coated air tank

Air tank prepared by initially shot blasting, thicker powder coating applied to ensure bright and durible surface protection.

Envirmental friendly coating process also been applied during manufacturing.



Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Tank Capacity (liter) Dimension (mm) (L*W*H) Weight (kg)

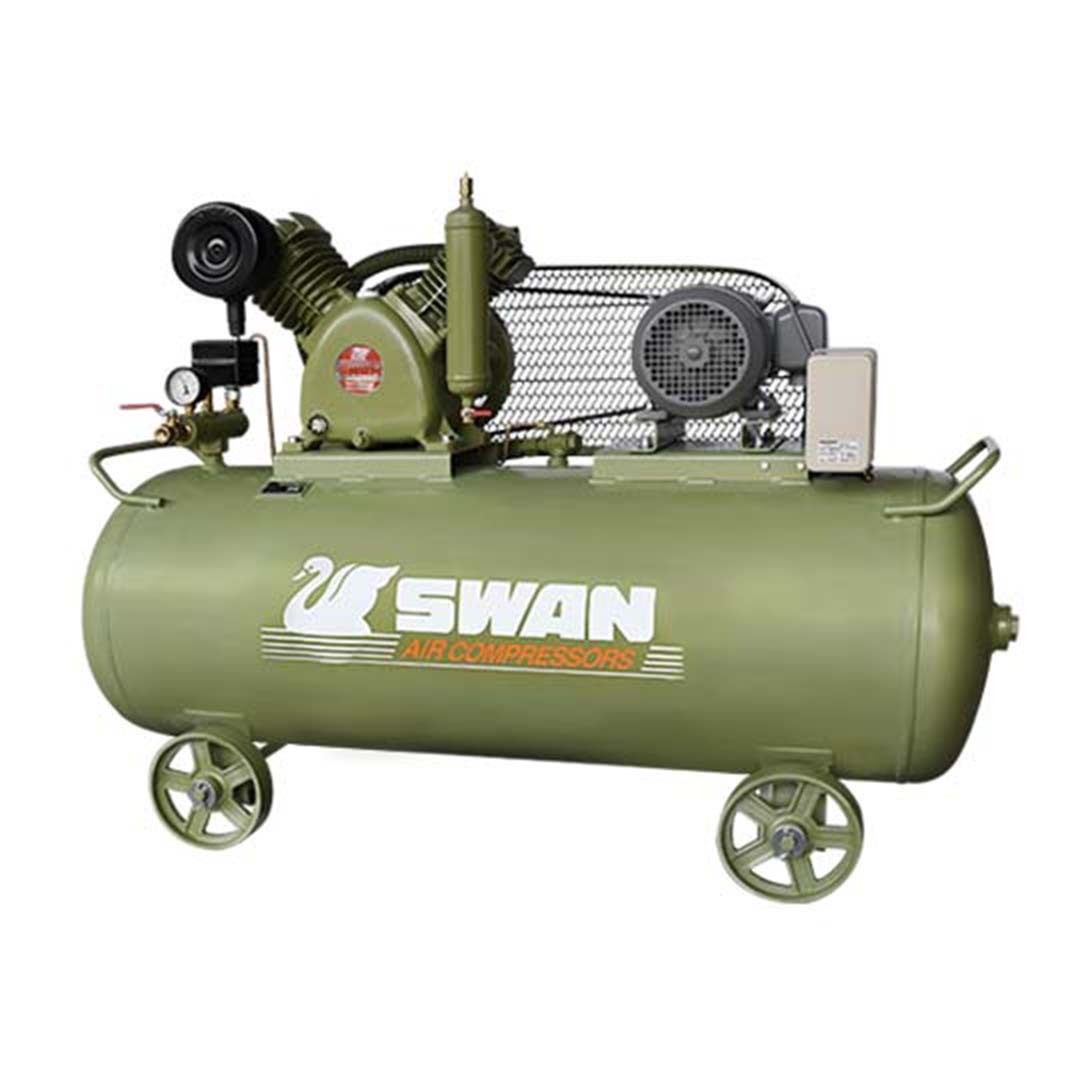

HVP-203 3 2.2 16 0.225 237 1470X550X1100 205
HVU(P)-205 5 3.7 16 0.338 237 1470X550X1100 225

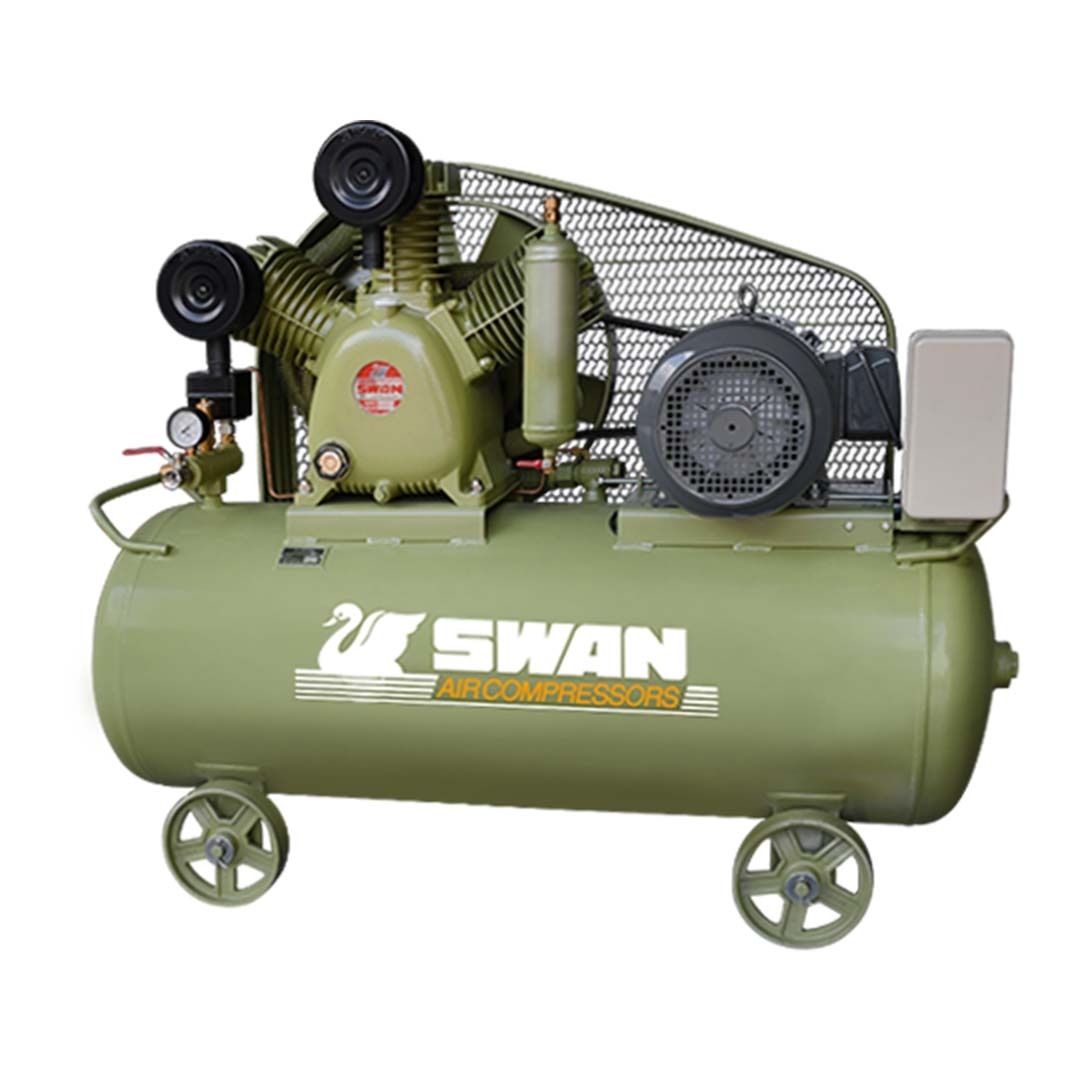

HWU(P)-307 7.5 5.5 16 0.503 237 1470X640X1150 260

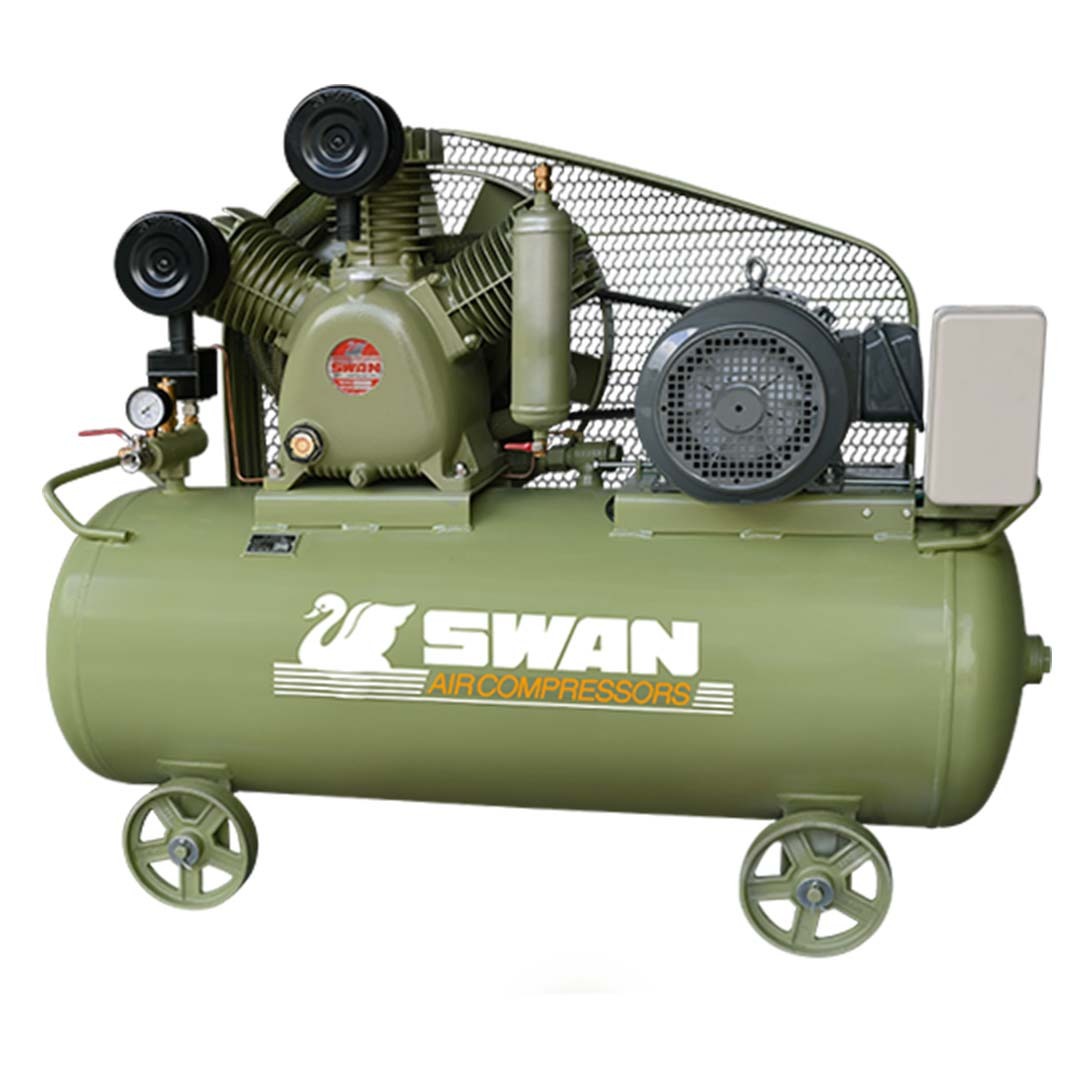

HWU(P)-310 10 7.5 16 0.652 237 1470X640X1150 262
HWU-415 15 11 12 0.929 300 1835X650X1150 361
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
