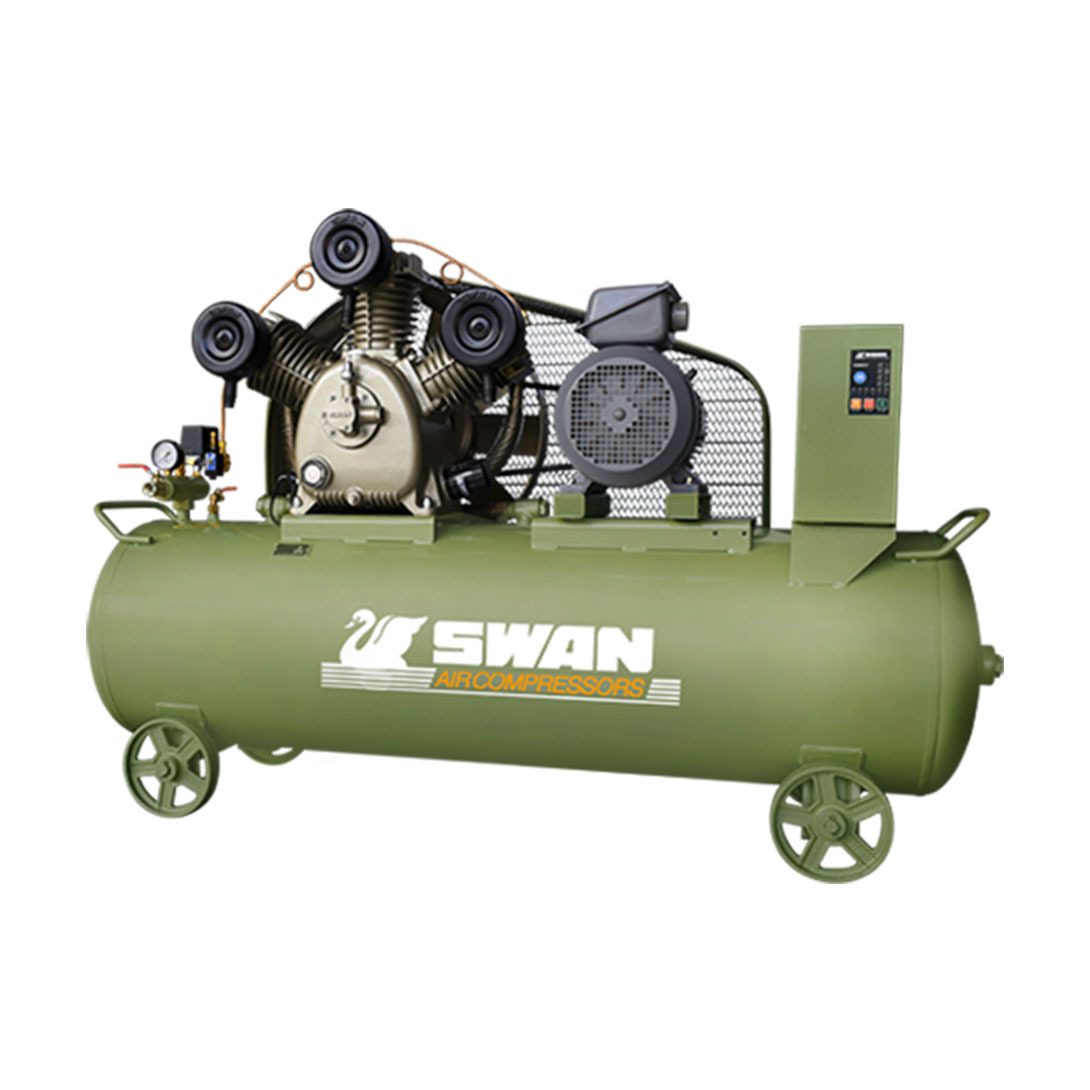

SN Series

SWAN air compressor SN series are equipped with enforced lubricating system, and can be continuously running for 24 hours under loading condition.


  • Horse power (HP) 5~20
  • Working pressure (kg/cm²) 7~8
  • Capacity (m³/min) 0.45~2


Full combination of professional and unique technical design, to lubricate all running parts inside the pump with enforced clean oil.

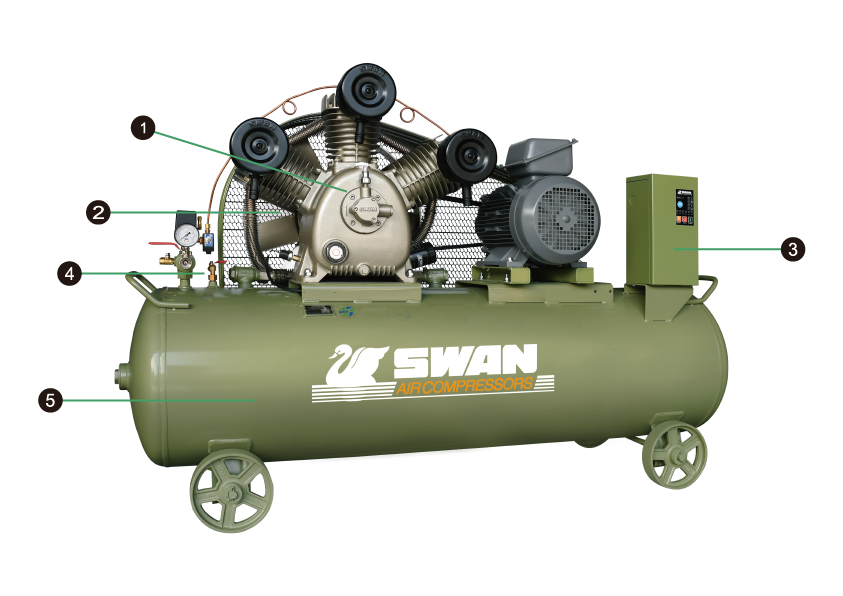

  1. Special enforced lubrication design
  2. Extra-large fan for cooling
  3. Intelligent control panel
  4. Patented drain valve on top of air tank
  5. Powder coated air tank

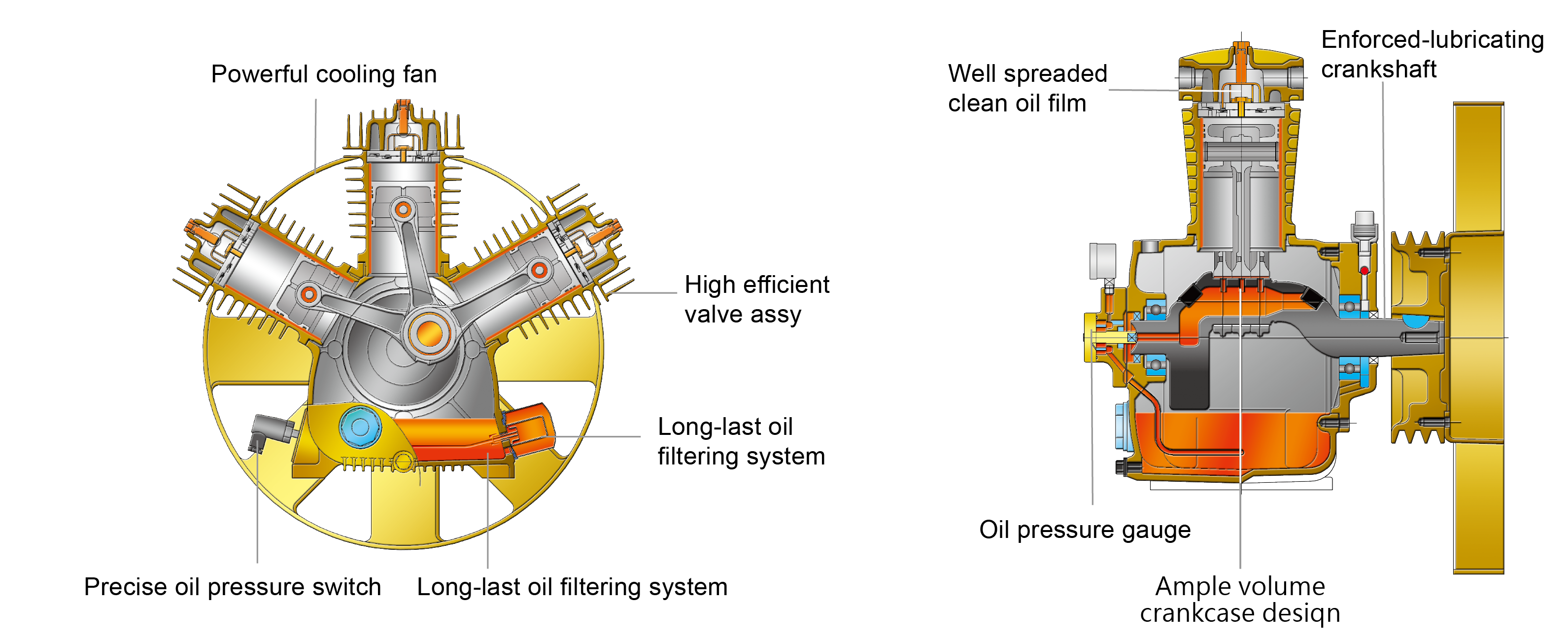

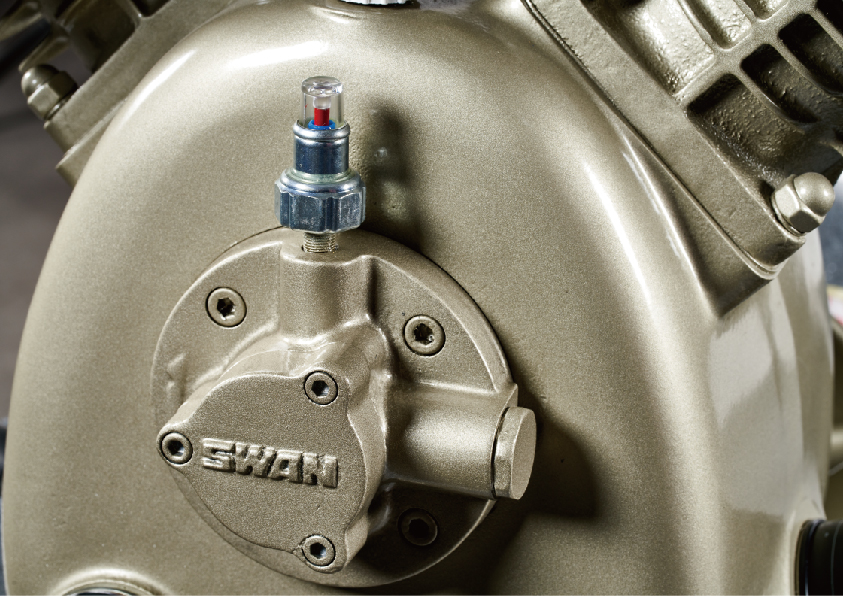

Enforced lubricating compressor pump structure

Special oil carried inside the crankshaft to ensure sufficient and clean lubrication.  Built-in enforced lubricating system to guarantee full and clean lubricating without failure.

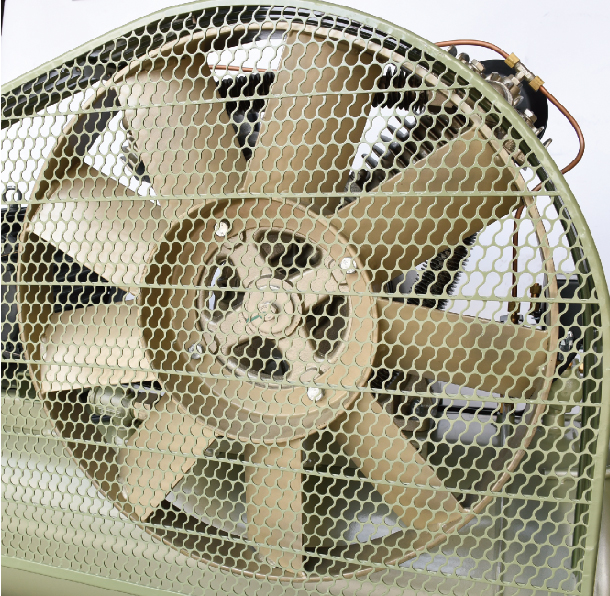

Enlarged cooling fan

For long time running, enlarged cooling fan improve heat release of compressor pump, acompany with safety guard for safety concern and maintain efficiency.

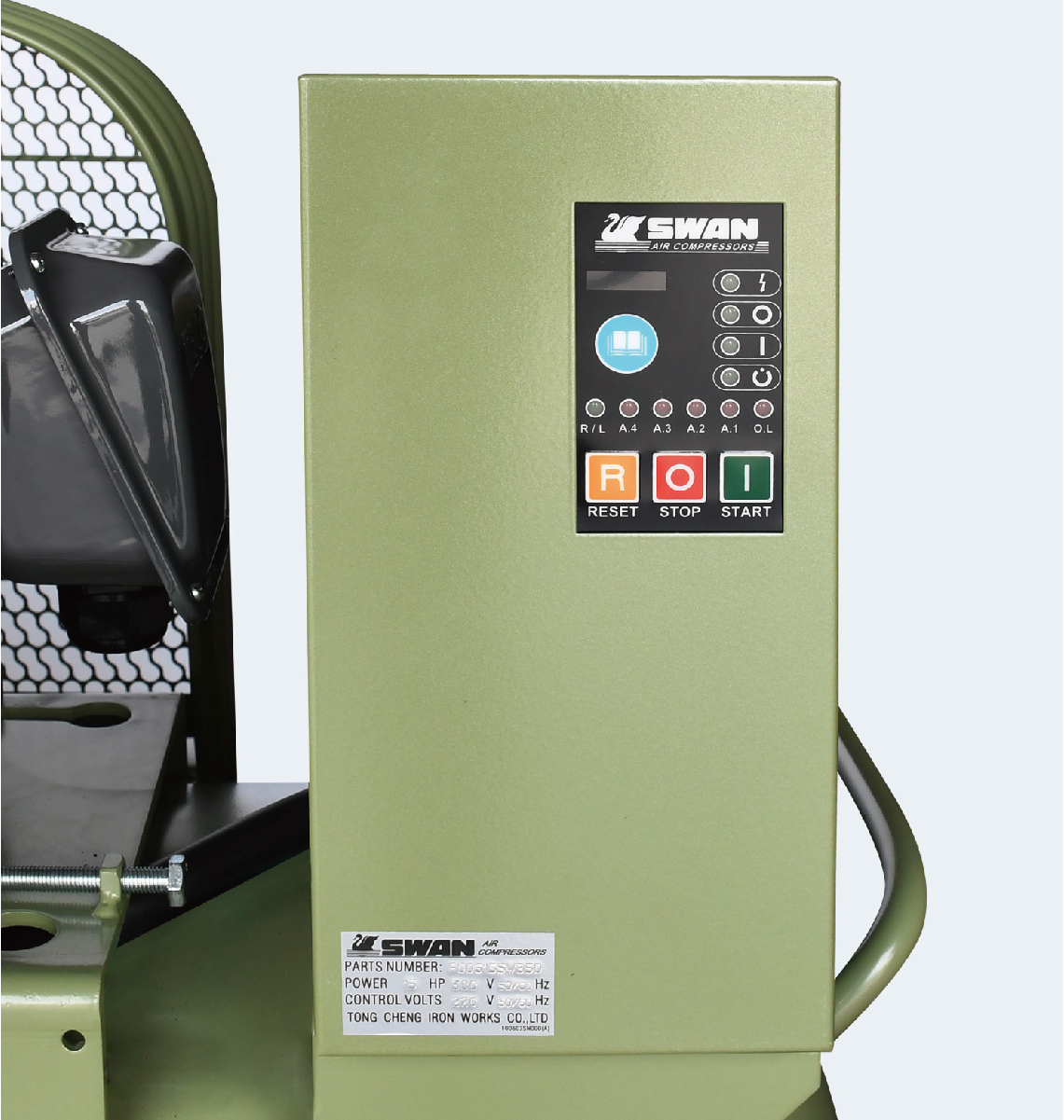

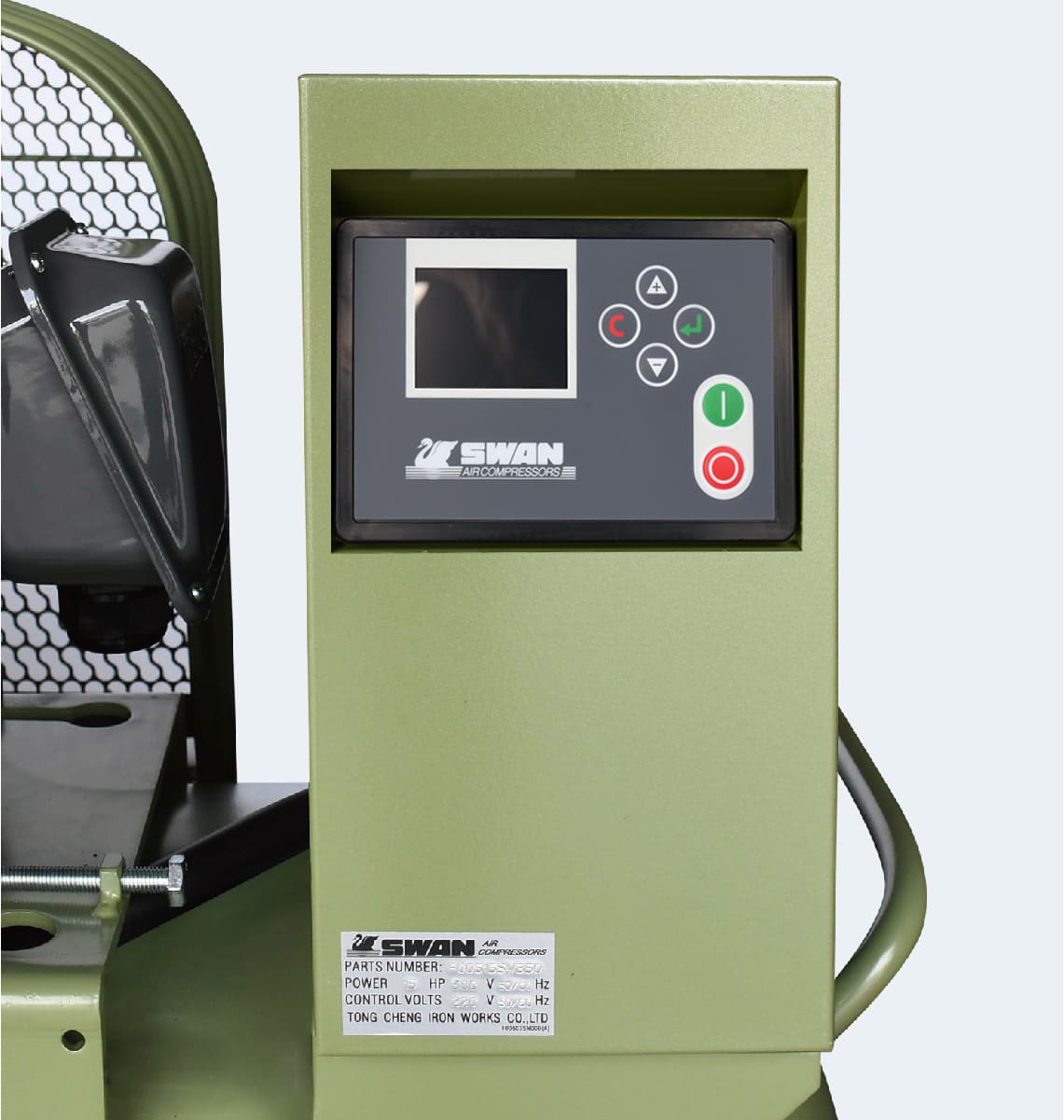

Intelligent control panel

Real time lubrication and non-loading start/stop design to eliminate wearout during on/off.  Flexible remote control offer humanized operation. Intelligent auto-control able to adjust self protection based on actual air consumption.  Running status and failure will be indicated on control panel, allow operator to react at first moment.

Patented drain valve on top of air tank

Exclusive patented water drain valve on top of the air tank, able to exhaust condensed water accumulated in air tank.  Further to reduce possibility of tank rust and extend durability.

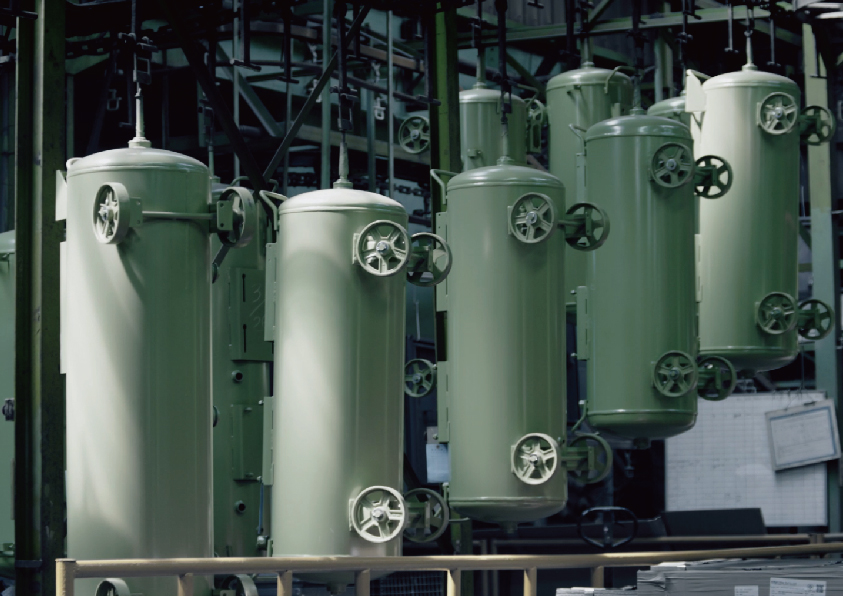

Powder coated air tank

Air tank prepared by initially shot blasting, thicker powder coating applied to ensure bright and durability surface protection.

Enviromental friendly coating process also been applied during manufacturing.




SN series with special lubrication pump design, specially for certain environment and applications. Compressor pump by gold painting, accompany with durable powder coating air tank. Centralize check points for easier maintenance.

Easy spare parts replacement able to let daily maintenance practical and convenient.

For 24 HRS continuous running, heavy compressed air loading and frequent on/off, SN series may fit requirement.


Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Tank Capacity (liter) Dimension (mm) (L*W*H) Weight (kg)

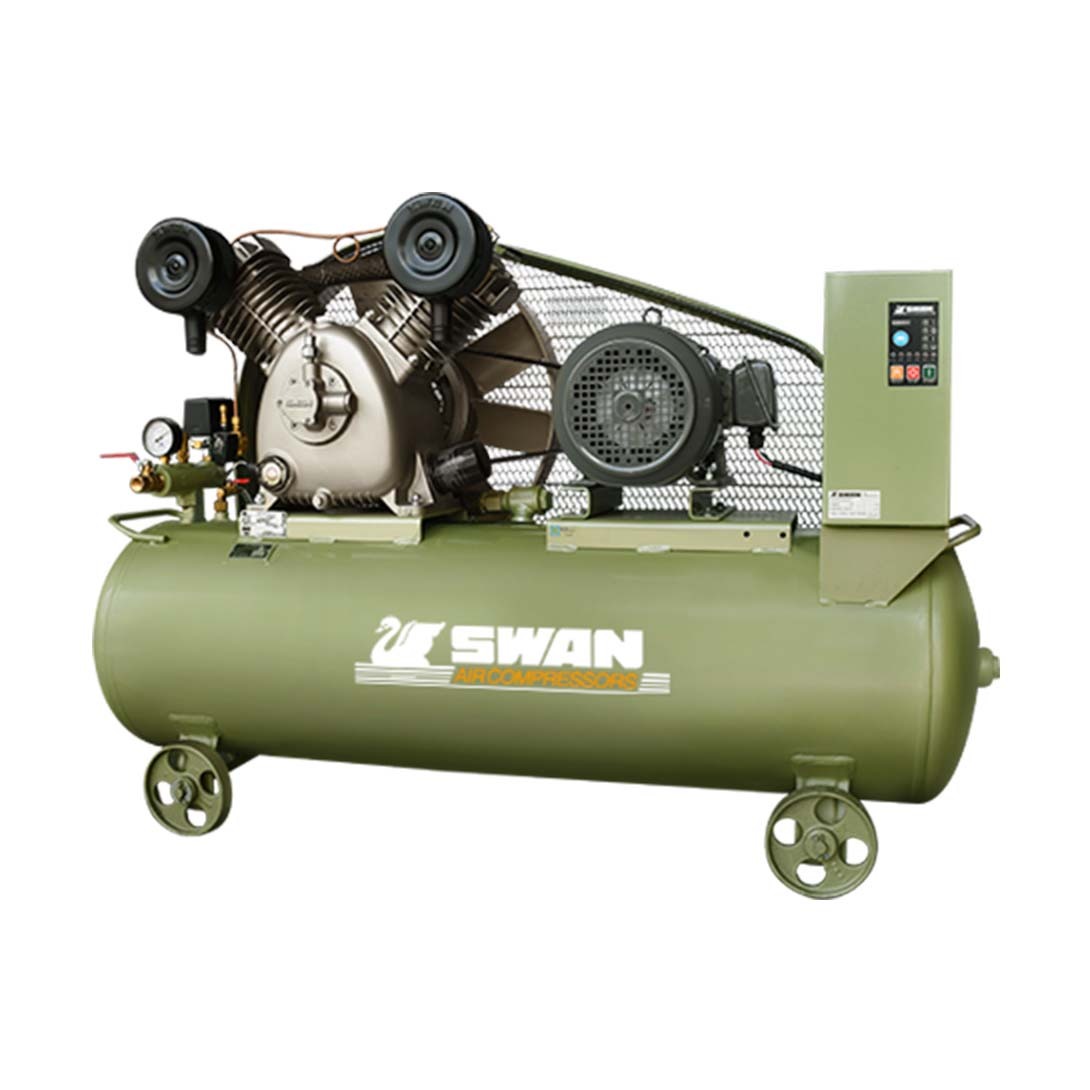

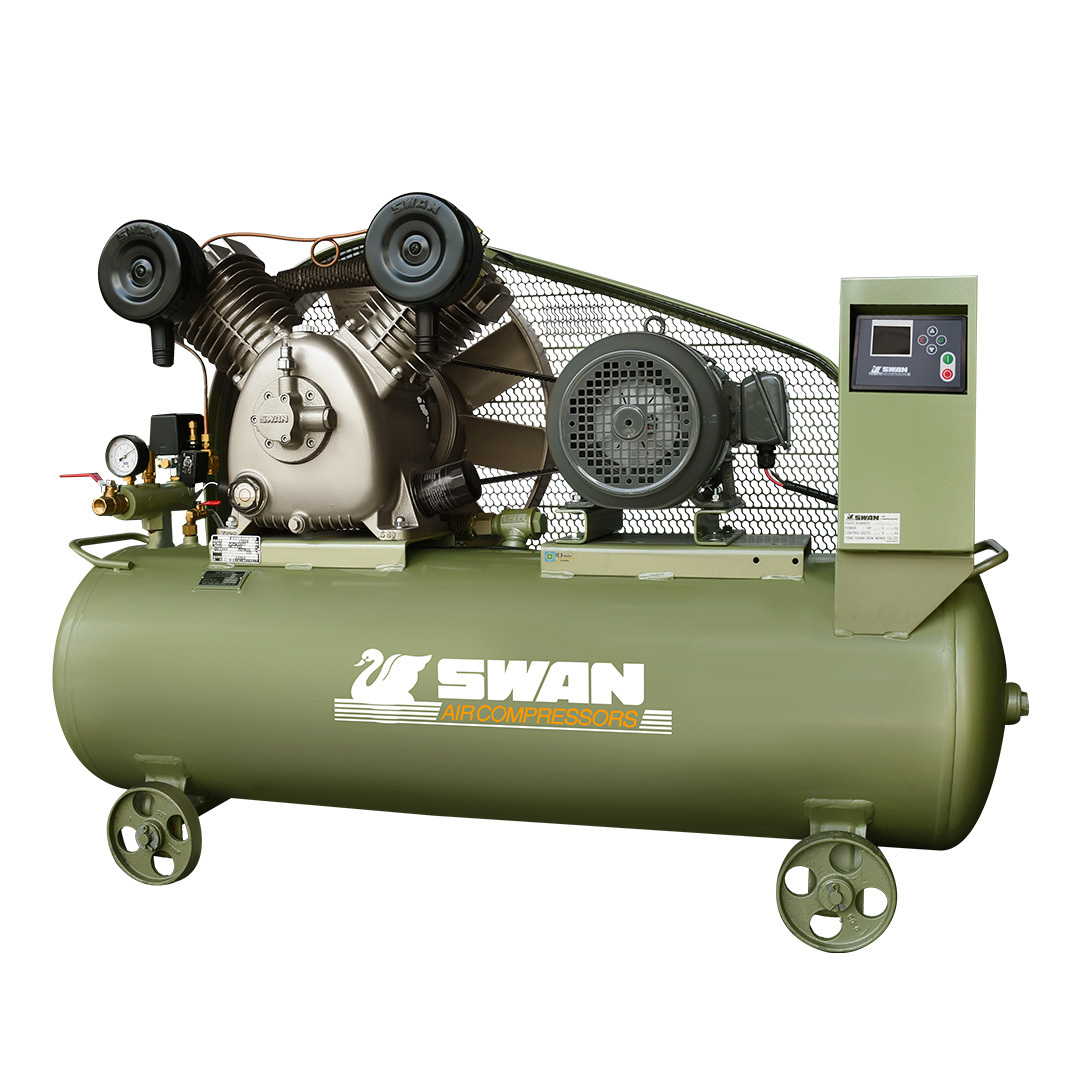

SVU-205N 5 3.7 8 0.450 155 1400X520X980 182

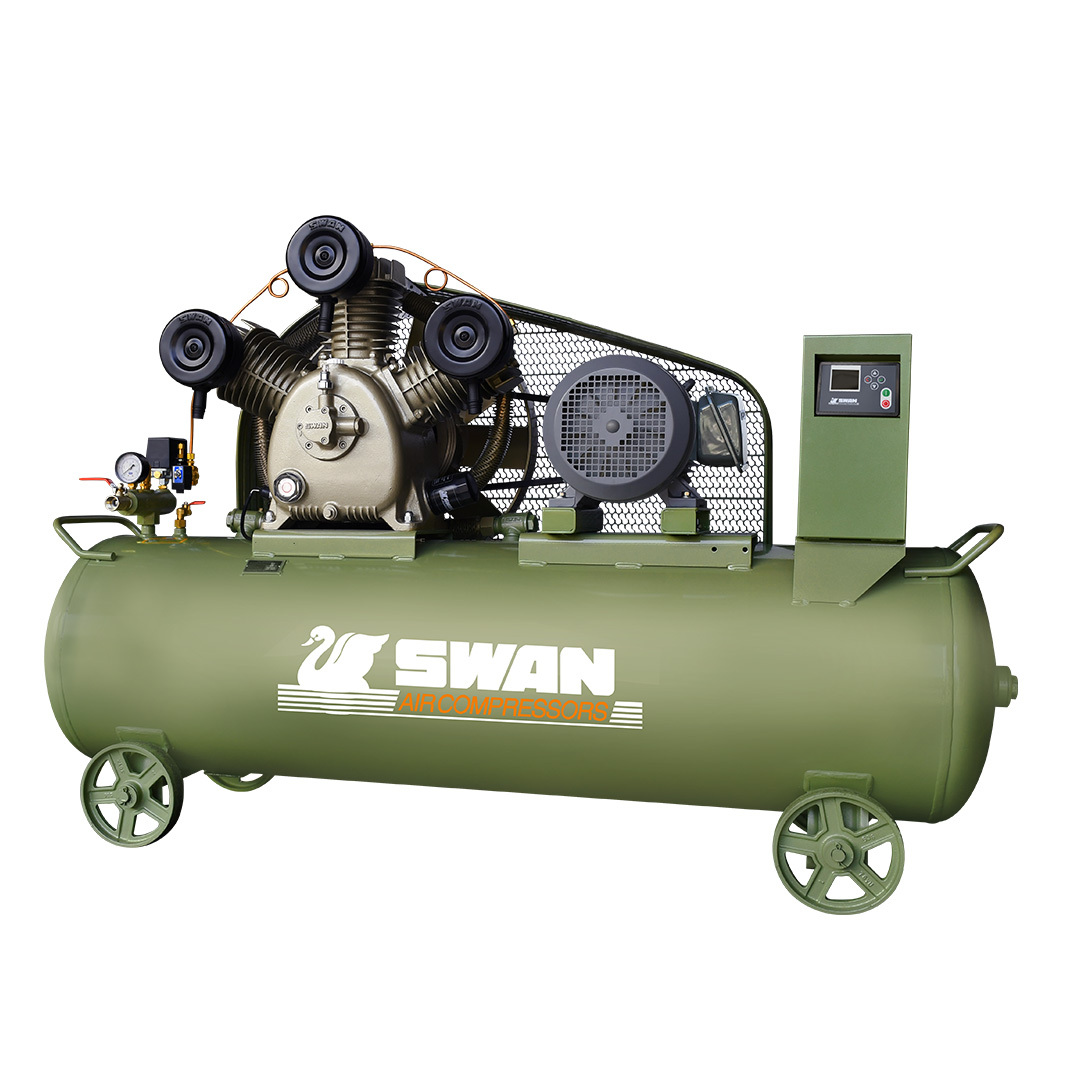

SWU-307N 7.5 5.5 8 0.723 240 1470X650X1150 243

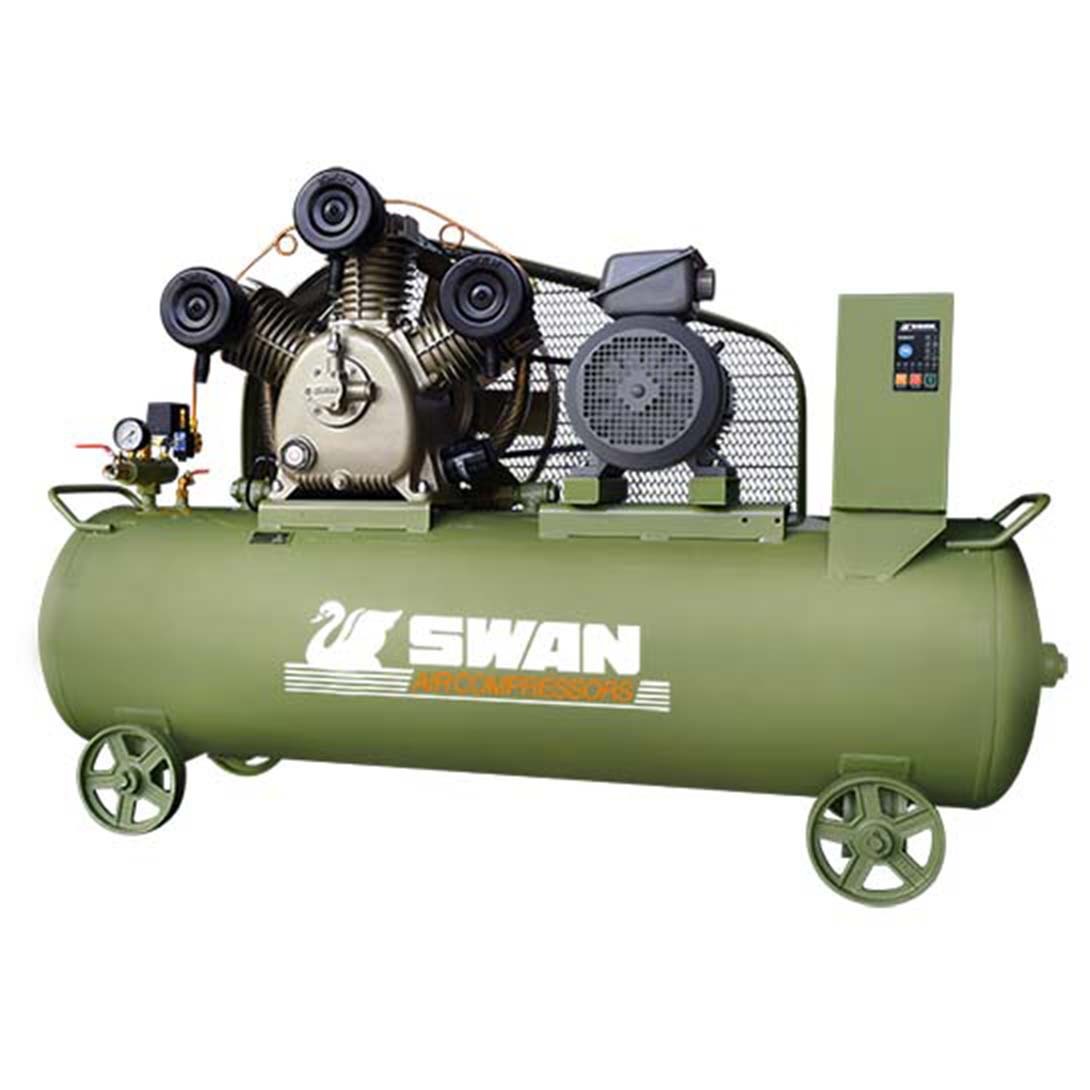

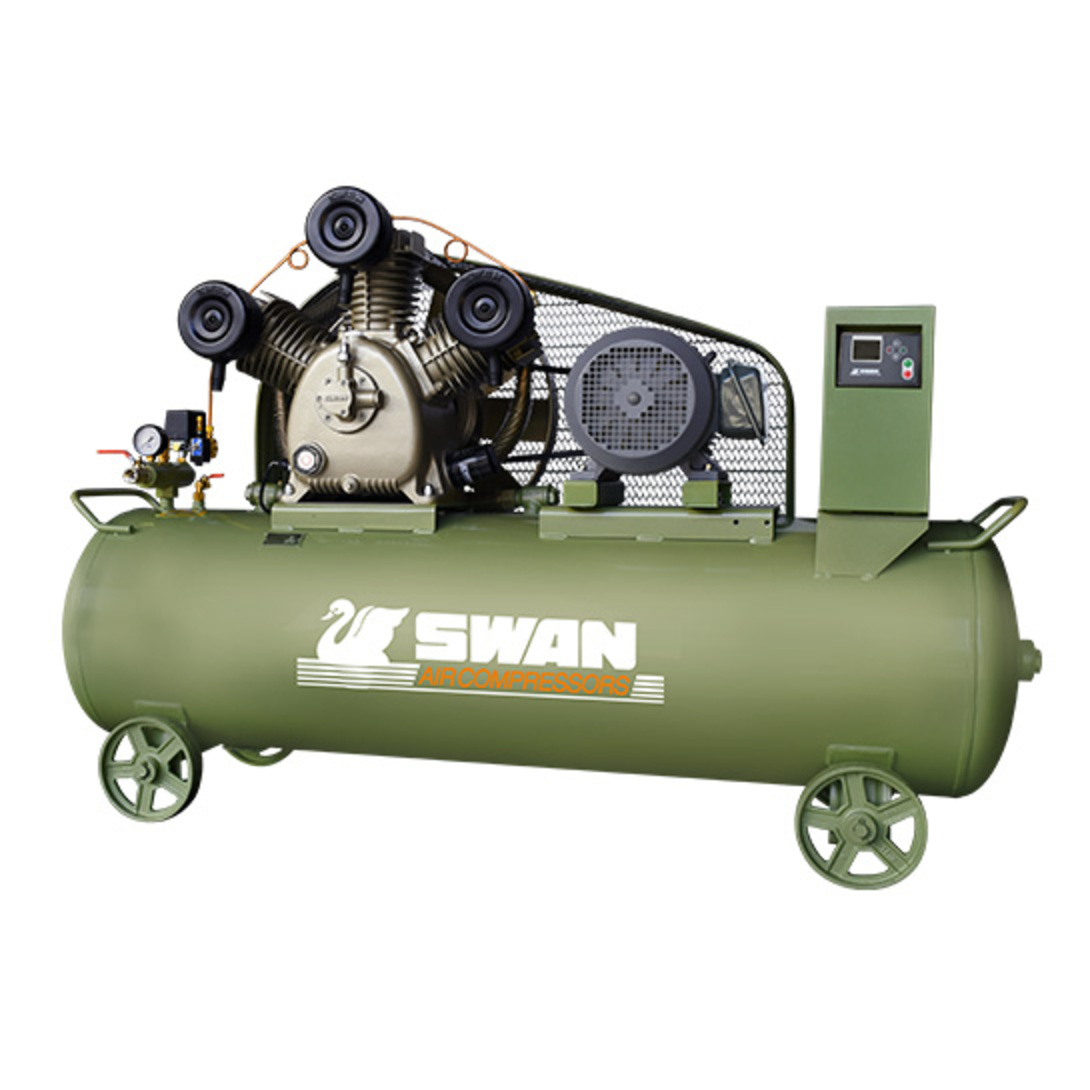

SWU-310N 10 7.5 8 0.955 300 1835X650X1200 263

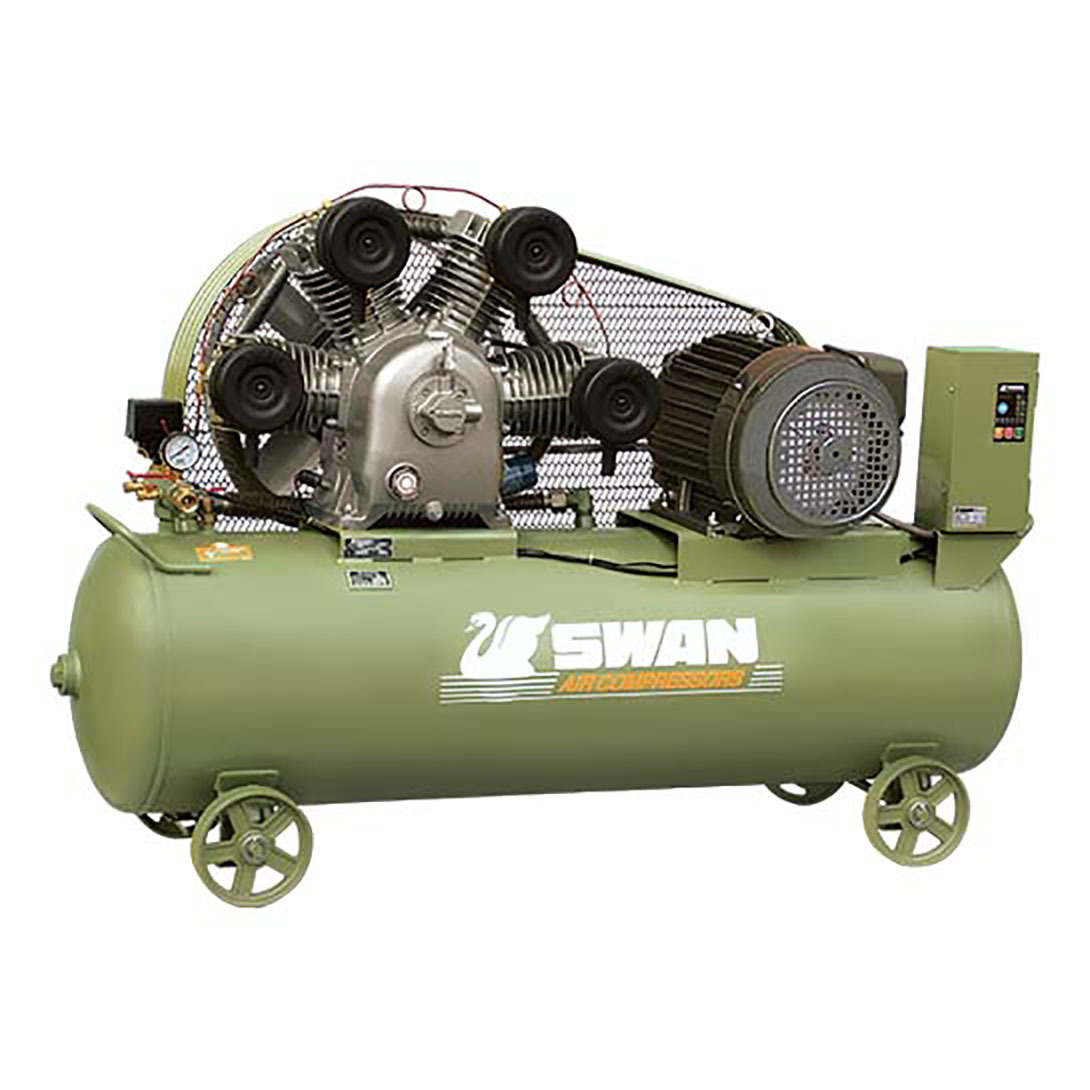

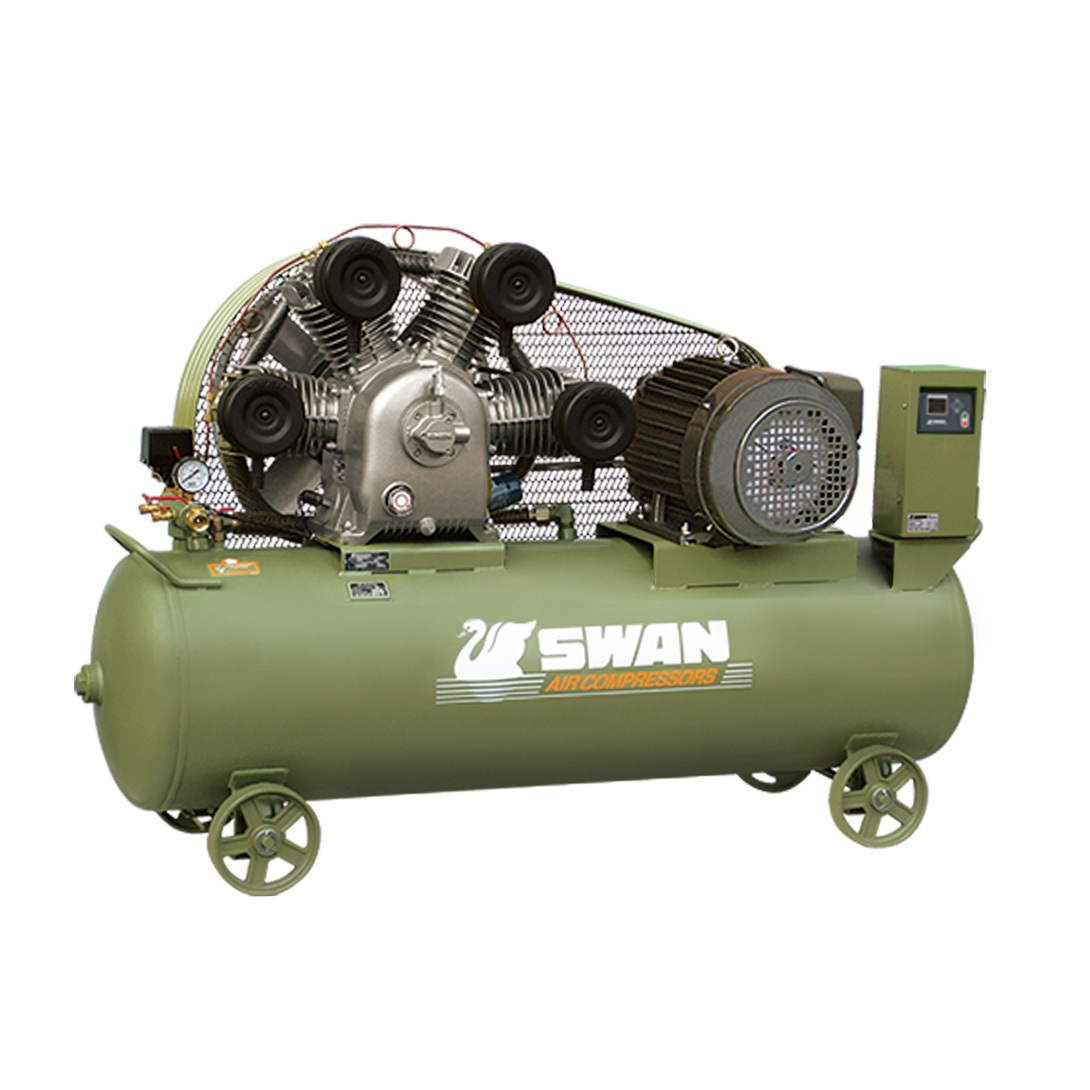

SWU-415N 15 11 8 1.229 300 1835X650X1200 290
SVU(P)-215 15 11 7 1.520 400 1650X750X1480 560

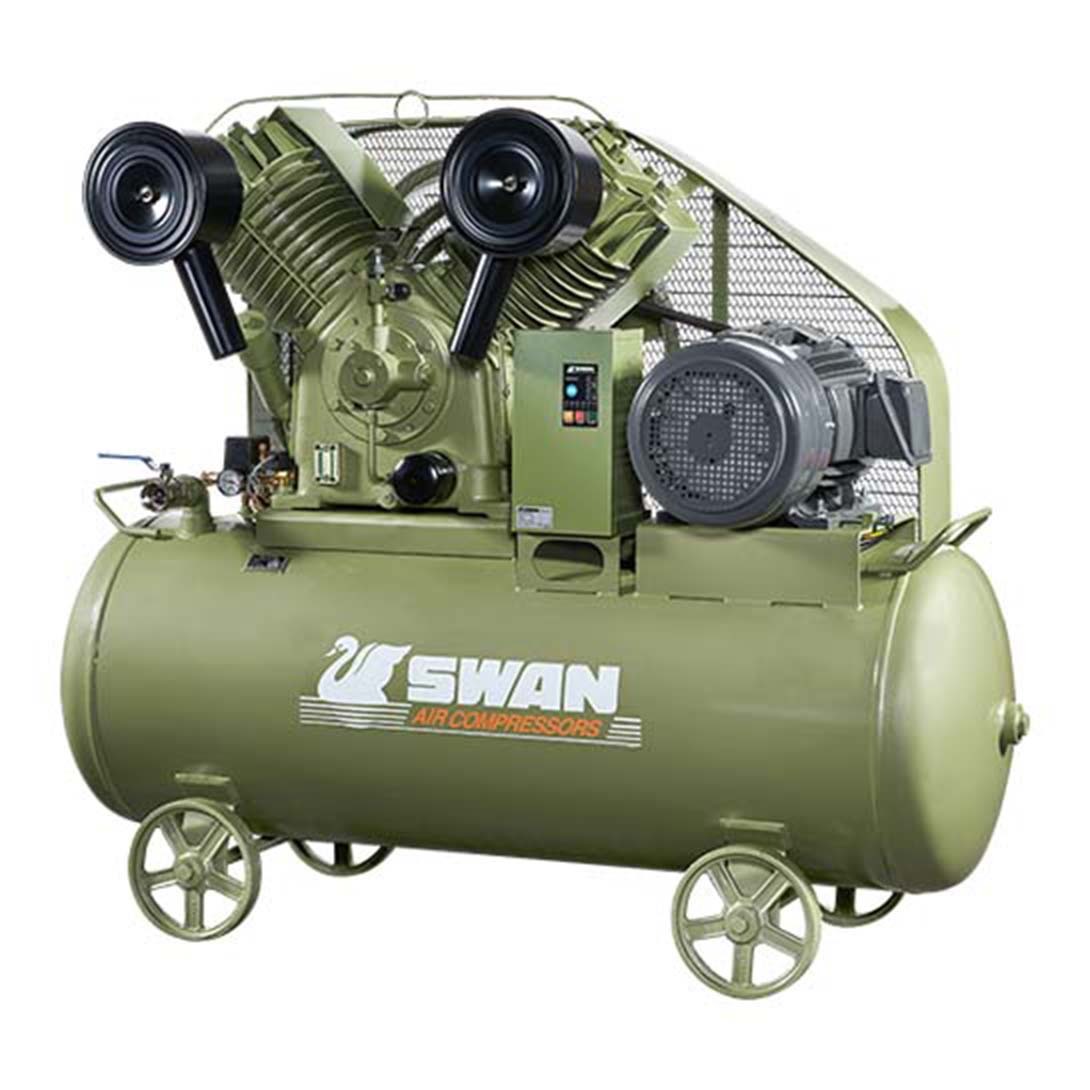

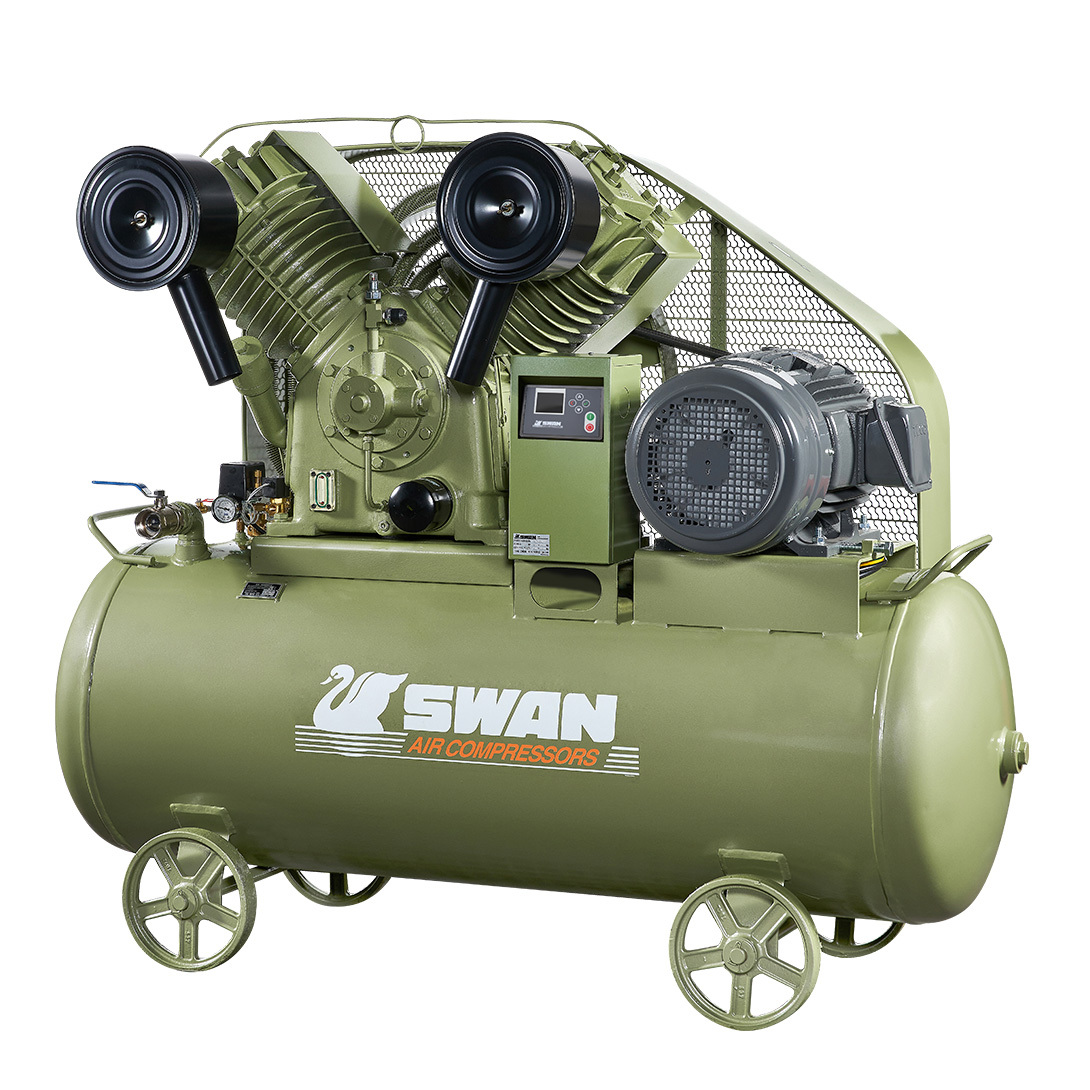

SVU(P)-220 20 15 8 2.000 400 1650X750X1480 560
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
