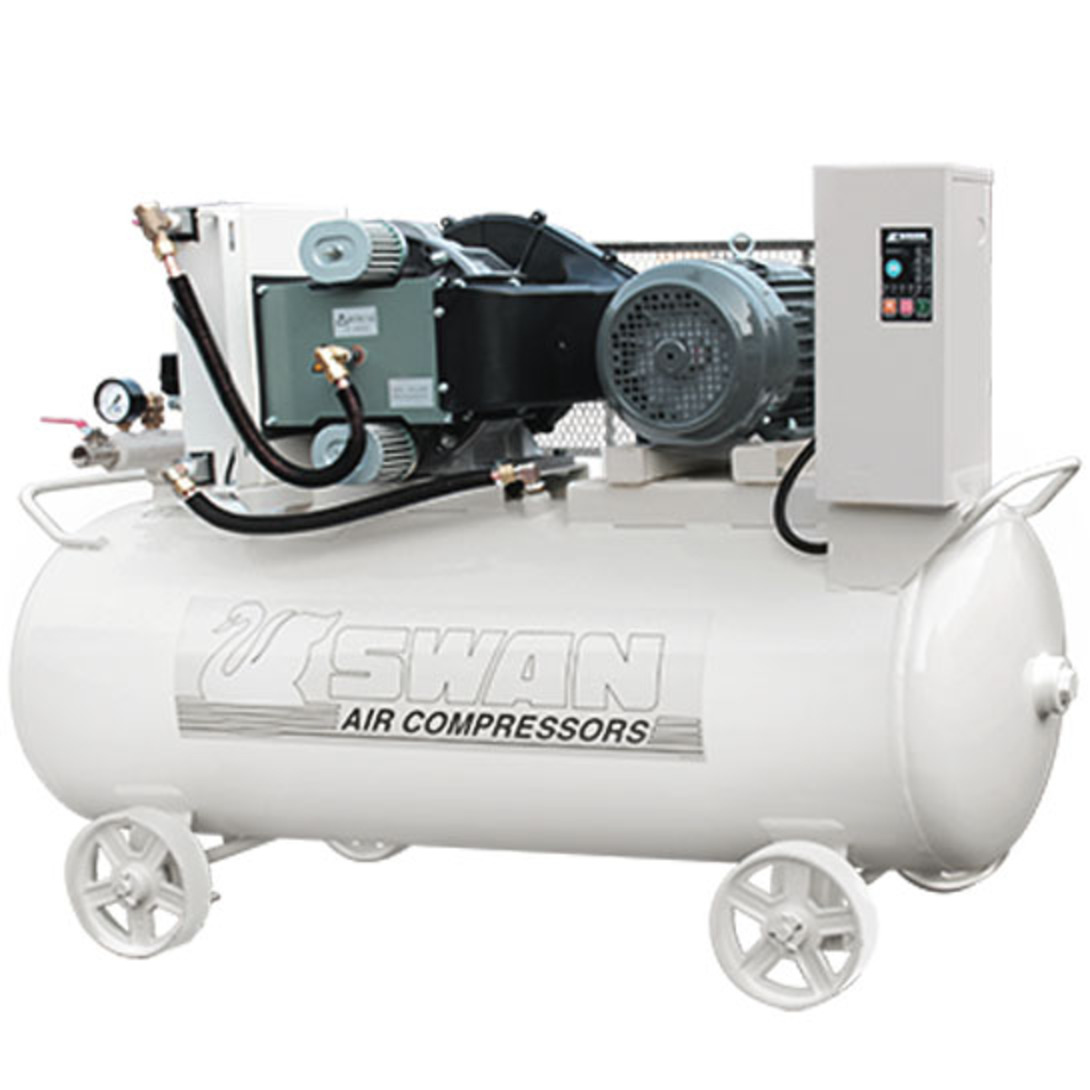

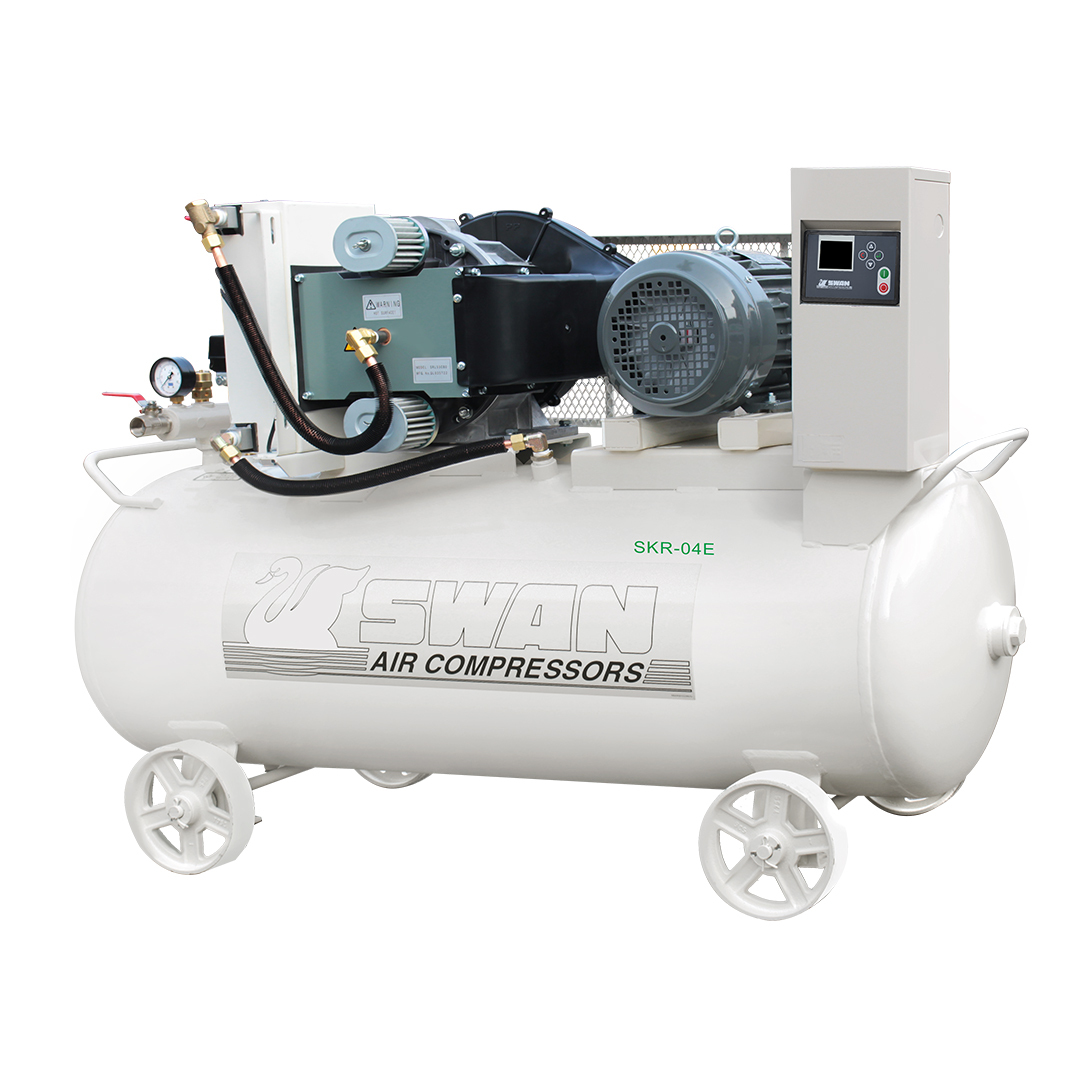

SKR-E Series

Scroll oil-less air compressors (open type mounted on the air receiver). Auto on-off/air cooling/belt drive, air dryer is optional.

Specifications

  • Horse power (HP) 3~7.5
  • Working pressure (kg/cm²) 8~10
  • Capacity (m³/min) 0.20~0.60

SCROLL OPEN  SERIES

Intelligent control, meet demand with the most efficient operation

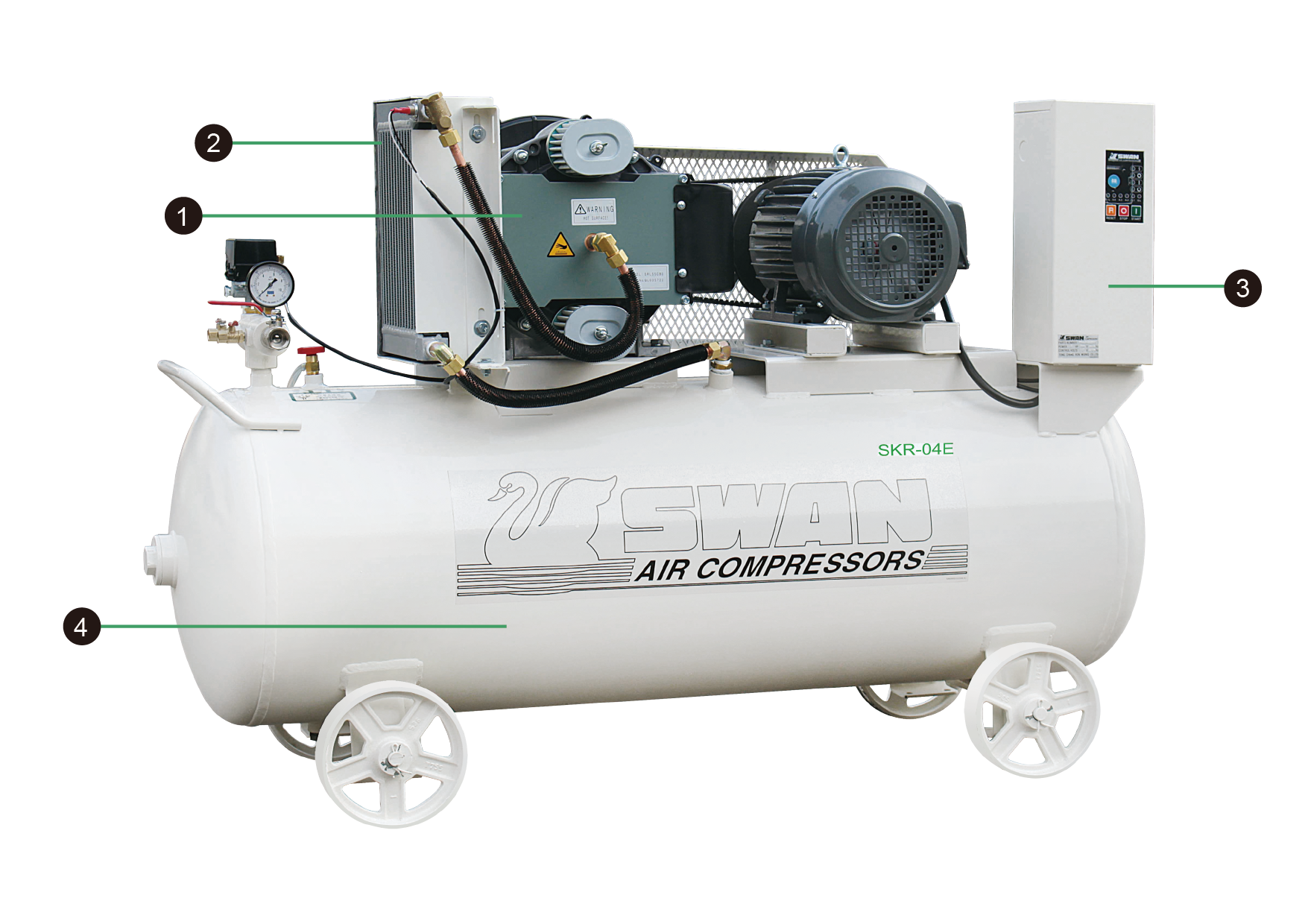

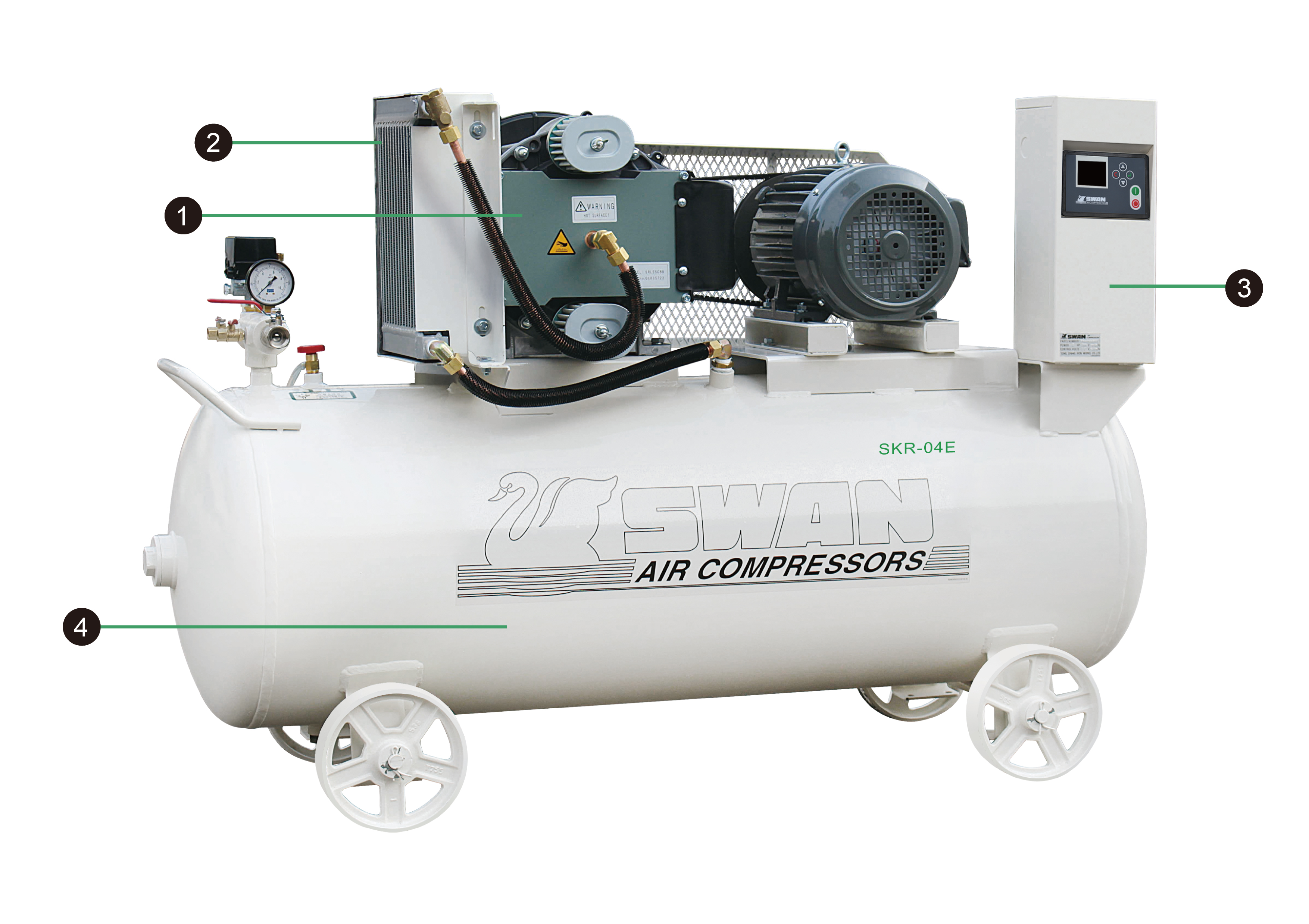

  1. SWAN scroll air end
  2. Aluminum fin cooler
  3. Smart controller SWAN
  4. Open type mounted on the air receiver


INTRODUCTION OF ACCESSORIES

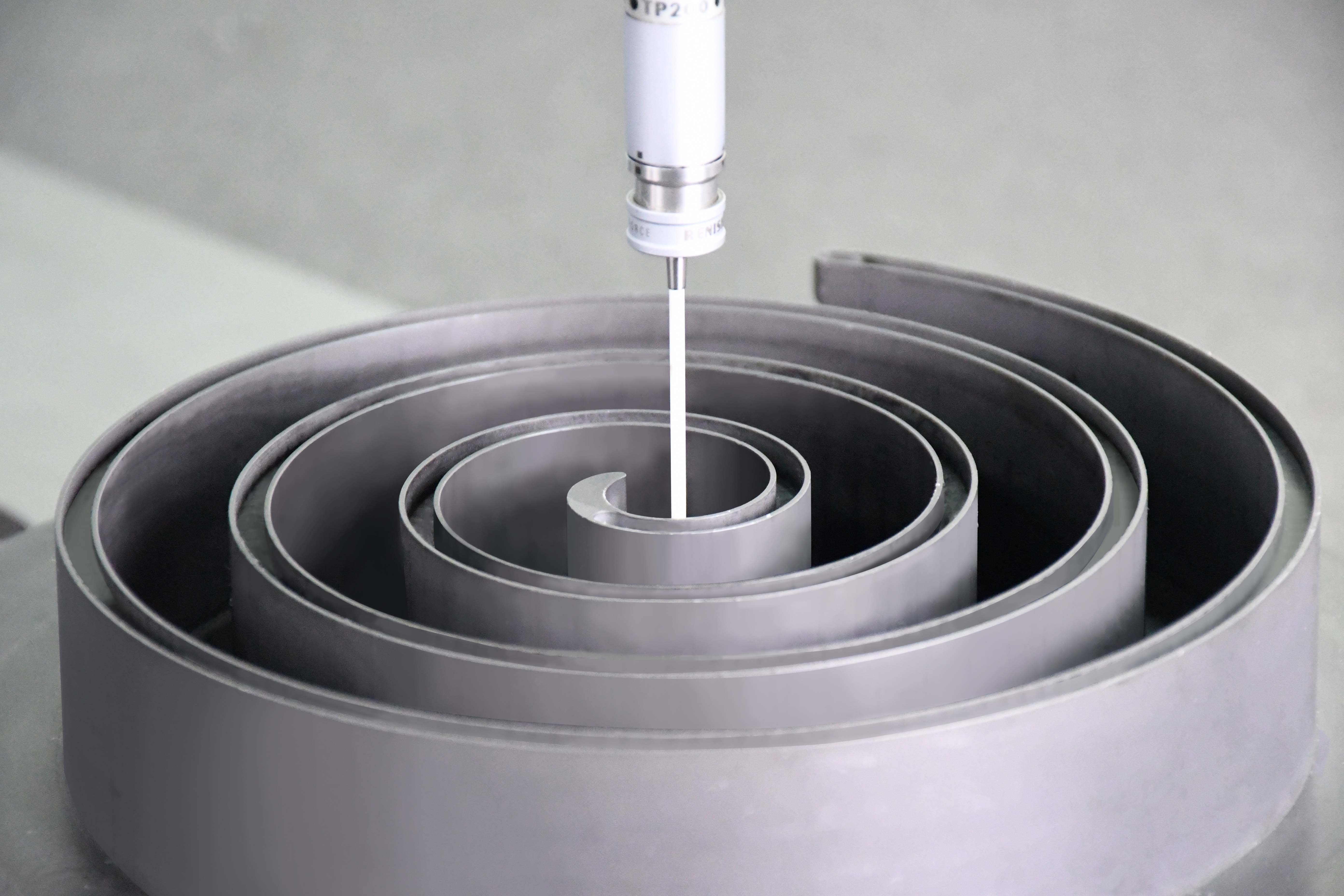

SWAN scroll air end

Low vibration, quietness, and low noise, with dual or multiple operation units to meet different displacement requirement to optimize the air compressor system.

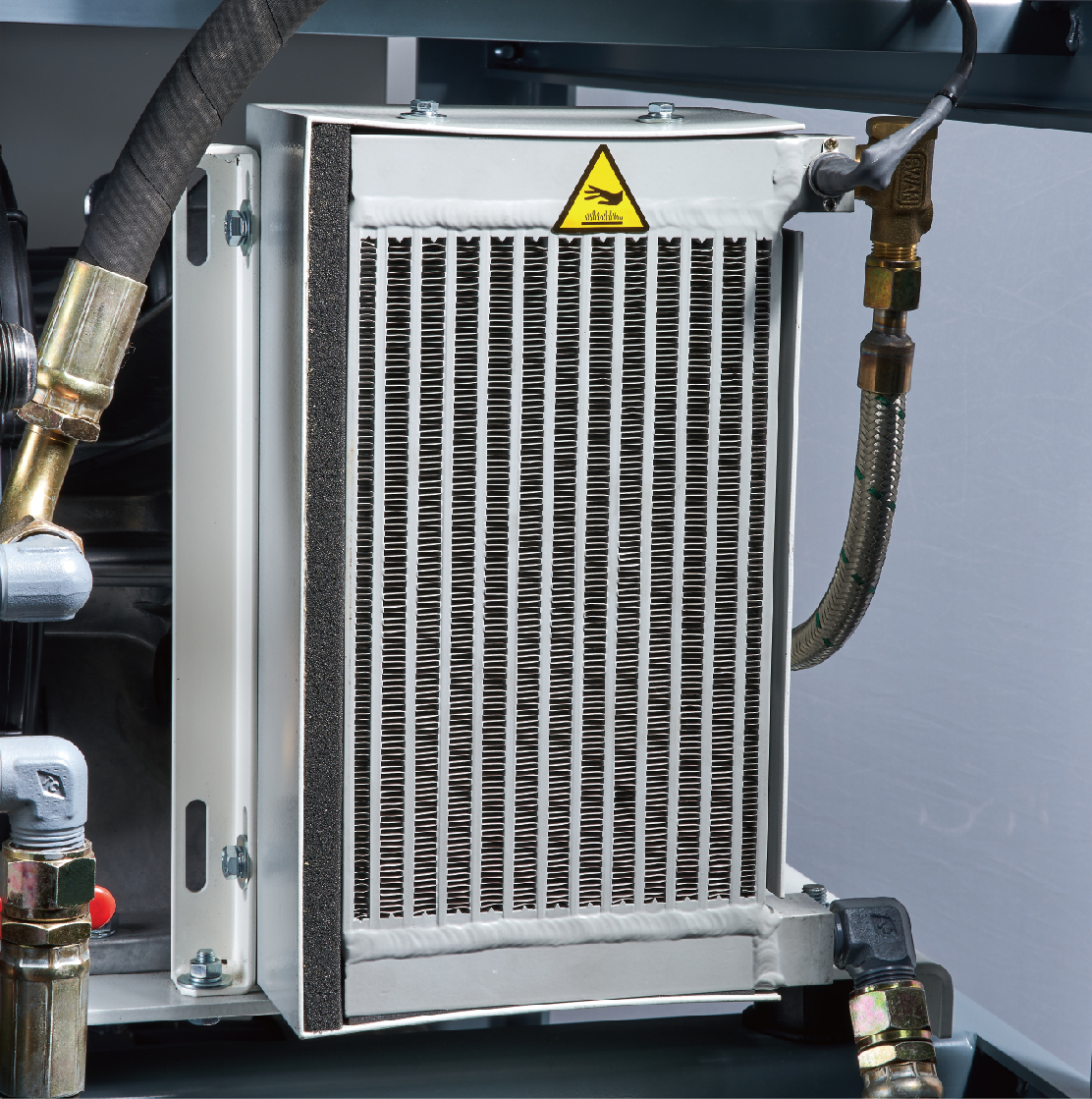

Aluminum Fin cooler

High efficiency aluminum fin cooler, the vane fan dissipate heat effectively, and greatly reduce the temperature in the cabinet, that benefits to the air compressor withstand constant running, more stable with longer service life.

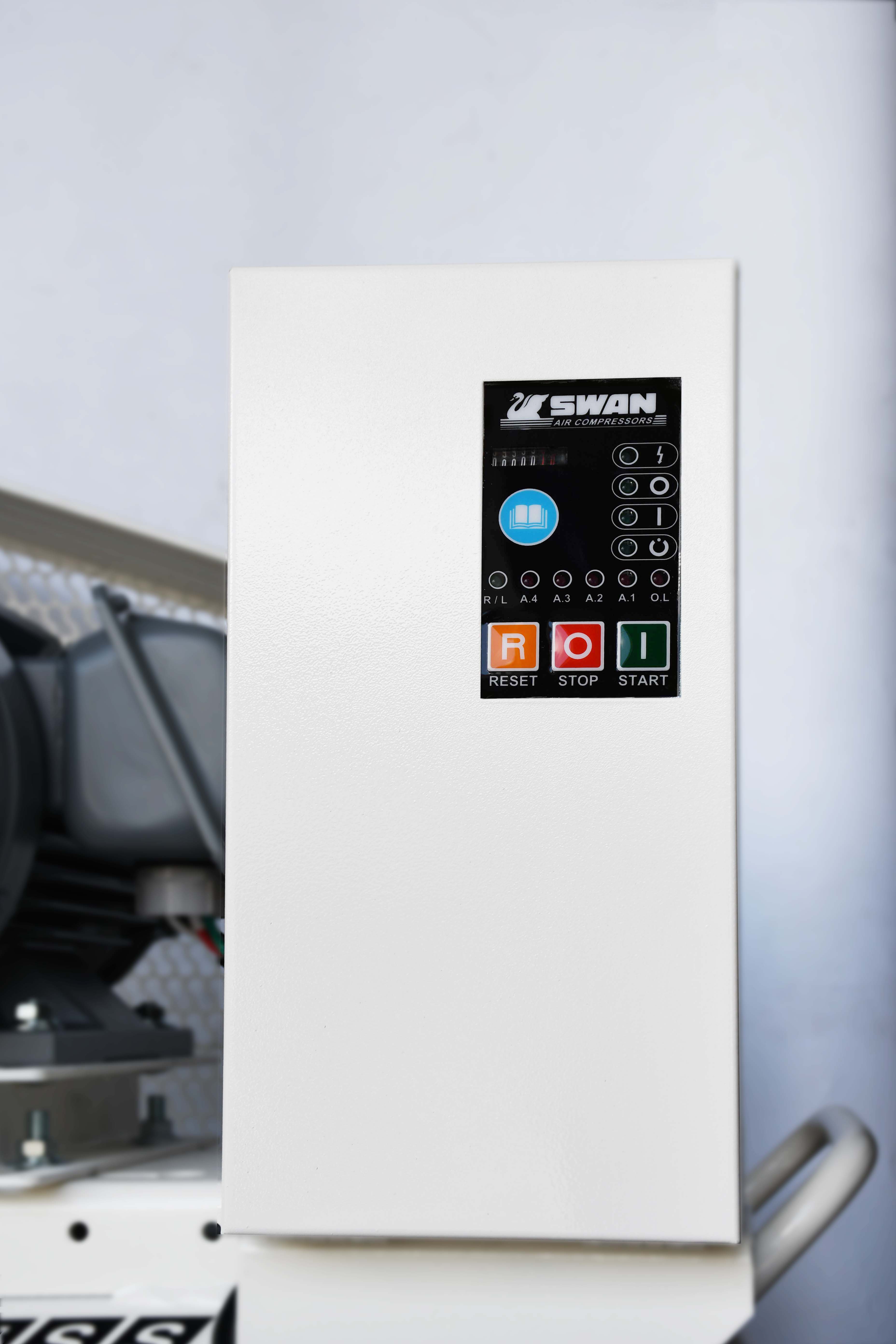

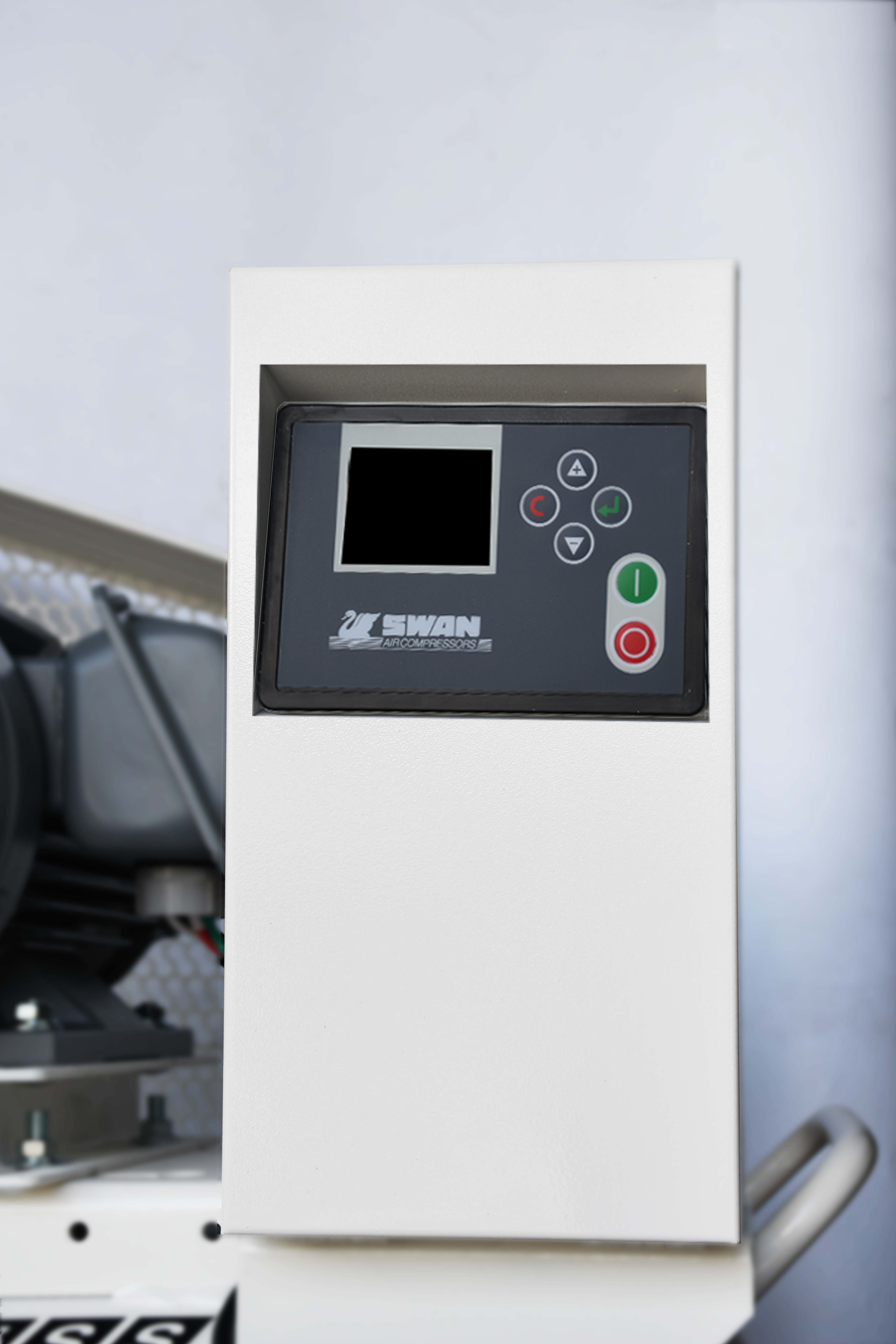

Smart controller

According to different air discharge quantity the Smart Controller available for remote control, configure and optimize the operation performance, the Smart Controller automatically be adjusted to an automatic or semi-automatic operation mode.

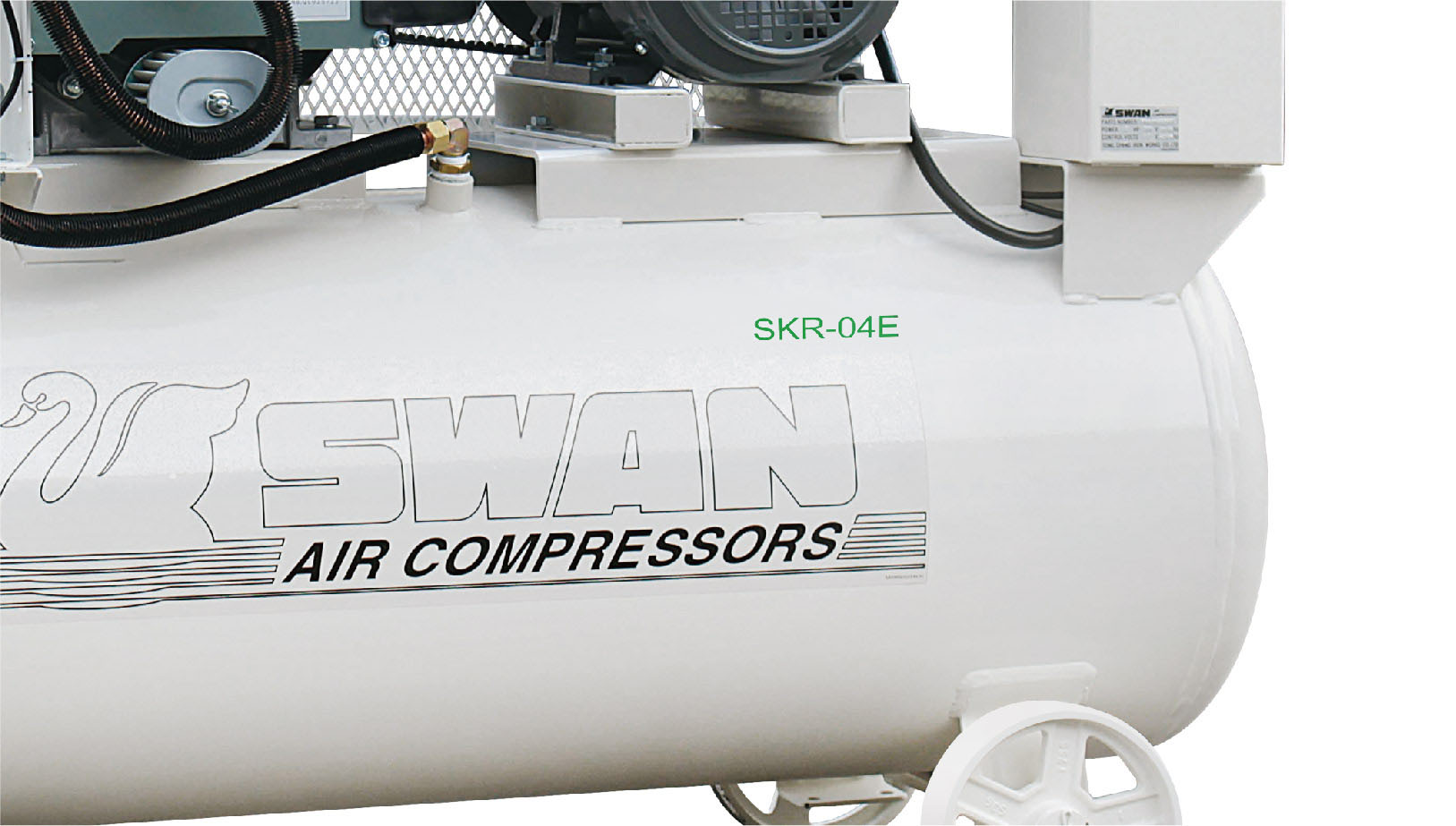

Air receiver mounting type

The integrated design that saves installation space for your factory.

PRODUCCT FEATURES

Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Dimension (mm) (L*W*H)
SKR-02E 3 2.2 8 0.24 1490X600X930
SKR-02E 3 2.2 10 0.20 1540X600X930
SKR-04E 5 3.7 8 0.40 1540X600X930
SKR-06E 7.5 5.5 8 0.60 1850X600X930
SKR-06E 7.5 5.5 10 0.44 1540X600X930
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
