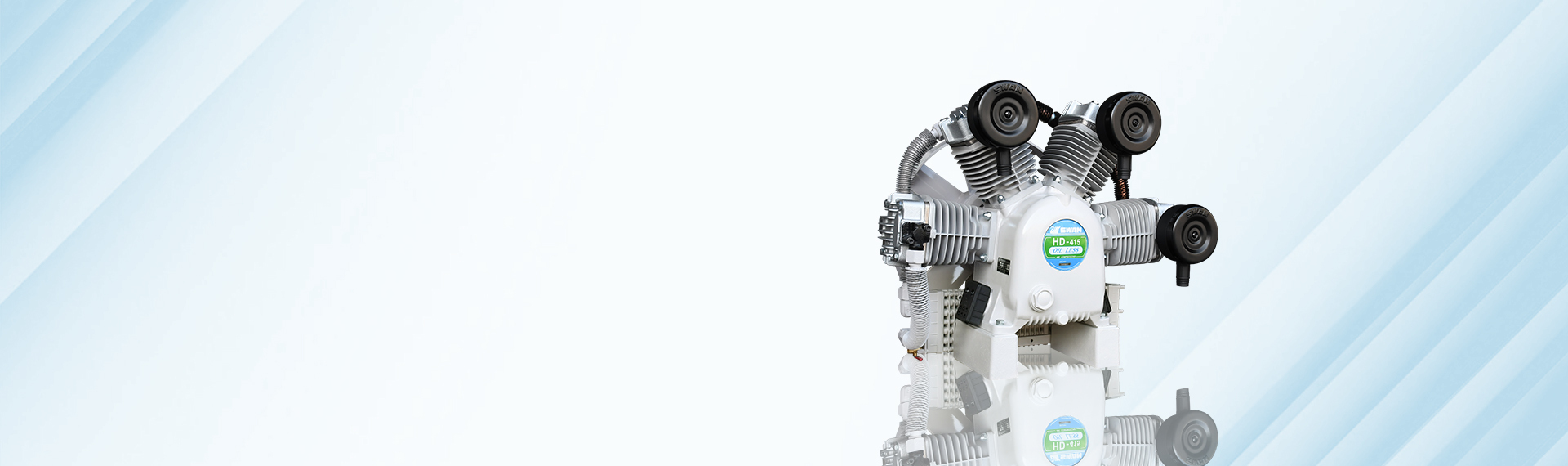

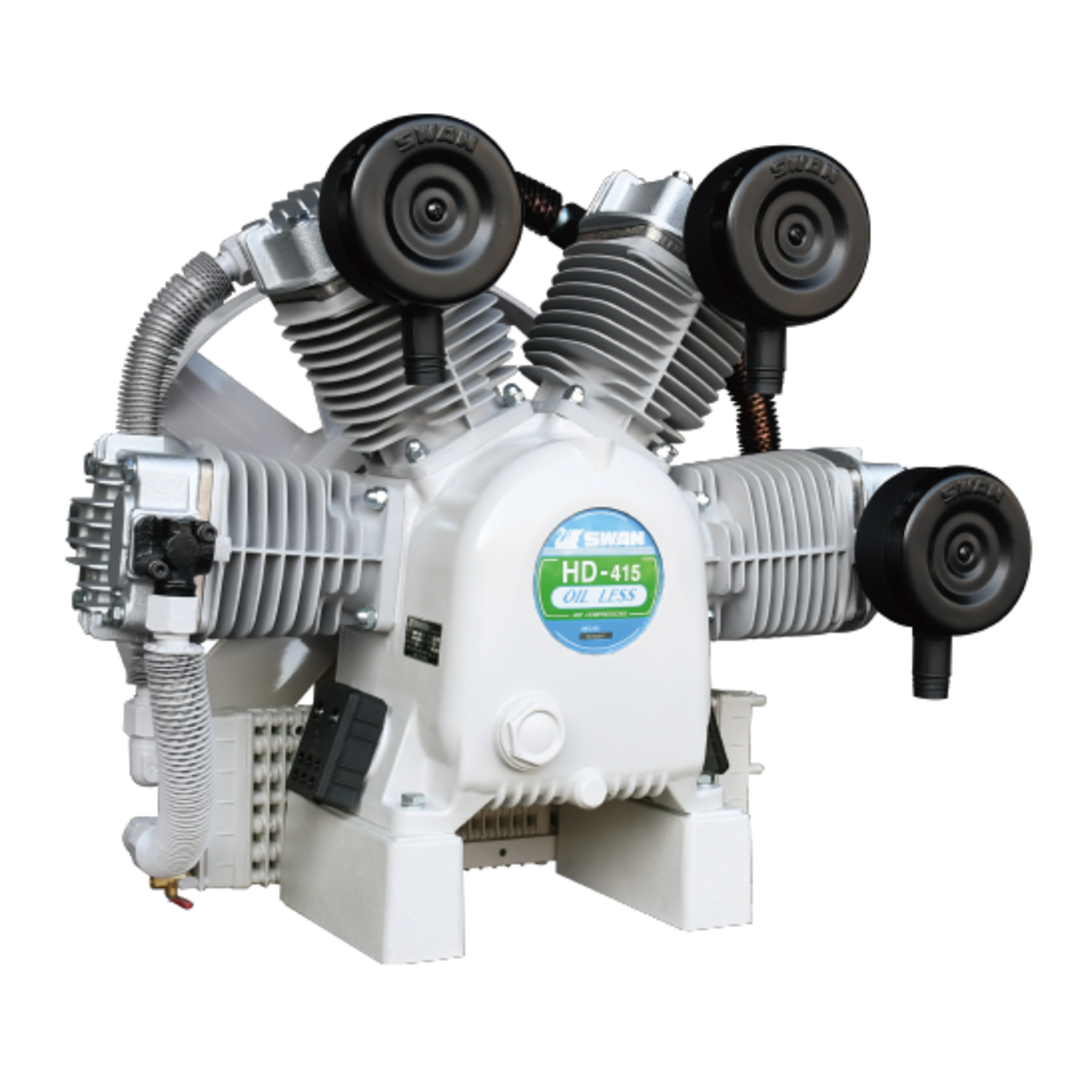

Hannover Messe HDP-415

SWAN oil-free air compressors are designed with environmental considerations in mind, providing oil-free and contaminant-free compressed air to meet your requirements.


  • Horse power (HP) 15
  • Working pressure (kg/cm²) 12
  • Capacity (m³/min) 1.072


No need to add lubricating oil, oil-free design, environmentally friendly

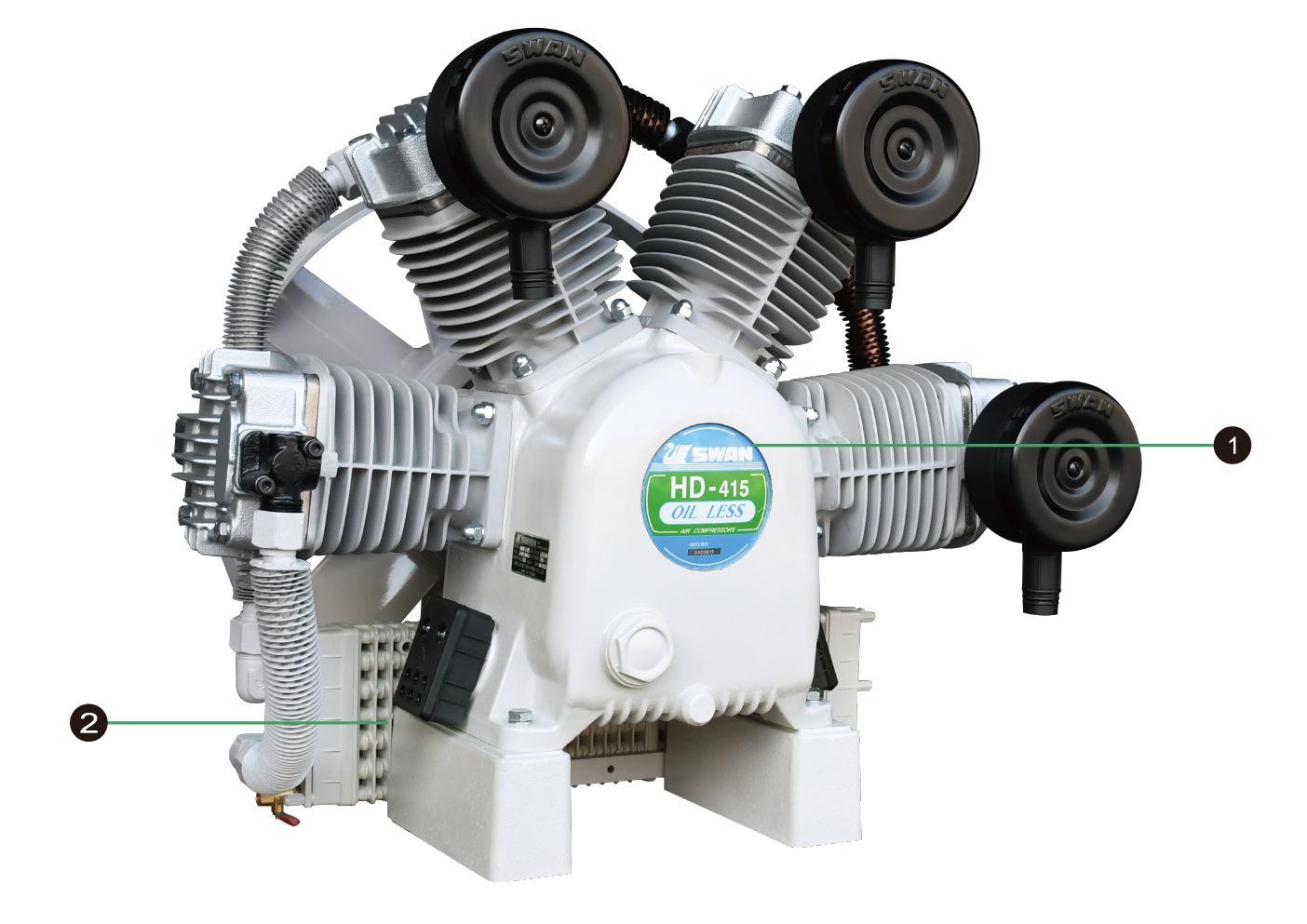

  1. SWAN oil-free high pressure bare pump
  2. High efficiency air cooling system

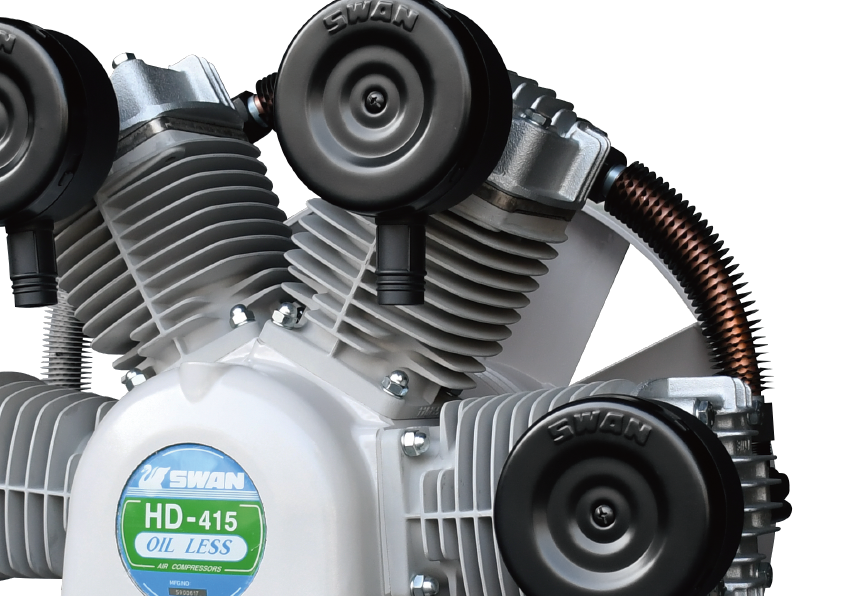

SWAN oil-free high pressure bare pump

SWAN exclusive patented bare pump, using a variety of high-reliability precision components, completely oil-free structure design and simple belt adjustment mechanism, effectively increase the life of the air compressor, greatly reduce the cost of the air purification system, and provide you with better air quality.

High efficiency air cooling system

High efficiency cooling system components, inter cooler and after cooler (optional) that allow for heavy duty continuous operation and greatly reduce running temperature.

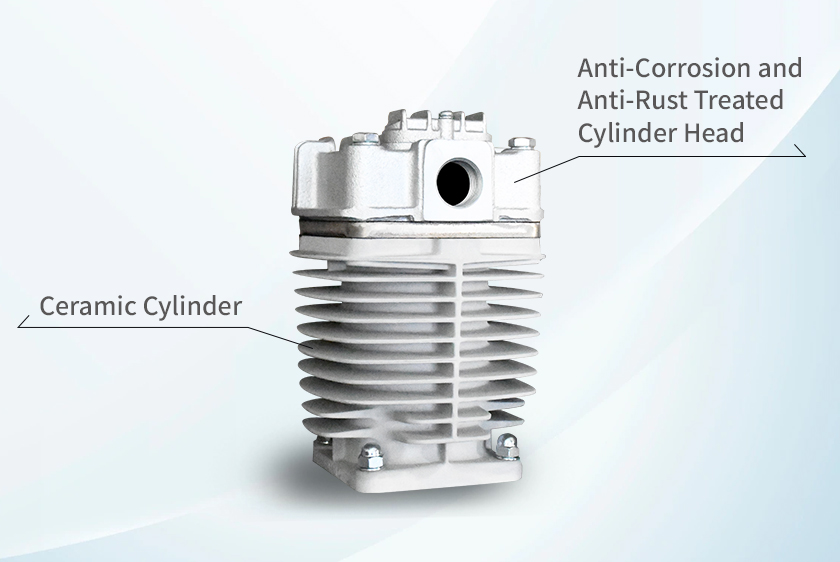

Ceramic Cylinder

Better heat dissipation performance in comparison with aluminum alloy cylinder, which extends the service life of cylinder.

Anti-Corrosion and Anti-Rust Treated Cylinder Head

Treated with Nai-Hsin and Nai-Te to prevent rust and the other problems that follow, such as abnormal operation noise, reduced efficiency and serious damage to the air compressor.



Flexible Design

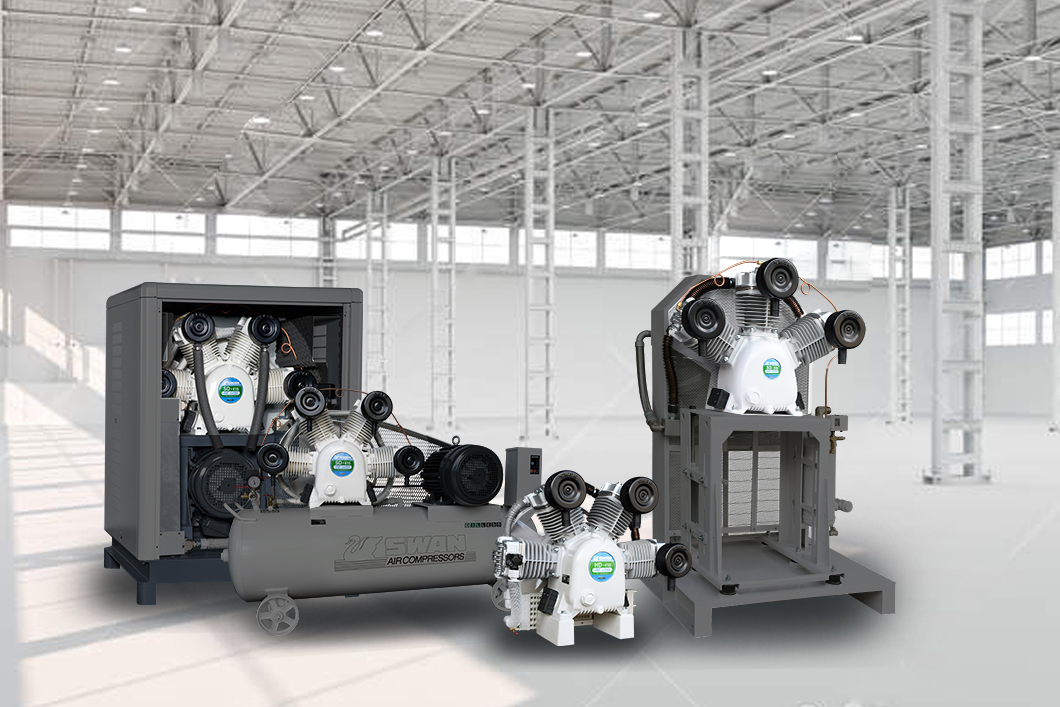

SWAN R&D team is capable of designing base, tank mounted, and cabinet type according to the requirements.

Highly reliable components

High-strength, high-precision, high-reliability component mechanism, 5V type belt and simple belt adjustment mechanism effectively extends running life of the air compressor.

Aluminum alloy cylinder: the cylinder be covered with special treatment to ensure good heat dissipation, wear resistance and smooth running.

Compression ring group: with self-lubricating and anti-friction material to ensure smooth and long-last running.

Compact design connecting rod & bearing:  All bearings are totally sealed with heat resistance grease, together with special heat isolated material.

Detailed specifications

  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
