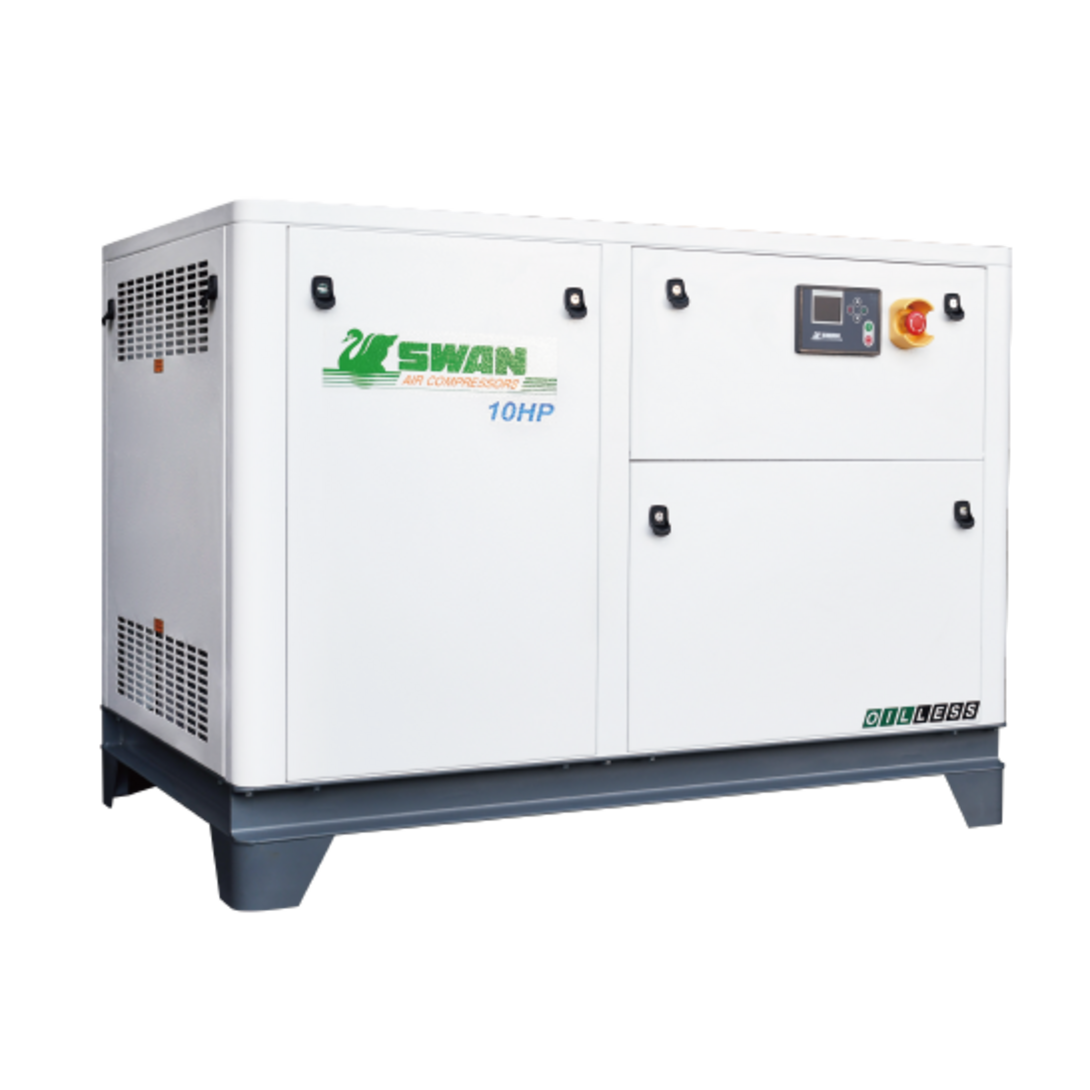

Hannover Series HDD-310C

SWAN oil-free air compressors are designed with environmental considerations in mind, providing oil-free and contaminant-free compressed air to meet your requirements.

Specifications

  • Horse power (HP) 10
  • Working pressure (kg/cm²) 10
  • Capacity (m³/min) 0.732

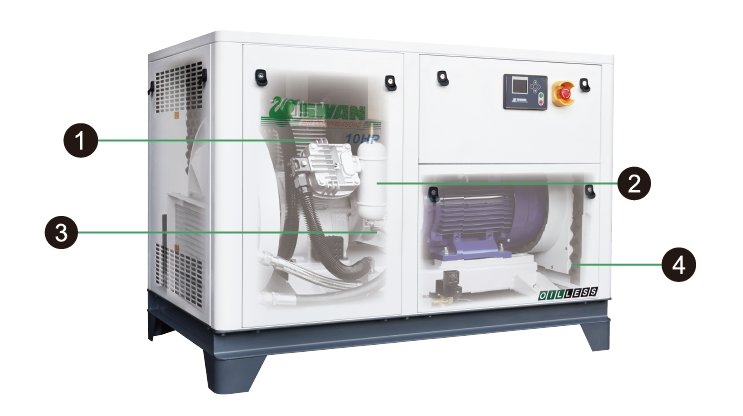

OIL-FREE DIRECT DRIVE SERIES

No need to add lubricating oil, oil-free design, environmentally friendly

  1. SWAN oil-free high pressure bare pump
  2. Two-Stage Compression
  3. Direct-Drive Design
  4. Silent cabinet type design


INTRODUCTION OF ACCESSORIES

Features of oil-free compressors

SWAN's oil-free reciprocating bare pump uses special PTFE material for guide rings and compression rings, no need to refuel the pump to avoid oil pollution problems, besides being environmentally friendly.


Two-Stage Compression

Flexible applications in a wide variety of industries with a maximum pressure at 12kg/cm2.

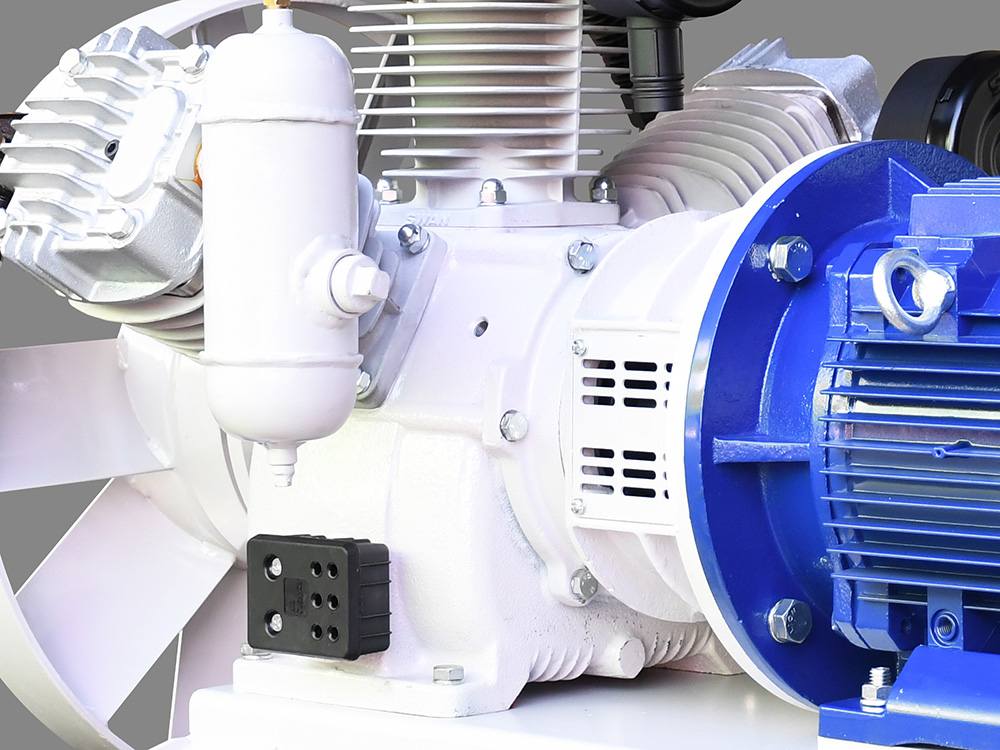

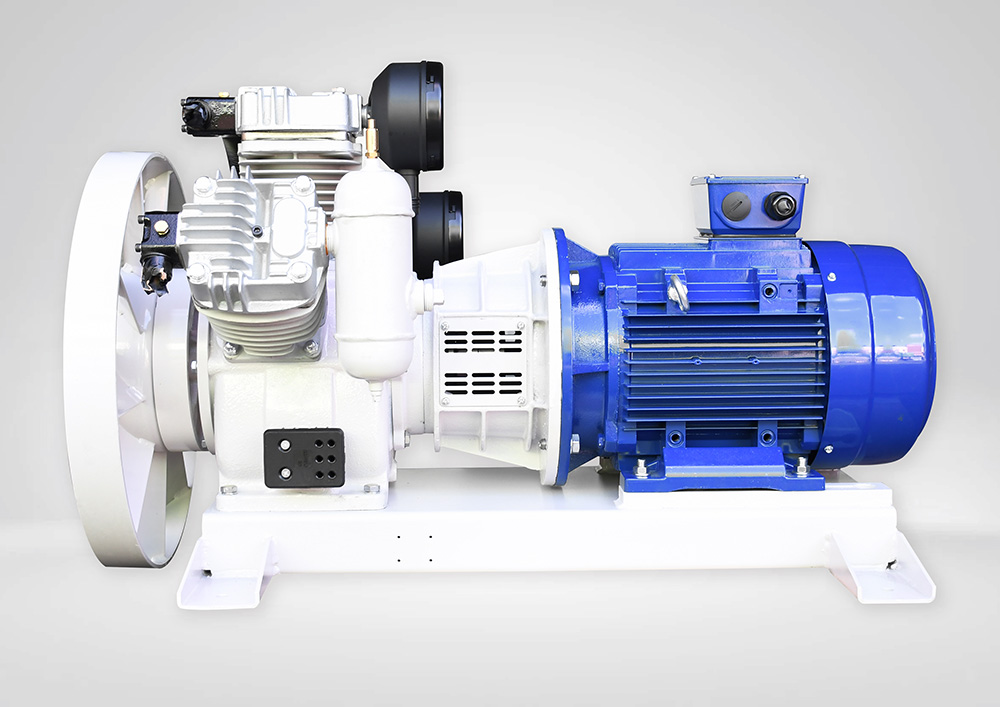

Direct-Drive Design

Compressor pump is connected with motor directly via coupling, which increases the transmission efficiency and reduces unnecessary power lose.


Silent cabinet type design

Adopt strong sheet metal structure, sound-absorbing material, and high efficiency soundproof design to effectively reduce running noise and vibration.


PRODUCT FEATURES


SWAN'S ADVANTAGE

Highly reliable components

High-strength, high-precision, high-reliability component mechanism, 5V type belt and simple belt adjustment mechanism effectively extends running life of the air compressor.

Aluminum alloy cylinder: the cylinder be covered with special treatment to ensure good heat dissipation, wear resistance and smooth running.

Compression ring group: with self-lubricating and anti-friction material to ensure smooth and long-last running.

Compact design connecting rod & bearing:  All bearings are totally sealed with heat resistance grease, together with special heat isolated material.





Ceramic Cylinder

Better heat dissipation performance in comparison with aluminum alloy cylinder, which extends the service life of cylinder.

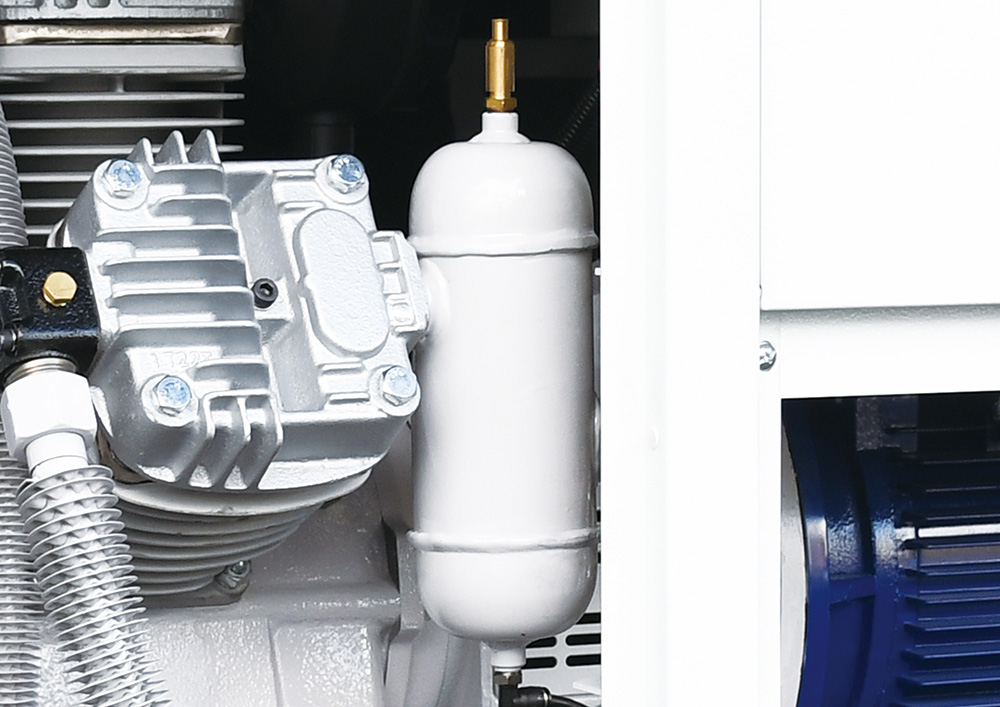

Anti-Corrosion and Anti-Rust Treated Cylinder Head

Treated with Nai-Hsin and Nai-Te to prevent rust and the other problems that follow, such as abnormal operation noise, reduced efficiency and serious damage to the air compressor.



Detailed specifications

  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
